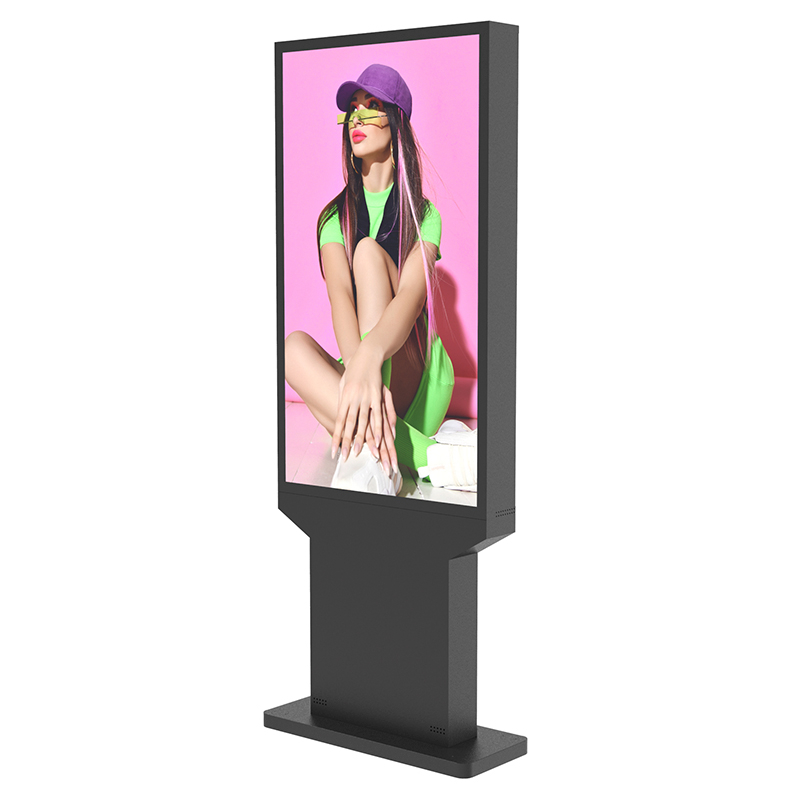

Where standard waterproofing isn't enough. The SplashProof Max features a fully hermetically sealed, stainless steel or reinforced polymer enclosure designed to survive direct, high-impact water exposure and corrosive atmospheres, ensuring continuous operation in the most demanding applications.
| Size: | |
|---|---|
| Panel brand: | |
| Installation: | |
| Warranty: | |
| certificate: | |
| brightness: | |
| Availability: | |
| Quantity: | |
Product Description
**Precise Protection:** Achieves IP54 protection rating, effectively preventing water splashes and moisture intrusion from all directions, and completely preventing dust from contacting internal components, meeting the needs of most semi-outdoor (with shade) and high-humidity indoor environments.
**Clear Display:** Employs a commercial-grade high-brightness LCD panel (700-2000 nits) with anti-glare glass, providing clear images and text display in bright indoor or semi-outdoor lighting, especially suitable for menus, price tags, and information displays.
**Hygienic Design:** The front panel uses seamless, fully flat tempered glass with sealed edges, eliminating blind spots and facilitating easy cleaning and disinfection, meeting the hygiene requirements of restaurants, swimming pools, and other similar venues.
**Flexible Installation:** Supports multiple installation methods including wall mounting, ceiling mounting, and recessed mounting, compatible with standard VESA mount. The slim and lightweight design requires minimal installation foundation.
**Plug and Play:** Interfaces are located in easily protected side or rear compartments, equipped with common interfaces such as HDMI and USB, allowing connection to media players or mini PCs for simple and quick deployment.
Applicable scenarios: drive-thru windows in fast food restaurants, food preparation areas in restaurant kitchens, indoor swimming pools/gyms, subway station passageways, hotel bathroom information screens, car wash entrances in car dealerships, and food processing workshops.

Product Description
**Precise Protection:** Achieves IP54 protection rating, effectively preventing water splashes and moisture intrusion from all directions, and completely preventing dust from contacting internal components, meeting the needs of most semi-outdoor (with shade) and high-humidity indoor environments.
**Clear Display:** Employs a commercial-grade high-brightness LCD panel (700-2000 nits) with anti-glare glass, providing clear images and text display in bright indoor or semi-outdoor lighting, especially suitable for menus, price tags, and information displays.
**Hygienic Design:** The front panel uses seamless, fully flat tempered glass with sealed edges, eliminating blind spots and facilitating easy cleaning and disinfection, meeting the hygiene requirements of restaurants, swimming pools, and other similar venues.
**Flexible Installation:** Supports multiple installation methods including wall mounting, ceiling mounting, and recessed mounting, compatible with standard VESA mount. The slim and lightweight design requires minimal installation foundation.
**Plug and Play:** Interfaces are located in easily protected side or rear compartments, equipped with common interfaces such as HDMI and USB, allowing connection to media players or mini PCs for simple and quick deployment.
Applicable scenarios: drive-thru windows in fast food restaurants, food preparation areas in restaurant kitchens, indoor swimming pools/gyms, subway station passageways, hotel bathroom information screens, car wash entrances in car dealerships, and food processing workshops.

| screen panel specification | screen size | 32, 43, 49, 55, 65, 75 inch | |||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 / 3840*2160 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 3500cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
| screen panel specification | screen size | 32, 43, 49, 55, 65, 75 inch | |||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 / 3840*2160 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 3500cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
