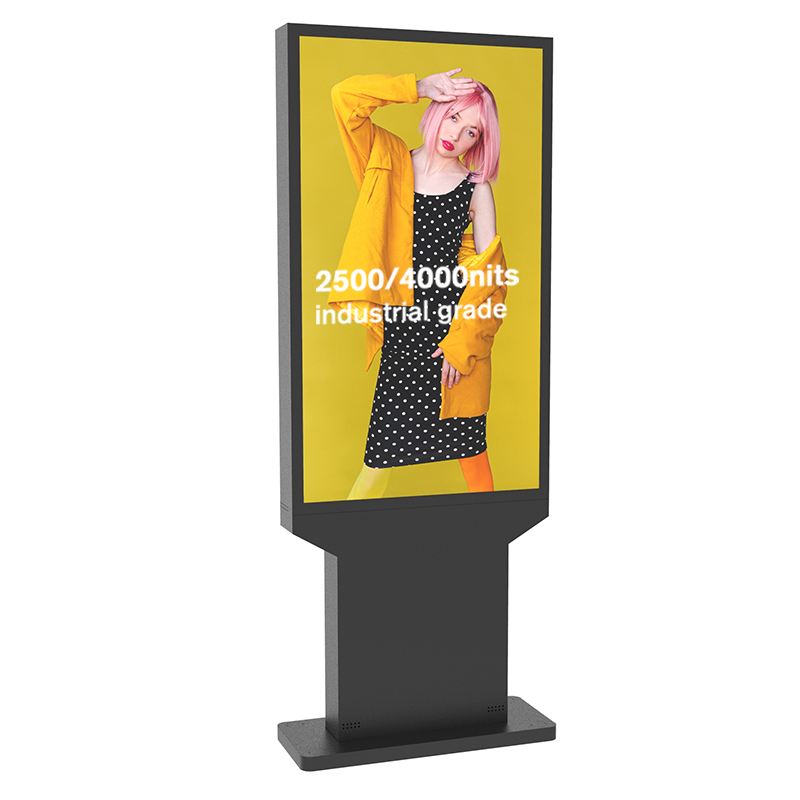

IP66 Waterproof Outdoor Advertisement Display Optical Bonding Tech Vivid Color LCD Screen Digital Signage
Next-Generation Outdoor Visual Excellence
Introducing our advanced IP66 Waterproof Outdoor Display, where cutting-edge optical bonding technology meets uncompromising weather protection. This digital signage solution delivers breathtaking color accuracy and crystal-clear visibility in any outdoor environment, transforming ordinary spaces into captivating advertising platforms.

Superior Image Quality with Optical Bonding
The integrated optical bonding technology eliminates air gaps between layers, reducing glare by up to 90% and enhancing contrast ratios. This results in deeper blacks, more vibrant colors, and wider viewing angles—ensuring your content looks stunning from every perspective.
Certified IP66 All-Weather Protection
Engineered with complete environmental sealing, this display provides total protection against dust ingress and powerful water jets. Whether facing torrential rain, coastal salt spray, or desert dust storms, your investment remains secure and fully operational year-round.
Professional-Grade Color Performance
Featuring a high color gamut (up to 90% NTSC) and 10-bit color processing, the display reproduces images with exceptional accuracy and richness. Every hue appears true-to-life, making it perfect for brand-critical applications where color consistency matters.
Enhanced Durability & Readability
The optical bonding layer not only improves image quality but also strengthens the screen surface against impacts and condensation. Combined with anti-reflective treatment and 2000-3000 nits brightness options, this ensures perfect readability in direct sunlight.











IP66 Waterproof Outdoor Advertisement Display Optical Bonding Tech Vivid Color LCD Screen Digital Signage
Next-Generation Outdoor Visual Excellence
Introducing our advanced IP66 Waterproof Outdoor Display, where cutting-edge optical bonding technology meets uncompromising weather protection. This digital signage solution delivers breathtaking color accuracy and crystal-clear visibility in any outdoor environment, transforming ordinary spaces into captivating advertising platforms.

Superior Image Quality with Optical Bonding
The integrated optical bonding technology eliminates air gaps between layers, reducing glare by up to 90% and enhancing contrast ratios. This results in deeper blacks, more vibrant colors, and wider viewing angles—ensuring your content looks stunning from every perspective.
Certified IP66 All-Weather Protection
Engineered with complete environmental sealing, this display provides total protection against dust ingress and powerful water jets. Whether facing torrential rain, coastal salt spray, or desert dust storms, your investment remains secure and fully operational year-round.
Professional-Grade Color Performance
Featuring a high color gamut (up to 90% NTSC) and 10-bit color processing, the display reproduces images with exceptional accuracy and richness. Every hue appears true-to-life, making it perfect for brand-critical applications where color consistency matters.
Enhanced Durability & Readability
The optical bonding layer not only improves image quality but also strengthens the screen surface against impacts and condensation. Combined with anti-reflective treatment and 2000-3000 nits brightness options, this ensures perfect readability in direct sunlight.











| screen panel specification | screen size | 32 43 49 55 65 inch Industrial wide temperature OC panel | |||||||||
| display area | e.g. 43 inch 944.2mm*532.4mm | ||||||||||
| product dimension | e.g. 43 inch 595.8mm(L)*300mm(W)*1800mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 2500-3000cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| interface | ![]() | ||||||||||
| temperature control | ![]() | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | ![]() | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | ![]() | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
| screen panel specification | screen size | 32 43 49 55 65 inch Industrial wide temperature OC panel | |||||||||
| display area | e.g. 43 inch 944.2mm*532.4mm | ||||||||||
| product dimension | e.g. 43 inch 595.8mm(L)*300mm(W)*1800mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 2500-3000cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| interface | ![]() | ||||||||||
| temperature control | ![]() | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | ![]() | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | ![]() | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
