Dinosaur D
| size: | |
|---|---|
| brightness: | |
| outdoor protect level: | |
| protective glass: | |
| brightness control: | |
| acoustic power: | |
| operation temparature: | |
| Availability: | |
| Quantity: | |
Key Features:
Effortless Installation: A user-friendly design ensures quick and straightforward setup, saving you time and labor costs.
All-Weather Resilience: Built with a completely weather-proof, waterproof, and dustproof enclosure, it stands unwavering against rain, snow, dust storms, and extreme temperatures.
Sun-Proof Clarity: Equipped with high-brightness display technology that remains vividly clear and readable even in direct, harsh sunlight.
Durable Totem Construction: The sturdy totem structure is designed for long-term, maintenance-free outdoor use, guaranteeing your message is always on display.
Key Features:
Effortless Installation: A user-friendly design ensures quick and straightforward setup, saving you time and labor costs.
All-Weather Resilience: Built with a completely weather-proof, waterproof, and dustproof enclosure, it stands unwavering against rain, snow, dust storms, and extreme temperatures.
Sun-Proof Clarity: Equipped with high-brightness display technology that remains vividly clear and readable even in direct, harsh sunlight.
Durable Totem Construction: The sturdy totem structure is designed for long-term, maintenance-free outdoor use, guaranteeing your message is always on display.

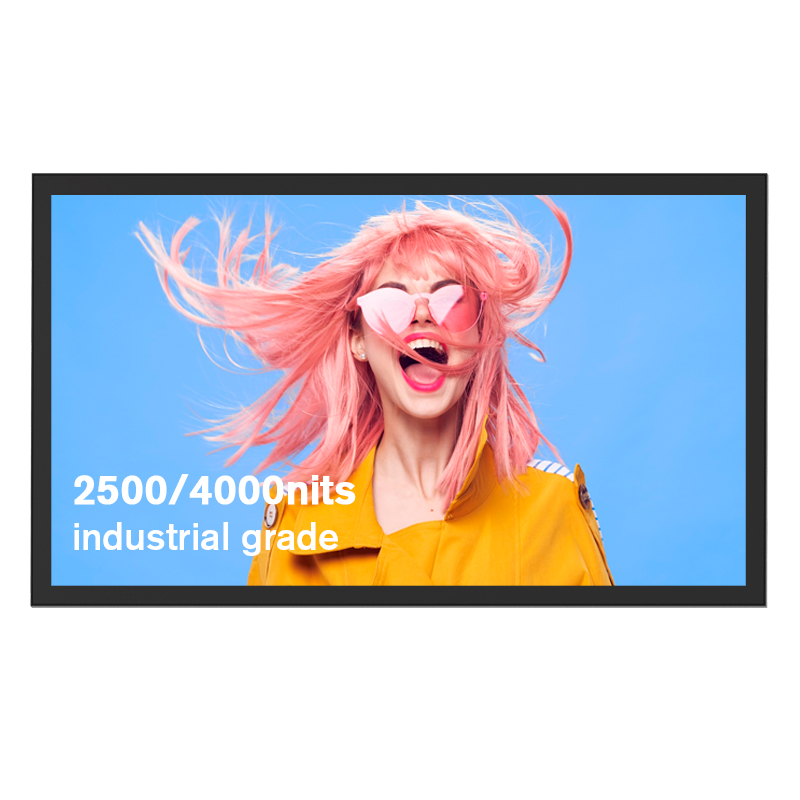

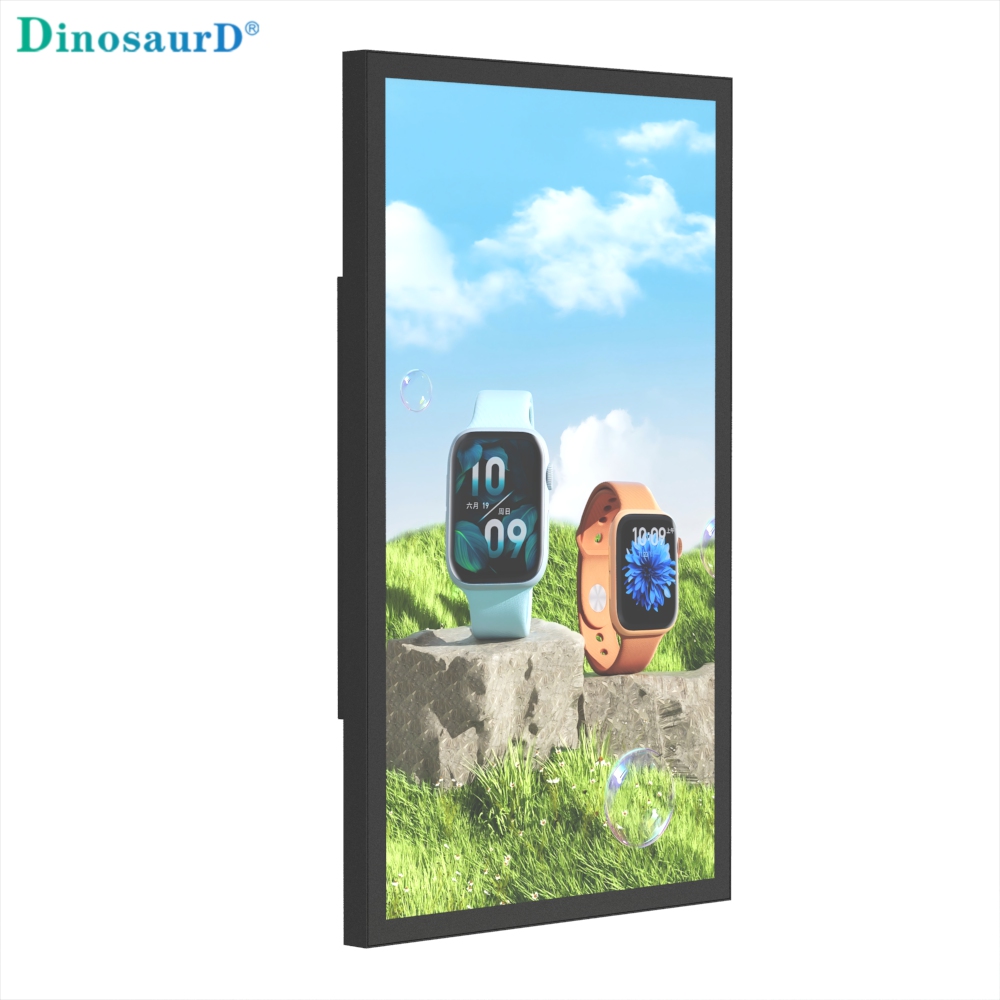

| screen panel specification | screen size | 43 inch Industrial wide temperature OC panel | |||||||||
| display area | 944.2mm*532.4mm | ||||||||||
| product dimension | 1007.6mm(L)*88.9mm(W)*595.8mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°（H）/178°（V） | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200：1 | ||||||||||
| Brightness | 2500cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| parameter of G+F touch screen | touch way | fingers | |||||||||
| effective touch recognition | ≥5mm | ||||||||||
| touch accuracy | ±5mm | ||||||||||
| touch point | 10 point | ||||||||||
| first point response time | ≤10ms | ||||||||||
| interface |  | ||||||||||
| temperature control | | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
| screen panel specification | screen size | 43 inch Industrial wide temperature OC panel | |||||||||
| display area | 944.2mm*532.4mm | ||||||||||
| product dimension | 1007.6mm(L)*88.9mm(W)*595.8mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°（H）/178°（V） | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200：1 | ||||||||||
| Brightness | 2500cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| parameter of G+F touch screen | touch way | fingers | |||||||||
| effective touch recognition | ≥5mm | ||||||||||
| touch accuracy | ±5mm | ||||||||||
| touch point | 10 point | ||||||||||
| first point response time | ≤10ms | ||||||||||
| interface | | ||||||||||
| temperature control | | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
Outdoor Promotional Totems
High-brightness displays (2000+ nits) for sunny plaza areas
Weather-resistant for 24/7 operation
Easy plug-and-play installation near entrances
Bus/Train Station Wayfinding Totems
Dustproof design for high-traffic areas
Sunlight-readable timetables & maps
Tool-free mounting for quick deployment
Interactive Street Kiosks
Waterproof touchscreens for public use
Solar-powered options for green cities
Vandal-resistant tempered glass
Outdoor Sponsorship Totems
Glare-proof screens for daytime events
Wind-resistant sturdy construction
Instant content updates via WiFi
Digital Directory Totems
All-weather operation for outdoor campuses
Low-maintenance, long-life displays
Easy relocation as needed
Outdoor Promotional Totems
High-brightness displays (2000+ nits) for sunny plaza areas
Weather-resistant for 24/7 operation
Easy plug-and-play installation near entrances
Bus/Train Station Wayfinding Totems
Dustproof design for high-traffic areas
Sunlight-readable timetables & maps
Tool-free mounting for quick deployment
Interactive Street Kiosks
Waterproof touchscreens for public use
Solar-powered options for green cities
Vandal-resistant tempered glass
Outdoor Sponsorship Totems
Glare-proof screens for daytime events
Wind-resistant sturdy construction
Instant content updates via WiFi
Digital Directory Totems
All-weather operation for outdoor campuses
Low-maintenance, long-life displays
Easy relocation as needed
Q: Is this signage truly suitable for ALL weather conditions?
A: Absolutely. Our totem is rated with a high IP65/IP66 (Ingress Protection) rating, which certifies it to be completely dust-tight (dustproof) and protected against powerful jets of water from any direction (waterproof). It is engineered to withstand rain, snow, dust storms, and extreme temperatures, making it genuinely all-weather-proof.
Q: How is the display visible in direct sunlight?
A: Our signage features a high-brightness LED display (typically 5,000 nits or higher). This exceptional brightness level, combined with an anti-glare surface treatment, ensures that your content remains vivid, clear, and easily readable even under harsh, direct sunlight (sun-proof).
Q: How easy is it to install? Do I need a professional team?
A: We designed it for easy installation. The totem structure is modular and often comes with a clear, step-by-step guide. For standard setups, a basic technical team can handle it. We also provide detailed installation manuals and video tutorials for your convenience.
Q: What is the expected lifespan of this outdoor totem?
A: The product is built for long-term durability. The LED display has an expected lifespan of over 50,000 hours. The housing is made from industrial-grade aluminum or powder-coated steel that resists corrosion, rust, and UV damage, ensuring years of reliable service with minimal maintenance.
Q: What kind of content can I display, and how do I manage it?
A: You can display images, videos, animations, and text. Content management is simple via our cloud-based software platform. You can schedule, update, and monitor your content in real-time from any computer or mobile device with an internet connection—no need for on-site visits.
Q: What are the power requirements, and is it energy-efficient?
A: Standard models typically operate on 100-240V AC. They are highly energy-efficient thanks to auto-dimming sensors that intelligently adjust screen brightness based on ambient light, saving power during night-time or cloudy days without compromising visibility.
Q: Does the price include software and technical support?
A: Yes, the purchase price includes a basic license for our content management software and standard warranty. We offer comprehensive technical support and can provide optional extended warranties or premium support plans for your peace of mind.
Q: Can it withstand strong winds?
A: Yes. The totem structure is designed to meet specific wind load ratings (e.g., up to 120 km/h). The engineering specifications, including foundation requirements, are provided in the installation guide to ensure stability and safety in your local conditions.
Q: What are the maintenance needs?
A: Maintenance is minimal due to the sealed, dustproof, and waterproof design. We recommend periodic visual inspections and cleaning of the display surface with a soft, damp cloth. The robust construction is specifically intended to be low-maintenance.
Q: Can I get a custom size or shape for my specific project?
A: Yes, we offer customization options. While we have standard sizes, we can work with you on custom dimensions, shapes, and even additional features like touchscreens or specific mounting solutions to meet your unique project requirements.
Q: Is this signage truly suitable for ALL weather conditions?
A: Absolutely. Our totem is rated with a high IP65/IP66 (Ingress Protection) rating, which certifies it to be completely dust-tight (dustproof) and protected against powerful jets of water from any direction (waterproof). It is engineered to withstand rain, snow, dust storms, and extreme temperatures, making it genuinely all-weather-proof.
Q: How is the display visible in direct sunlight?
A: Our signage features a high-brightness LED display (typically 5,000 nits or higher). This exceptional brightness level, combined with an anti-glare surface treatment, ensures that your content remains vivid, clear, and easily readable even under harsh, direct sunlight (sun-proof).
Q: How easy is it to install? Do I need a professional team?
A: We designed it for easy installation. The totem structure is modular and often comes with a clear, step-by-step guide. For standard setups, a basic technical team can handle it. We also provide detailed installation manuals and video tutorials for your convenience.
Q: What is the expected lifespan of this outdoor totem?
A: The product is built for long-term durability. The LED display has an expected lifespan of over 50,000 hours. The housing is made from industrial-grade aluminum or powder-coated steel that resists corrosion, rust, and UV damage, ensuring years of reliable service with minimal maintenance.
Q: What kind of content can I display, and how do I manage it?
A: You can display images, videos, animations, and text. Content management is simple via our cloud-based software platform. You can schedule, update, and monitor your content in real-time from any computer or mobile device with an internet connection—no need for on-site visits.
Q: What are the power requirements, and is it energy-efficient?
A: Standard models typically operate on 100-240V AC. They are highly energy-efficient thanks to auto-dimming sensors that intelligently adjust screen brightness based on ambient light, saving power during night-time or cloudy days without compromising visibility.
Q: Does the price include software and technical support?
A: Yes, the purchase price includes a basic license for our content management software and standard warranty. We offer comprehensive technical support and can provide optional extended warranties or premium support plans for your peace of mind.
Q: Can it withstand strong winds?
A: Yes. The totem structure is designed to meet specific wind load ratings (e.g., up to 120 km/h). The engineering specifications, including foundation requirements, are provided in the installation guide to ensure stability and safety in your local conditions.
Q: What are the maintenance needs?
A: Maintenance is minimal due to the sealed, dustproof, and waterproof design. We recommend periodic visual inspections and cleaning of the display surface with a soft, damp cloth. The robust construction is specifically intended to be low-maintenance.
Q: Can I get a custom size or shape for my specific project?
A: Yes, we offer customization options. While we have standard sizes, we can work with you on custom dimensions, shapes, and even additional features like touchscreens or specific mounting solutions to meet your unique project requirements.
