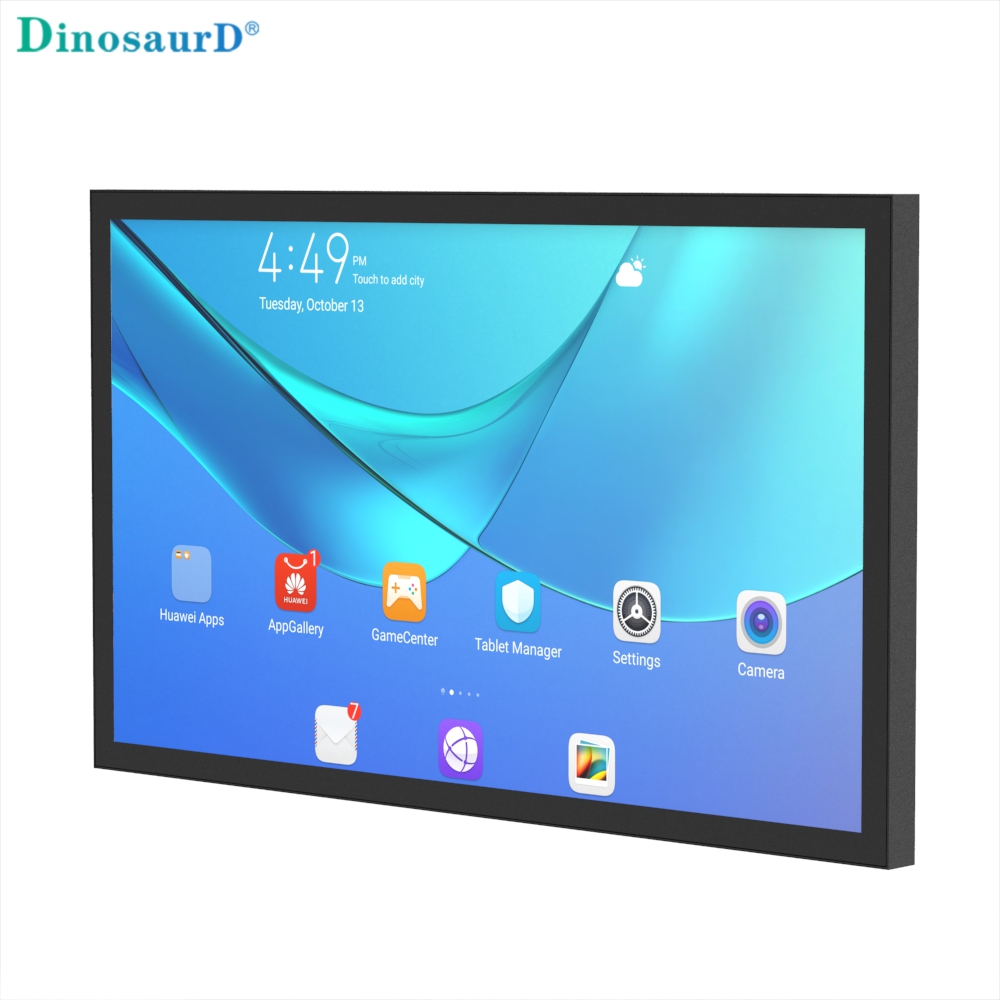

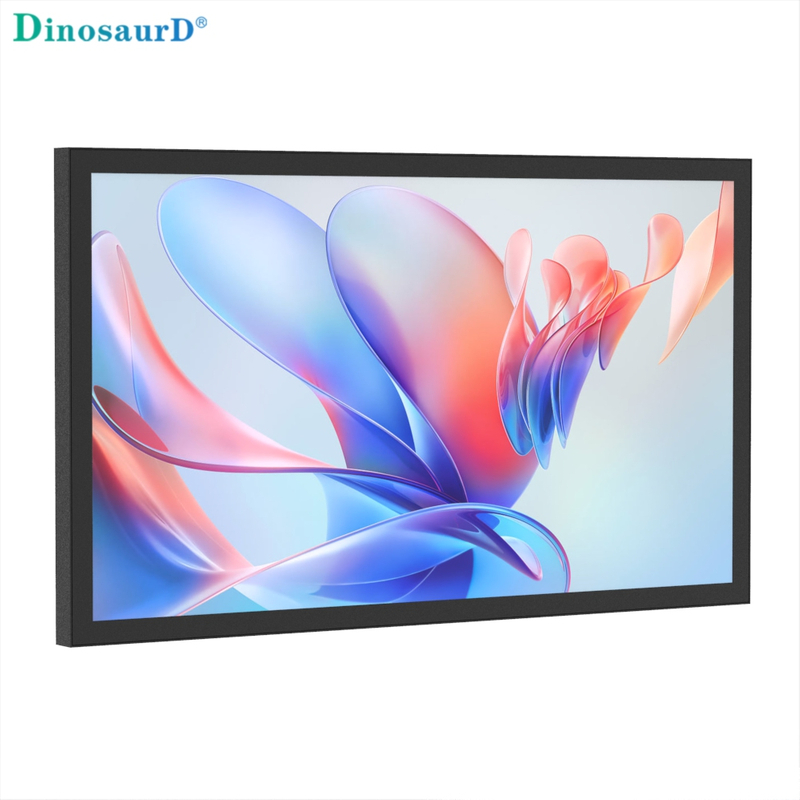

32-75inch aluminum housing IK10 level tempered glass digital outdoor ip66 screen player signage wall mount advertising totem

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

32-75inch aluminum housing IK10 level tempered glass digital outdoor ip66 screen player signage wall mount advertising totem

Introducing the PRO Series Outdoor Digital Signage Totem, engineered for permanent, reliable, and stunning visual communication in the most demanding environments. With a seamless size range from 32 to 75 inches, an ultra-robust aluminum housing, and IK10-rated tempered glass, this is the ultimate all-weather solution for critical outdoor advertising and information display.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Built to Endure, Designed to Perform

Maximum Physical Protection: Our totem features a precision-engineered aluminum alloy housing that is lightweight yet incredibly strong, providing excellent heat dissipation and corrosion resistance. It is shielded by IK10-level tempered glass, the highest rating for impact resistance, protecting the display from vandalism, accidental strikes, and harsh weather conditions.
Superior Weatherproof Integrity: Certified with an IP66 rating, the enclosure is completely dust-tight and protected against powerful water jets from any direction. This ensures flawless, worry-free operation in rain, snow, dust storms, and extreme temperatures, guaranteeing 24/7 uptime.
Versatile Size & Vivid Display: Choose the perfect fit for your space with our 32-inch to 75-inch display range. Each screen delivers high brightness for sunlight readability and excellent color performance, ensuring your content—from dynamic videos to high-resolution graphics—captures attention day or night.
Complete Integrated Solution: This wall-mount advertising totem is a fully integrated unit, combining a commercial-grade display, a powerful media player, and protective housing into one sleek, professional package. It simplifies installation and provides a clean, modern aesthetic for any setting.
Smart Content Management: The built-in digital screen player supports a wide range of multimedia formats and is compatible with most major Content Management Systems (CMS), allowing for easy remote scheduling, updates, and real-time content control from a single dashboard.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. High-Security & High-Vandalism Risk Areas

Correctional Facilities & Courthouses: Display visitor information, schedules, rules, and announcements in public waiting areas with confidence in its IK10 impact resistance.
Public Housing & Government Estates: Broadcast community news, emergency alerts, and service information in locations prone to vandalism, thanks to the ultra-durable aluminum and tempered glass construction.
Police & Fire Stations: Provide public safety messages, emergency instructions, and service updates on robust, tamper-proof displays at station exteriors.

2. Critical Transportation & Infrastructure Hubs

Airport Tarmacs & Baggage Claim Areas: Withstand harsh, high-traffic industrial environments while displaying flight information, baggage carousel details, and safety instructions. The IP66 rating ensures operation despite frequent cleaning and exposure.
Railway Platforms & Underground Subways: Perfect for displaying real-time departure boards, safety warnings, and advertisements in environments with high vibration, dust, and potential for accidental impact from luggage or crowds.
Busy Ferry Terminals & Toll Plazas: Operate flawlessly in salt-spray and high-humidity conditions, displaying schedule and tariff information on weatherproof, corrosion-resistant screens.

3. Premium Outdoor Retail & Hospitality

Luxury Brand Storefronts & Shopping Mall Exteriors: Enhance brand image with large-format, sleek displays (up to 75 inches) that are protected from the elements and accidental damage from shopping carts or crowds.
High-End Hotel & Resort Entrances/Driveways: Showcase guest welcome messages, event schedules, and amenity promotions on elegant, durable totems that complement upscale aesthetics.
Outdoor Fine Dining Patios & Golf Clubhouses: Display menus, event promotions, and course information with screens built to withstand occasional golf ball strikes or patio furniture contact.

4. Industrial & Utility Complexes

Factory Gates & Refinery Perimeters: Display safety statistics, shift information, and company announcements in harsh industrial environments with dust, chemical exposure, and strict durability requirements.
Power Plants & Water Treatment Facilities: Provide operational data, safety protocols, and visitor information on screens that can be cleaned with high-pressure water jets (IP66 compliant).

5. Demanding Public & Sports Venues

Stadium Concourses & Arena Entrances: Handle the energy of large crowds. Perfect for showing live scores, concession ads, and wayfinding, with IK10 glass protecting against celebratory impacts.
Public Skateparks & Outdoor Gyms: Withstand high-impact environments, displaying event schedules, rules, and sponsor content on nearly indestructible signage.
University Sports Complexes & Student Union Exteriors: Broadcast events, achievements, and emergency alerts on displays built to endure active campus life.

1. What do the IK10 and IP66 ratings mean for this product?
The IK10 rating signifies the highest level of impact resistance against vandalism and accidental hits (withstanding 20 joules of impact energy). The IP66 rating certifies that the unit is completely dust-tight and protected against powerful water jets from any direction, making it ideal for harsh outdoor environments.

2. Why is aluminum housing used, and what are its benefits?
The aluminum housing provides an optimal balance of strength, durability, and lightweight construction. It offers excellent heat dissipation, corrosion resistance, and structural integrity, ensuring long-term reliability and protection for internal components in varied climates.

3. What sizes are available, and can they be customized?
This series is available in a range from 32 inches to 75 inches (typically 32”, 43”, 55”, 65”, 75”). Custom sizes may be available upon request for large-scale or specialized projects.

4. Is the tempered glass replaceable if damaged?
Yes, the IK10-level tempered glass is designed as a replaceable front panel. While highly resistant to damage, if severe impact occurs, the glass can be serviced or replaced by authorized technicians without needing to replace the entire display unit.

5. What type of media player is included, and how is content managed?
The totem includes an integrated commercial-grade digital media player (typically Android, Linux, or Windows-based). Content is managed via a cloud-based or local Content Management System (CMS), allowing for remote scheduling, updates, and real-time control of videos, images, and information feeds.

6. Is this totem suitable for 24/7 continuous operation in extreme temperatures?
Yes. The product is engineered for 24/7 operation with wide-temperature components and thermal management systems. It can reliably function in extreme cold and heat, though specific operational ranges (e.g., -20°C to 50°C) should be confirmed with the product datasheet.

7. How is the unit mounted, and what are the installation requirements?
It is designed as a wall-mount totem and comes with a robust mounting bracket or frame. Installation requires a solid structural wall (concrete, brick, or reinforced metal) capable of supporting the weight and dimensions of the unit. Professional installation is highly recommended.

8. Can the brightness be adjusted for different lighting conditions?
Yes. The display features high-brightness panels (typically ≥2000 nits) for sunlight readability, and many models include ambient light sensors or manual settings to automatically or remotely adjust brightness for day/night conditions and energy efficiency.

9. What kind of maintenance is required for long-term use?
Maintenance is minimal due to the sealed IP66 enclosure. Routine cleaning of the glass surface with appropriate non-abrasive materials is recommended. The system includes remote monitoring for diagnostics, reducing the need for physical checks.

10. What warranty and support are provided with this product?
We offer a comprehensive commercial warranty (typically 2-3 years) covering parts and labor. Support includes technical assistance for CMS setup, installation guidance, and troubleshooting. Extended warranty and on-site service plans are often available.
