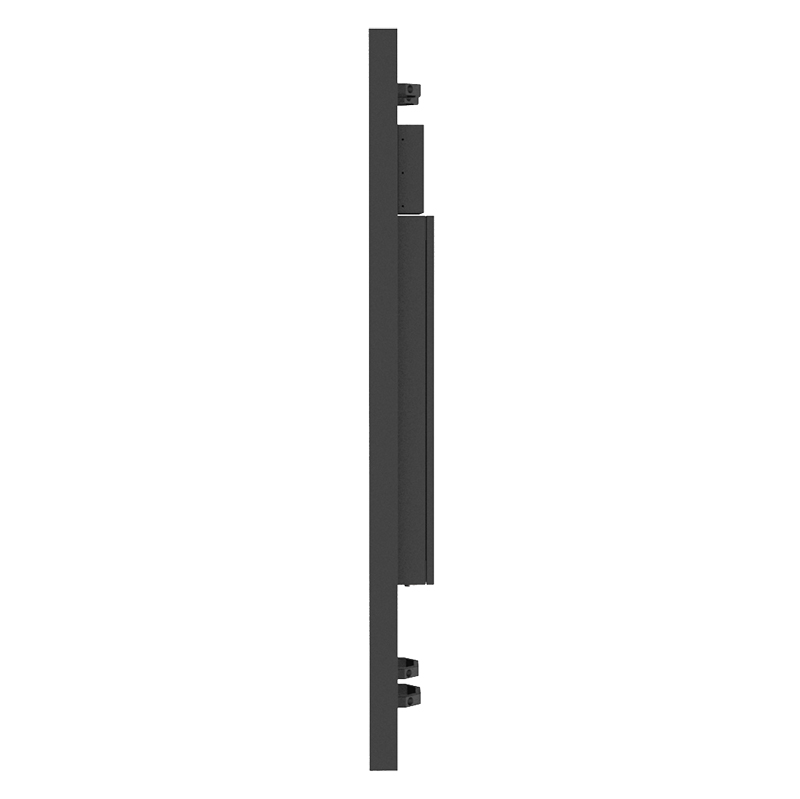

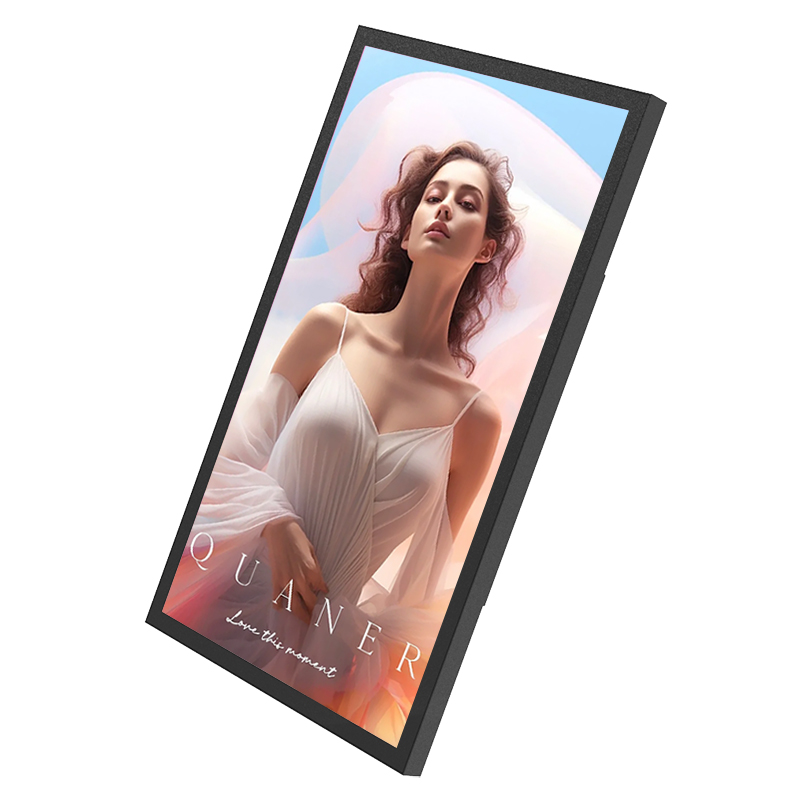

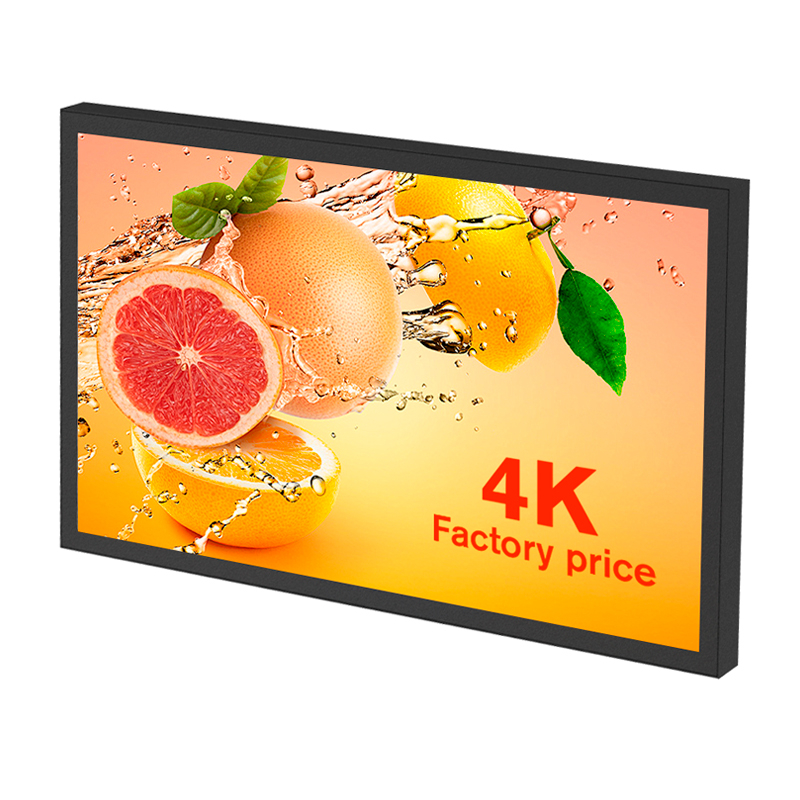

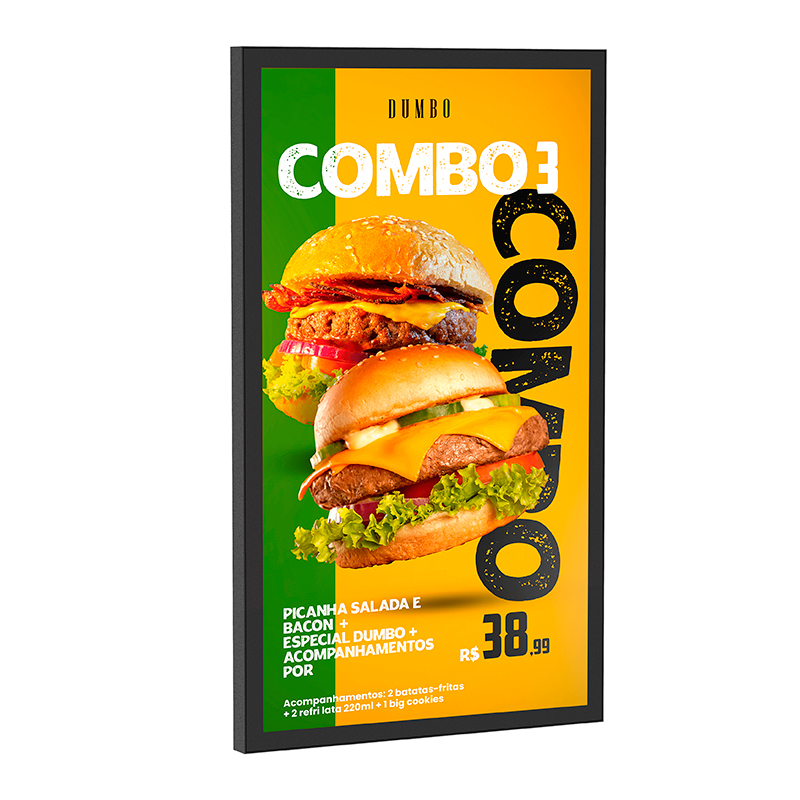

Outdoor IP66 Monitor LCD Advertising Display Solution Scree

Key Features:

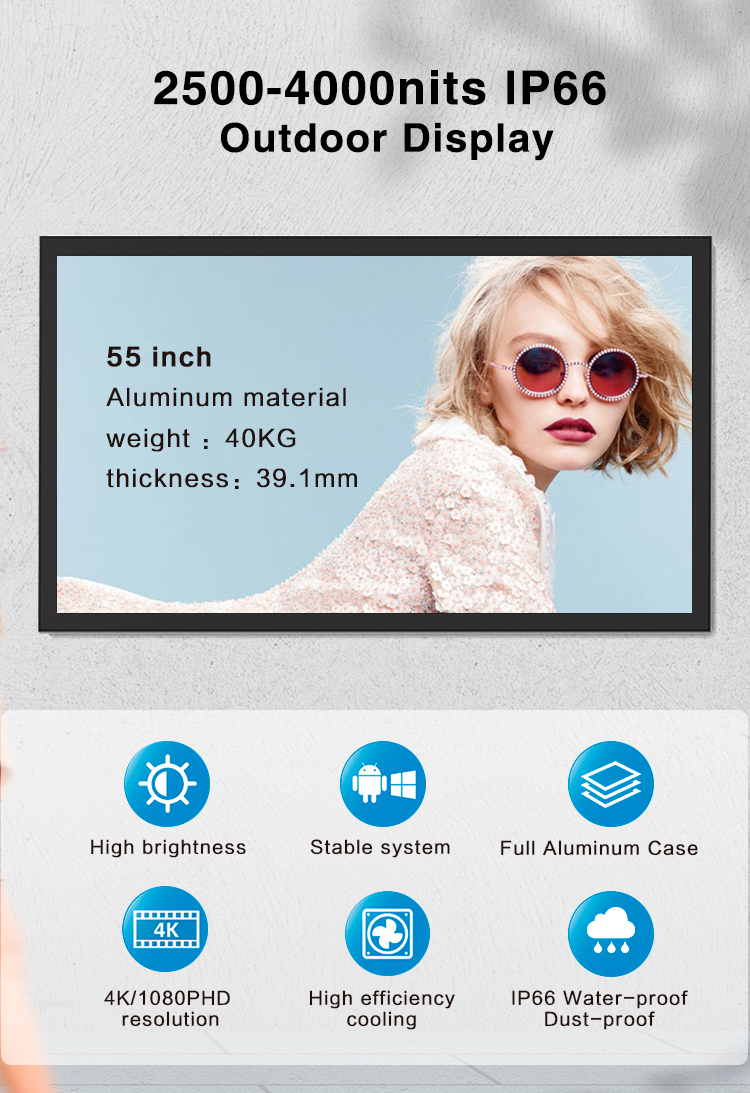

IP66 Rated Water & Dust Resistance and 5mm Tempered Glass with IK10 Protection

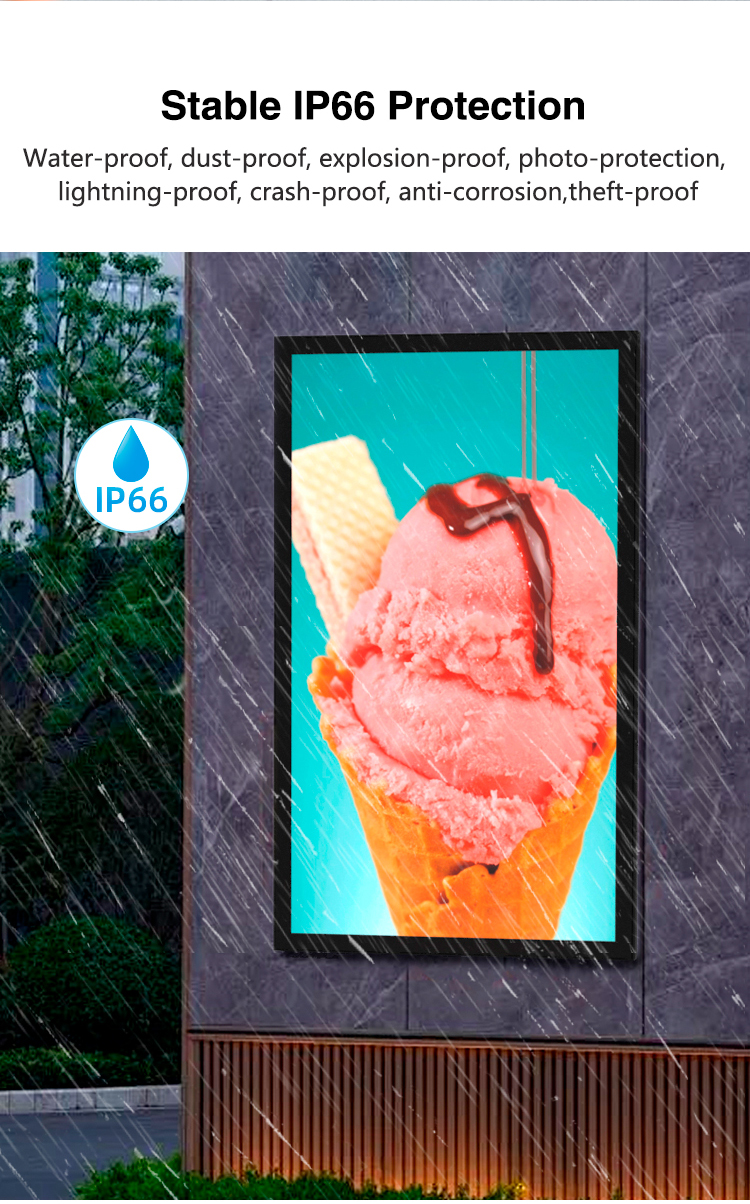

IP66 Rated Water & Dust Resistance: Fully protected against powerful water jets and heavy dust ingress. This display is built to withstand rain, snow, and dust storms, ensuring reliable operation in all weather conditions.

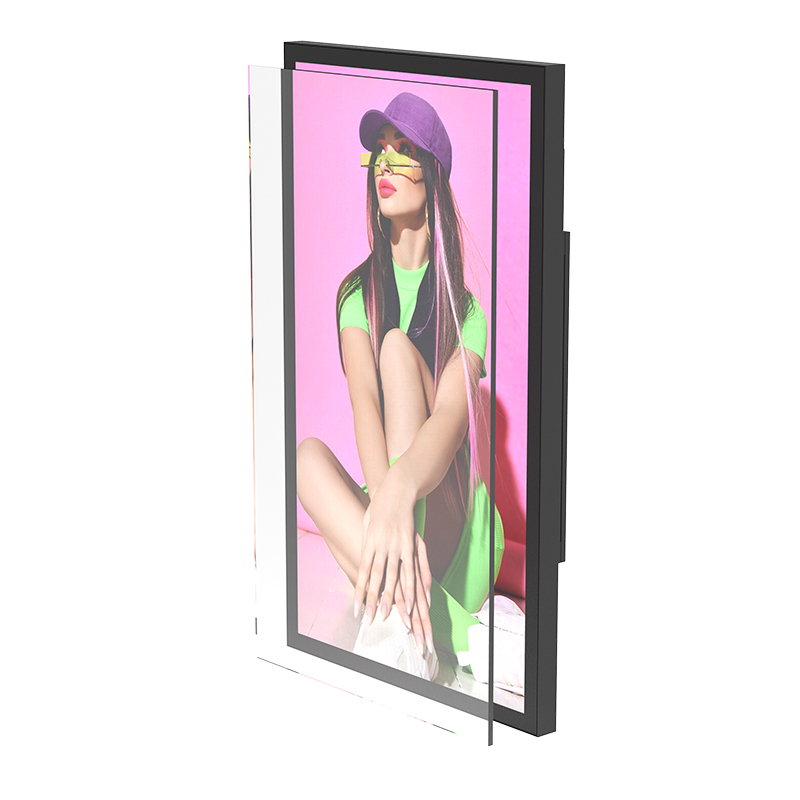

5mm Tempered Glass with IK10 Protection: The screen is shielded by a robust 5mm thick toughened glass, offering the highest level of impact resistance (IK10) against vandalism and accidental collisions in demanding outdoor environments.

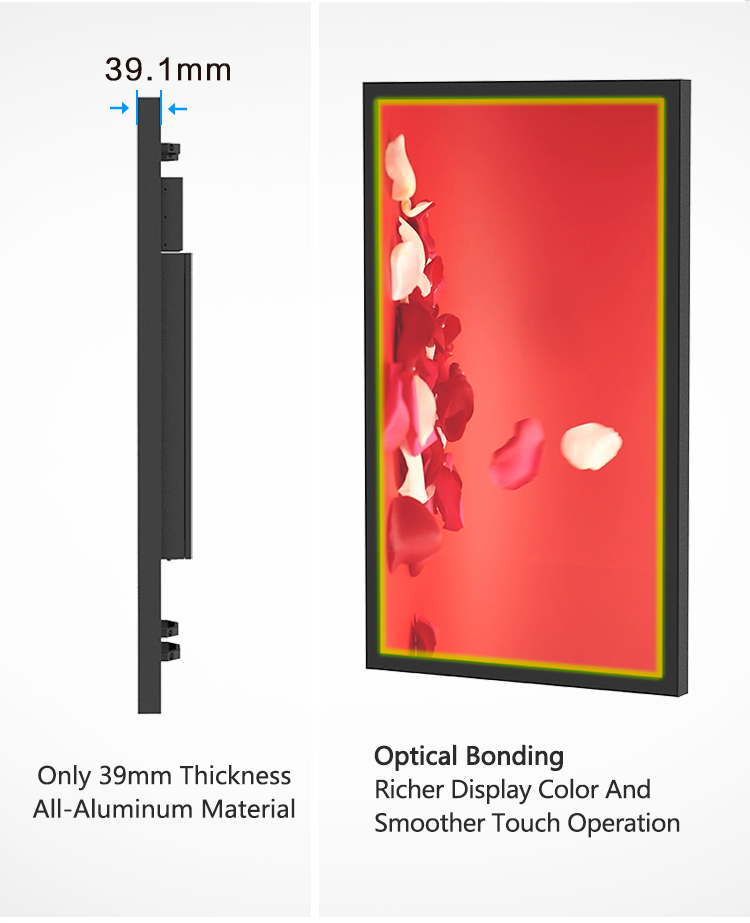

Optical Bonding Technology
Our displays utilize advanced optical bonding technology. This process eliminates the air gap between the glass and the LCD panel, resulting in higher contrast, reduced reflection, and a wider viewing angle for the best possible color and image quality, even in direct sunlight.
Sleek & Robust Design

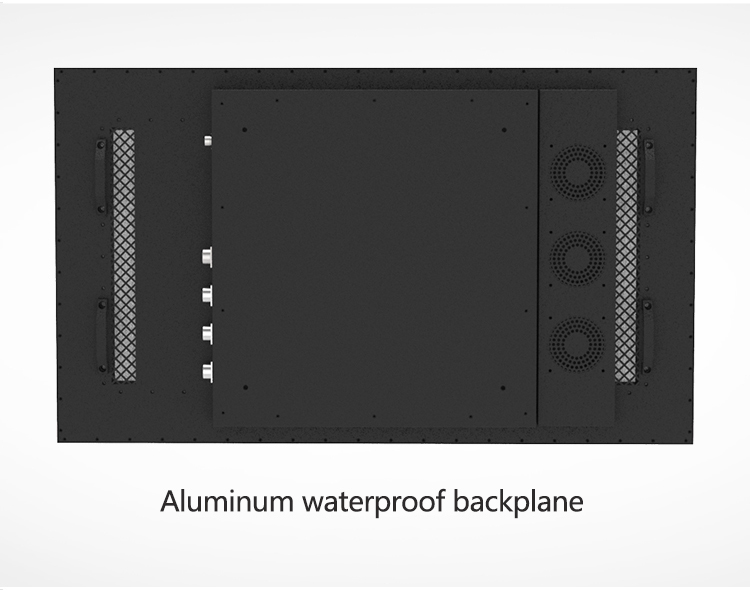

All-Aluminum Alloy Body: Crafted from a single piece of high-grade aluminum, the chassis is not only incredibly strong and lightweight but also provides excellent heat dissipation, extending the product's lifespan.
Ultra-Thin Profile: Despite its rugged capabilities, the display features an ultra-thin and modern design that looks professional and is easy to install in various locations.
Ultimate Flexibility & Compatibility
Multiple Playback Options: We offer the flexibility to choose the system that best fits your project. Select from integrated Android or Windows systems for a complete all-in-one solution. Alternatively, use it as a pure monitor by connecting it to your own external media player or set-top box.

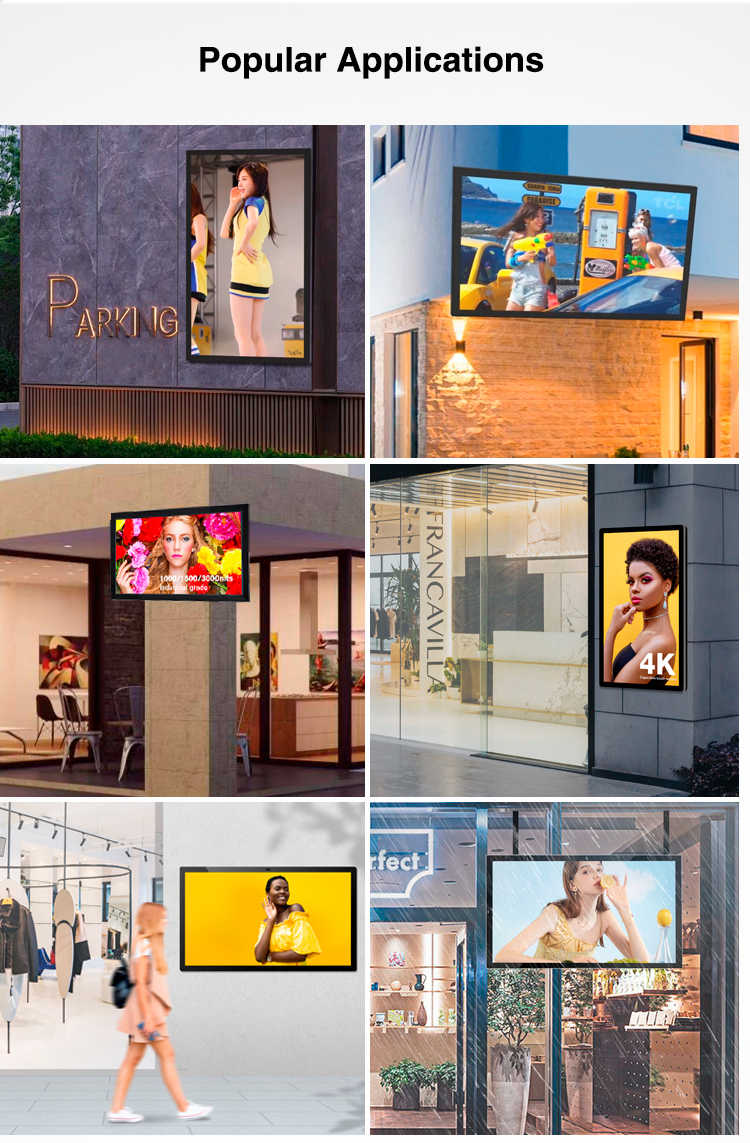

Ideal for a Wide Range of Applications:
Outdoor Advertising & Digital Billboards
Public Transportation Hubs (Bus Stops, Train Stations)
Stadiums & Sports Arenas
Shopping Malls & Retail Storefronts
Corporate Campuses & Building Facades
Upgrade your outdoor communication with the Aegis View Display—where resilience meets brilliant clarity.
Let's discuss your project! Contact us today to find the perfect display solution for your needs.












Outdoor IP66 Monitor LCD Advertising Display Solution Scree

Key Features:
IP66 Rated Water & Dust Resistance and 5mm Tempered Glass with IK10 Protection
IP66 Rated Water & Dust Resistance: Fully protected against powerful water jets and heavy dust ingress. This display is built to withstand rain, snow, and dust storms, ensuring reliable operation in all weather conditions.
5mm Tempered Glass with IK10 Protection: The screen is shielded by a robust 5mm thick toughened glass, offering the highest level of impact resistance (IK10) against vandalism and accidental collisions in demanding outdoor environments.
Optical Bonding Technology
Our displays utilize advanced optical bonding technology. This process eliminates the air gap between the glass and the LCD panel, resulting in higher contrast, reduced reflection, and a wider viewing angle for the best possible color and image quality, even in direct sunlight.
Sleek & Robust Design
All-Aluminum Alloy Body: Crafted from a single piece of high-grade aluminum, the chassis is not only incredibly strong and lightweight but also provides excellent heat dissipation, extending the product's lifespan.
Ultra-Thin Profile: Despite its rugged capabilities, the display features an ultra-thin and modern design that looks professional and is easy to install in various locations.
Ultimate Flexibility & Compatibility
Multiple Playback Options: We offer the flexibility to choose the system that best fits your project. Select from integrated Android or Windows systems for a complete all-in-one solution. Alternatively, use it as a pure monitor by connecting it to your own external media player or set-top box.
Ideal for a Wide Range of Applications:
Outdoor Advertising & Digital Billboards
Public Transportation Hubs (Bus Stops, Train Stations)
Stadiums & Sports Arenas
Shopping Malls & Retail Storefronts
Corporate Campuses & Building Facades
Upgrade your outdoor communication with the Aegis View Display—where resilience meets brilliant clarity.
Let's discuss your project! Contact us today to find the perfect display solution for your needs.












| screen panel specification | screen size | 32 43 49 55 65 inch Industrial wide temperature OC panel | |||||||||
| display area | e.g. 43 inch 944.2mm*532.4mm | ||||||||||
| product dimension | e.g. 43 inch 1007.6mm(L)*88.9mm(W)*595.8mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 2500-3000cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| interface | ![]() | ||||||||||
| temperature control | ![]() | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | ![]() | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | ![]() | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
