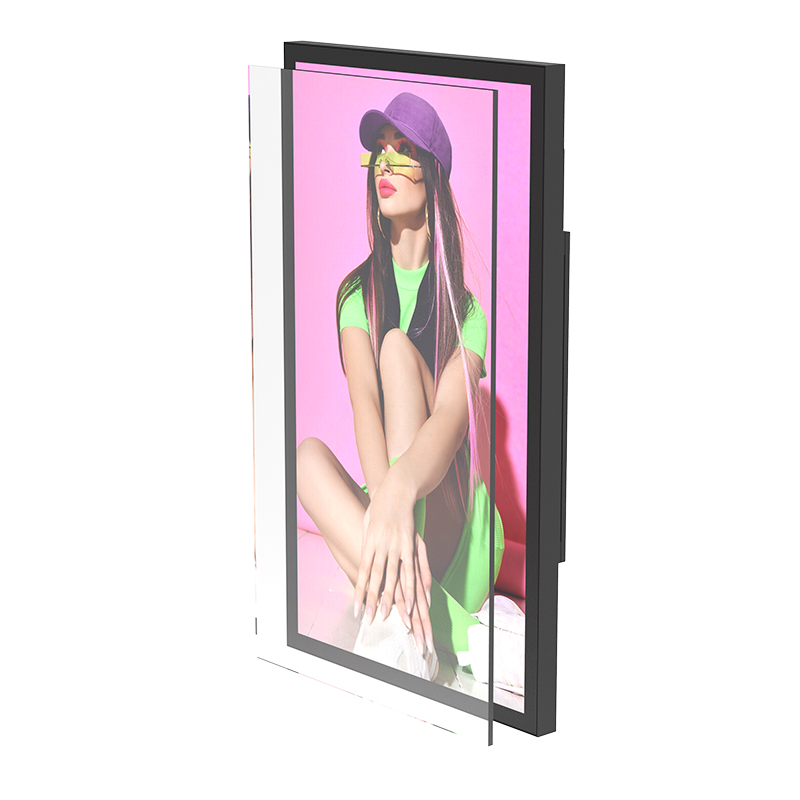

Industrial Grade IP66 Waterproof Screen Park Street Promotion Solution IK10 Protection Glass Digital Signage

Command attention in the toughest public spaces with our Industrial Grade IP66 Waterproof Screen. We've engineered the ultimate protection for your dynamic park and street promotions, combining unmatched weatherproofing with superior physical defense.
Unbreakable Clarity: IK10 Rated 5mm Armored Glass
The heart of its durability is the 5mm thick, IK10-rated tempered glass front panel. This armored shield provides supreme resistance against high-impact forces, effectively withstanding vandalism, accidental hits, and flying debris common in bustling outdoor areas. Your display remains fully operational and flawlessly clear, ensuring your message is always seen.
Built for Endless Outdoor Exposure
Beyond physical strength, this signage delivers complete environmental sealing. The IP66 rating guarantees total protection against dust and powerful water jets, from driving rain to routine cleaning. Paired with a wide operating temperature range, it guarantees 24/7 reliability in any season.
Your Always-On Promotion Partner
Ideal for unattended parks, busy streets, and transit areas, this solution turns any location into a high-impact, low-worry advertising space. Invest in the signage that defends your investment.












Industrial Grade IP66 Waterproof Screen Park Street Promotion Solution IK10 Protection Glass Digital Signage

Command attention in the toughest public spaces with our Industrial Grade IP66 Waterproof Screen. We've engineered the ultimate protection for your dynamic park and street promotions, combining unmatched weatherproofing with superior physical defense.
Unbreakable Clarity: IK10 Rated 5mm Armored Glass
The heart of its durability is the 5mm thick, IK10-rated tempered glass front panel. This armored shield provides supreme resistance against high-impact forces, effectively withstanding vandalism, accidental hits, and flying debris common in bustling outdoor areas. Your display remains fully operational and flawlessly clear, ensuring your message is always seen.
Built for Endless Outdoor Exposure
Beyond physical strength, this signage delivers complete environmental sealing. The IP66 rating guarantees total protection against dust and powerful water jets, from driving rain to routine cleaning. Paired with a wide operating temperature range, it guarantees 24/7 reliability in any season.
Your Always-On Promotion Partner
Ideal for unattended parks, busy streets, and transit areas, this solution turns any location into a high-impact, low-worry advertising space. Invest in the signage that defends your investment.












| screen panel specification | screen size | 32 43 49 55 65 inch Industrial wide temperature OC panel | |||||||||
| display area | e.g. 43 inch 944.2mm*532.4mm | ||||||||||
| product dimension | e.g. 43 inch 1007.6mm(L)*88.9mm(W)*595.8mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 2500-3000cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| interface | ![]() | ||||||||||
| temperature control | ![]() | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | ![]() | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | ![]() | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
| screen panel specification | screen size | 32 43 49 55 65 inch Industrial wide temperature OC panel | |||||||||
| display area | e.g. 43 inch 944.2mm*532.4mm | ||||||||||
| product dimension | e.g. 43 inch 1007.6mm(L)*88.9mm(W)*595.8mm(H) | ||||||||||
| protect level full | outdoor IP66 | ||||||||||
| resolution | 1920*1080 | ||||||||||
| view angles | 178°(H)/178°(V) | ||||||||||
| Acoustic power | 8 ohm 2×5W | ||||||||||
| Contrast | 1200:1 | ||||||||||
| Brightness | 2500-3000cd/㎡ | ||||||||||
| Protective glass | IK10 grade 5mm AG etched toughened glass | ||||||||||
| Display Scale | 16 : 9 | ||||||||||
| lifespan | 50000h | ||||||||||
| Casing color | black | ||||||||||
| Brightness control | Automatic photosensitive technology | ||||||||||
| interface | ![]() | ||||||||||
| temperature control | ![]() | Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work. | |||||||||
| brightness control | ![]() | The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight. | |||||||||
| LED backlight | ![]() | High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation. | |||||||||
| protection | waterproof | ||||||||||
| anti-electric leakage | |||||||||||
| anti-thunder | |||||||||||
| dust proof | |||||||||||
| anti-explosion | |||||||||||
| Anti-glare glass optional | |||||||||||
| anti-rust | |||||||||||
| Fan cooling system | intelligent air cooling system for heat dissipation | ||||||||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | |||||||||||
| The LCD screen does not blacken at -30 °C to 80°C | |||||||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | |||||||||||
| patented cooling system | |||||||||||
| Ensure that the LCD screen is not blackened in direct sunlight | |||||||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | |||||||||||
| intelligent control fan wind speed | |||||||||||
| product test | IP66 test | ||||||||||
| high temperature aging | |||||||||||
| low temperature aging | |||||||||||
| simulated sunlight test | |||||||||||
| water proof test | |||||||||||
| surface treatment | wash | all parts of the sheet are cleaned in an acidic and alkaline manner | |||||||||
| anti-rust | Spray anti-rust paint | ||||||||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | ||||||||||
| shell | shell material | aluminum shell | |||||||||
| Power | Input voltage | AC 100-305VAC | |||||||||
| power consumption | ≤200W | ||||||||||
| Operation temparature | -30°C to +80°C | ||||||||||
| Operation humidity | 5% to 90% | ||||||||||
