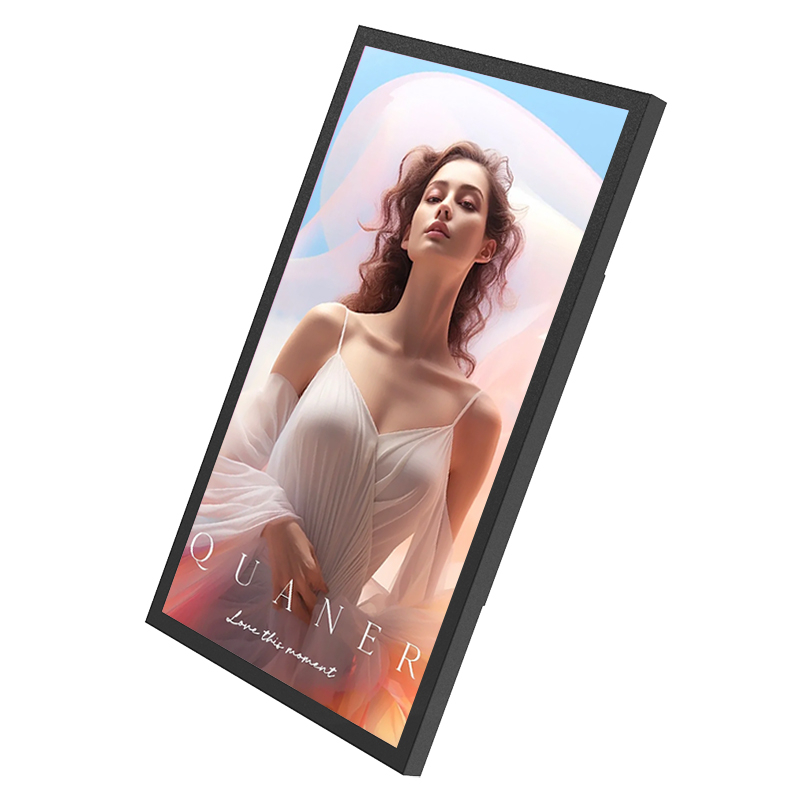

Outdoor IP66 Monitor LCD Advertising Display Solution Screen

Digital Signage Factory IP66 Waterproof Outdoor Advertising Display LCD Screen

Color: black or other bespoke color

Size: 32 43 49 55 65 inch
Material: metal, aluminum, glass

Sales Models: Wholesale
Min Order: 1 pcs

brightness:2500-3500 nits

system: Android/Windows

management: with free Android CMS software

Availability:

Quantity:



Inquire Add to Basket

Digital Signage Factory IP66 Waterproof Outdoor Advertising Display LCD Screen

Outdoor-Display-_01

Our IP66 Waterproof Outdoor Advertising Display, engineered to thrive where standard screens cannot. Its core strength lies in the IP66-certified rugged enclosure, guaranteeing superior defense against the harshest outdoor environments.

Built for Outdoor Resilience:

Total Dust & Water Protection: The IP66 rating ensures it is completely dust-tight and protected against powerful water jets. It confidently withstands heavy rain, snow, dust storms, and high-pressure cleaning.
All-Weather Performance: Designed for 24/7 continuous operation, this display features a robust construction and integrated temperature control to perform reliably in extreme heat or freezing cold.

Engineered for Outdoor Visibility:
Beyond its tough exterior, the screen delivers a brilliant, high-brightness image that combats direct sunlight, ensuring your content remains vibrant and clearly visible at all times.

Ideal for transportation hubs, retail promotions, and digital billboards, this display is the reliable, high-impact solution for your outdoor advertising needs. Contact us to make your message weatherproof!

Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	32 43 49 55 65 inch Industrial wide temperature OC panel
	display area	e.g. 43 inch 944.2mm*532.4mm
	product dimension	e.g. 43 inch 1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500-3000cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%
