Dinosaur D
| size: | |
|---|---|
| tempered glass thickness: | |
| resolution: | |
| brightnees: | |
| protection level: | |
| lifespan: | |
| Input voltage: | |
| Availability: | |
| Quantity: | |

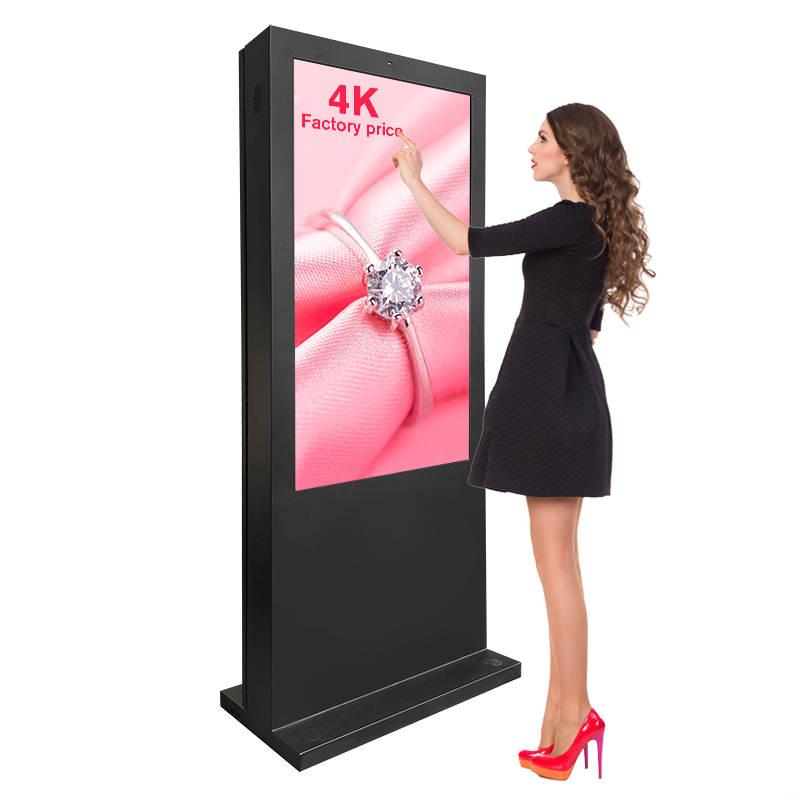

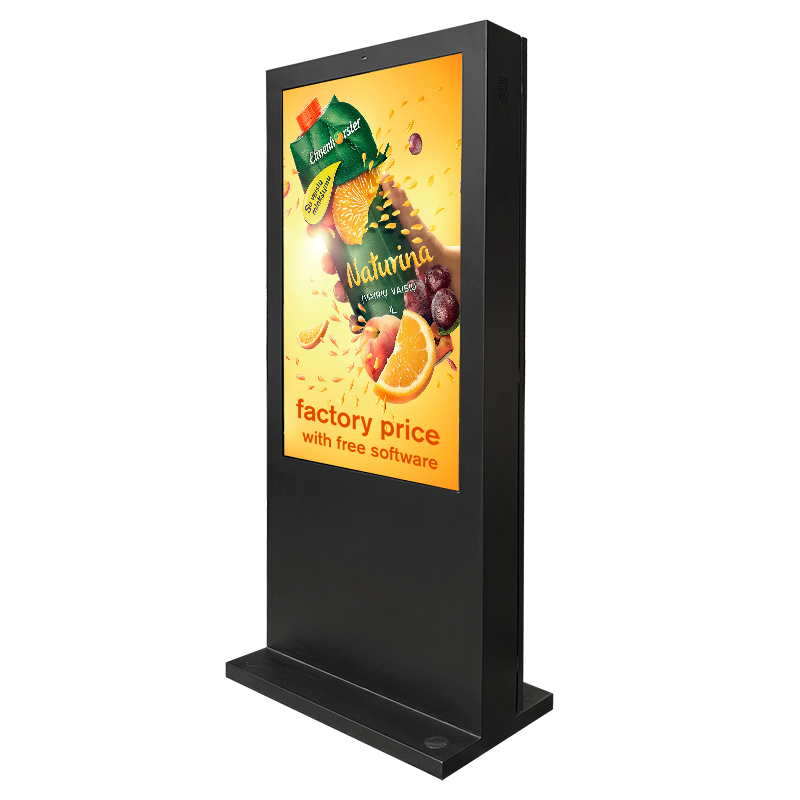

Display: 32″ to 86″ Touch LCD (Custom Sizes Available)
Protection Rating: IP65 Full Weatherproof
Brightness: High-Brightness Outdoor Grade
Software: Free Lifetime CMS with Remote Management

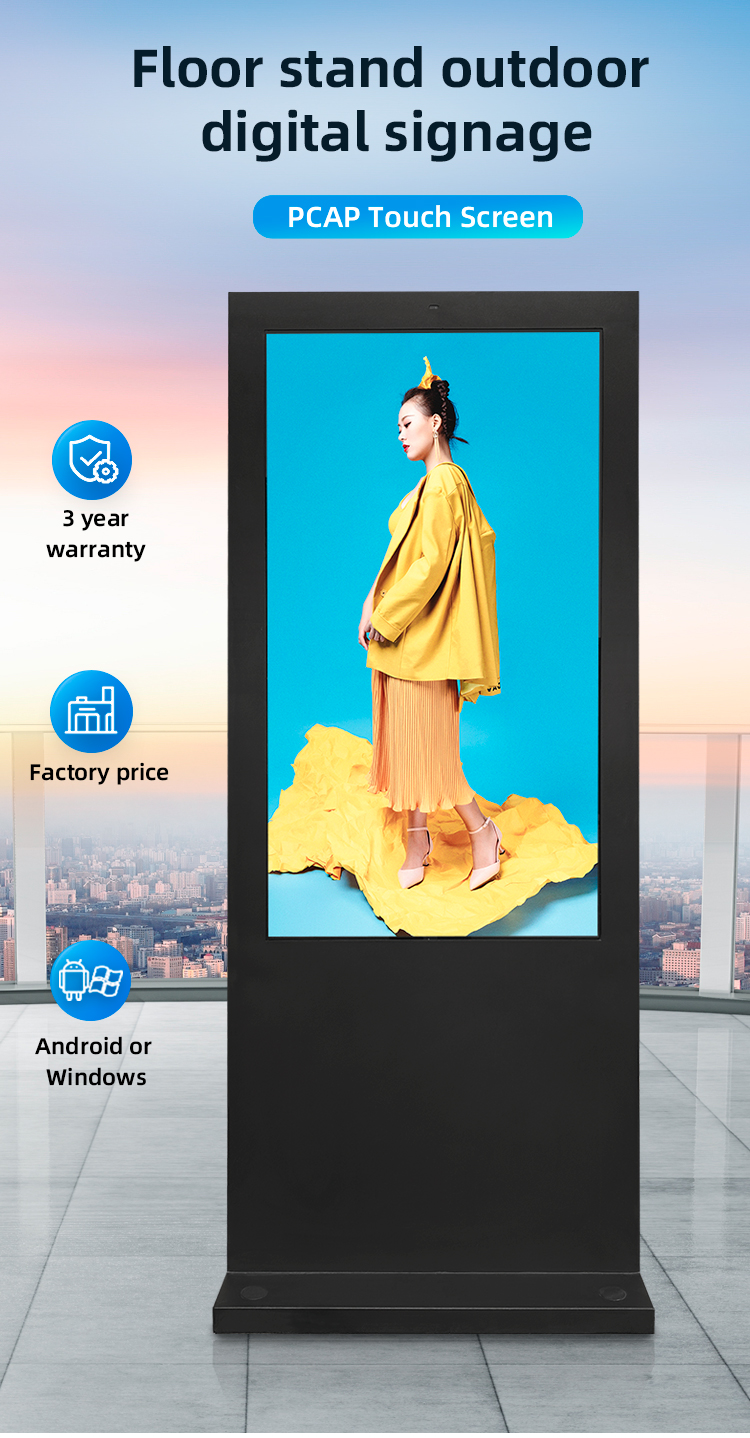

Touch Technology: Infrared or PCAP Multi-Touch
Construction: Powder-Coated Steel Aluminum Alloy
Connectivity: Wi-Fi / Ethernet / 4G Ready
Power: 110–240V AC, Energy-Efficient Operation
Display: 32″ to 86″ Touch LCD (Custom Sizes Available)
Protection Rating: IP65 Full Weatherproof
Brightness: High-Brightness Outdoor Grade
Software: Free Lifetime CMS with Remote Management
Touch Technology: Infrared or PCAP Multi-Touch
Construction: Powder-Coated Steel Aluminum Alloy
Connectivity: Wi-Fi / Ethernet / 4G Ready
Power: 110–240V AC, Energy-Efficient Operation

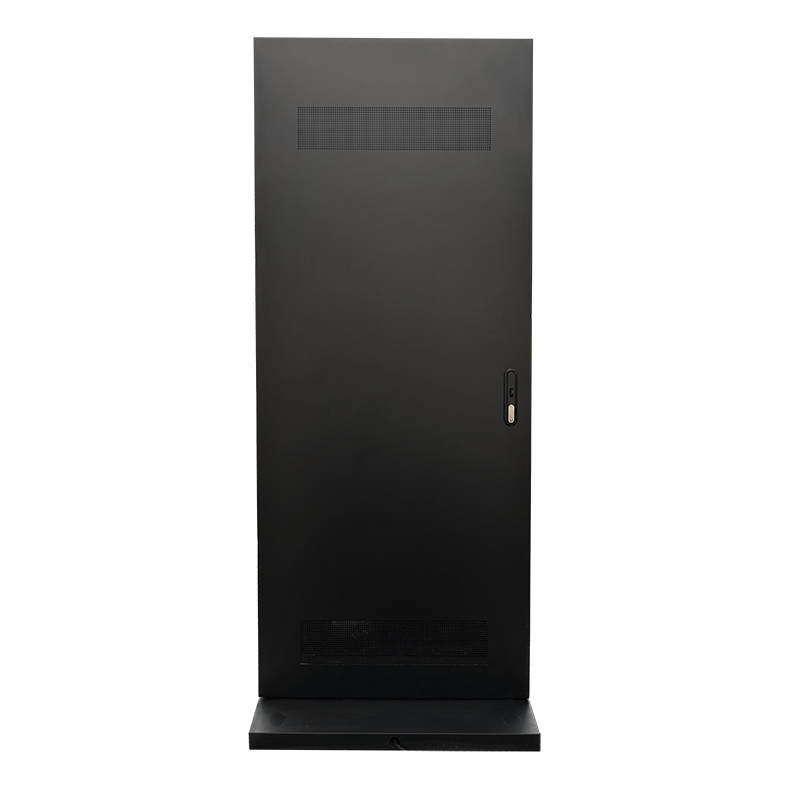

| structure | product dimension | 690mm(L)*400mm(W)*1800mm(H) | ||||
| product net weight | 80KG | |||||

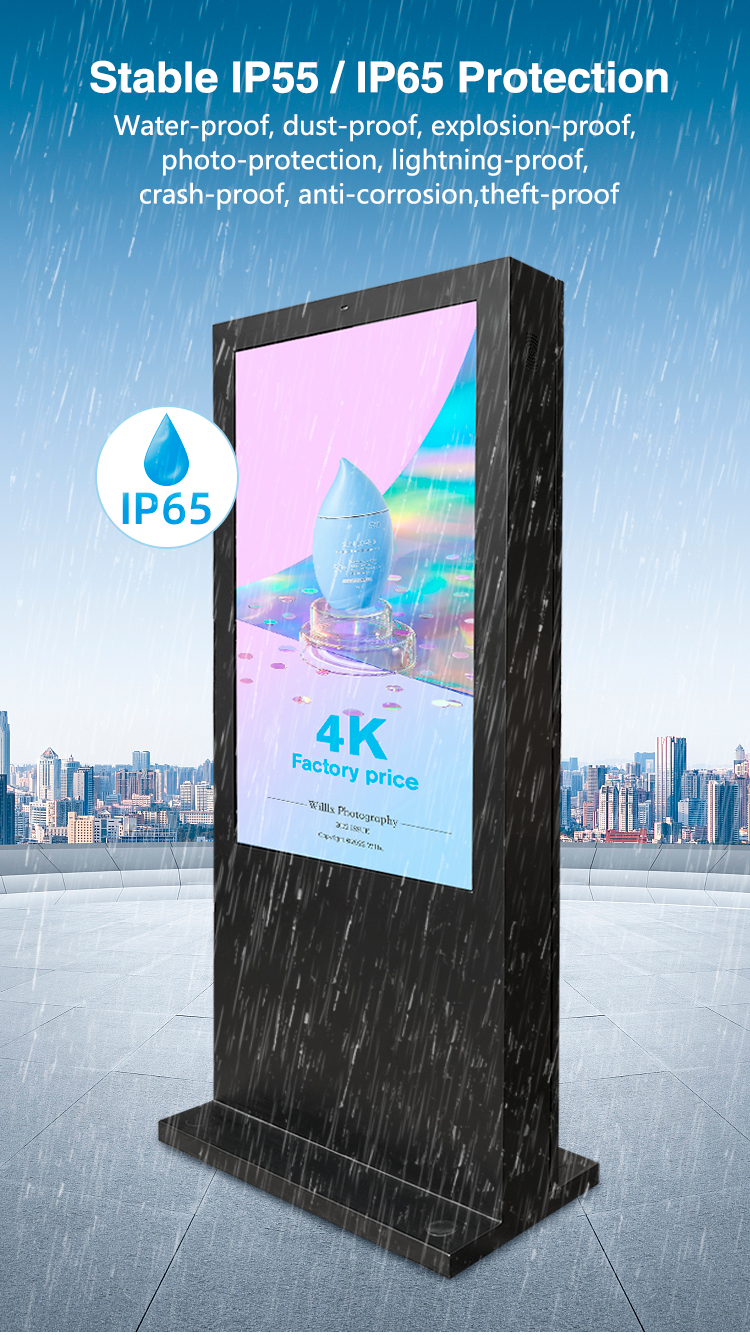

| protect level | outdoor IP65 | |||||
| casing color | black | |||||
| shell material | Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder | |||||
| glass | 6 mm tempered glass with light transmittance of more than 98%. | |||||
| Security | three-level door lock protection, hidden screw design, electronic magnetic lock | |||||
| dissipation system | The fan speed can be automatically adjusted according to the operating temperature, with heating function | |||||
| brightness control | Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm | |||||
| interface | USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder | |||||
| camera optional | 500W pixels | |||||
| loudspeaker | 8Ω10W * 2 | |||||
| protection | waterproof | three layers of composite sealing rubber strip | ||||
| anti-electric leakage | 3C certified brand leakage protector | |||||
| anti-thunder | unique lightning protection device | |||||
| dust proof | internal high air volume filter device | |||||
| anti-explosion | 6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97% | |||||
| Anti-glare glass optional | 6mm AR anti-reflection glass. AR coating is adopted | |||||
| anti-rust | galvanized steel sheet and outdoor double-sided spraying outdoor powder | |||||
| screen panel specification | screen size | 43 inch LCD screen panel | ||||
| display area | 530mm*942mm | |||||
| resolution | 1920*1080 | |||||

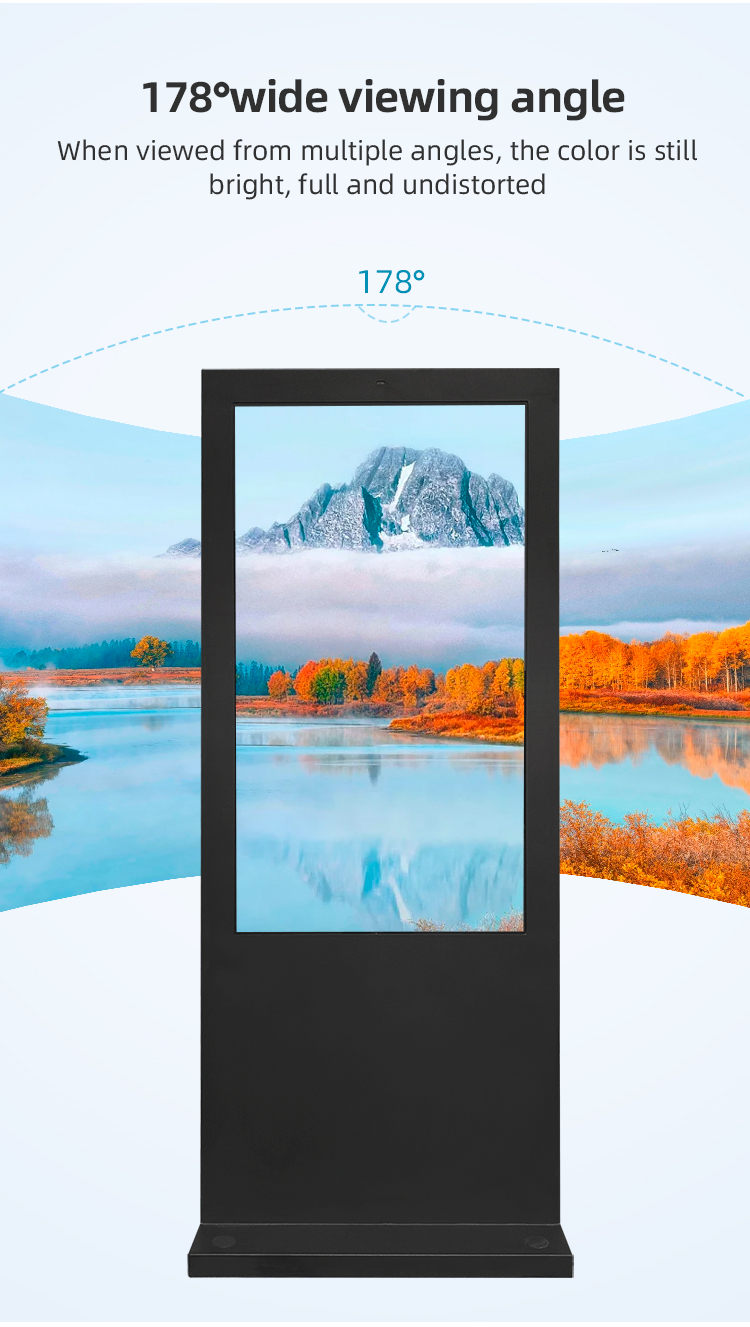

| view angles | 178°（H）/178°（V） | |||||
| Contrast | 3500:1 | |||||
| Brightness | 2500cd/㎡ | |||||
| color | 16.7 M | |||||
| Display Scale | 16 : 9 | |||||
| lifespan | >50000 hours | |||||
| refresh rate | 60Hz | |||||
| respond time | 6ms | |||||

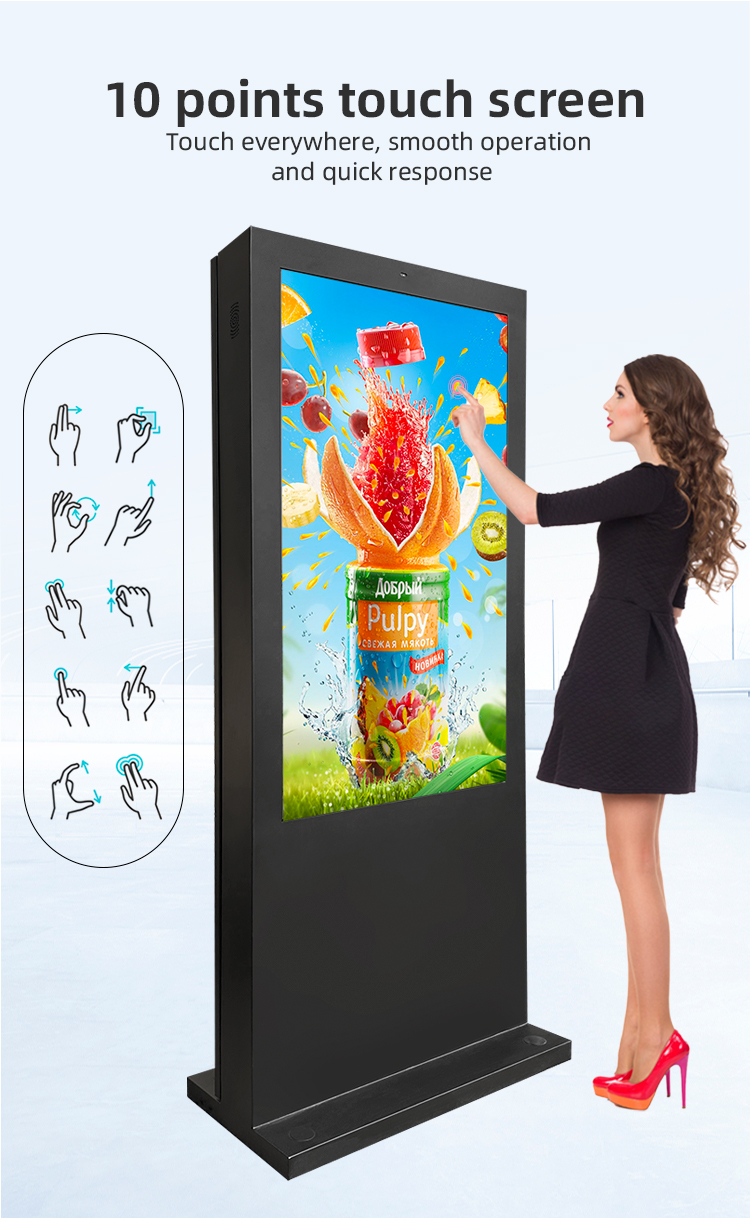

| parameter of touch | touch way | fingers | ||||
| effective touch recognition | ≥5mm | |||||
| touch accuracy | ±5mm | |||||
| touch point | 10 point | |||||
| first point response time | ≤10ms | |||||
| Fan cooling system | intelligent air cooling system for heat dissipation | |||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | ||||||
| The LCD screen does not blacken at -40 °C to 55°C | ||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | ||||||
| patented cooling system | ||||||
| Ensure that the LCD screen is not blackened in direct sunlight | ||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | ||||||
| intelligent control fan wind speed | ||||||
| product test | IP65 test | |||||
| high temperature aging | ||||||
| low temperature aging | ||||||
| simulated sunlight test | ||||||
| water proof test | ||||||
| surface treatment | wash | all parts of the sheet metal are cleaned in an acidic and alkaline manner | ||||
| anti-rust | Spray anti-rust paint | |||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | |||||
| Power | Input voltage | AC110-240V,50/60Hz | ||||
| power consumption | ≤300w | |||||
| working environment | temperature control | fan cooling (air cooling optional) | ||||
| operation temperature | -20°C to +50°C | |||||
| storage temperarure | -20°C to +60°C | |||||
| operation humidity | 5% to 90% | |||||
| quality standard | ISO9001 | |||||
| environmental protection standard | Meet international environmental standards | |||||
| power management | Meets VESA DPMS standard | |||||
| structure | product dimension | 690mm(L)*400mm(W)*1800mm(H) | ||||
| product net weight | 80KG | |||||
| protect level | outdoor IP65 | |||||
| casing color | black | |||||
| shell material | Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder | |||||
| glass | 6 mm tempered glass with light transmittance of more than 98%. | |||||
| Security | three-level door lock protection, hidden screw design, electronic magnetic lock | |||||
| dissipation system | The fan speed can be automatically adjusted according to the operating temperature, with heating function | |||||
| brightness control | Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm | |||||
| interface | USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder | |||||
| camera optional | 500W pixels | |||||
| loudspeaker | 8Ω10W * 2 | |||||
| protection | waterproof | three layers of composite sealing rubber strip | ||||
| anti-electric leakage | 3C certified brand leakage protector | |||||
| anti-thunder | unique lightning protection device | |||||
| dust proof | internal high air volume filter device | |||||
| anti-explosion | 6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97% | |||||
| Anti-glare glass optional | 6mm AR anti-reflection glass. AR coating is adopted | |||||
| anti-rust | galvanized steel sheet and outdoor double-sided spraying outdoor powder | |||||
| screen panel specification | screen size | 43 inch LCD screen panel | ||||
| display area | 530mm*942mm | |||||
| resolution | 1920*1080 | |||||
| view angles | 178°（H）/178°（V） | |||||
| Contrast | 3500:1 | |||||
| Brightness | 2500cd/㎡ | |||||
| color | 16.7 M | |||||
| Display Scale | 16 : 9 | |||||
| lifespan | >50000 hours | |||||
| refresh rate | 60Hz | |||||
| respond time | 6ms | |||||
| parameter of touch | touch way | fingers | ||||
| effective touch recognition | ≥5mm | |||||
| touch accuracy | ±5mm | |||||
| touch point | 10 point | |||||
| first point response time | ≤10ms | |||||
| Fan cooling system | intelligent air cooling system for heat dissipation | |||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | ||||||
| The LCD screen does not blacken at -40 °C to 55°C | ||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | ||||||
| patented cooling system | ||||||
| Ensure that the LCD screen is not blackened in direct sunlight | ||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | ||||||
| intelligent control fan wind speed | ||||||
| product test | IP65 test | |||||
| high temperature aging | ||||||
| low temperature aging | ||||||
| simulated sunlight test | ||||||
| water proof test | ||||||
| surface treatment | wash | all parts of the sheet metal are cleaned in an acidic and alkaline manner | ||||
| anti-rust | Spray anti-rust paint | |||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | |||||
| Power | Input voltage | AC110-240V,50/60Hz | ||||
| power consumption | ≤300w | |||||
| working environment | temperature control | fan cooling (air cooling optional) | ||||
| operation temperature | -20°C to +50°C | |||||
| storage temperarure | -20°C to +60°C | |||||
| operation humidity | 5% to 90% | |||||
| quality standard | ISO9001 | |||||
| environmental protection standard | Meet international environmental standards | |||||
| power management | Meets VESA DPMS standard | |||||

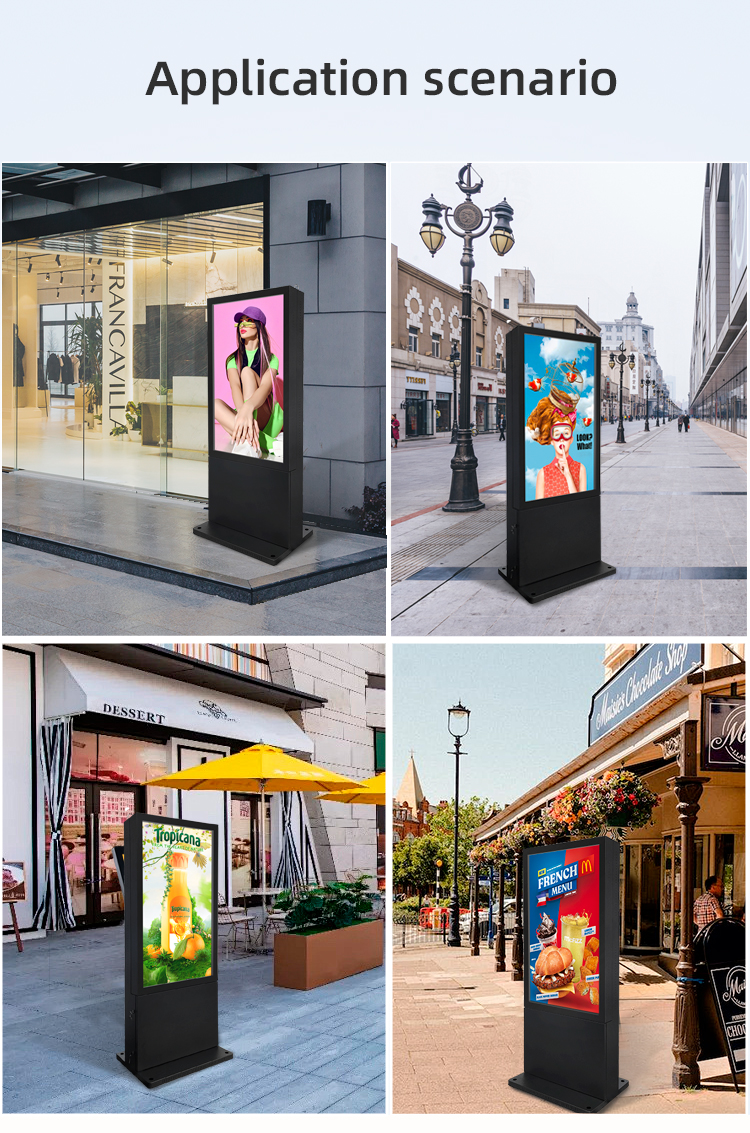

Urban Digital Infrastructure
Real-time public transport dashboards with mobile integration
Emergency alert systems with multilingual voice guidance
EV charging station maps with availability/pricing
Tourism Boosters
Interactive heritage trails with AR visualization
Cruise port digital concierge services
UNESCO site interpretation displays
Omnichannel Retail Hubs
Endless aisle product catalogs with store pickup
Virtual styling stations with social sharing
Black Friday queue management systems
QSR Innovations
Outdoor self-ordering kiosks with allergy filters
Drive-thru menu boards with license plate recognition
Table-side loyalty redemption stations
Airport 2.0 Solutions
Biometric bag drop assistants
Duty-free personalized recommendation walls
Immigration form e-filling stations
Smart Logistics
Warehouse picking guidance systems
Cargo status self-check portals
Trucker rest stop information hubs
Touchless Health Stations
Symptom checkers with hospital wayfinding
Vaccination record access points
Telemedicine kiosks with vital sign scanners
Government Efficiency
Digital permit application terminals
Jury duty check-in systems
Public library catalog explorers
Museum Tech
Artifact 3D exploration stations
Virtual exhibition preview portals
Donation/feedback collectors
Campus Smart Tech
Interactive campus maps with AR navigation
Event registration portals
Emergency blue light system integration
Urban Digital Infrastructure
Real-time public transport dashboards with mobile integration
Emergency alert systems with multilingual voice guidance
EV charging station maps with availability/pricing
Tourism Boosters
Interactive heritage trails with AR visualization
Cruise port digital concierge services
UNESCO site interpretation displays
Omnichannel Retail Hubs
Endless aisle product catalogs with store pickup
Virtual styling stations with social sharing
Black Friday queue management systems
QSR Innovations
Outdoor self-ordering kiosks with allergy filters
Drive-thru menu boards with license plate recognition
Table-side loyalty redemption stations
Airport 2.0 Solutions
Biometric bag drop assistants
Duty-free personalized recommendation walls
Immigration form e-filling stations
Smart Logistics
Warehouse picking guidance systems
Cargo status self-check portals
Trucker rest stop information hubs
Touchless Health Stations
Symptom checkers with hospital wayfinding
Vaccination record access points
Telemedicine kiosks with vital sign scanners
Government Efficiency
Digital permit application terminals
Jury duty check-in systems
Public library catalog explorers
Museum Tech
Artifact 3D exploration stations
Virtual exhibition preview portals
Donation/feedback collectors
Campus Smart Tech
Interactive campus maps with AR navigation
Event registration portals
Emergency blue light system integration
1. Q: What does the "free CMS" include, and are there any hidden fees?
A: The package includes a lifetime license for our cloud-based Content Management System (CMS) with core features: remote content upload, scheduling, basic screen monitoring, and playlist management. There are no subscription fees. Optional premium features (e.g., advanced analytics, API access) may be available for an additional cost, but core management remains free.
2. Q: Is this totem truly suitable for permanent, unsheltered outdoor installation?
A: Yes. With its IP65-rated enclosure, the unit is fully dust-tight and protected against low-pressure water jets from any direction. It is engineered for permanent, year-round outdoor use in rain, snow, dust, and high-humidity environments.
3. Q: What is the minimum order quantity (MOQ) for wholesale pricing?
A: Our standard wholesale MOQ starts at 10 units. We offer tiered discounts for larger volumes (e.g., 50+, 100+ units). Custom MOQs may be negotiated for very large projects or ongoing partnership agreements.
4. Q: Can we brand the totem with our company's logo or custom design?
A: Absolutely. We offer OEM/ODM services for wholesale clients. Options include custom powder-coating colors, logo engraving/silkscreening on the bezel or base, and even partial customization of the enclosure design for orders above a certain quantity.
5. Q: How is the CMS software managed for a large network of 50+ screens?
A: Our free CMS is built for scalability. You can group screens, apply templates, schedule content in bulk, and manage your entire fleet from a single dashboard. It supports an unlimited number of devices, making nationwide or city-wide deployments simple.

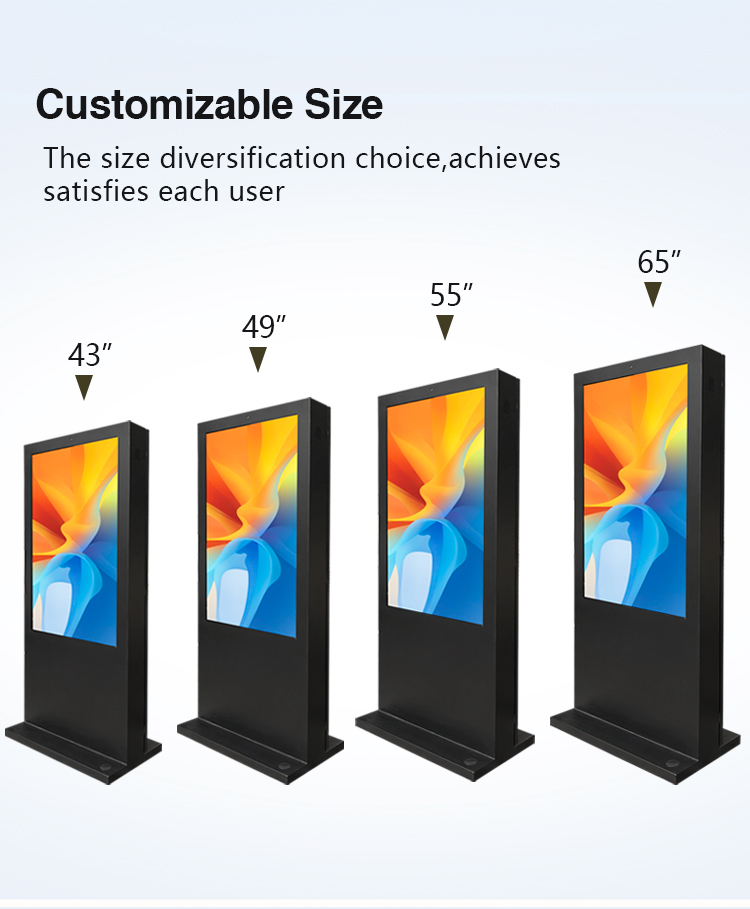

6. Q: What are the available screen sizes and touch technologies?
A: We typically offer sizes from 32" to 55" for wholesale. Touch technology options include durable Infrared (IR) for cost-effective public use or higher-clarity Projected Capacitive (PCAP) for premium multi-touch gestures. Specifics depend on the model chosen.
7. Q: What is the lead time for a large wholesale order?
A: Standard lead time for wholesale orders is 4-6 weeks after final confirmation and deposit. This allows for production, quality testing, and logistics planning. Expedited production may be available for an additional fee.
8. Q: What kind of after-sales support and warranty is provided for wholesale clients?
A: Wholesale clients receive a comprehensive commercial warranty (typically 2-3 years on key components). Dedicated account management, batch-based technical support, and optional on-site maintenance packages are available to ensure the success of your deployment.
9. Q: Does the integrated media player support 4K content and third-party apps?

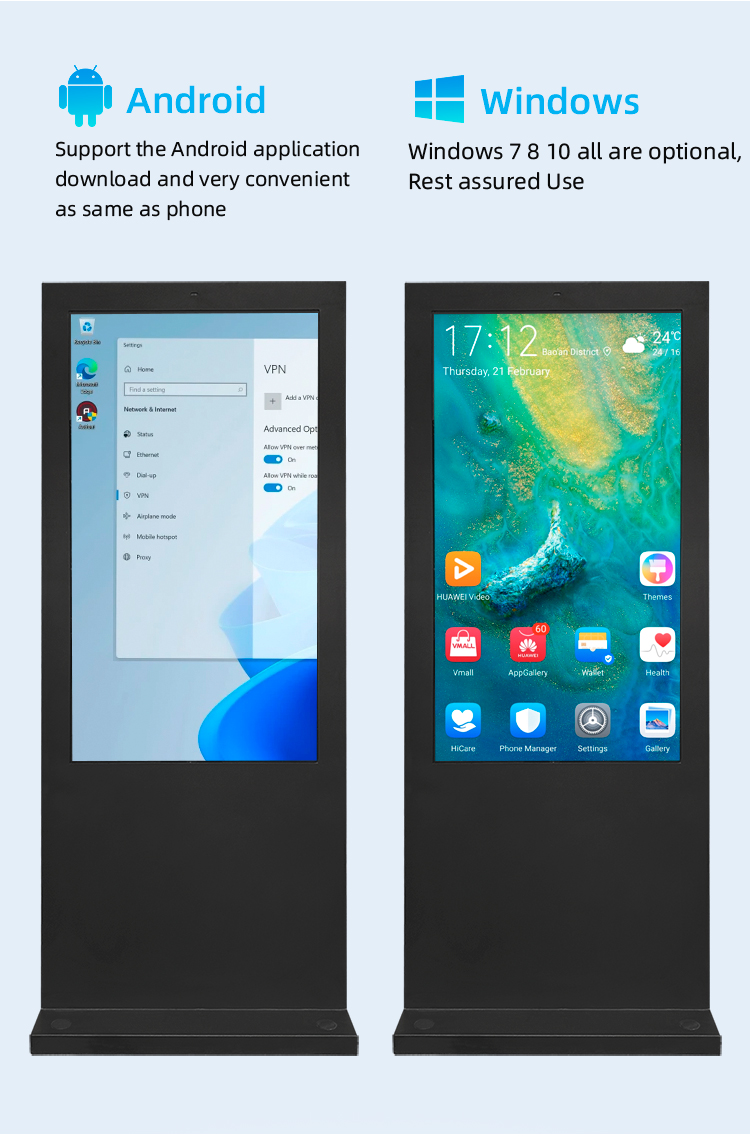

A: Yes. The built-in Android media player supports 4K video decoding and allows installation of third-party apps from approved stores (e.g., Google Play, or a curated enterprise store). This enables advanced interactive content, wayfinding, and custom kiosk software.
10. Q: What are the power and internet requirements for installation?
A: Each unit operates on standard 110-240V AC power. For internet, it supports Ethernet (recommended for stability), Wi-Fi, or optional 4G/5G modules. We provide detailed installation guides for electricians and technicians to ensure correct setup.
1. Q: What does the "free CMS" include, and are there any hidden fees?
A: The package includes a lifetime license for our cloud-based Content Management System (CMS) with core features: remote content upload, scheduling, basic screen monitoring, and playlist management. There are no subscription fees. Optional premium features (e.g., advanced analytics, API access) may be available for an additional cost, but core management remains free.

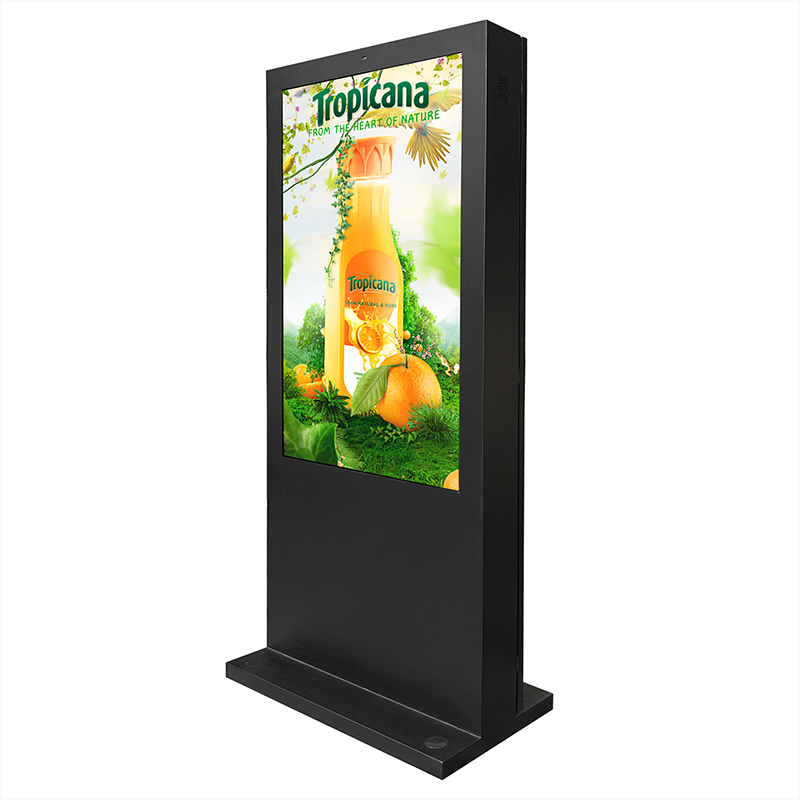

2. Q: Is this totem truly suitable for permanent, unsheltered outdoor installation?
A: Yes. With its IP65-rated enclosure, the unit is fully dust-tight and protected against low-pressure water jets from any direction. It is engineered for permanent, year-round outdoor use in rain, snow, dust, and high-humidity environments.
3. Q: What is the minimum order quantity (MOQ) for wholesale pricing?
A: Our standard wholesale MOQ starts at 10 units. We offer tiered discounts for larger volumes (e.g., 50+, 100+ units). Custom MOQs may be negotiated for very large projects or ongoing partnership agreements.
4. Q: Can we brand the totem with our company's logo or custom design?
A: Absolutely. We offer OEM/ODM services for wholesale clients. Options include custom powder-coating colors, logo engraving/silkscreening on the bezel or base, and even partial customization of the enclosure design for orders above a certain quantity.
5. Q: How is the CMS software managed for a large network of 50+ screens?
A: Our free CMS is built for scalability. You can group screens, apply templates, schedule content in bulk, and manage your entire fleet from a single dashboard. It supports an unlimited number of devices, making nationwide or city-wide deployments simple.
6. Q: What are the available screen sizes and touch technologies?
A: We typically offer sizes from 32" to 55" for wholesale. Touch technology options include durable Infrared (IR) for cost-effective public use or higher-clarity Projected Capacitive (PCAP) for premium multi-touch gestures. Specifics depend on the model chosen.
7. Q: What is the lead time for a large wholesale order?
A: Standard lead time for wholesale orders is 4-6 weeks after final confirmation and deposit. This allows for production, quality testing, and logistics planning. Expedited production may be available for an additional fee.
8. Q: What kind of after-sales support and warranty is provided for wholesale clients?
A: Wholesale clients receive a comprehensive commercial warranty (typically 2-3 years on key components). Dedicated account management, batch-based technical support, and optional on-site maintenance packages are available to ensure the success of your deployment.
9. Q: Does the integrated media player support 4K content and third-party apps?
A: Yes. The built-in Android media player supports 4K video decoding and allows installation of third-party apps from approved stores (e.g., Google Play, or a curated enterprise store). This enables advanced interactive content, wayfinding, and custom kiosk software.
10. Q: What are the power and internet requirements for installation?
A: Each unit operates on standard 110-240V AC power. For internet, it supports Ethernet (recommended for stability), Wi-Fi, or optional 4G/5G modules. We provide detailed installation guides for electricians and technicians to ensure correct setup.
