Visual: High-impact hero image of the T3-PRO screen. Headline: T3-PRO Series: The Ultimate Indoor Ultra-HD LED Display Sub-headline: Innovative 33mm Ultra-Thin Design | Full Front Maintenance | 3840Hz High Refresh Rate

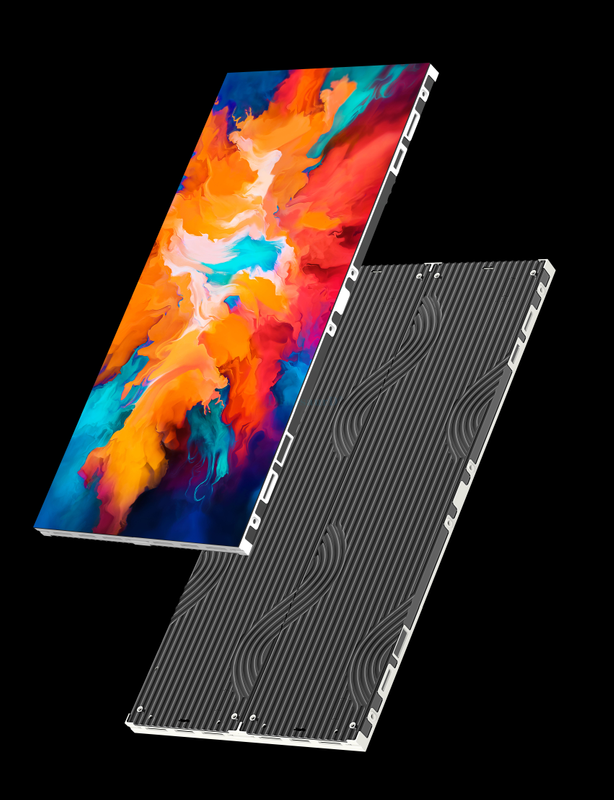

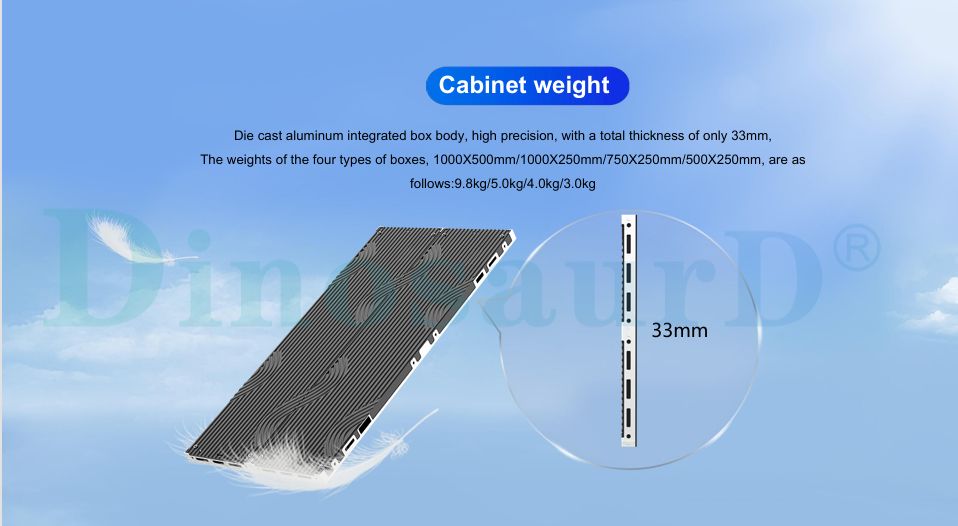

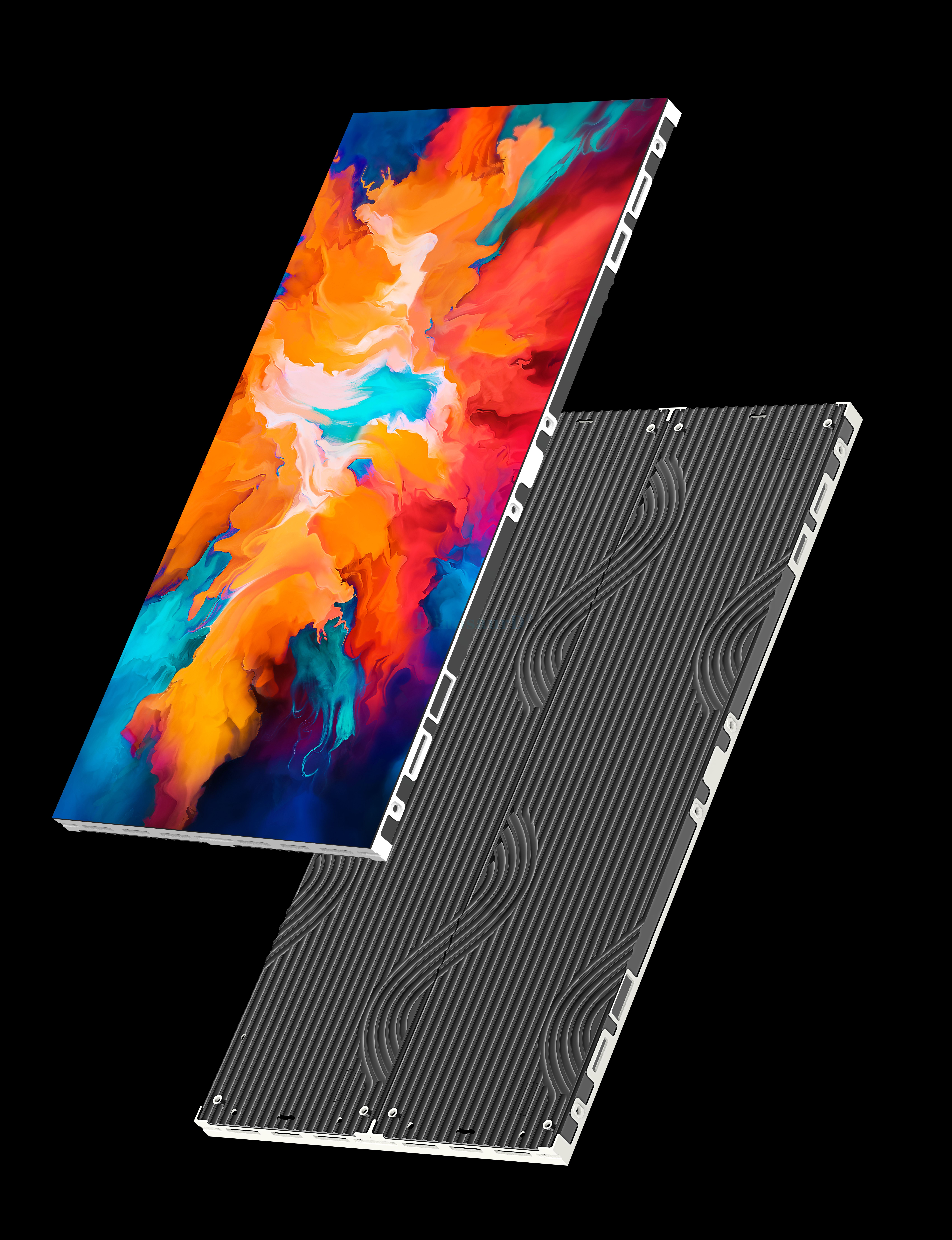

Cabinet Thickness:
● Only 33mm, one of the slimmest in the industry.
Material:
● Integrated die-cast aluminum body for high precision and durability.
Weight:
● Starting from just 3.0kg (500x250mm), making installation easier and reducing wall load.
● Modules and power supplies are accessible from the front.
Magnetic Suction:
● Modules adopt magnetic automatic adsorption for quick and reliable replacement.
Zero Space Constraint:

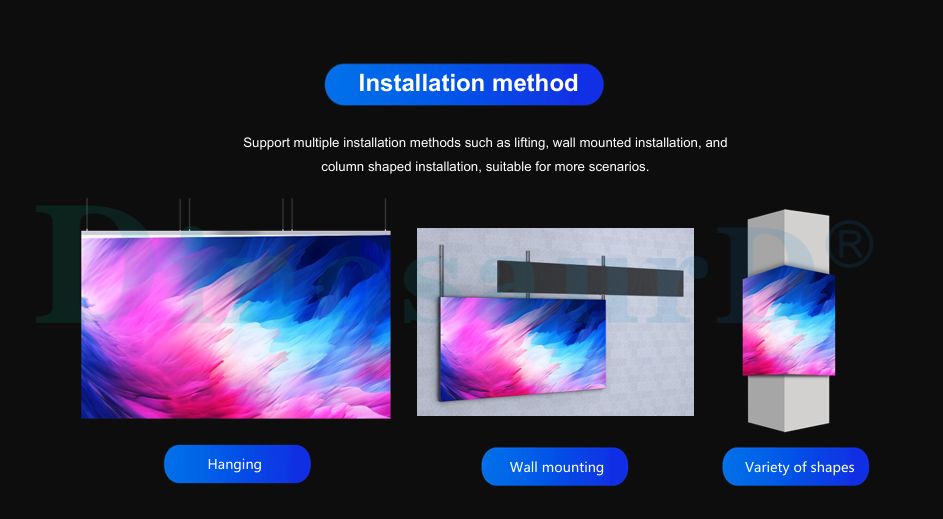

● Perfect for wall-mounted installations where rear access is impossible.

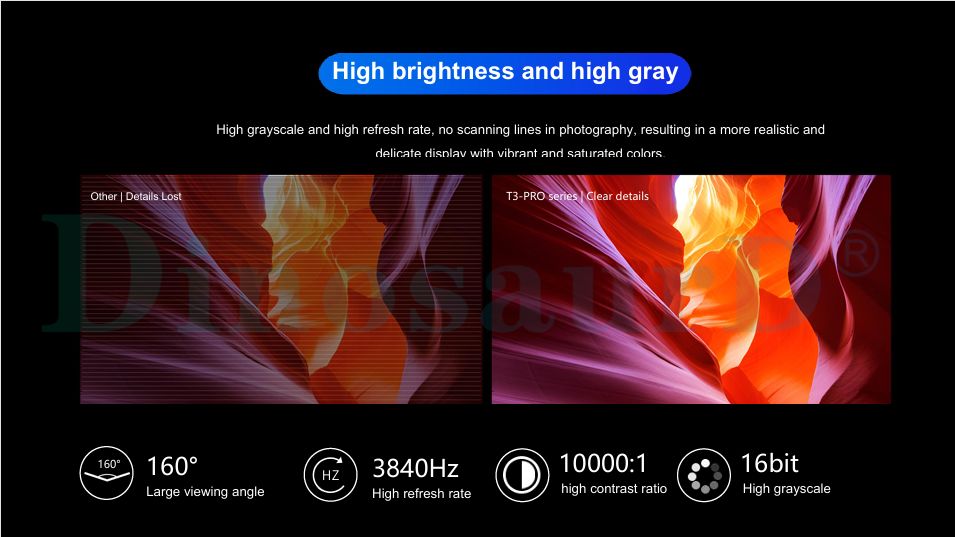

Refresh Rate: 3840Hz
● – Flicker-free under professional cameras.
Grayscale: 16bit
● – Smooth color transitions and rich details.
Contrast Ratio: 10000:1
● – Deep blacks and vibrant whites.
Viewing Angle:160°/160°
● – Clear visibility from any direction.

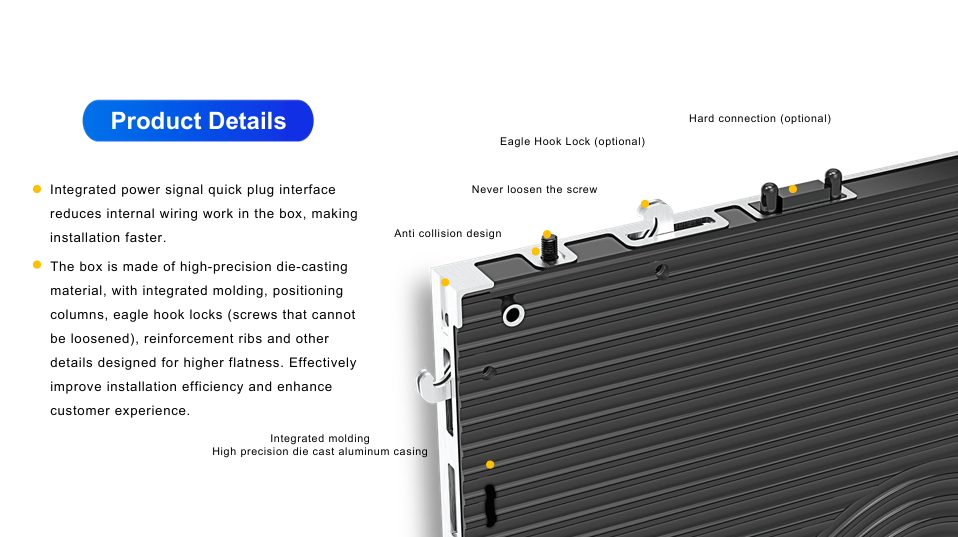

● Module-to-cabinet hard connection – no internal messy cables.
● Quick plug power and signal interfaces – plug and play for faster assembly.

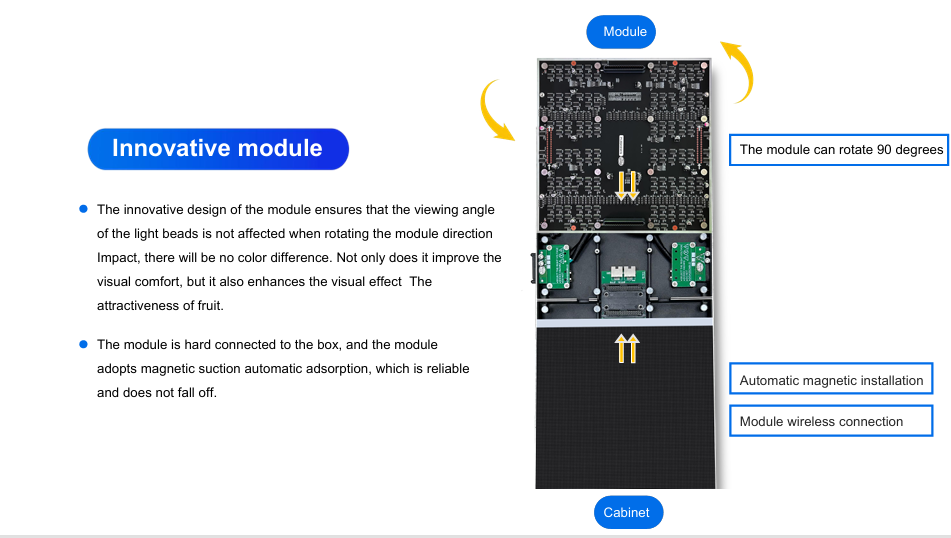

90° Rotating Modules:
● Innovative design allows rotating module direction without affecting visual quality or color uniformity.

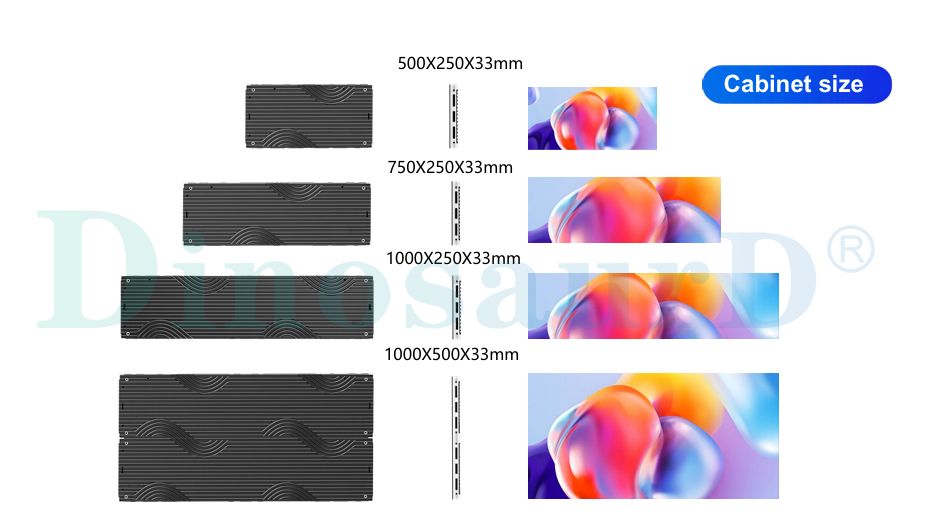

Model | T3-PRO 500 | T3-PRO 750 | T3-PRO 1000S | T3-PRO 1000L |
Cabinet Size (mm) | 500 x 250 x 33 | 750 x 250 x 33 | 1000 x 250 x 33 | 1000 x 500 x 33 |
Cabinet Weight | 3.0 kg | 4.0 kg | 5.0 kg | 9.8 kg |
Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
Maintenance | Front | Front | Front | Front |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Grayscale | 16bit | 16bit | 16bit | 16bit |
Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
Viewing Angle | 160° (H/V) | 160° (H/V) | 160° (H/V) | 160° (H/V) |

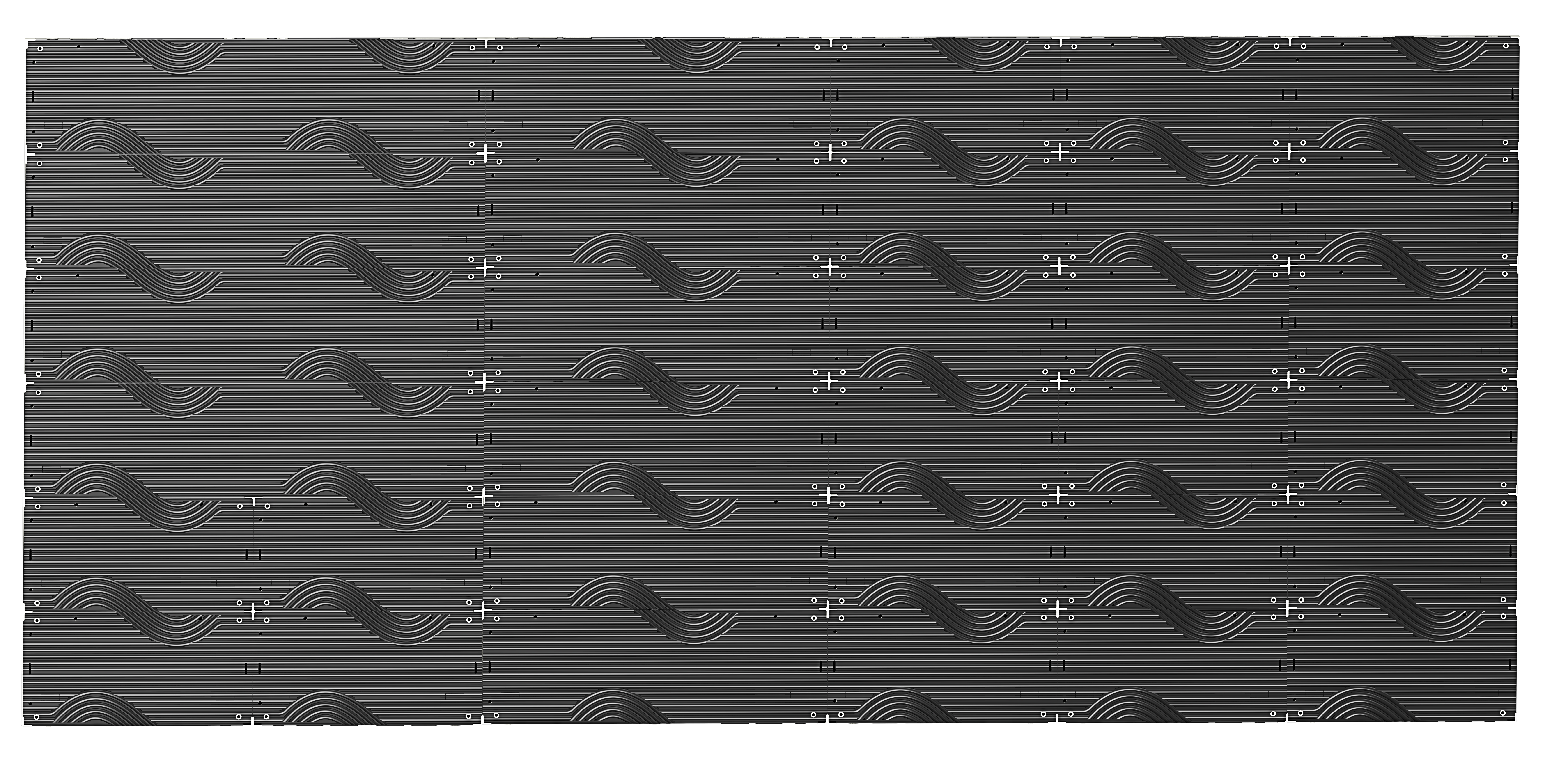

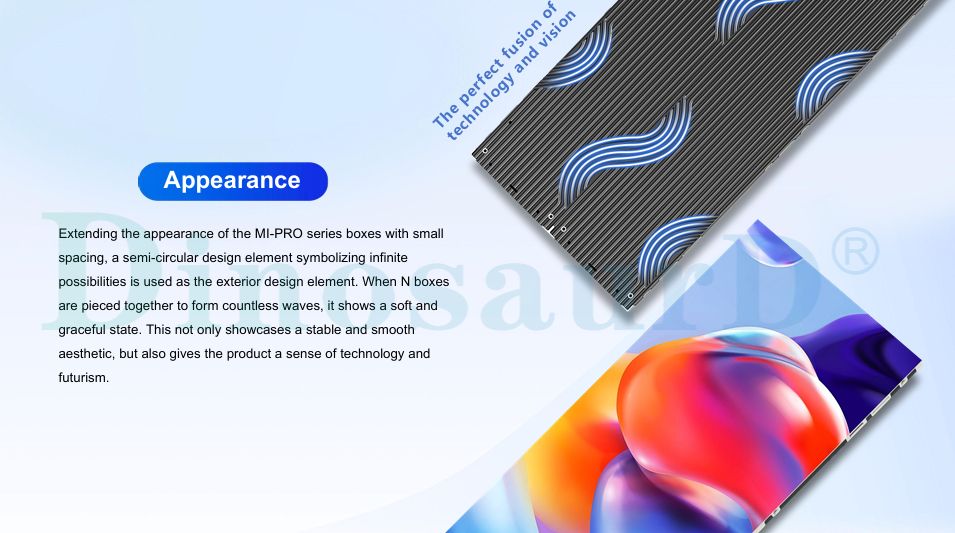

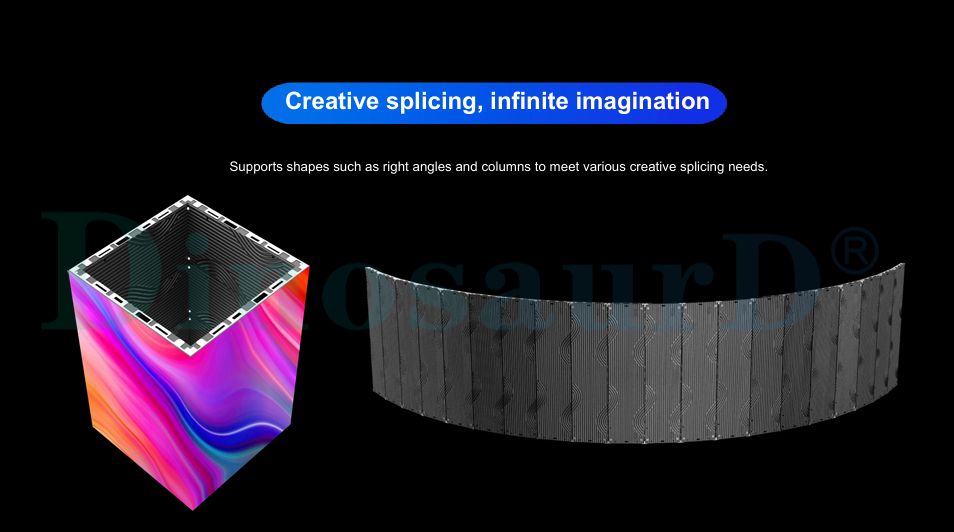

The T3-PRO series supports 90° right-angle splicing, enabling creative layouts like pillars, L-shaped screens, and corner displays. Its unique "semi-circular" exterior design creates a wavy, futuristic aesthetic when multiple units are combined.

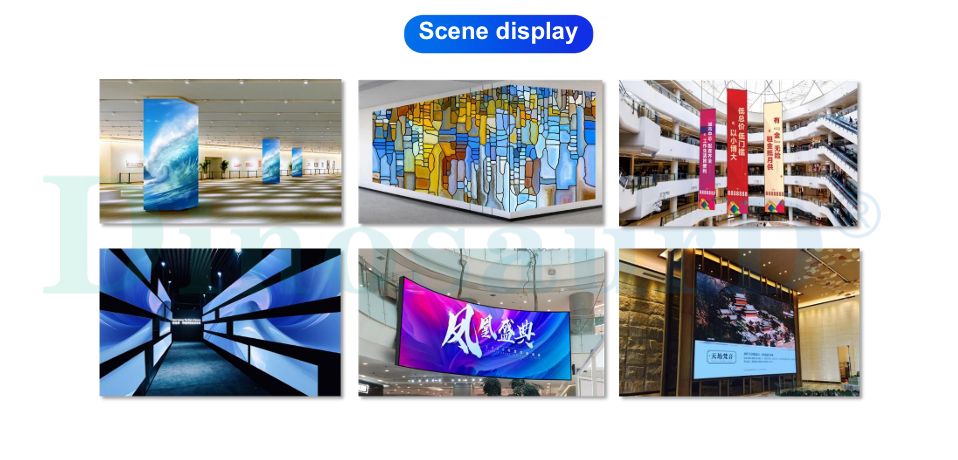

Corporate:
● High-end conference rooms, boardrooms.
Retail:
● Luxury flagship stores, shopping malls.
Media:
● TV studios, broadcast control rooms.
Public:
● Transportation hubs, exhibition halls, museums.
Global Standards:
● CE, RoHS, FCC certified.
Rigorous Testing:
● 72-hour aging test and 100% QC inspection before shipment.
Warranty:
● 2-5 years global warranty and professional technical support.
