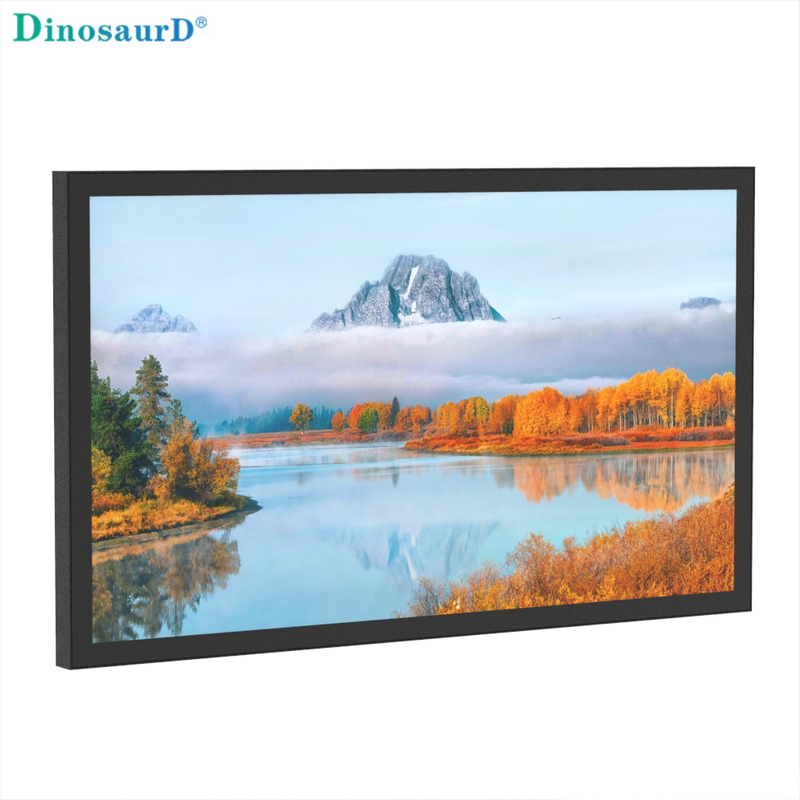

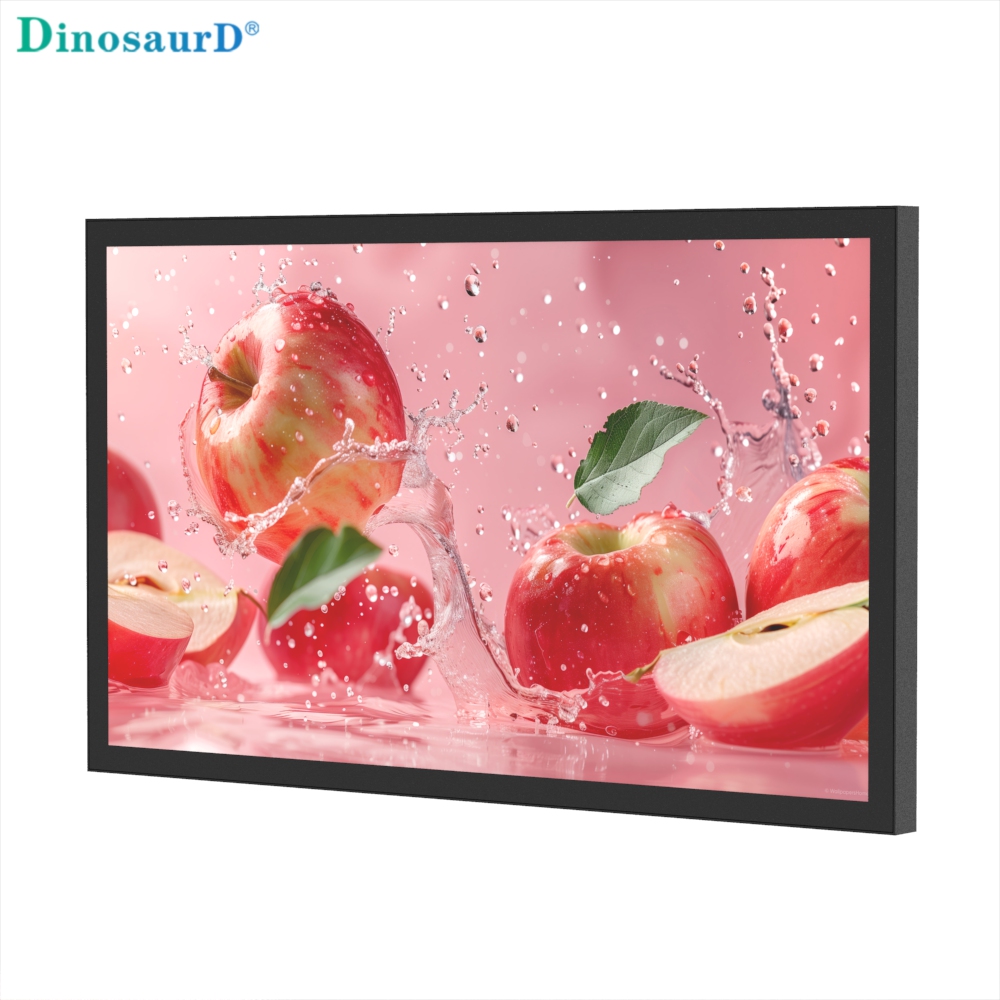

intelligent photosensitive technology high brightness waterproof advertising lcd display dustproof totem digital outdoor wall mounted ip66 screen

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

intelligent photosensitive technology high brightness waterproof advertising lcd display dustproof totem digital outdoor wall mounted ip66 screen

This Intelligent Photosensitive Outdoor Advertising LCD Display represents the next generation of adaptive digital signage, engineered for optimal visibility and energy efficiency in dynamic lighting conditions. By integrating intelligent photosensitive technology with a high-brightness, fully waterproof, and dustproof design, this wall-mounted totem screen automatically adjusts its brightness to ambient light, delivering crisp, vivid content while reducing power consumption. Built to IP66 standards, it ensures reliable 24/7 performance in shopping malls, transit hubs, smart city installations, and other high-traffic outdoor environments.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Innovations

1. Intelligent Photosensitive Technology

Ambient Light Auto-Adjustment: Embedded high-precision light sensors continuously monitor environmental brightness and automatically optimize screen brightness in real time—ensuring perfect visibility day or night while minimizing glare and power usage.
Smart Energy Saving: Reduces brightness in low-light conditions (e.g., evenings or cloudy days), cutting energy consumption by up to 30–40% compared to fixed-brightness displays.

2. High-Brightness & All-Weather Readability

High-Brightness Display (2500–5000 nits): Exceptionally bright backlight ensures outstanding readability even under direct sunlight or bright indoor lighting.
IP66 Waterproof & Dustproof: Fully sealed enclosure protects against heavy rain, dust, humidity, and temperature fluctuations, guaranteeing durability in harsh outdoor conditions.

3. Totem-Style Wall-Mount Design

Slim Vertical Profile: Space-saving totem form factor ideal for corridors, entrances, transit stations, and retail spaces.
Robust Wall-Mount System: Heavy-duty, vandal-resistant brackets allow secure installation on walls or poles, with lockable access panels for maintenance.

4. Integrated Digital Signage Solution

Optional Built-in Media Player: Seamlessly integrated IP66-rated media player supports remote content management, scheduling, and real-time updates via Wi-Fi/4G/Ethernet.
Wide Connectivity: HDMI, USB, LAN, and optional touchscreen interfaces for interactive applications.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What is "intelligent photosensitive technology," and how does it work?
It refers to the built-in ambient light sensors that continuously monitor real-time lighting conditions around the display. Based on preset or customizable brightness curves, the screen automatically adjusts its backlight intensity—increasing brightness in direct sunlight and lowering it in low-light environments—to ensure optimal visibility while reducing energy consumption.

2. How much energy can the auto-brightness feature save?
Under typical day-night cycles, the intelligent photosensitive system can reduce energy usage by 30–40% compared to fixed high-brightness operation, thanks to adaptive dimming during evenings, cloudy weather, or indoor low-light periods.

3. Is the high brightness (2500–5000 nits) always at maximum?
No. The brightness adapts dynamically based on ambient light sensor data. In bright sunlight, it may operate near maximum levels for readability; in shaded or evening conditions, it automatically dims to a comfortable and energy-efficient level without compromising clarity.

4. Does the IP66 rating apply to the entire totem structure, including sensors?
Yes. The entire enclosure—including the light sensor windows, cable glands, mounting joints, and media player compartment—is sealed to IP66 standards, ensuring full protection against dust ingress and water jets from any direction.

5. How is the light sensor calibrated, and can it be adjusted remotely?
The sensor is factory-calibrated for general outdoor environments. Users can further customize brightness-response curves via the display’s built-in OSD menu or through the remote content management system (CMS) to match specific site conditions (e.g., shaded vs. fully sun-exposed locations).

6. Can the display still operate manually without using the auto-brightness feature?
Yes. The intelligent photosensitive function can be turned on/off or overridden manually through the control panel or CMS. You may set fixed brightness levels or time-based schedules if preferred.

7. What kind of wall or surface is required for mounting this totem display?
The display includes a heavy-duty VESA-compatible wall-mount bracket designed for solid vertical surfaces such as concrete, brick, or structural metal. We recommend professional installation to ensure load-bearing safety and weather sealing integrity.

8. Is an integrated media player included, and is it also waterproof?
An optional IP66-rated built-in media player is available, housed within the same sealed enclosure as the display. It supports 4K decoding, remote CMS updates, scheduling, and multi-zone content playback, eliminating the need for external player boxes.

9. Can the display withstand extreme temperatures, especially with the sensor exposed?
Yes. The display operates reliably in -30°C to 60°C environments. The light sensor is made of temperature-resistant optical materials and is integrated behind a weatherproof glass panel, ensuring accurate sensing across the full operating range.

10. What maintenance does the photosensitive system require?
Minimal to none. The sensor window is scratch-resistant and easy to clean during routine surface wiping. No recalibration is typically needed unless the display is relocated to a drastically different lighting environment.
