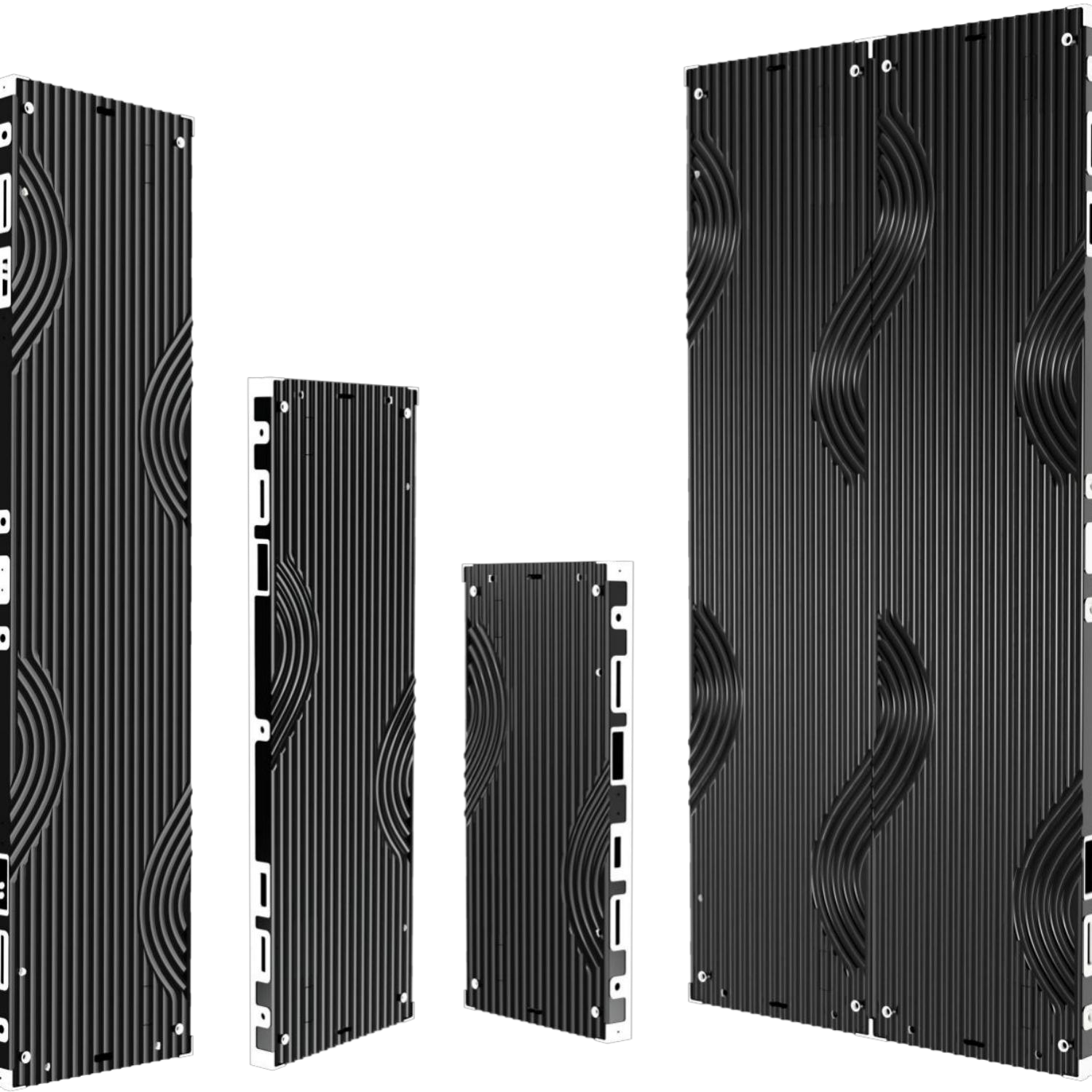

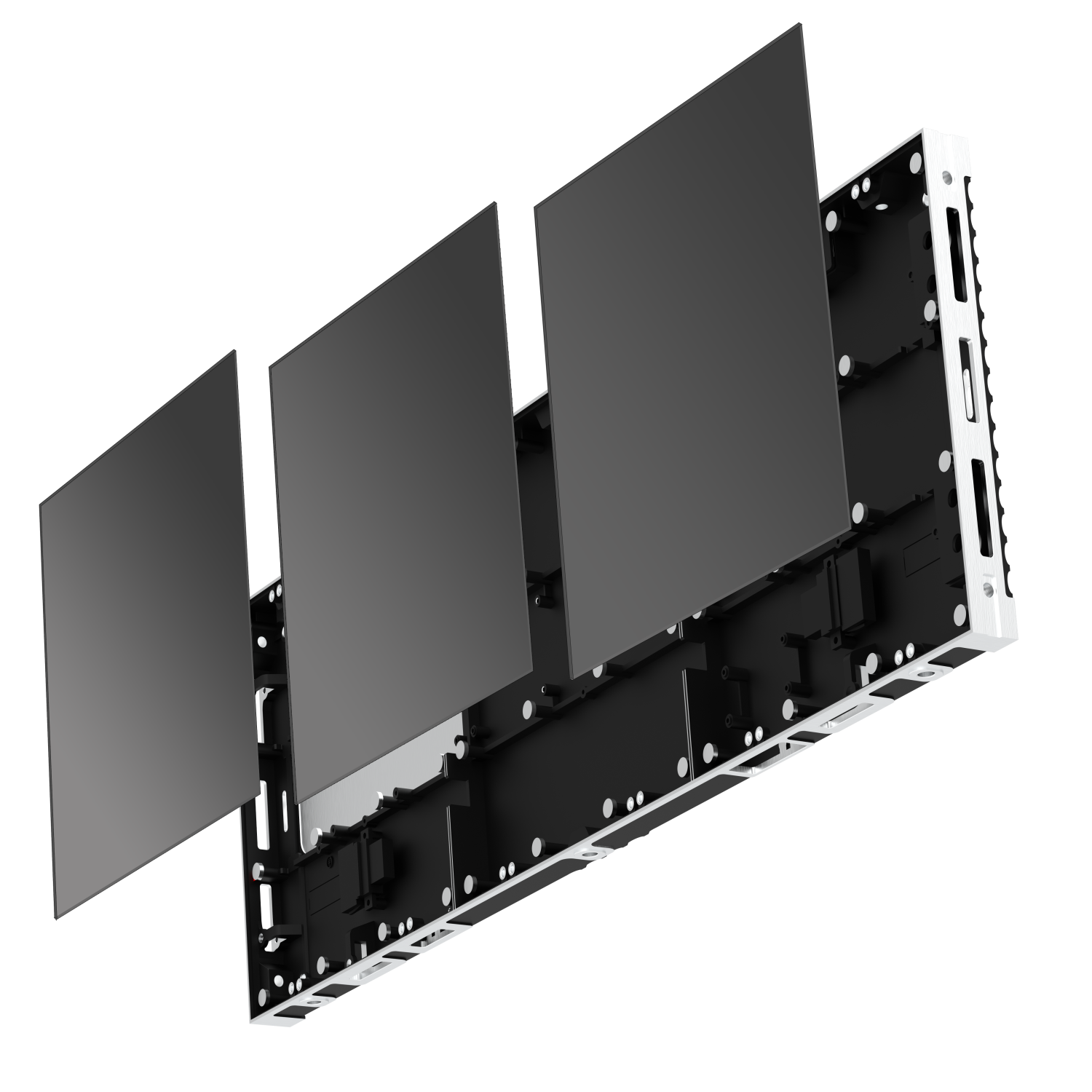

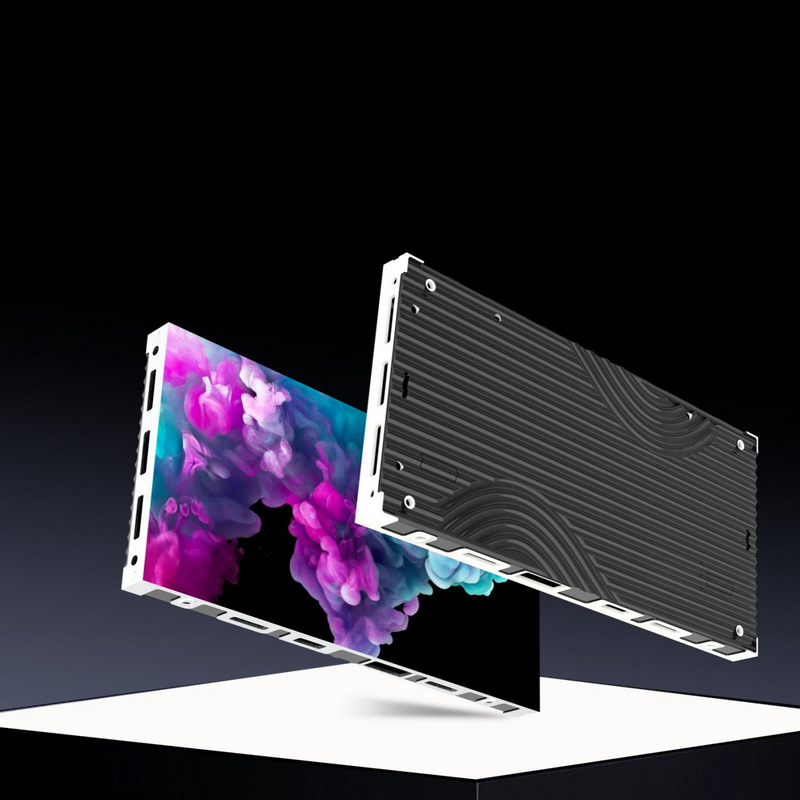

Visual: High-impact hero image of the T3-PRO screen. Headline: T3-PRO Series: The Ultimate Indoor Ultra-HD LED Display Sub-headline: Innovative 33mm Ultra-Thin Design | Full Front Maintenance | 3840Hz High Refresh Rate
Bespoke Visual Solutions
• Free-form panel cutting - Circles, curves, brand logos, and 3D structures
• Seamless 160° viewing angles - Consistent colors at any perspective
• 16-bit color depth - Photorealistic image quality
️ Professional-Grade Construction
• Aerospace-grade aluminum frames (6mm ultra-thin)
• Tool-less magnetic connectors for complex shapes
• Pixel-level calibration across irregular surfaces
Smart Control Features
• Cloud-based content management
• Motion sensor triggers for interactive displays
• Automatic brightness synchronization
3. Product Specifications
Model |
T3-PRO 500 |
T3-PRO 750 |
T3-PRO 1000S |
T3-PRO 1000L |
Cabinet Size (mm) |
500 x 250 x 33 |
750 x 250 x 33 |
1000 x 250 x 33 |
1000 x 500 x 33 |
Cabinet Weight |
3.0 kg |
4.0 kg |
5.0 kg |
9.8 kg |
Material |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Maintenance |
Front |
Front |
Front |
Front |
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
Grayscale |
16bit |
16bit |
16bit |
16bit |
Contrast Ratio |
10000:1 |
10000:1 |
10000:1 |
10000:1 |
Viewing Angle |
160° (H/V) |
160° (H/V) |
160° (H/V) |
160° (H/V) |
The T3-PRO series supports 90° right-angle splicing, enabling creative layouts like pillars, L-shaped screens, and corner displays. Its unique "semi-circular" exterior design creates a wavy, futuristic aesthetic when multiple units are combined.
Corporate:
● High-end conference rooms, boardrooms.
Retail:
● Luxury flagship stores, shopping malls.
Media:
● TV studios, broadcast control rooms.
Public:
● Transportation hubs, exhibition halls, museums.
Global Standards:
● CE, RoHS, FCC certified.
Rigorous Testing:
● 72-hour aging test and 100% QC inspection before shipment.
Warranty:
● 2-5 years global warranty and professional technical support.
