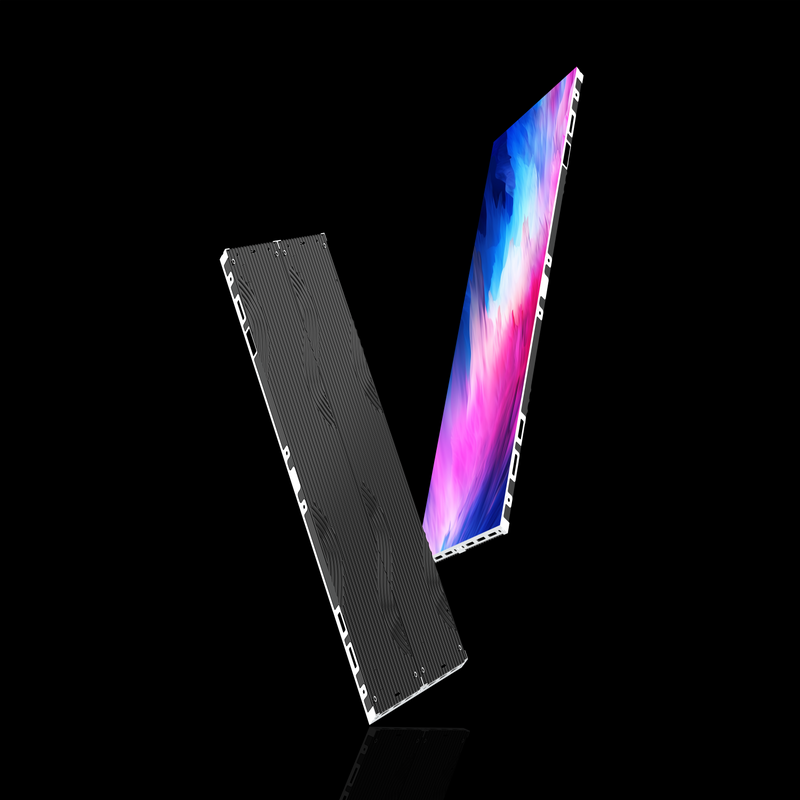

Visual: High-impact hero image of the T3-PRO screen. Headline: T3-PRO Series: The Ultimate Indoor Ultra-HD LED Display Sub-headline: Innovative 33mm Ultra-Thin Design | Full Front Maintenance | 3840Hz High Refresh Rate
✔ Crystal-Clear Resolution
P2.5 pixel pitch for seamless visuals (1920×960 pixels for 6m×3m screen)
500–1500nits brightness (adjustable for indoor environments)
16:9 aspect ratio supports 4K content
✔ Modular & Rental-Friendly Design
Lightweight aluminum cabinets (500×1000mm per panel)
Quick-lock mechanisms for fast assembly/disassembly
Front/rear service access for easy maintenance
✔ Professional Control System
Novastar/Huidu processor included
Wireless/WiFi/4G content updates
Automatic brightness adjustment
✔ Durable & User-Friendly
Low power consumption (≤600W/m²)
72Hz refresh rate – no flickering in recordings
Silent operation (≤40dB) for event use
Model | T3-PRO 500 | T3-PRO 750 | T3-PRO 1000S | T3-PRO 1000L |
Cabinet Size (mm) | 500 x 250 x 33 | 750 x 250 x 33 | 1000 x 250 x 33 | 1000 x 500 x 33 |
Cabinet Weight | 3.0 kg | 4.0 kg | 5.0 kg | 9.8 kg |
Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
Maintenance | Front | Front | Front | Front |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Grayscale | 16bit | 16bit | 16bit | 16bit |
Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
Viewing Angle | 160° (H/V) | 160° (H/V) | 160° (H/V) | 160° (H/V) |

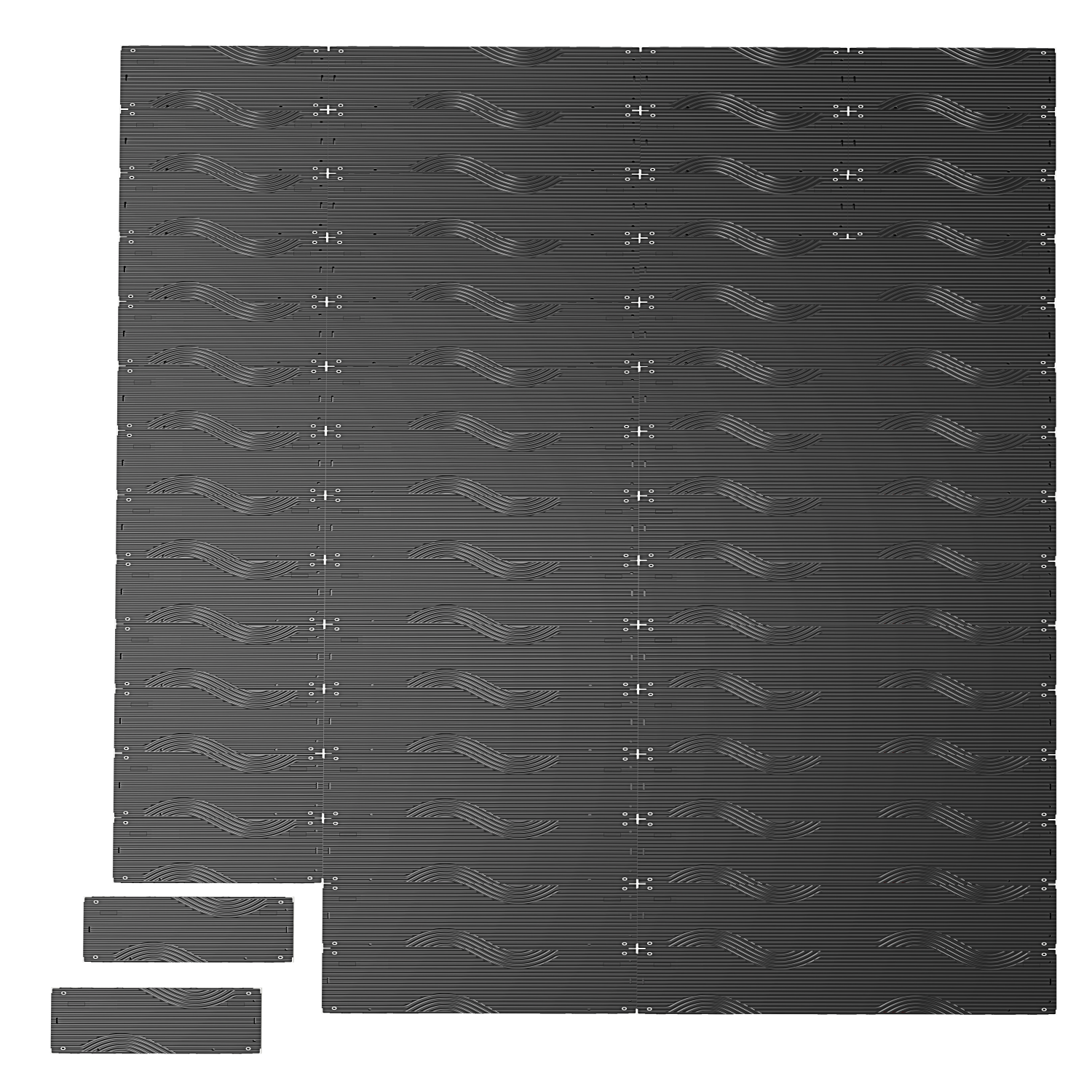

The T3-PRO series supports 90° right-angle splicing, enabling creative layouts like pillars, L-shaped screens, and corner displays. Its unique "semi-circular" exterior design creates a wavy, futuristic aesthetic when multiple units are combined.
Corporate:
● High-end conference rooms, boardrooms.
Retail:
● Luxury flagship stores, shopping malls.
Media:
● TV studios, broadcast control rooms.
Public:
● Transportation hubs, exhibition halls, museums.
Global Standards:
● CE, RoHS, FCC certified.
Rigorous Testing:
● 72-hour aging test and 100% QC inspection before shipment.
Warranty:
● 2-5 years global warranty and professional technical support.
