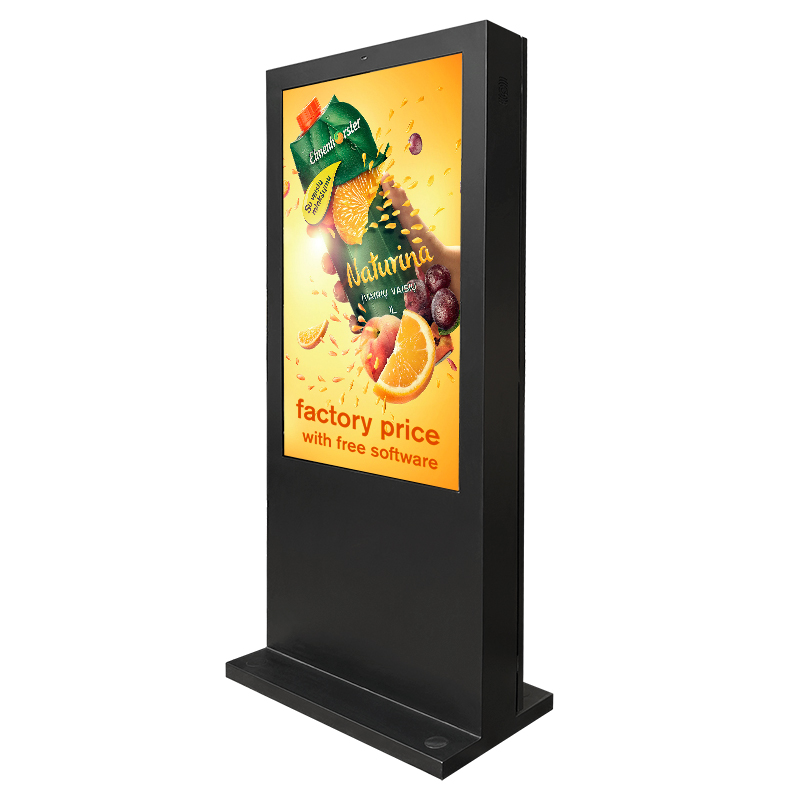

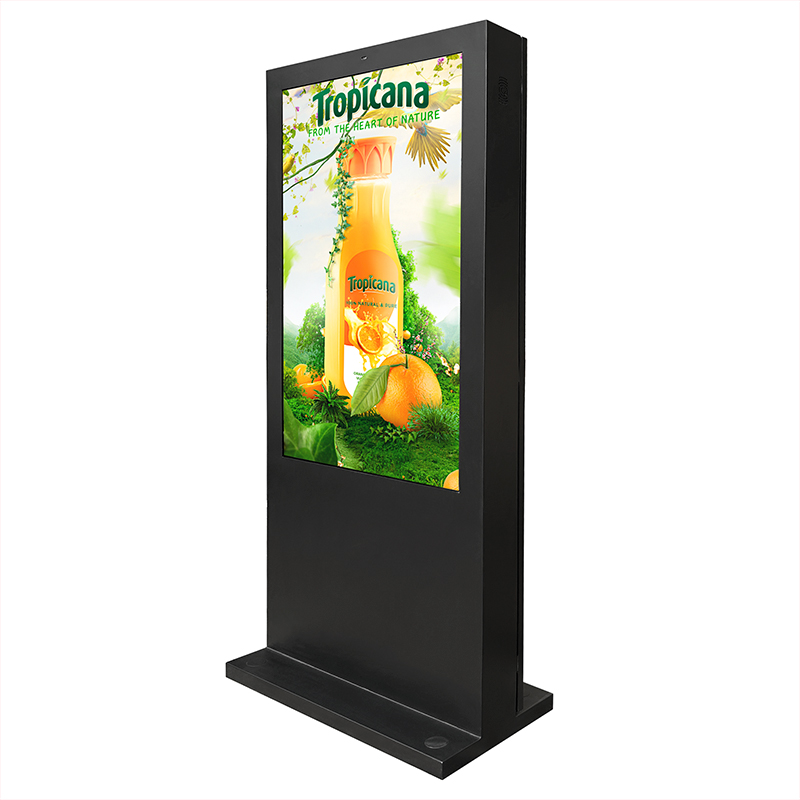

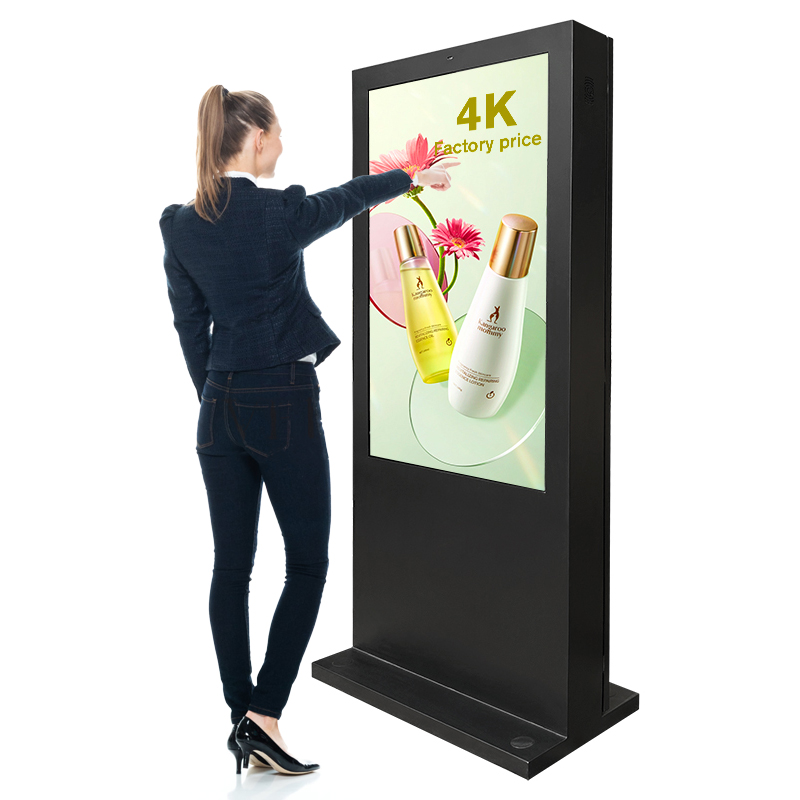

waterproof digital screen android display vertical lcd advertising high brightness street outdoor stand totem

waterproof digital screen android display vertical lcd advertising high brightness street outdoor stand totem

Introducing our state-of-the-art Vertical Outdoor Advertising Totem, engineered to deliver striking visual communication in any environment. Designed specifically for high-traffic outdoor and street settings, this robust totem combines advanced Android-driven functionality with exceptional durability.

Brand:
Dinosaur D

size:	32 43 49 55 65 75 86 inch optional
tempered glass thickness:	6 mm tempered glass
resolution:	19201080 or 38402160
brightnees:	2500nit
protection level:	ip65
lifespan:	>50000 hours
Input voltage:	AC110-240V,50/60Hz
Availability:

Quantity:



Inquire Add to Basket

Key Features:

All-Weather Durability: Fully waterproof and dust-resistant housing ensures reliable 24/7 operation, rain or shine.
Superior Visibility: Features a high-brightness LCD screen that remains crisp, clear, and vibrant even under direct sunlight.
Vertical Design: Space-efficient and modern vertical format maximizes impact for pedestrian traffic and street-level advertising.
Android Smart Display: Powered by an Android system, offering flexible content management, easy scheduling, and compatibility with a wide range of multimedia formats and apps.
Robust Construction: Built with a sturdy stand and totem structure to withstand outdoor elements and ensure stable, long-term placement.
Dynamic Advertising Solution: Ideal for displaying video ads, promotional content, wayfinding, announcements, and interactive applications.

outdoor-digital-signage_01 outdoor-digital-signage_02 outdoor-digital-signage_03 outdoor-digital-signage_04 outdoor-digital-signage_05 outdoor-digital-signage_06 outdoor-digital-signage_07 outdoor-digital-signage_08 outdoor-digital-signage_09 outdoor-digital-signage_10

structure	product dimension	690mm(L)400mm(W)1800mm(H)
	product net weight	80KG
	protect level	outdoor IP65
	casing color	black
	shell material	Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder
	glass	6 mm tempered glass with light transmittance of more than 98%.
	Security	three-level door lock protection, hidden screw design, electronic magnetic lock
	dissipation system	The fan speed can be automatically adjusted according to the operating temperature, with heating function
	brightness control	Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm
	interface	USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder
	camera optional	500W pixels
	loudspeaker	8Ω10W * 2
protection	waterproof	three layers of composite sealing rubber strip
	anti-electric leakage	3C certified brand leakage protector
	anti-thunder	unique lightning protection device
	dust proof	internal high air volume filter device
	anti-explosion	6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97%
	Anti-glare glass optional	6mm AR anti-reflection glass. AR coating is adopted
	anti-rust	galvanized steel sheet and outdoor double-sided spraying outdoor powder
screen panel specification	screen size	43 inch LCD screen panel
	display area	530mm*942mm
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Contrast	3500:1
	Brightness	2500cd/㎡
	color	16.7 M
	Display Scale	16 : 9
	lifespan	>50000 hours
	refresh rate	60Hz
	respond time	6ms
parameter of touch	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -40 °C to 55°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP65 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet metal are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
Power	Input voltage	AC110-240V,50/60Hz
	power consumption	≤300w
working environment	temperature control	fan cooling (air cooling optional)
	operation temperature	-20°C to +50°C
	storage temperarure	-20°C to +60°C
	operation humidity	5% to 90%
quality standard	ISO9001
environmental protection standard	Meet international environmental standards
power management	Meets VESA DPMS standard

1. Q: What is the brightness level of the screen, and is it suitable for direct sunlight?
A: Our totem features a high-brightness LCD screen, typically ranging from 1500 to 2500+ nits. This ensures excellent visibility and vibrant color reproduction even in direct outdoor sunlight.

2. Q: How waterproof is the display? What IP rating does it have?
A: The unit is built for all-weather conditions. It carries a high IP65 or IP66 rating, meaning it is completely protected against dust ingress and can withstand strong water jets from any direction, making it fully suitable for permanent outdoor installation.

3. Q: Can I manage the content remotely?
A: Yes. As an Android-based digital signage player, you can easily manage and schedule content remotely via various content management system (CMS) apps or software from your computer or mobile device.

4. Q: What version of Android does it run, and is it customizable?
A: It typically runs a stable version of Android OS (e.g., Android 9.0/10.0/11.0). The open Android platform allows for high customization, including the installation of specific apps, custom kiosk software, and tailored user interfaces.

5. Q: Is the stand included and is it sturdy enough for outdoor use?
A: Yes, the product includes a robust, weather-resistant stand or totem enclosure specifically engineered for outdoor stability. It is made from heavy-duty materials like powder-coated steel to withstand wind and environmental factors.

6. Q: What are the screen size and resolution options available?
A: We offer various screen sizes (commonly 32”, 43”, 55”, etc.) with Full HD (1920x1080) or higher resolutions. Please contact us for the specific options currently available for the vertical outdoor model.

7. Q: What are the power requirements, and does it consume a lot of electricity?
A: It operates on standard AC power (100-240V). While high-brightness screens require more power than indoor ones, our models use efficient LED backlighting and are designed to optimize power consumption for 24/7 operation.

8. Q: How is the device cooled in hot outdoor temperatures?
A: The enclosure is equipped with an efficient, silent thermal management system. This includes waterproof fans, heat sinks, and intelligent temperature control to prevent overheating in high-ambient temperatures.

9. Q: Can it play videos, images, and live web content?
A: Absolutely. The Android system supports a wide range of media formats for video and images. You can also display live data feeds, websites, social media streams, and interactive content through compatible apps.

10. Q: What is the typical warranty for this outdoor digital totem?
A: We provide a standard warranty of 1 to 3 years, covering manufacturing defects. Given the harsh outdoor environment, we strongly recommend consulting with us about extended warranty or service plans for critical components like the screen and power supply.
