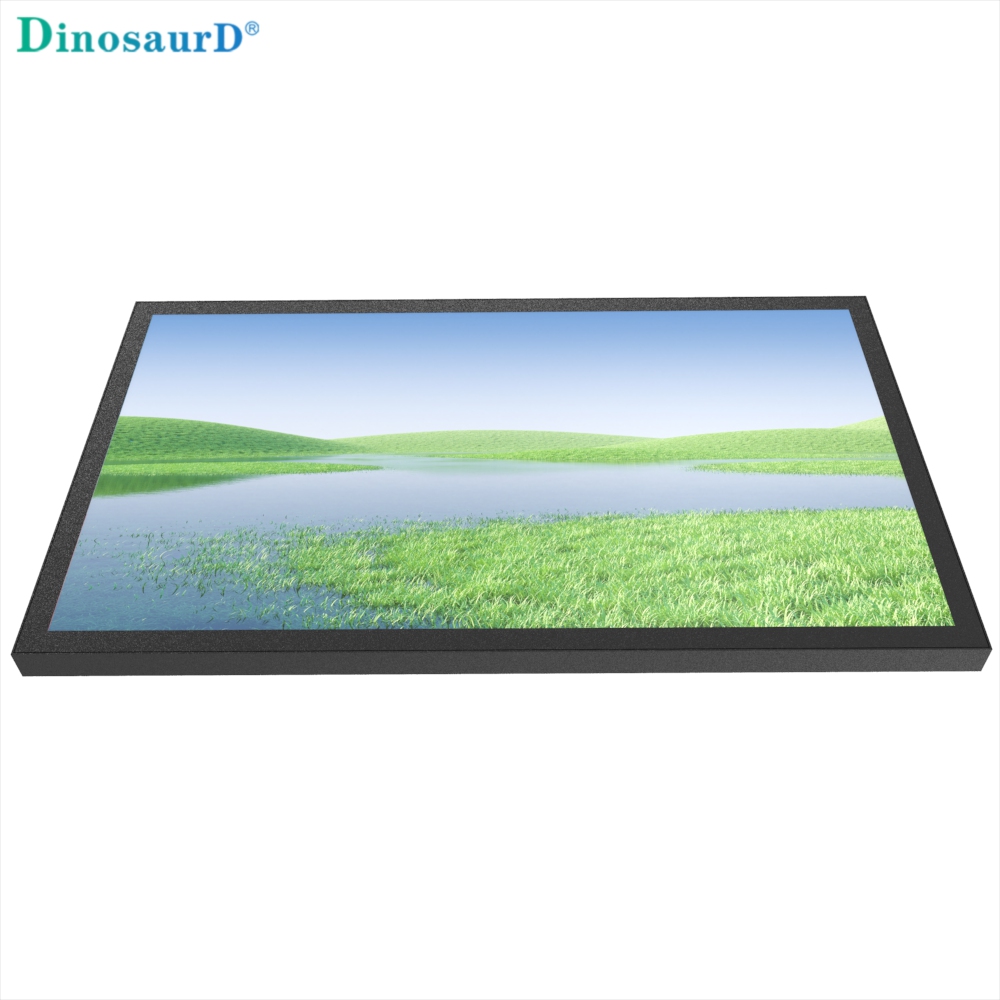

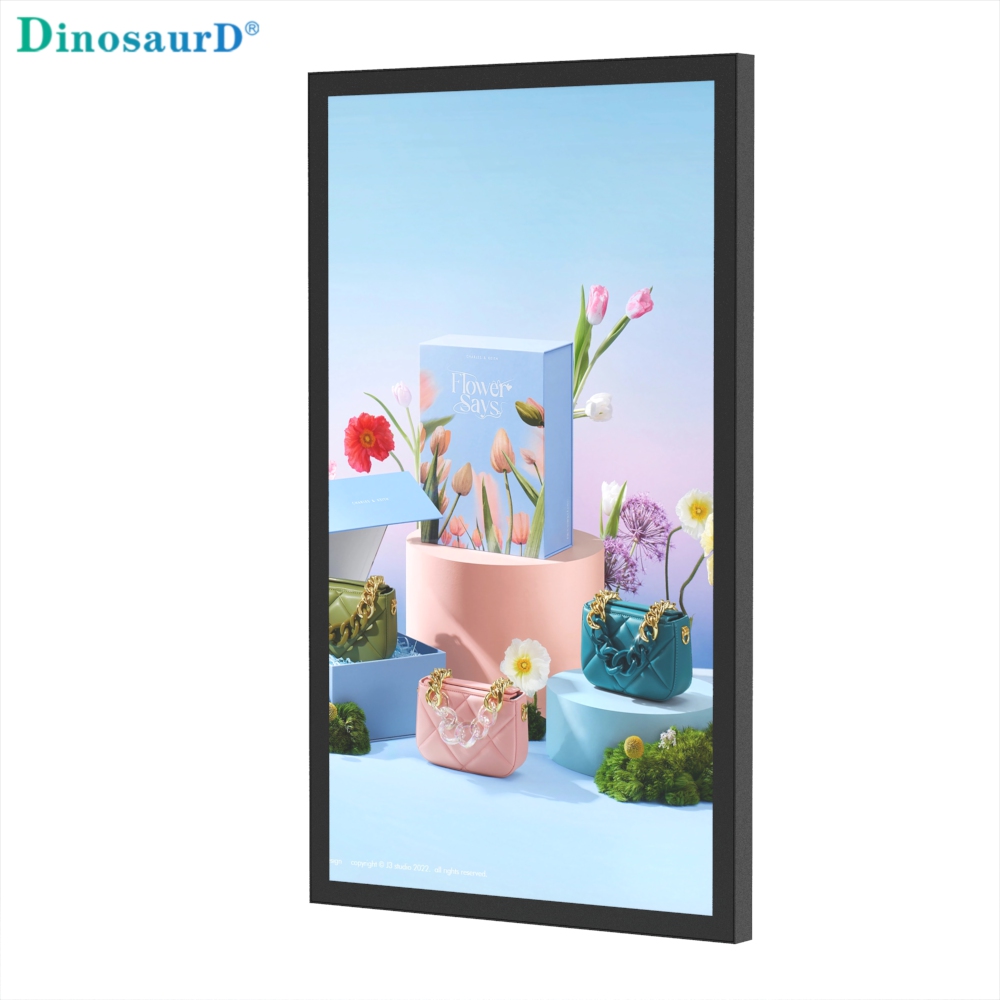

wall mounted 32 43 49 55 65 inch automatic brightness adjustment display digital lcd outdoor ip66 waterproof signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

wall mounted 32 43 49 55 65 inch automatic brightness adjustment display digital lcd outdoor ip66 waterproof signage

This series of high-performance wall-mounted digital LCD signage is designed for reliable outdoor and demanding indoor use. Available in versatile sizes (32”, 43”, 49”, 55”, and 65”), it delivers clear, dynamic content in virtually any lighting condition.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Key Features:

Automatic Brightness Adjustment: Equipped with an ambient light sensor, the display intelligently optimizes screen brightness in real-time. This ensures perfect visibility—from crisp clarity in full sunlight to comfortable viewing at night—while improving energy efficiency.
Rugged Outdoor Protection: Built to withstand harsh environments, the enclosure boasts an IP66 rating. It is completely dust-tight and protected against powerful water jets, ensuring operation in rain, snow, or dusty areas.
High-Brightness LCD Display: Features a vibrant LCD panel with high nit rating, engineered to combat glare and deliver excellent color and contrast even in direct sunlight.
Durable & Secure Design: The robust, wall-mounted structure is crafted from weather-resistant materials, offering long-term durability and protection against the elements.
24/7 Reliability: Designed for continuous operation, this signage is an ideal solution for outdoor advertising, public information displays, menu boards, corporate signage, and transportation hubs.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. Q: What sizes are available for this outdoor digital signage?
A: This product series is available in five versatile sizes: 32-inch, 43-inch, 49-inch, 55-inch, and 65-inch, catering to various installation and visibility needs.

2. Q: How does the automatic brightness adjustment feature work?
A: The display is equipped with a built-in ambient light sensor that continuously monitors surrounding light levels. It automatically adjusts the screen brightness in real-time to ensure optimal visibility and readability, whether in bright sunlight or low-light conditions.

3. Q: What does the IP66 waterproof rating mean for this display?
A: An IP66 rating certifies that the display is fully dust-tight (6) and protected against powerful jets of water from any direction (6), making it suitable for outdoor use in rain, snow, or dusty environments.

4. Q: Can this display operate 24/7 continuously?
A: Yes, it is specifically designed and built for reliable 24/7 continuous operation, making it ideal for applications such as advertising, public information, or outdoor menus.

5. Q: Is the display suitable for direct sunlight viewing?
A: Absolutely. The high-brightness LCD panel, combined with the automatic brightness adjustment, ensures clear, vibrant, and glare-resistant visibility even under direct sunlight.

6. Q: What type of content can be displayed, and how is it managed?
A: It is a digital LCD signage capable of displaying images, videos, and text. Content is typically managed via a connected media player or over a network using compatible content management software (specific compatible systems may vary).

7. Q: What are the typical installation requirements?
A: The display is designed for secure wall mounting. Installation requires a sturdy wall or structure capable of supporting the display's weight and dimensions, along with access to a standard power outlet. We recommend professional installation.

8. Q: What is the operating temperature range for this outdoor signage?
A: (Note: For precise specifications, please refer to the official product manual. A typical example is provided below.)
A: This signage is built for outdoor durability, typically operating effectively within a temperature range of -20°C to 50°C (-4°F to 122°F). Actual specifications may vary by model.

9. Q: Does the display come with a protective screen?
A: Yes, the display features a robust, weather-resistant front panel or protective layer that safeguards the LCD screen from physical impacts and environmental factors while maintaining image clarity.

10. Q: Is remote management or scheduling of content possible?
A: Yes, when connected to a compatible media player and network, most models support remote content management, updates, and scheduling via dedicated software, allowing for easy control of multiple displays from a central location.
