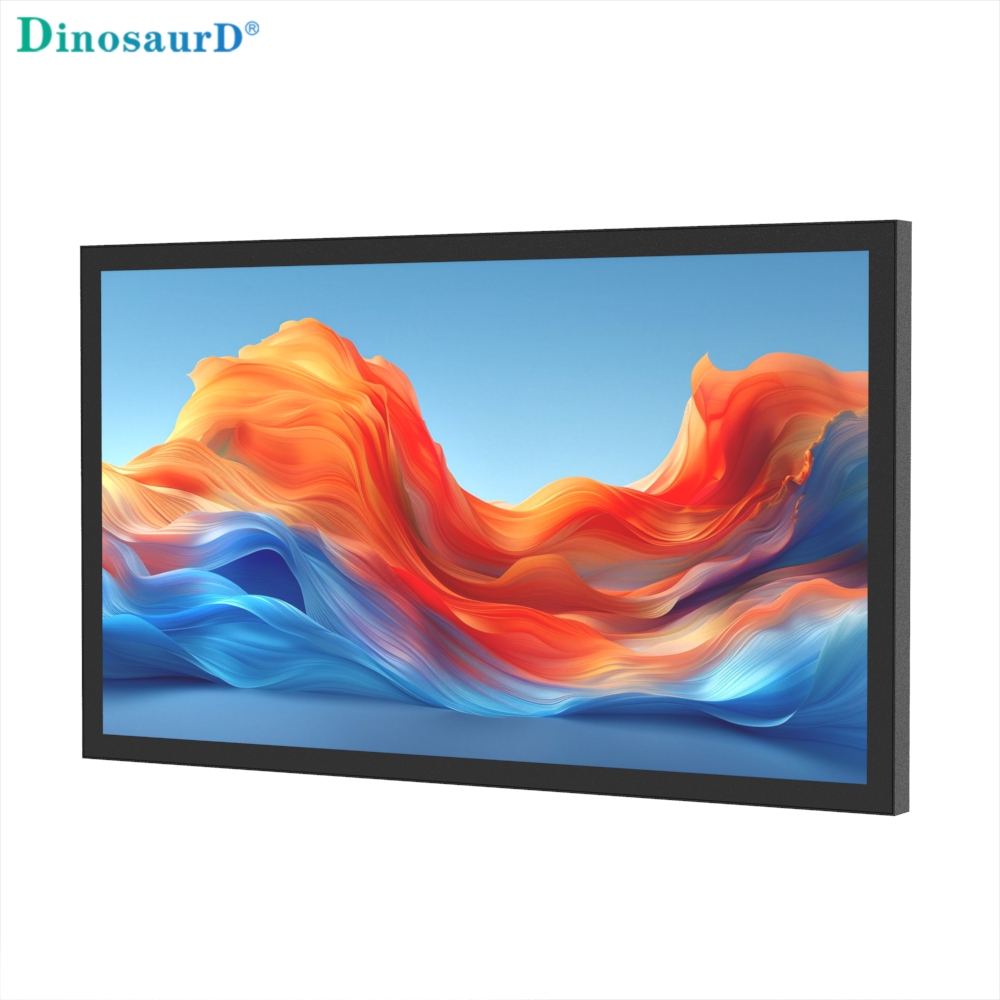

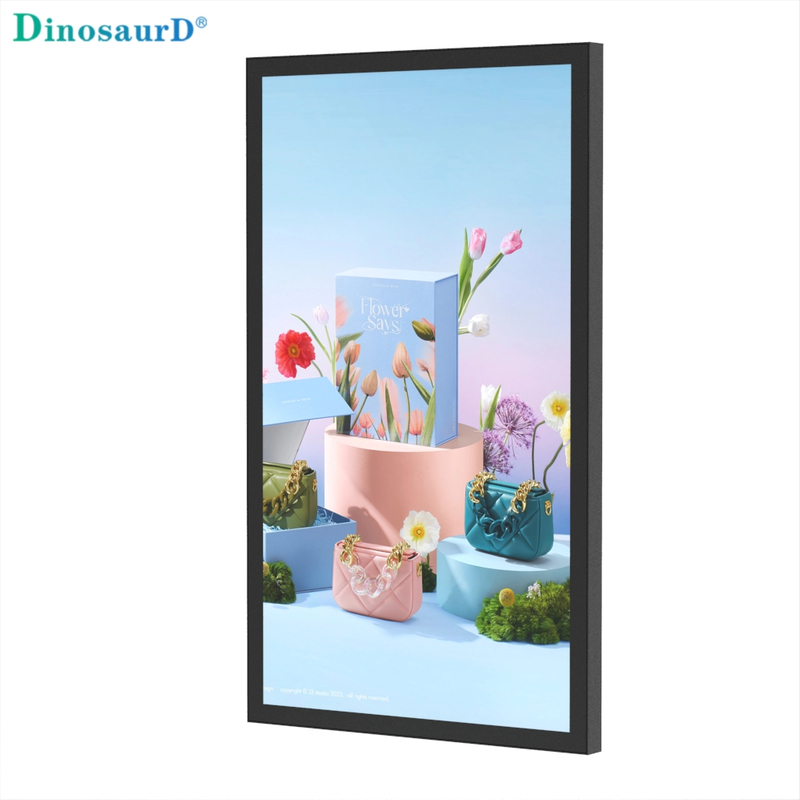

wall-mount fully seamlessly laminated 4K high brightness outdoor commercial advertising display screen waterproof lcd ip66 signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

wall-mount fully seamlessly laminated 4K high brightness outdoor commercial advertising display screen waterproof lcd ip66 signage

Our Wall-Mount Outdoor Commercial Advertising Display is engineered for superior performance in demanding outdoor environments, combining cutting-edge visual technology with rugged durability. Featuring a fully seamlessly laminated 4K Ultra HD display, it delivers stunningly crisp, vibrant, and glare-resistant visuals even in direct sunlight, thanks to its high-brightness technology. Perfect for high-impact advertising, informational signage, and dynamic content delivery in outdoor public spaces, transportation hubs, retail facades, and more.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Key Features:

Ultra-Sharp 4K Visualization: Experience breathtaking 4K UHD resolution with a fully seamless laminated surface, eliminating gaps and ensuring a smooth, uninterrupted viewing experience ideal for large-format advertisements and fine details.
High Brightness & Sunlight Readability: Equipped with high-brightness LEDs (typically 2,500 nits or higher), the screen maintains excellent visibility and color fidelity in bright outdoor conditions, day or night.
Rugged IP66 Waterproof & Dustproof Rating: Built to withstand harsh weather, the enclosure is certified IP66, offering complete protection against heavy rain, dust, wind-blown particles, and moisture ingress for reliable 24/7 outdoor operation.
Robust Wall-Mount Design: Features a secure, low-profile wall-mount bracket system for easy installation and a sleek, space-saving profile on various outdoor structures.
Commercial-Grade Reliability: Designed for continuous operation, with temperature control systems (heating & cooling) to perform consistently in extreme hot or cold climates.
Versatile Connectivity & Control: Supports standard commercial input interfaces (HDMI, DisplayPort, etc.) and is compatible with most media players and content management systems for seamless integration into digital signage networks.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What does "fully seamlessly laminated" mean for this display?
It means the display glass and LCD panel are bonded into a single, gap-free layer. This eliminates internal reflections, enhances image clarity, reduces glare, and provides a smooth, clean surface that is easier to maintain and more durable against outdoor elements.

2. How bright is "high brightness," and is it suitable for direct sunlight?
Our high-brightness models typically range from 2,500 to 5,000 nits or higher, ensuring excellent visibility even in direct sunlight. This makes them ideal for south-facing installations, transportation hubs, and other high-ambient-light environments.

3. Is the display truly waterproof with an IP66 rating?
Yes. The IP66 rating certifies that the enclosure is completely dust-tight and protected against powerful water jets from any direction. It can withstand heavy rain, wind-driven rain, and occasional water splashes, making it suitable for permanent outdoor use.

4. Can this screen operate in extreme temperatures?
Yes. The display is built with an integrated thermal management system (including heaters and fans) to operate reliably in a wide temperature range, typically from -30°C to 50°C (-22°F to 122°F), ensuring year-round performance in most climates.

5. What are the mounting options? Is professional installation required?
It is designed for secure wall-mount installation using a low-profile, robust bracket system. We highly recommend professional installation to ensure proper sealing, structural support, electrical safety, and optimal viewing angle alignment.

6. What inputs and control interfaces does it support?
It supports standard commercial interfaces such as HDMI, DisplayPort, DVI, and Ethernet (for network control). It is compatible with most media players, PC-based systems, and cloud-based digital signage platforms for remote content management.

7. What is the typical lifespan, and does it require regular maintenance?
The LED backlight typically has a lifespan of 50,000 to 100,000 hours. With the IP66 sealed enclosure, minimal maintenance is needed—mainly periodic cleaning of the surface and ensuring ventilation openings are unobstructed. No internal cleaning is required.

8. Can multiple screens be combined to create a larger video wall?
While each unit is a standalone display, multiple screens can be installed side-by-side to create a larger visual canvas. However, due to the bezel-free seamless lamination design on the front, the side gaps will depend on the enclosure design. We recommend consulting our technical team for multi-screen projects.

9. Is the anti-glare treatment effective at all times of the day?
Yes. The fully laminated surface includes a multi-layer anti-glare (AG) and anti-reflection (AR) coating, which significantly reduces reflections from sunlight, streetlights, and indoor lighting. This ensures consistent readability from dawn to dusk and in artificially lit environments at night.

10. Do you provide content management support or software?
We provide compatibility guidance with major third-party digital signage software (e.g., BrightSign, Scala, NoviSign, etc.). While we do not bundle software, we can recommend solutions based on your project needs and offer technical support for system integration.
