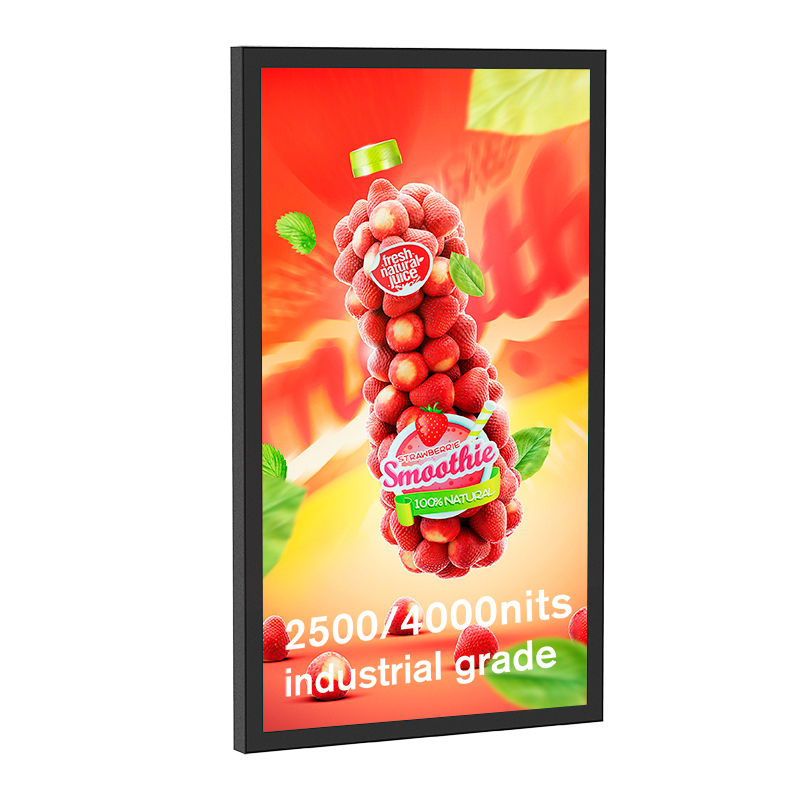

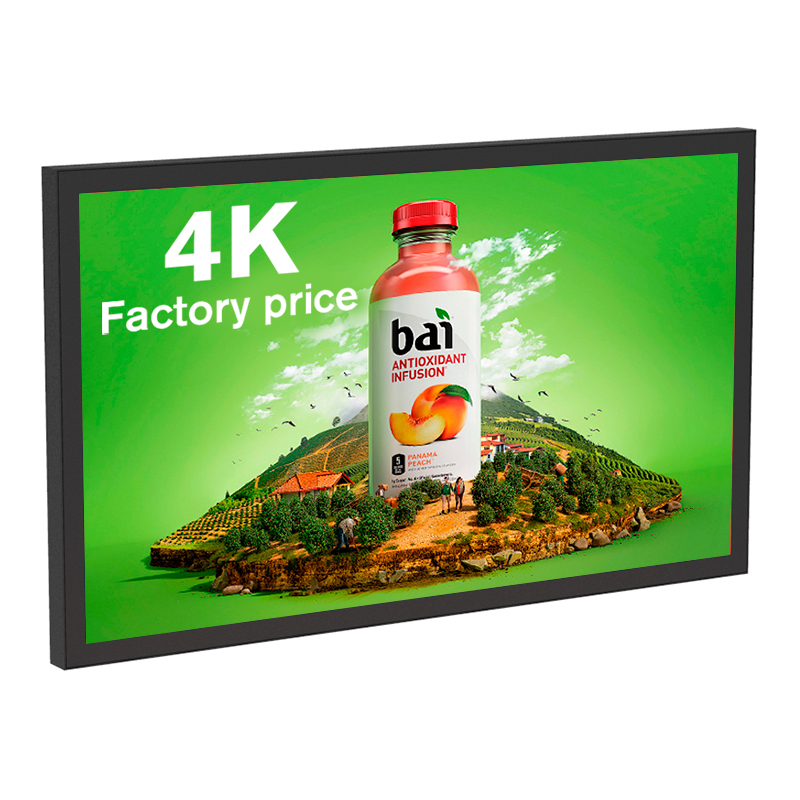

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Experience stunning visuals with a fully laminated 4K display, IK10 grade toughness, and 2500nit high brightness for outdoor advertising. Enjoy IP66 waterproof protection and 5mm toughened glass for durability. Ideal for outdoor use.


Fully Laminated 4K Display: This ensures vibrant and sharp visuals, providing an immersive viewing experience with a high resolution that enhances detail and clarity.

1.IK10 Grade Toughness: This indicates a high level of impact resistance, making the display durable and capable of withstanding vandalism or accidental impacts.

2.2500nit High Brightness: With such high brightness, the display remains visible even in direct sunlight, making it ideal for outdoor environments where lighting conditions can vary greatly.

3.IP66 Waterproof Protection: This rating means the display is dust-tight and protected against powerful water jets, ensuring it can withstand harsh weather conditions without compromising functionality.

4.5mm Toughened Glass: This adds an extra layer of protection, enhancing durability and ensuring the display can handle exposure to outdoor elements without getting damaged easily.
  • Dinosaur D

size:
brightness:
outdoor protect level:
protective glass:
brightness control:
acoustic power:
operation temparature:
Availability:
Quantity:

1.protect level is outdoor IP66 level with waterproof, dustproof,sunscreen, antiseptic, etc


2.2500nit high brightness,in strong outdoor light, the picture is smooth, delicate and clear, and the animation is vivid and bright.


3.IK10 grade 5mm AG etched toughened glass,provides optimal protection against complex outdoor environmental factors

and minimizes damage caused by external impact


4.operation temparature is -30°C to +80°C


5.the whole machine is made of aluminum alloy, and the exposed interface uses aviation-grade plugs

whether it is high temperature, high humidity, high salt fog coastal areas,

or harsh low temperature environments, it can meet the protection needs


6.built-in photosensitive head, intelligent photosensitive technology,

automatically adjusts brightness according to the environment, thus saving power consumption


7.The exposed interface adopts an aviation-grade plug, which can be waterproof and dustproof


8.high temperature resistant industrial lcd glass

even under direct sunlight, the screen can resist blackening defects up to 110℃


9.flat and stylish back cover,making it easy to transport, move and install,saving shipping cost


10.using waterproof outdoor speaker


11.fully laminated, light and airtight design,

lcd glass and tempered glass are seamlessly laminated with zero distance to prevent the intrusion of dust

Outdoor-Display-_01Outdoor-Display-_02Outdoor-Display-_03Outdoor-Display-_04Outdoor-Display-_05Outdoor-Display-_06Outdoor-Display-_07Outdoor-Display-_08Outdoor-Display-_09Outdoor-Display-_10


screen panel specification screen size 43 inch Industrial wide temperature OC panel
display area 944.2mm*532.4mm
product dimension 1007.6mm(L)*88.9mm(W)*595.8mm(H)
protect level full outdoor IP66
resolution 1920*1080
view angles 178°(H)/178°(V)
Acoustic power 8 ohm 2×5W
Contrast 1200:1
Brightness 2500cd/㎡
Protective glass IK10 grade 5mm AG etched toughened glass
Display Scale 16 : 9
lifespan 50000h
Casing color black
Brightness control Automatic photosensitive technology
parameter of G+F touch screen touch way fingers
effective touch recognition ≥5mm
touch accuracy ±5mm
touch point 10 point
first point response time ≤10ms
interface
temperature control Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight High brightness LCD screen, brightness reaches 3000 cd/m2.
The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture.
Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection waterproof
anti-electric leakage
anti-thunder
dust proof
anti-explosion
Anti-glare glass optional
anti-rust
Fan cooling system intelligent air cooling system for heat dissipation
The fan speed regulating board can intelligently control the wind speed and save energy and electricity
The LCD screen does not blacken at -30 °C to 80°C
Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
patented cooling system
Ensure that the LCD screen is not blackened in direct sunlight
Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
intelligent control fan wind speed
product test IP66 test
high temperature aging
low temperature aging
simulated sunlight test
water proof test
surface treatment wash all parts of the sheet are cleaned in an acidic and alkaline manner
anti-rust Spray anti-rust paint
spray Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell shell material aluminum shell
Power Input voltage AC 100-305VAC
power consumption ≤200W
Operation temparature -30°C to +80°C
Operation humidity 5% to 90%


1. Digital Signage & Advertising

✔ Outdoor Billboards & LED Walls – Replace traditional static ads with dynamic 4K video content.
✔ Shopping Malls & Retail Stores – Display promotions, brand videos, or interactive ads near entrances.
✔ Gas Stations & Convenience Stores – Show fuel prices, weather updates, or advertisements.

2. Hospitality & Entertainment

✔ Resorts, Pools & Beach Bars – Stream live sports, events, or music videos in outdoor seating areas.
✔ Restaurants & Rooftop Lounges – Enhance dining experiences with high-quality entertainment.
✔ Amusement Parks & Stadiums – Show live feeds, schedules, or sponsor ads in bright outdoor settings.

3. Transportation & Public Info

✔ Airports & Train Stations – Display flight/train schedules, announcements, or wayfinding maps.
✔ Bus Stops & Taxi Stands – Show real-time transport updates and advertisements.
✔ Highway Rest Areas – Provide travelers with news, weather, and safety alerts.

4. Sports & Events

✔ Golf Courses & Sports Clubs – Broadcast live games, scores, or member announcements.
✔ Marinas & Yacht Clubs – Show marine weather forecasts, event schedules, or navigation info.
✔ Outdoor Concerts & Festivals – Serve as secondary screens for live performances or sponsor messages.

5. Corporate & Industrial Use

✔ Construction Sites & Factories – Display safety guidelines, work schedules, or training videos.
✔ Car Dealerships & Showrooms – Showcase vehicle demos, promotions, or virtual tours.
✔ Corporate Campuses – Stream company news, event highlights, or digital signage in outdoor lobbies.

6. Government & Smart Cities

✔ Public Squares & Parks – Broadcast emergency alerts, city announcements, or cultural events.
✔ Traffic Control Centers – Display real-time road conditions and surveillance feeds.
✔ University Campuses – Share event schedules, emergency notices, or live lectures in open spaces.


Frequently Asked Questions:


1. What makes the LCD display 4K waterproof 2500nit high brightness outdoor IP66 TV stand out from other digital display screens?

- Our outdoor IP66 TV is specifically designed for high brightness and waterproof capabilities, making it perfect for outdoor advertising in various locations such as subways, shopping malls, and bus stations.


2. Can the outdoor IP66 TV withstand harsh weather conditions?

- Yes, our outdoor IP66 TV is built to withstand various weather conditions, ensuring durability and reliability for outdoor advertising purposes.


3. How does the 4K resolution enhance the viewing experience on the outdoor IP66 TV?

- The 4K resolution provides crisp and clear images, making your advertising content stand out and capture the attention of viewers in outdoor settings.


4. Is the outdoor IP66 TV easy to install and maintain?

- Yes, our outdoor IP66 TV is designed for easy installation and maintenance, allowing for hassle-free setup and operation in outdoor environments.


5. Can the outdoor IP66 TV be customized for specific advertising needs?

- Yes, we offer customization options to tailor the outdoor IP66 TV to your specific advertising requirements, ensuring that your content is displayed effectively to your target audience.


6. What are the main advantages of using the outdoor IP66 TV for advertising in European countries?

- The high brightness and waterproof features of our outdoor IP66 TV make it ideal for outdoor advertising in European countries, where weather conditions can vary.


7. How does the high brightness of the outdoor IP66 TV enhance visibility in outdoor settings?

- The 2500nit high brightness ensures that your advertising content is easily visible even in bright outdoor environments, maximizing the impact of your message on viewers.


8. Can the outdoor IP66 TV be used for interactive advertising campaigns?

- Yes, our outdoor IP66 TV can support interactive features, allowing for engaging and interactive advertising campaigns in outdoor locations.


9. What is the warranty coverage for the outdoor IP66 TV?

- We offer a comprehensive warranty coverage for our outdoor IP66 TV, ensuring peace of mind and support for any potential issues that may arise.


10. How can I purchase the outdoor IP66 TV for my advertising needs in European countries?

- You can contact us directly to inquire about purchasing options and discuss how our outdoor IP66 TV can meet your specific advertising requirements in European countries.
