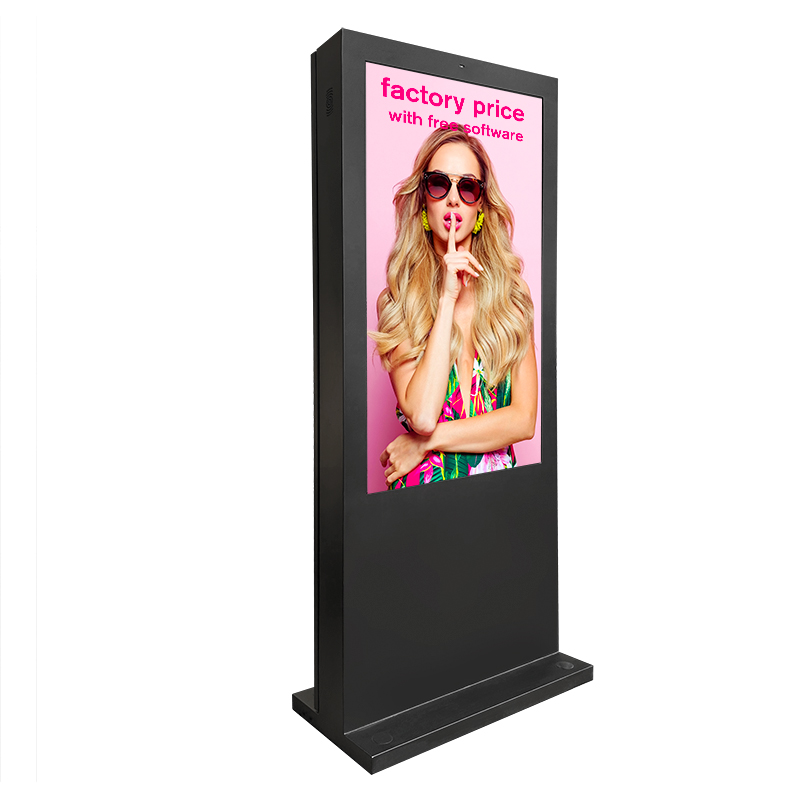

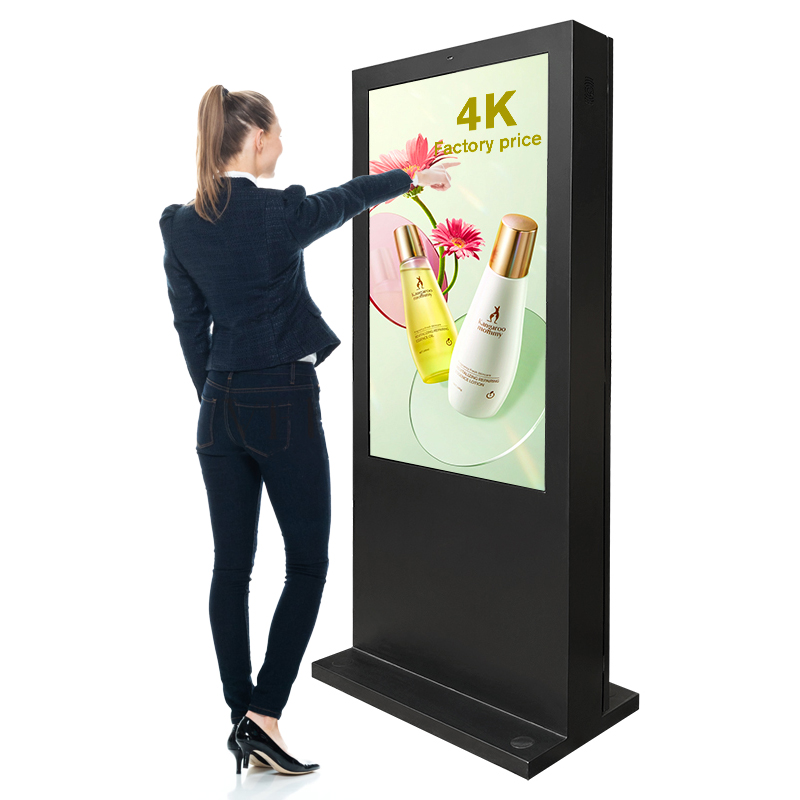

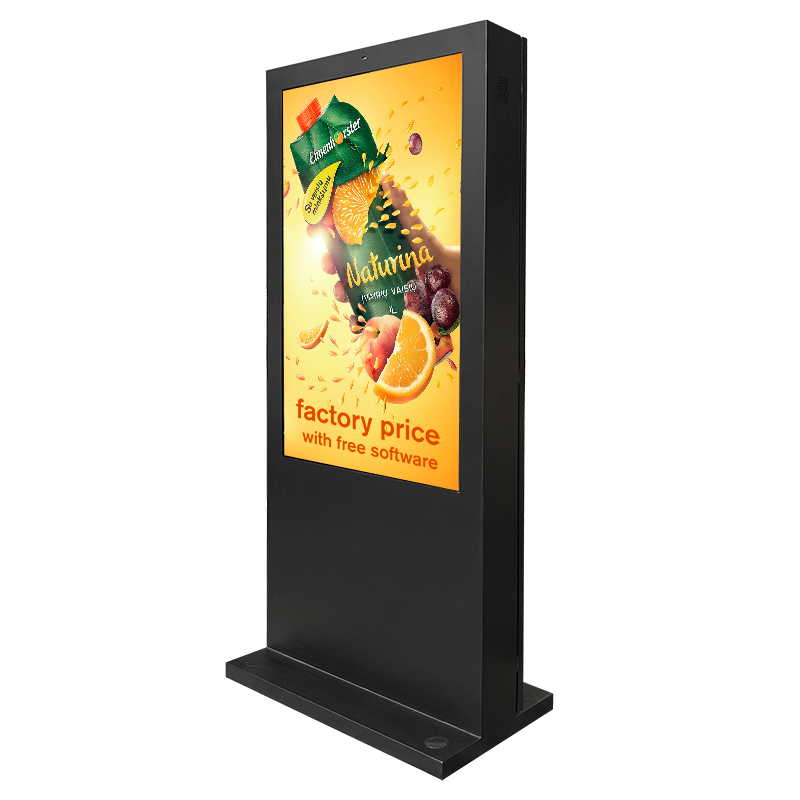

stand lcd kiosk ip65 sun-readable wheather-proof waterproof touch screen wifi advertisement player digital vertical display totem

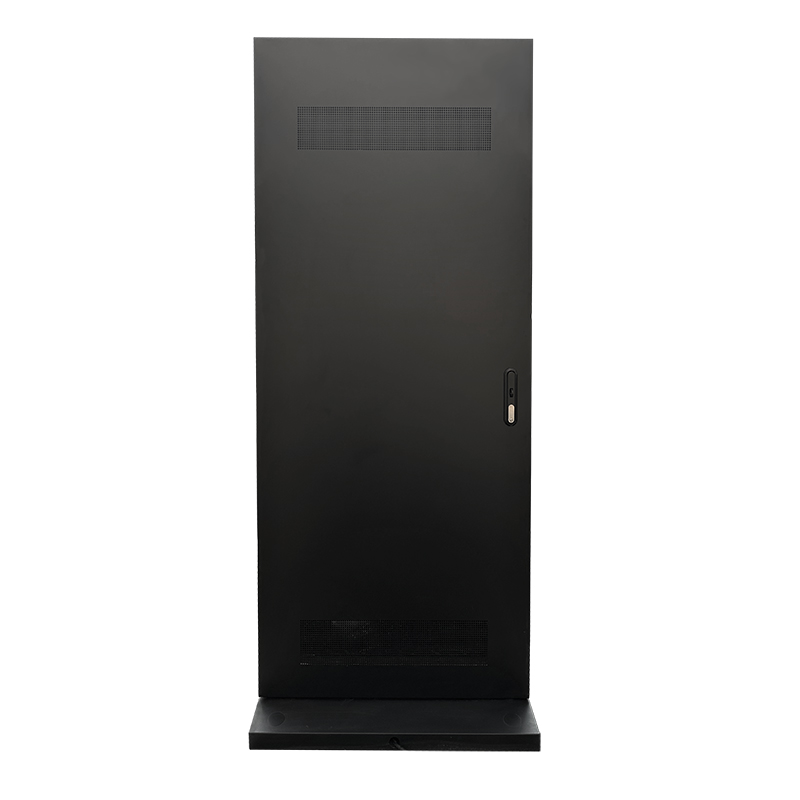

bus station park signage rain-proof touch screen media waterproof 4K advertising digital player lcd outdoor ip65 totem

stand lcd kiosk ip65 sun-readable wheather-proof waterproof touch screen wifi advertisement player digital vertical display totem

Introducing our premier Vertical Digital Display Totem, a standalone kiosk engineered for maximum impact and unwavering reliability in any outdoor environment. This integrated solution combines a brilliant sun-readable LCD with a robust IP65-rated enclosure, making it the ideal choice for dynamic advertising and interactive engagement in high-traffic public spaces.

Brand:
Dinosaur D

size:	32 43 49 55 65 75 86 inch optional
tempered glass thickness:	6 mm tempered glass
resolution:	19201080 or 38402160
brightnees:	2500nit
protection level:	ip65
lifespan:	>50000 hours
Input voltage:	AC110-240V,50/60Hz
Availability:

Quantity:



Inquire Add to Basket

Core Features & Benefits:

Superior Outdoor Visibility: Featuring a high-brightness, sun-readable LCD display, content remains vivid, clear, and easily viewable even under direct sunlight, ensuring your message is always seen.
Built for All Elements: With a true IP65 (weather-proof/waterproof) rating, this kiosk is completely protected against dust ingress and water jets. It is designed to perform reliably through rain, heat, cold, and harsh environmental conditions.
Interactive Engagement: The integrated responsive touch screen enables user interaction for wayfinding, surveys, product exploration, or immersive brand experiences, directly engaging your audience.
Seamless Connectivity & Control: Equipped with built-in Wi-Fi, the kiosk allows for easy, remote content upload, scheduling, and management via a centralized platform, ensuring your advertisement and media playback are always up-to-date.
Sleek, Vertical Totem Design: The modern, vertical display format is space-efficient and perfectly suited for capturing attention in pedestrian zones, while the sturdy stand design ensures stable, permanent installation.

outdoor-digital-signage_01 outdoor-digital-signage_02 outdoor-digital-signage_03 outdoor-digital-signage_04 outdoor-digital-signage_05 outdoor-digital-signage_06 outdoor-digital-signage_07 outdoor-digital-signage_08 outdoor-digital-signage_09 outdoor-digital-signage_10

structure	product dimension	690mm(L)400mm(W)1800mm(H)
	product net weight	80KG
	protect level	outdoor IP65
	casing color	black
	shell material	Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder
	glass	6 mm tempered glass with light transmittance of more than 98%.
	Security	three-level door lock protection, hidden screw design, electronic magnetic lock
	dissipation system	The fan speed can be automatically adjusted according to the operating temperature, with heating function
	brightness control	Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm
	interface	USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder
	camera optional	500W pixels
	loudspeaker	8Ω10W * 2
protection	waterproof	three layers of composite sealing rubber strip
	anti-electric leakage	3C certified brand leakage protector
	anti-thunder	unique lightning protection device
	dust proof	internal high air volume filter device
	anti-explosion	6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97%
	Anti-glare glass optional	6mm AR anti-reflection glass. AR coating is adopted
	anti-rust	galvanized steel sheet and outdoor double-sided spraying outdoor powder
screen panel specification	screen size	43 inch LCD screen panel
	display area	530mm*942mm
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Contrast	3500:1
	Brightness	2500cd/㎡
	color	16.7 M
	Display Scale	16 : 9
	lifespan	>50000 hours
	refresh rate	60Hz
	respond time	6ms
parameter of touch	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -40 °C to 55°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP65 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet metal are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
Power	Input voltage	AC110-240V,50/60Hz
	power consumption	≤300w
working environment	temperature control	fan cooling (air cooling optional)
	operation temperature	-20°C to +50°C
	storage temperarure	-20°C to +60°C
	operation humidity	5% to 90%
quality standard	ISO9001
environmental protection standard	Meet international environmental standards
power management	Meets VESA DPMS standard

1. Q: What does the IP65 rating mean for this kiosk?
A: The IP65 rating certifies that the kiosk is fully dust-tight (the "6") and protected against low-pressure water jets from any direction (the "5"). This means it can withstand rain, snow, hose-down cleaning, and dusty environments, making it ideal for permanent outdoor installation.

2. Q: How readable is the screen in direct sunlight?
A: It features a high-brightness, sun-readable LCD panel (typically 2000 nits or higher). This ensures content remains vibrant, clear, and glare-resistant even under intense direct sunlight, maximizing visibility all day.

3. Q: Can the touch screen be used in the rain?
A: Yes. The kiosk is equipped with a projected capacitive or infrared touch screen designed to be rain-proof. It accurately registers touch inputs even with water droplets on the screen, ensuring reliable interactivity in all weather conditions.

4. Q: How is content updated and managed on the player?
A: Content is managed remotely via the built-in Wi-Fi connectivity. Using a cloud-based Content Management System (CMS), you can upload media (videos, images, HTML5), schedule playlists, and monitor device status from anywhere, in real-time.

5. Q: What type of content format does the advertisement player support?
A: It supports a wide range of formats for dynamic advertising, including 4K/1080p video (e.g., MP4), images (JPG, PNG), PowerPoint, PDF, and interactive HTML5 widgets, allowing for rich multimedia presentations.

6. Q: Is professional installation required for this standalone kiosk?
A: Yes, for optimal safety and performance. We recommend professional installation to secure the totem to a concrete foundation or slab, ensuring it is level, stable, and able to withstand wind loads and public interaction.

7. Q: What are the power requirements, and is it energy efficient?
A: It operates on standard 100-240V AC power. The system is designed for 24/7 operation with energy-efficient components, including an optional ambient light sensor that automatically adjusts screen brightness to save power.

8. Q: Can the kiosk operate in extreme temperatures?
A: Yes. This kiosk is built with an integrated thermal management system (heating and/or cooling) that maintains an optimal internal temperature, allowing it to operate reliably in a wide range of climates, from freezing cold to intense heat.

9. Q: What security features protect the kiosk from unauthorized access?
A: Security features include a physically lockable cabinet, password-protected device access, encrypted data transmission over Wi-Fi, and secure boot functionality to prevent tampering and unauthorized content changes.

10. Q: What warranty and support are provided?
A: We offer a standard comprehensive warranty covering parts and labor for the display, media player, and enclosure. Extended warranty plans and dedicated technical support for remote diagnostics and troubleshooting are also available.
