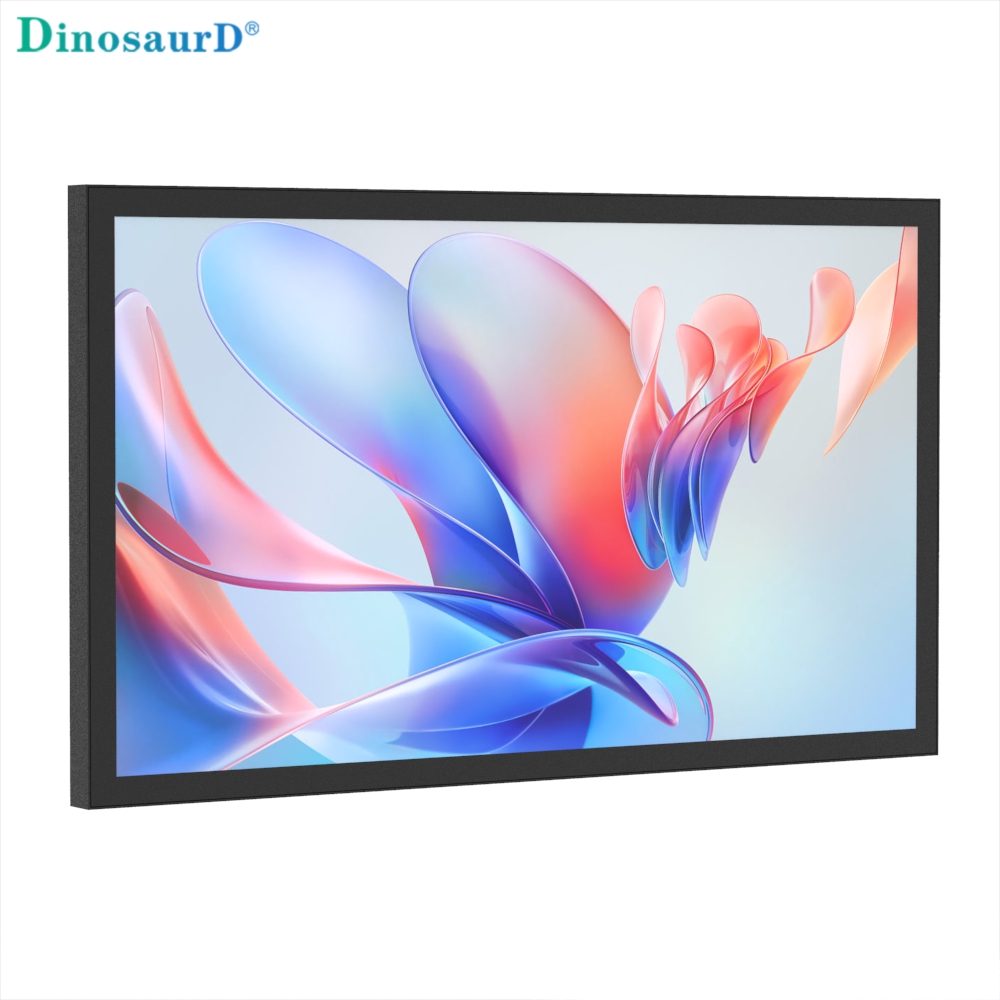

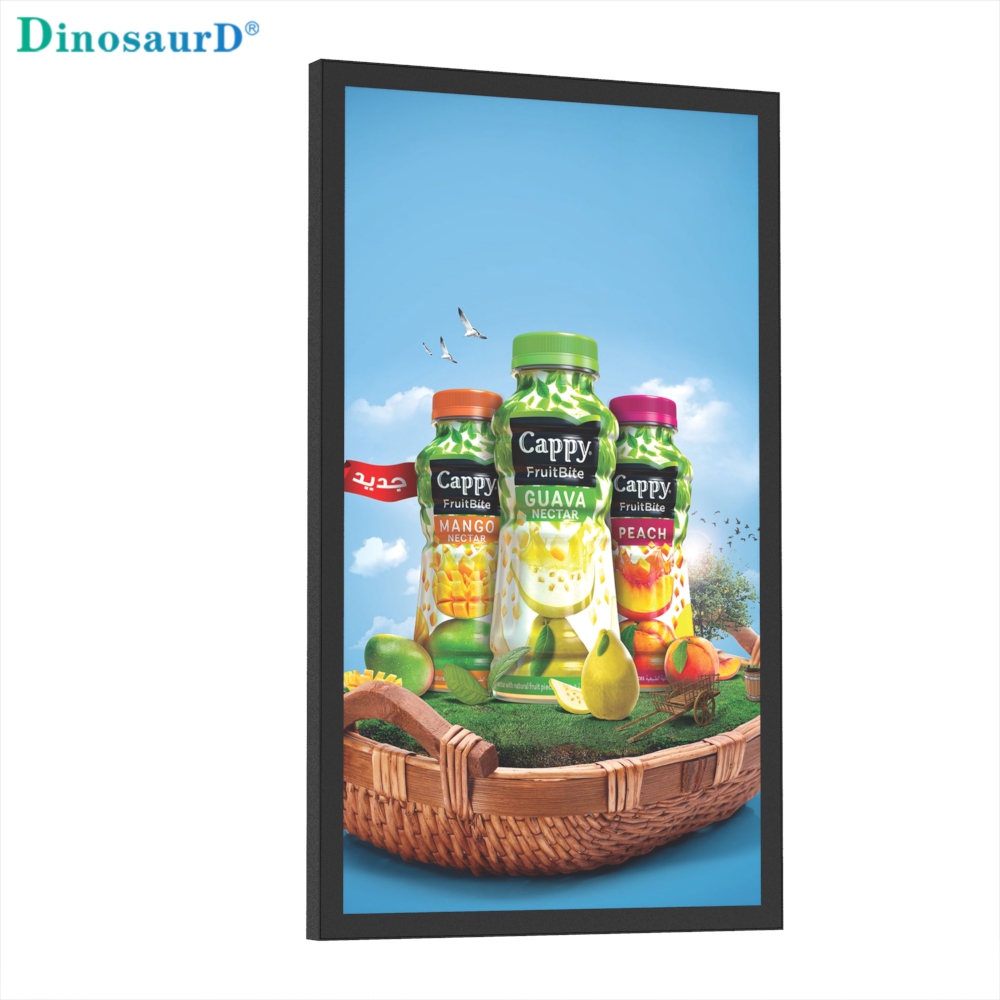

smart CMS remote control wall-mount 2K 4K waterproof digital totem advertising screen outdoor lcd display signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

smart CMS remote control wall-mount 2K 4K waterproof digital totem advertising screen outdoor lcd display signage

Elevate your outdoor communication strategy with our state-of-the-art Smart Digital Totem. Engineered for excellence in any environment, this product combines a stunning 2K/4K high-resolution LCD display, an IP66 waterproof ruggedized enclosure, and a powerful cloud-based Smart CMS (Content Management System) into a single, seamless, wall-mount solution. Designed for effortless remote management and superior visual impact, it redefines reliability and intelligence in outdoor digital signage.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Features & Innovations

Ultra-High Definition Visuals: Experience breathtaking clarity and detail with a 2K or 4K UHD LCD panel. Our advanced high-brightness technology (typically 2000-2500+ nits) ensures crisp, vibrant content remains perfectly visible, even in direct sunlight.
Intelligent Cloud CMS Platform: Go beyond simple scheduling. Our proprietary Smart CMS offers AI-driven insights, automated content optimization, real-time performance analytics, and failover playlists. Manage your entire signage network from a single dashboard on any device.
All-Weather, Robust Build: With an IP66 certified housing, the totem is completely dust-tight and protected against powerful water jets. Built for year-round operation, it withstands rain, snow, high winds, and wide temperature fluctuations.
Seamless Remote Control & Monitoring: Deploy, update, and troubleshoot from anywhere. The integrated 4G/Wi-Fi/Ethernet connectivity allows for instant content pushes, scheduled power cycling, screen monitoring (on/off status), and immediate emergency alert broadcasting.
Professional Wall-Mount Totem Design: Features a sleek, low-profile aluminum alloy chassis and a universal VESA-compliant mounting system for secure, permanent installation on walls, poles, or building facades. The design prioritizes both aesthetics and durability in public spaces.
Enterprise-Grade Security & Reliability: Equipped with secure boot, encrypted data transmission, and a stable embedded OS or Android system to prevent unauthorized access and ensure 24/7 uninterrupted operation.

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. Premium Retail & Luxury Brand Advertising

Scenario: Mounted on flagship store facades in high-end shopping districts or at luxury auto dealerships to showcase 4K product films, brand stories, and exclusive launch campaigns.
Value: The 2K/4K resolution delivers stunning visual detail essential for luxury marketing. The smart CMS allows global marketing teams to orchestrate synchronized, timed campaign launches across multiple cities from a central office.

2. High-Traffic Transportation & Smart City Hubs

Scenario: Installed at major airport terminals (curbside, pick-up areas), central train stations, or city squares as primary information displays. Used for high-definition wayfinding, real-time transportation schedules, public service announcements, and tourism promotion.
Value: The superior clarity ensures readability of detailed maps and timetables from a distance. Remote CMS enables instant updates for delays, emergencies, or daily schedule changes across an entire network of screens.

3. Digital Out-of-Home (DOOH) Advertising Networks

Scenario: Deployed by media owners as part of a networked billboard system on building walls, highways, or urban pedestrian zones. Sells advertising space to multiple brands with dynamic, time-sensitive content.
Value: The smart CMS allows for automated, real-time ad insertion, dayparting (changing ads by time of day), and proof-of-play reports for advertisers. 4K resolution attracts premium ad contracts.

4. Corporate & University Campus Communication

Scenario: Positioned at the main gate, visitor parking, or central quads of corporate headquarters or university campuses. Displays 4K welcome messages, live news feeds, event calendars, visitor information, and safety alerts.
Value: Projects a cutting-edge, professional image. Facilities or communications departments can easily manage content for different audiences (e.g., visitors vs. employees) and trigger emergency alerts remotely to all screens simultaneously.

5. Stadiums & Live Event Venues

Scenario: Used on the exterior of stadiums, concert halls, or fairgrounds to display high-energy 4K promotional videos, event line-ups, sponsor ads, and real-time crowd instructions (e.g., gate entry information).
Value: Creates excitement before events and manages crowd flow. The remote CMS allows last-minute schedule changes and enables sponsors to upload fresh content for different events held at the same venue.

6. Quick-Service Restaurant (QSR) & Drive-Thru Digital Menus

Scenario: Serves as a premium, high-clarity outdoor menu board for drive-thru lanes or walk-up windows. Showcases food in vivid 4K detail, with dynamic pricing and combo promotions.
Value: Enhances brand perception and stimulates appetite. National headquarters can update menu items, prices, and promotional campaigns instantly across hundreds of franchise locations, ensuring perfect consistency and operational agility.

7. Real Estate & Property Development Sales

Scenario: Mounted at construction sites or sales centers for high-end residential/commercial projects. Loops cinematic 4K architectural renders, virtual tours, interior designs, and developer branding.
Value: Acts as a powerful 24/7 sales tool that conveys quality and detail. Agents can update available unit listings or promotional offers remotely as the project progresses.

8. Financial Plaza & Banking District Displays

Scenario: Installed in the plazas of financial districts or at the entrance of bank headquarters to display real-time financial data (market tickers), company news, branding, and public information.
Value: The high resolution is critical for displaying dense financial data clearly. The robust build withstands urban environmental challenges, while remote management ensures data feeds are always accurate and live.

9. Tourism & Hospitality Destination Promotion

Scenario: Used by tourism boards at visitor information centers, cruise ship terminals, or scenic overlooks to play breathtaking 4K videos of local attractions, interactive maps, and event guides.
Value: The immersive visual quality inspires visitors. Tourism officials can easily update content seasonally or to promote specific festivals and events across a region.

10. Industrial & Tech Park Navigation & Safety

Scenario: Deployed at the entrance of large tech campuses or industrial parks for high-definition site maps, visitor check-in instructions, daily safety messages, and company achievement highlights.
Value: Improves logistics and safety compliance. The clear display aids navigation for visitors and delivery personnel. The waterproof, durable design is suited for industrial environments.

1. Q: What makes your CMS "smart" compared to a standard digital signage CMS?
A: Our Smart CMS includes AI-driven features such as automated content optimization (e.g., adjusting playback based on weather or time of day), predictive maintenance alerts, audience analytics integration (when paired with sensors), and dynamic data binding (auto-updating content like pricing or inventory from a database). It goes beyond simple scheduling to intelligent, contextual communication.

2. Q: Does the 2K/4K resolution make a visible difference outdoors compared to Full HD?
A: Absolutely. For larger screen sizes (typically 55" and above) or when viewers are close (e.g., walk-up kiosks), 2K and 4K resolution provide significantly sharper text, finer image details, and more immersive video. This is crucial for premium advertising, detailed maps, or showcasing high-quality product visuals where clarity impacts engagement and brand perception.

3. Q: Can I mix 2K and 4K screens in the same network managed by the Smart CMS?
A: Yes. The Smart CMS is resolution-agnostic. You can create and manage content playlists within the CMS, and it will automatically optimize and scale the content appropriately for each screen's native resolution (2K or 4K) in your network, ensuring the best possible display on every device.

4. Q: How reliable is the remote control and monitoring? What happens if the network connection is lost?
A: The system is designed for maximum uptime. It features local storage and failover playlists. Content is cached on the device's internal memory. If the network connection is temporarily lost, the screen will continue to play its scheduled content seamlessly. Once connectivity is restored, it will sync all logs and update with any new instructions from the CMS automatically.

5. Q: Is the waterproof (IP66) rating sufficient for harsh coastal or high-humidity environments?
A: The IP66 rating provides excellent protection against rain, dust, and water jets. For coastal or highly corrosive environments, we recommend specifying an optional anti-corrosion treatment on the aluminum enclosure to protect against salt spray. The internal components and optical bonding are also designed to prevent condensation in high-humidity conditions.

6. Q: What are the primary methods for remote content upload and management?
A: Management is centralized through the web-based Cloud CMS portal. Primary methods include:

Drag-and-drop media upload and playlist creation.
API integration for automated data-driven content (e.g., live sports scores, weather, social feeds).
Template-based design tools for quick content creation.
User role management for assigning different permissions (e.g., admin, content editor, viewer).

7. Q: Can this totem display content from external sources, like a live TV feed or a laptop?
A: Yes. In addition to playing content from the Smart CMS, it is equipped with HDMI input ports. This allows you to connect external devices like a laptop, media player, satellite receiver, or camera for live feeds, making it versatile for special events, broadcasts, or presentations.

8. Q: What is the power consumption, and does it support PoE (Power over Ethernet)?
A: Power consumption varies by size and brightness but is optimized for efficiency. Standard models use an AC power adapter. PoE++ (802.3bt) support is available as a special configuration, which simplifies installation by delivering both power and data over a single Ethernet cable, but it must be specified at the time of order.

9. Q: How is software and security updated on the device?
A: All software, firmware, and security updates are managed over-the-air (OTA) through the Smart CMS. Administrators can schedule update deployments during off-hours for the entire screen network simultaneously. The system uses encrypted communication and often features a secure boot process to prevent unauthorized access.

10. Q: What is the lead time, and what does installation support include?
A: Lead times vary based on customization and quantity. Standard models typically ship within 2-4 weeks. We provide comprehensive installation guides, CAD drawings, and wiring diagrams. For complex projects, we offer professional installation services or can certify third-party installers to ensure the IP66 seal is maintained and the system is optimized.
