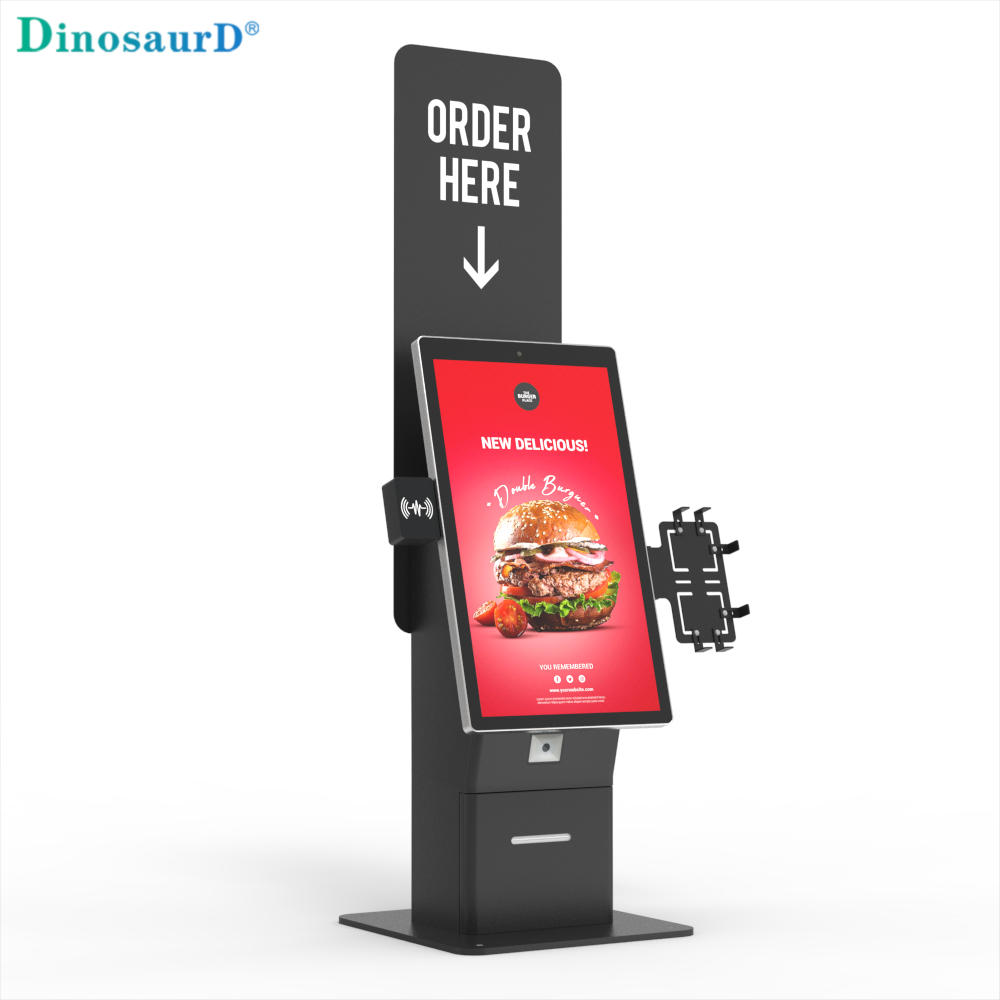

modular design customize camera NFC pos holder restaurant ticket terminal self-service order printer touch screen payment kiosk

modular design customize camera NFC pos holder restaurant ticket terminal self-service order printer touch screen payment kiosk

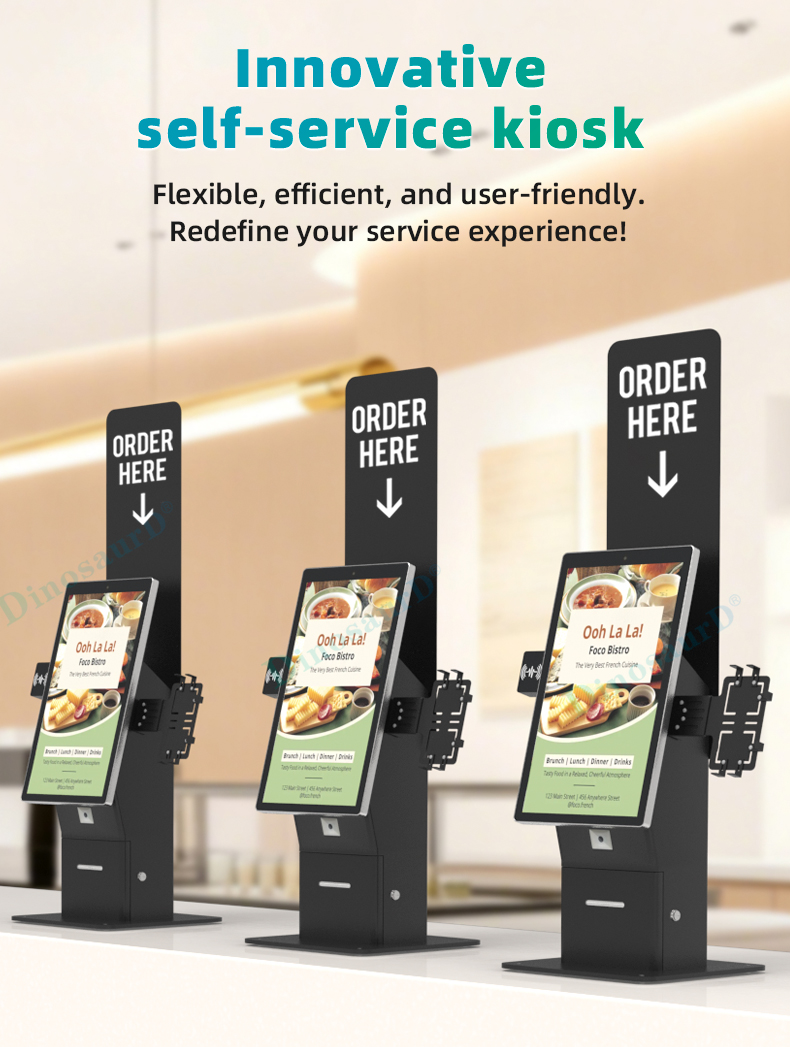

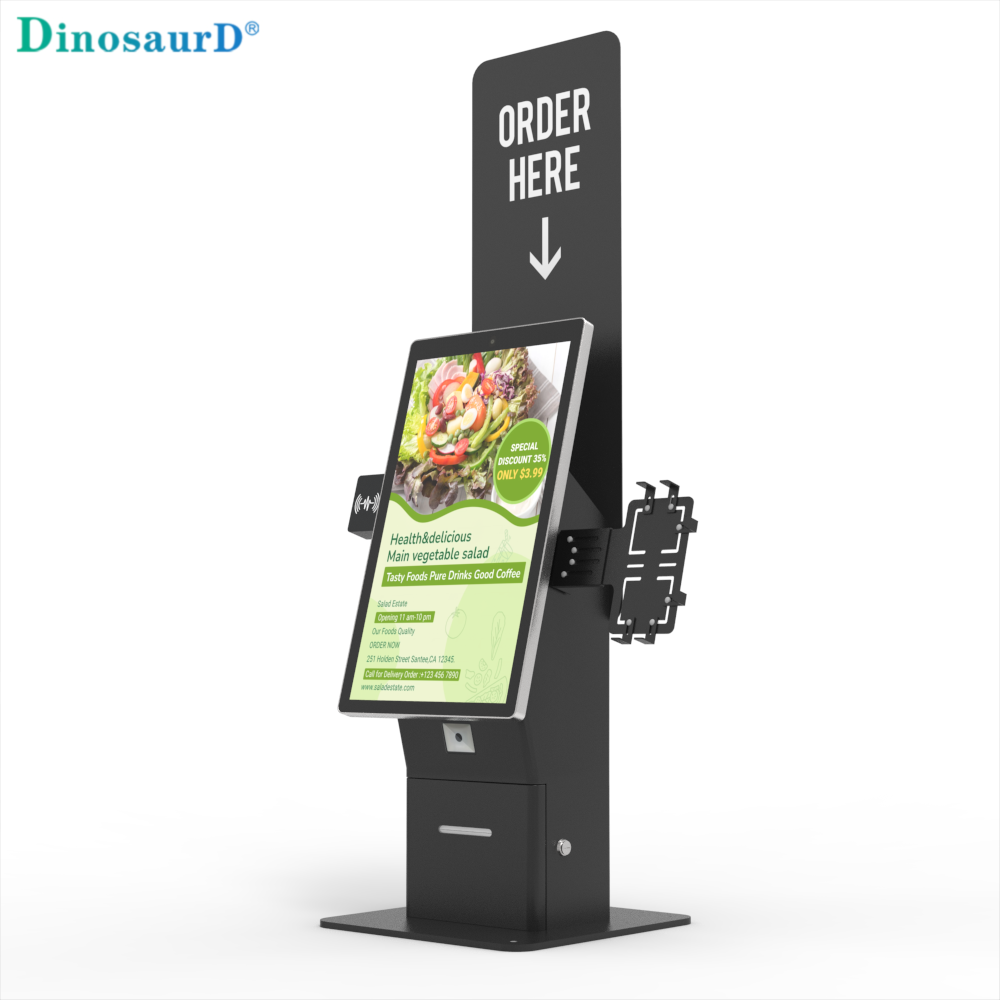

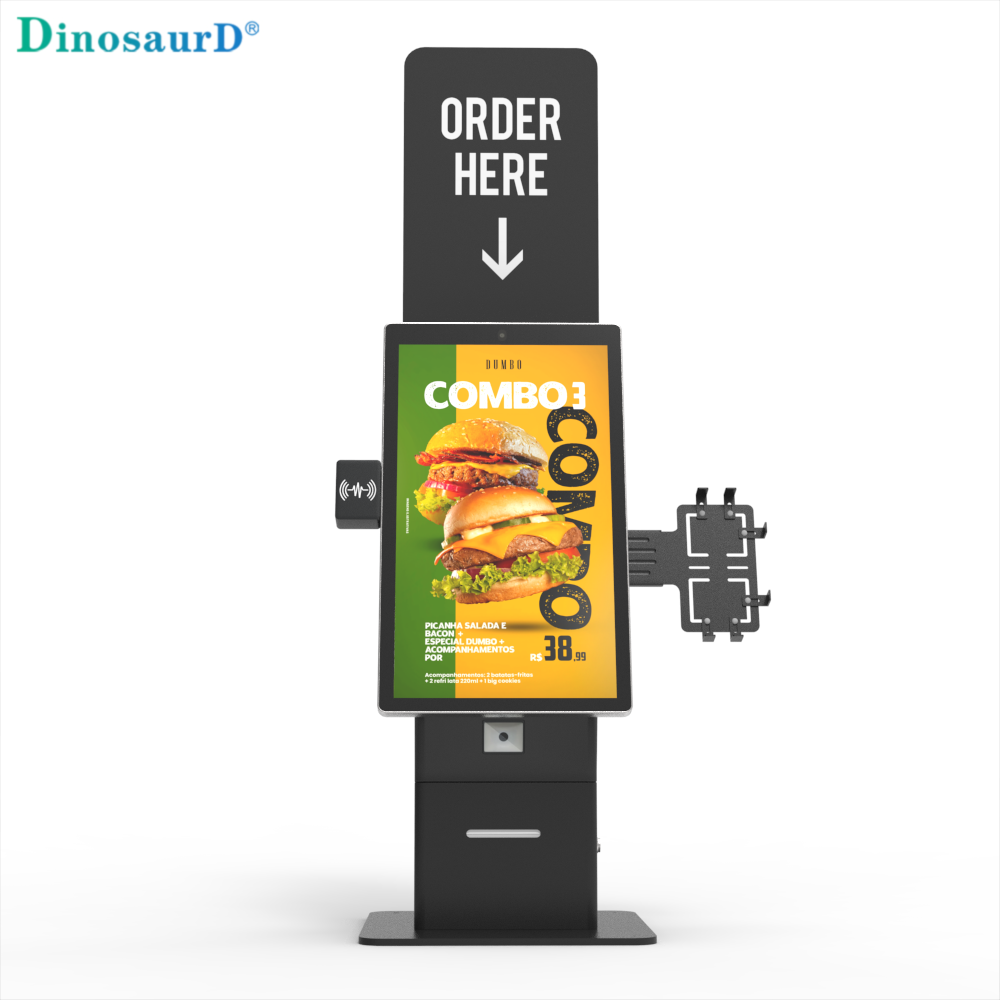

Modular Self-Service Kiosk: Fully Customizable for Your Business Needs
Introducing our next-generation Modular Self-Service Kiosk, engineered for ultimate flexibility and performance. Built on a robust modular design, this terminal can be fully customized with a range of integrated peripherals to meet your exact operational requirements.
Core Features & Customization Options:
• Adaptable Modular Platform: Start with a vibrant touch screen payment kiosk base and add the components you need. This future-proof approach allows for easy upgrades and maintenance.
• Enhanced Peripheral Integration: Configure your kiosk with a high-resolution camera for photo capture or document scanning, NFC for secure contactless payments and loyalty card reading, and a high-speed printer for instant restaurant tickets or order receipts.
• Versatile Mounting & Form Factors: The kiosk can be equipped with a secure POS holder for a streamlined payment station or stand alone as a complete self-service order terminal.
• All-in-One Functionality: This integrated payment kiosk consolidates ordering, payment processing, and ticketing into a single, sleek unit, reducing wait times and improving customer throughput.
Ideal for restaurant self-ordering, retail checkouts, and ticketing systems, this kiosk empowers businesses to build a perfect-fit solution. Elevate your customer experience with a terminal that adapts to you.

Brand:
Dinosaur D

size:	21.5 24 32 inch options

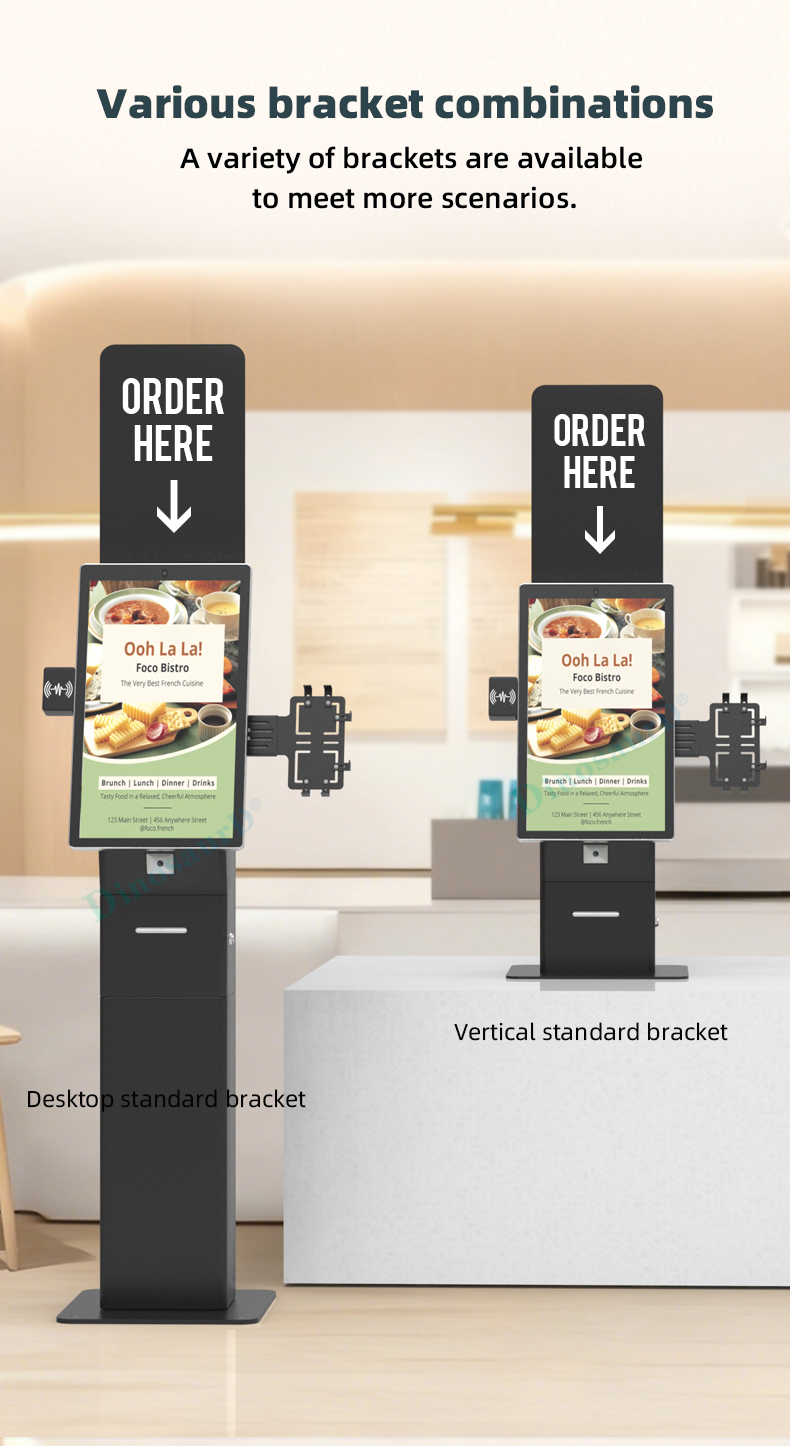

installation method:	floor stand ,desktop,or wall-mount options
resolution:	2K
cusomization:	printer,QR scanner,NFC,pos holder,camera
viewing angle:	178°/178°(H/V)
lifespan:	more than 50000h
response time:	6ms
Availability:

Quantity:



Inquire Add to Basket

Our modular self-service kiosk is an intelligent, all-in-one solution designed for modern retail and food service environments. Featuring a highly customizable design, this system combines payment processing, order management, and ticket printing in a single compact unit with multiple configuration options.

Key Features:

Modular architecture allows flexible component customization
High-resolution touchscreen interface (21.5"-32" options available)
Integrated NFC/RFID payment reader with EMV compliance
Built-in thermal printer for instant ticket/order printing
Optional add-ons: HD camera, barcode scanner, cash drawer

Technical Specifications:

✓ Display: 21.5"-32" multi-touch capacitive screen (1080p/4K options)

✓ Payment: Supports NFC, EMV chip, QR code, and mobile wallets

✓ Printer: 58mm/80mm high-speed thermal printer

✓ Connectivity: Dual-band WiFi, Bluetooth 5.0, 4G LTE

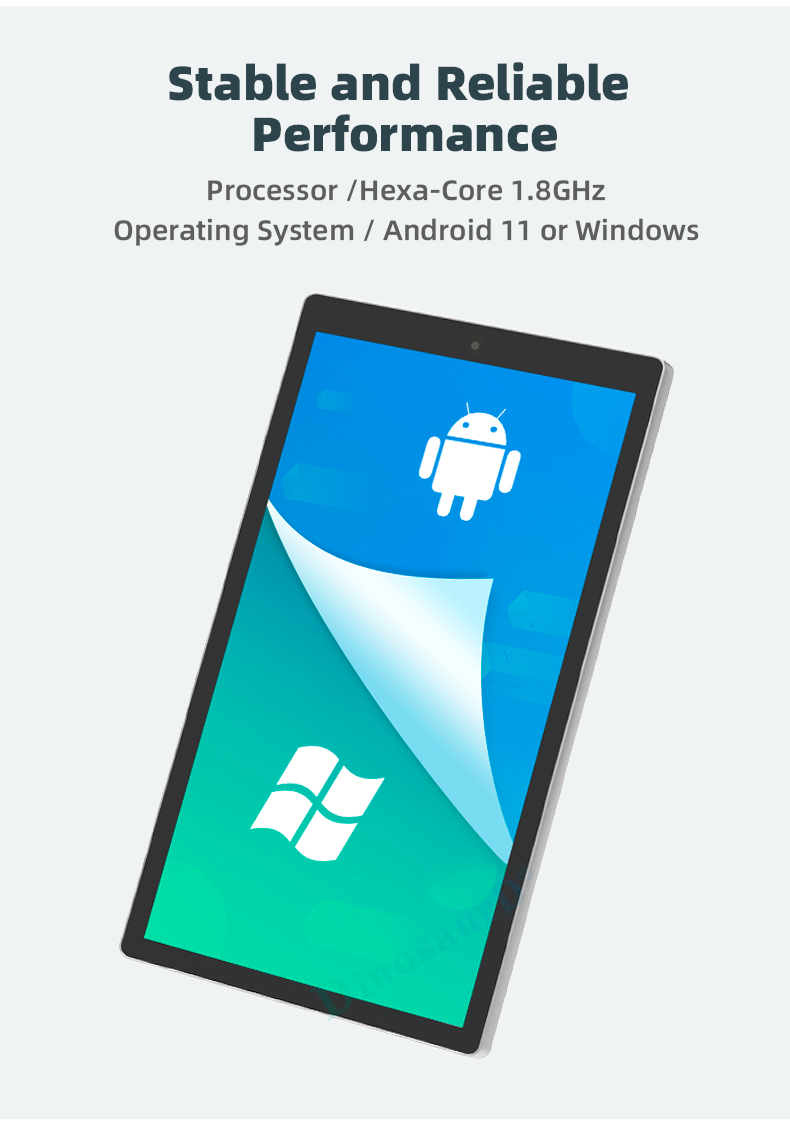

✓ OS Options: Android or window or Linux

self service kiosk 1 self service kiosk 2 self service kiosk 3 self service kiosk 4 self service kiosk 5 self service kiosk 6 self service kiosk 7 self service kiosk 8 self service kiosk 9 self service kiosk 10 self service kiosk 11

printer	Printing method	thermal line dot printing
	Print speed	Max:180mm/s
	Resolution	203dpi(8dots/mm)
	Print width	80mm
	Cutter	both full cut and partial cut are supported

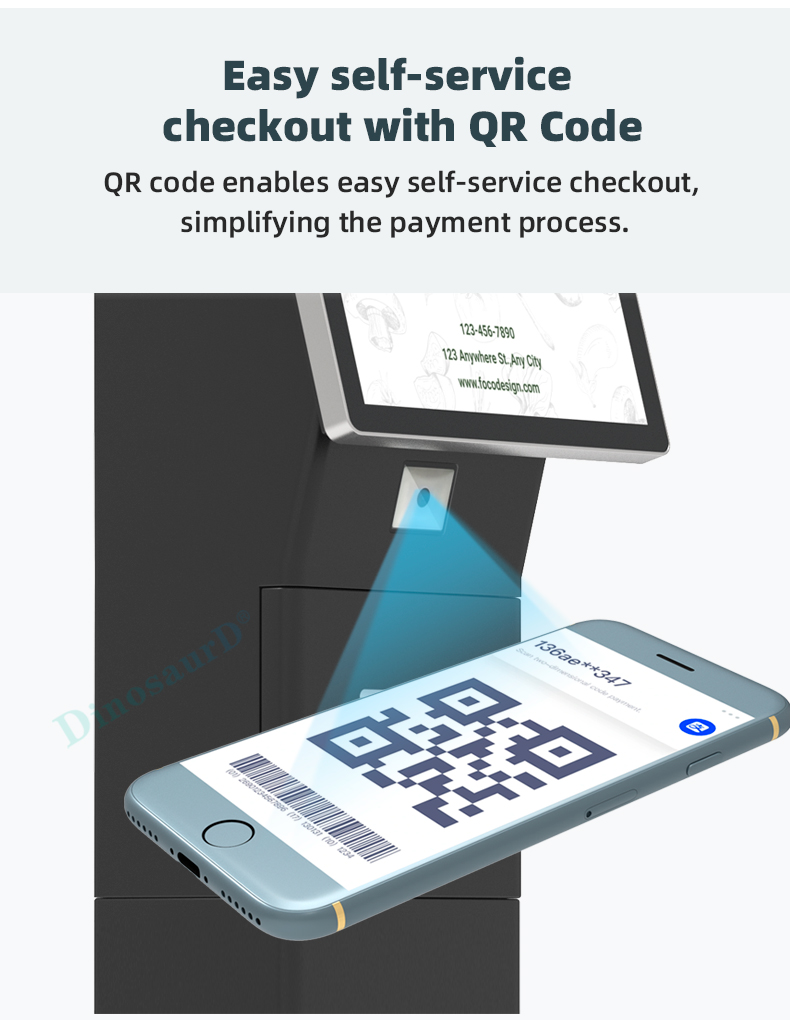

Qr scanner	Image sensor	640（H） X 480（V）CMOS
	Light source	white fill light / colored light indicator
	Readable Code System	QR Code: QR Code, PDF417, DataMatrix (ECC200)
		EAN13, EAN UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI, RSS-14, Limited RSS, Expanded RSS
	Reading perspective	rotate 360°, tilt ±60°, deflect ±60°
	Understanding depth of field	EAN-132~11.0cm 13mil、Code-128 2.5 ~ 13.0cm （15mil ）
	Recognition accuracy	1D barcode: ≥5 mil, 2D barcode: ≥10 mil
NFC	External Interface	serial port (TTL level/RS232 level selectable)
	Support card	contactless Card: Mifare One S50/S70, Mifare UltraLight NTAG213/215/216
	Sensing distance	type A Card: 0 ~ 5.0 cm Test Conditions: 1) Use a standard size card of 85.6mm × 54mm; 2) Use an integrated antenna.
Camera	Optical dimensions	1/2.7”inch COMS sensor
	Sensor resolution	1920 (H) x 1080 (V)
	Maximum frame rate	30fps@1080P
screen panel specification	Screen size	24 inch BOE or Star A new full lcd screen
	Resolution	1920*1080（2k）
	Brightness	350cd/m2
	Number of Color	16.7M
	Response time	6ms
	Contrast	2000：1
	View angle	178°/178°(H/V)
	Life Time	> 50000 (hours)
	OSD Language	English, Chinese, French, German, Italian, Spanish,Arabic etc.
capacitive touch parameter	Touch technology	10 point capacitive touch
	Sensing object	fingers, stylus
	Response time	3ms
	Sensing accuracy	±1.5mm
	Touch lifespan	over 60 million times, the touch cursor does not drift
	Touch resolution	4096*4096
Power	Input Voltage	AC100-240v 50/60HZ
	Horn	2×2W(8Ω)
	Standby power	≤1W
	Power Consumption	≤50W
	Storage temparature	(-20℃ -- 60 ℃)
	Operation temparature	(0℃-- 50 ℃)
	Operation humidity	(10 -- 90% )
Appearance design	aluminum alloy frame, high-quality sheet metal
Casing color	black

1. Q: What does "modular design" mean for this kiosk?
A: Our modular design means the kiosk is built from interchangeable components. You can select and integrate specific modules—like a printer, camera, or NFC reader—to create a terminal that perfectly fits your current and future needs.

2. Q: How customizable is the kiosk?
A: It is highly customizable. You can choose the core features you need, from a basic touch screen terminal to a fully equipped system with a built-in printer, high-resolution camera, NFC payment reader, and a dedicated POS holder for cashless transactions.

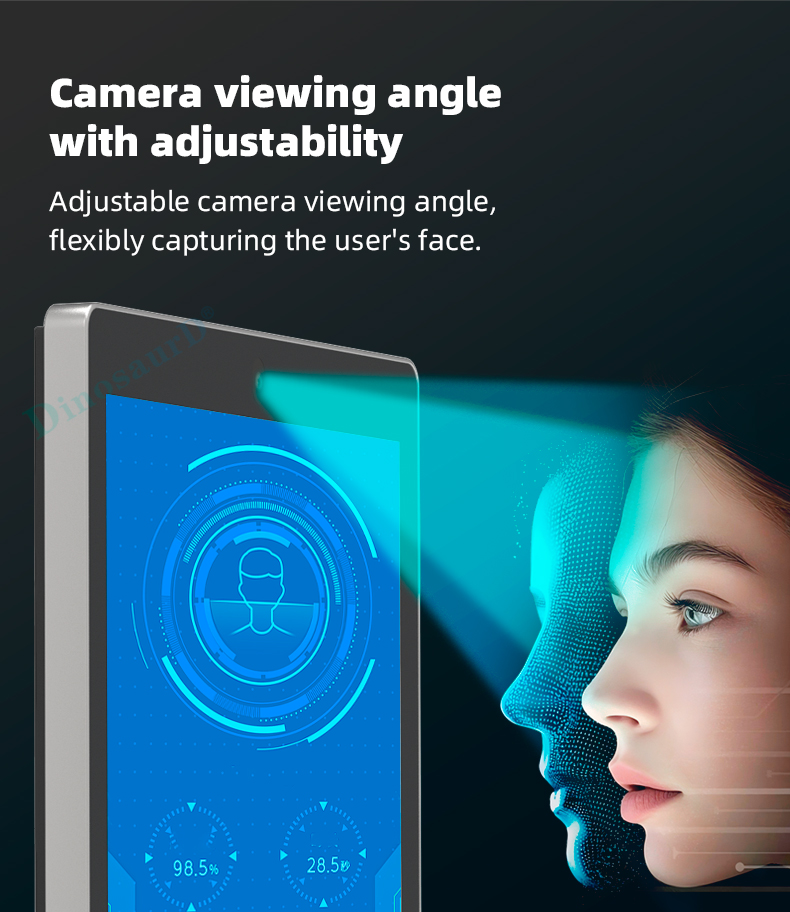

3. Q: Can I add a camera to the kiosk, and what is it used for?
A: Yes, a camera is an available module. It can be used for various functions, such as scanning QR codes for loyalty programs, capturing photos for ID verification, or facilitating video assistance calls.

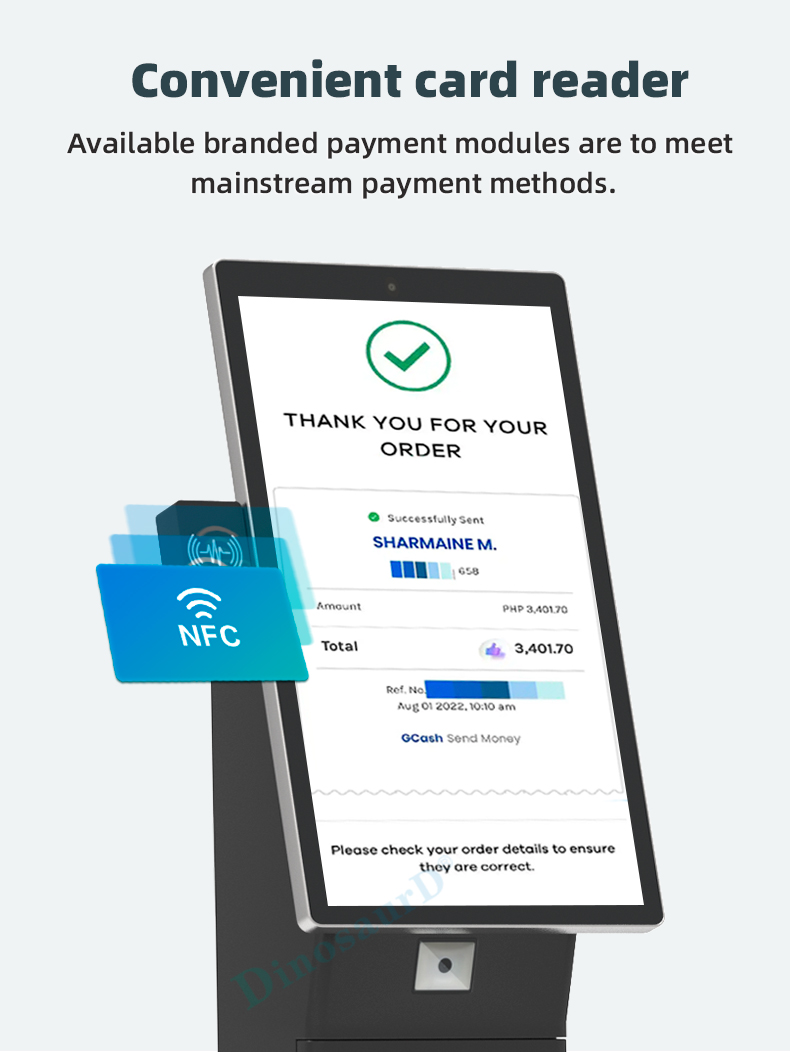

4. Q: Does the kiosk support NFC payments?
A: Absolutely. An integrated NFC module is a key option, allowing customers to make secure, contactless payments by simply tapping their credit/debit cards or smartphones.

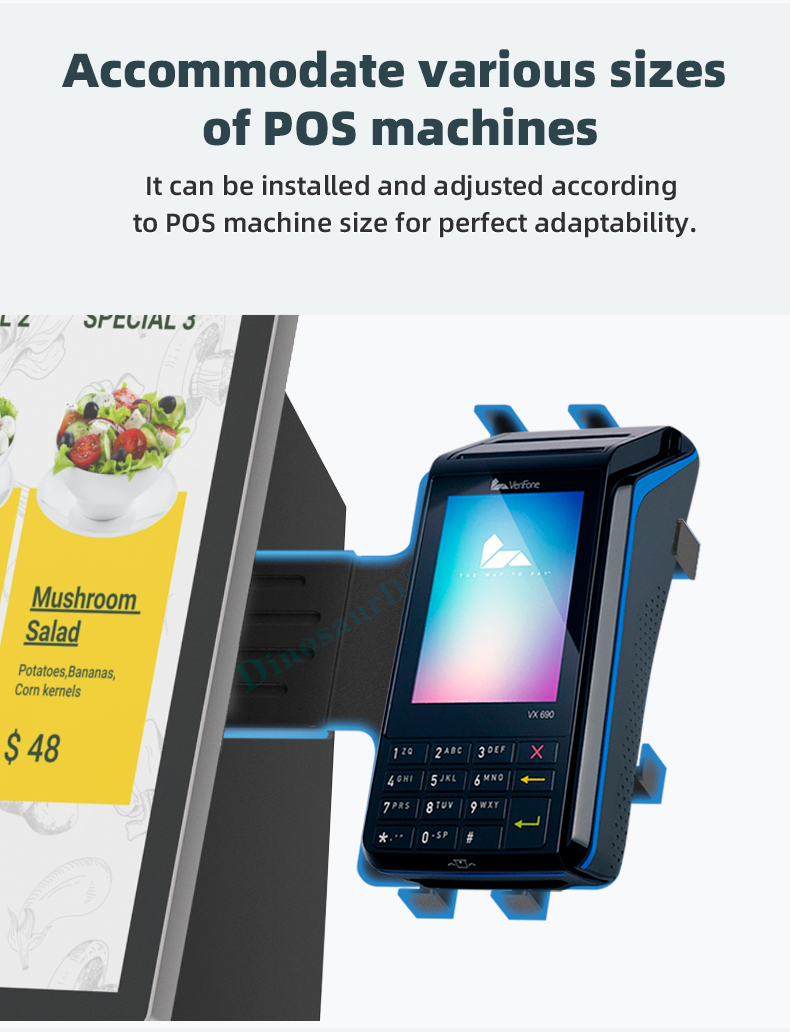

5. Q: Is there an option to hold a separate POS terminal?
A: Yes, the kiosk can be configured with a secure and integrated POS holder, allowing you to attach a separate payment terminal if required for your specific payment processor.

6. Q: Is this kiosk suitable for restaurant self-ordering?
A: Perfectly. It serves as an ideal restaurant ticket terminal. Customers can browse the menu on the touch screen, place their self-service order, and receive a physical ticket or receipt from the integrated printer.

7. Q: What is the main advantage of this kiosk over a standard all-in-one model?
A: The main advantage is flexibility and cost-effectiveness. You only pay for the features you need now, and can easily add or upgrade modules later without replacing the entire unit, thanks to its modular design.

8. Q: What kind of printer does it use?

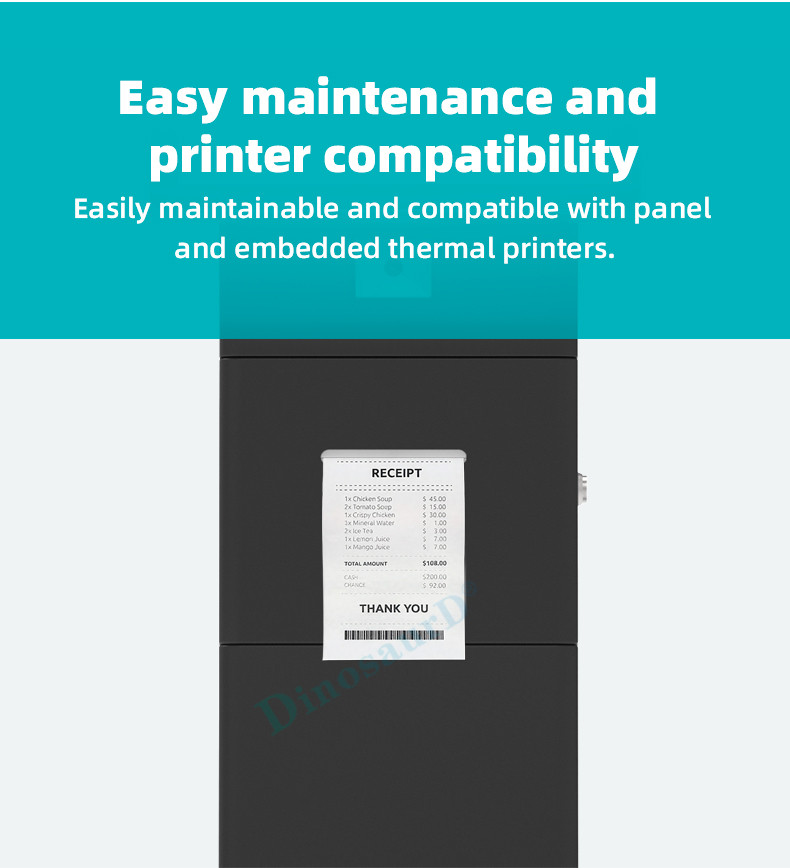

A: The kiosk integrates a high-speed, thermal receipt printer, ideal for printing restaurant order tickets, payment receipts, or queue tickets instantly.

9. Q: Can this kiosk handle both ordering and payment?
A: Yes, it is a complete self-service order and payment kiosk. Customers can select items, customize their order, and pay securely all at the same station, streamlining the entire process.

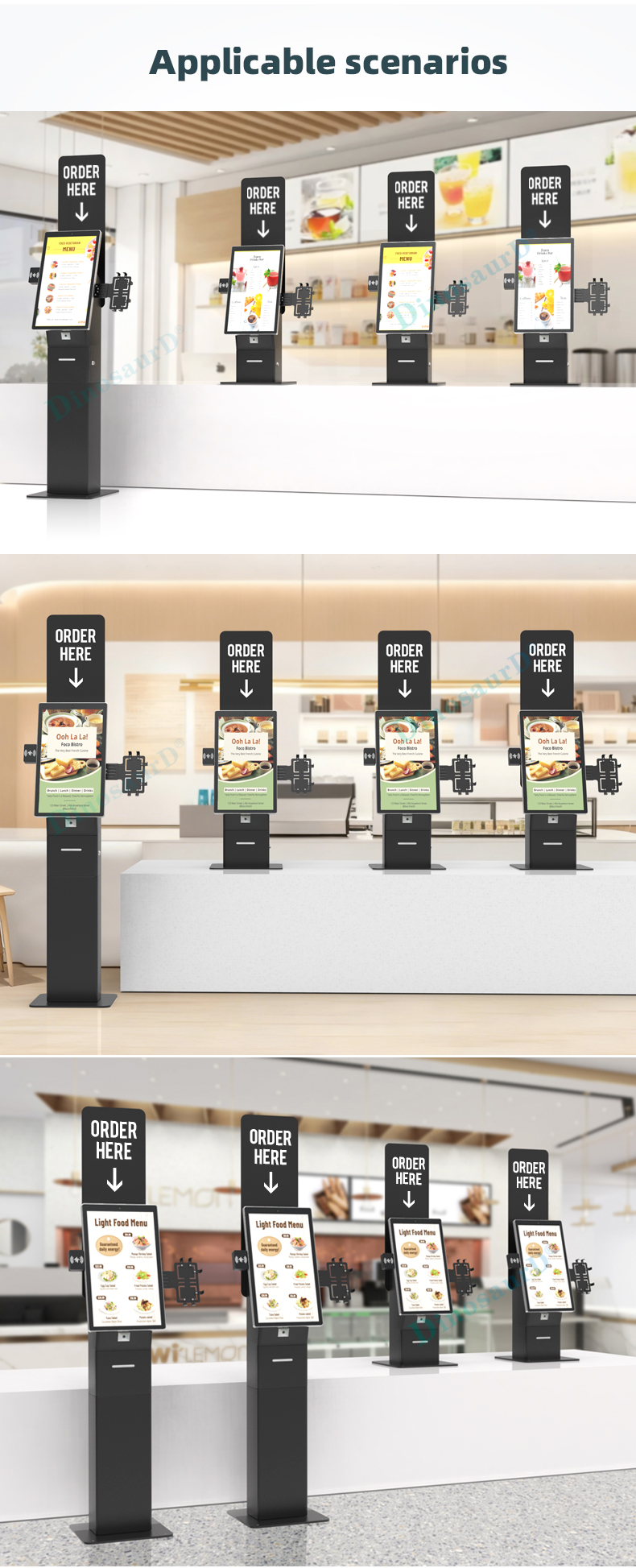

10. Q: Which industries can benefit from this modular kiosk?
A: Its versatility makes it perfect for quick-service restaurants (QSRs), retail stores, entertainment venues, and any business looking to deploy efficient self-service ordering, ticketing, or payment solutions.
