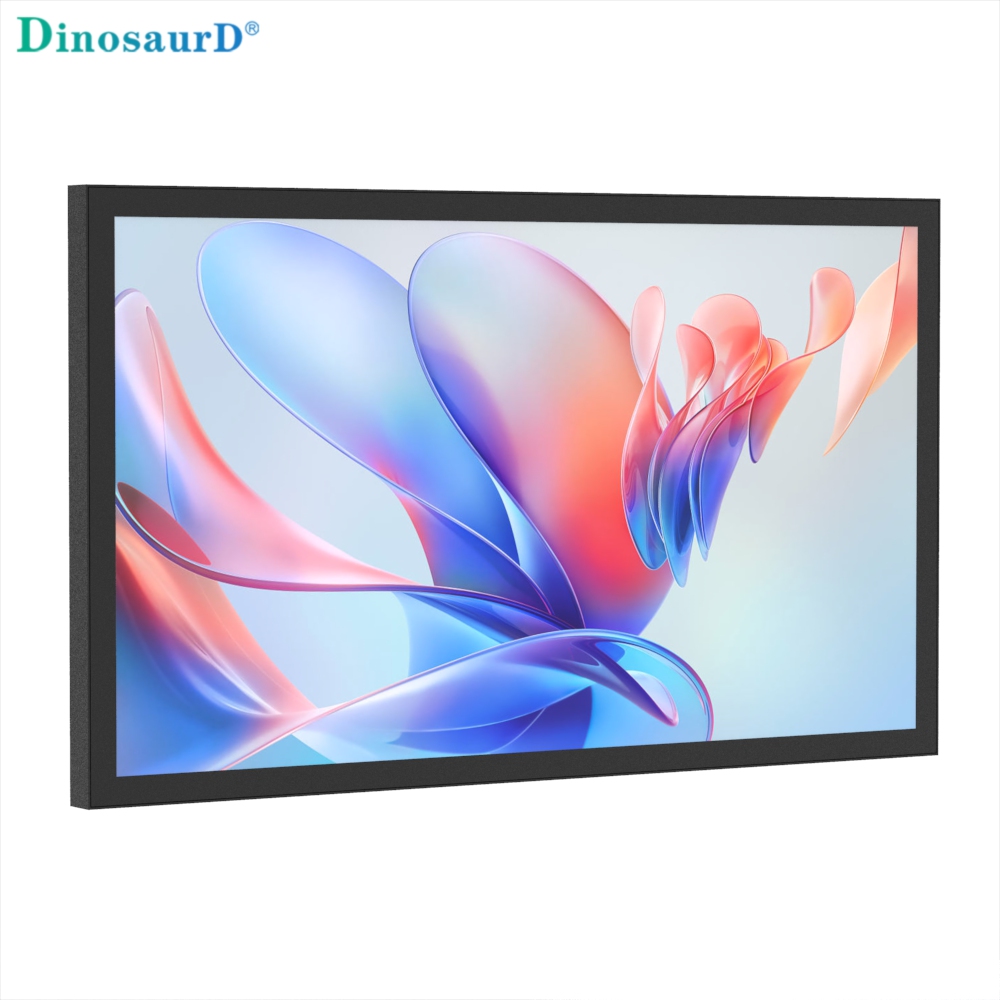

lcd high temperature resistant waterproof wall mount digital high-brightness outdoor signage ip66 smart advertising screen

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

lcd high temperature resistant waterproof wall mount digital high-brightness outdoor signage ip66 smart advertising screen

Engineered for resilience in the most demanding outdoor environments, our High-Temperature Resistant Waterproof Digital Smart Advertising Screen combines cutting-edge LCD technology with ruggedized protection. Built to withstand extreme heat, direct sunlight, and adverse weather, this high-brightness smart screen delivers reliable, vivid, and dynamic content display for 24/7 outdoor advertising and information applications.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Features

High-Temperature Resistant Design
Specially engineered components and active thermal management ensure stable operation in extreme heat environments, perfect for sun-exposed locations.
IP66 Full Waterproof & Dustproof
Completely sealed enclosure protects against heavy rain, dust, sand, and moisture, guaranteeing year-round outdoor durability.
High-Brightness Display with Smart Control
High-intensity backlight (2500–5000 nits) ensures excellent visibility in direct sunlight. Integrated smart system enables remote content management, scheduling, and real-time updates.
Rugged Wall-Mount Construction
Robust mounting design allows secure installation on walls, poles, or structures, with corrosion-resistant materials for long-term outdoor use.
Seamless Connectivity & Smart Features
Supports Wi-Fi/4G/Ethernet connectivity, compatible with major digital signage platforms. Equipped with light sensors for automatic brightness adjustment and energy-saving operation.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What does "high-temperature resistant" mean for this LCD screen?
Our screens are specifically engineered with industrial-grade components and an advanced thermal management system that includes high-temp rated LEDs, efficient heat sinks, and internal climate control. This allows for stable, continuous operation in extended temperatures up to 60°C (140°F), far exceeding standard commercial displays, making them ideal for direct, sun-exposed installations.

2. How does the IP66 rating protect the screen in outdoor environments?
The IP66 rating certifies that the enclosure is completely dust-tight and protected against powerful jets of water from any direction. This means it can endure heavy rain, dust storms, high-pressure washing (from a distance), and humidity, ensuring reliable performance in virtually all outdoor conditions.

3. What "smart" features are included?
This is a smart digital signage player and display in one. Key features include: built-in media player software, remote content management via web/cloud dashboard, scheduled playback, real-time updates (RSS, weather, social feeds), automatic brightness adjustment via light sensor, and network connectivity (Wi-Fi/Ethernet/optional 4G).

4. What is the typical brightness range, and is it adjustable?
Standard models offer 2500 to 5000 nits of brightness. The brightness is automatically adjustable via a built-in ambient light sensor to optimize visibility day and night while saving energy. Manual adjustment is also available through the management software.

5. Can this screen be installed in direct sunlight all day?
Yes. The combination of high-temperature resistance (up to 60°C operating), high brightness (2500+ nits), and a premium anti-glare laminated surface is specifically designed for all-day, direct-sunlight installations without risk of overheating or washed-out images.

6. What kind of wall or structure is needed for mounting?
The screen comes with a robust, universal VESA-compatible wall-mount bracket. It requires a solid, flat vertical surface (concrete, brick, metal stud) capable of supporting 1.5 to 2 times the display's weight. We provide detailed structural requirements for installers.

7. How is content managed and updated?
Content is managed through a user-friendly web-based platform or mobile app. You can upload images/videos, create playlists, set schedules for different times of day, and push updates in real-time from anywhere with an internet connection. No need for on-site USB drives.

8. What is the power consumption, and does it have energy-saving modes?
Power consumption varies by size and brightness but is optimized for efficiency. The screen includes energy-saving features like scheduled on/off, sleep mode during inactive hours, and adaptive brightness, significantly reducing operational costs.

9. What is the lifespan, and what maintenance is required?
The industrial-grade LEDs have a lifespan of approximately 70,000 hours. Maintenance is minimal due to the sealed IP66 design. We recommend only periodic cleaning of the surface with a soft cloth and ensuring ventilation inlets/exhausts are unobstructed.

10. Do you provide technical support for installation and software setup?
Yes. We offer comprehensive support, including detailed installation manuals, mounting templates, and access to our technical team. For software, we provide initial setup guides, tutorial videos, and customer support to assist with network configuration and content management platform onboarding.
