fully laminated design 2500nit dustproof display high brightness waterproof advertising wall-mount totem sunscreen outdoor ip66 signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

fully laminated design 2500nit dustproof display high brightness waterproof advertising wall-mount totem sunscreen outdoor ip66 signage

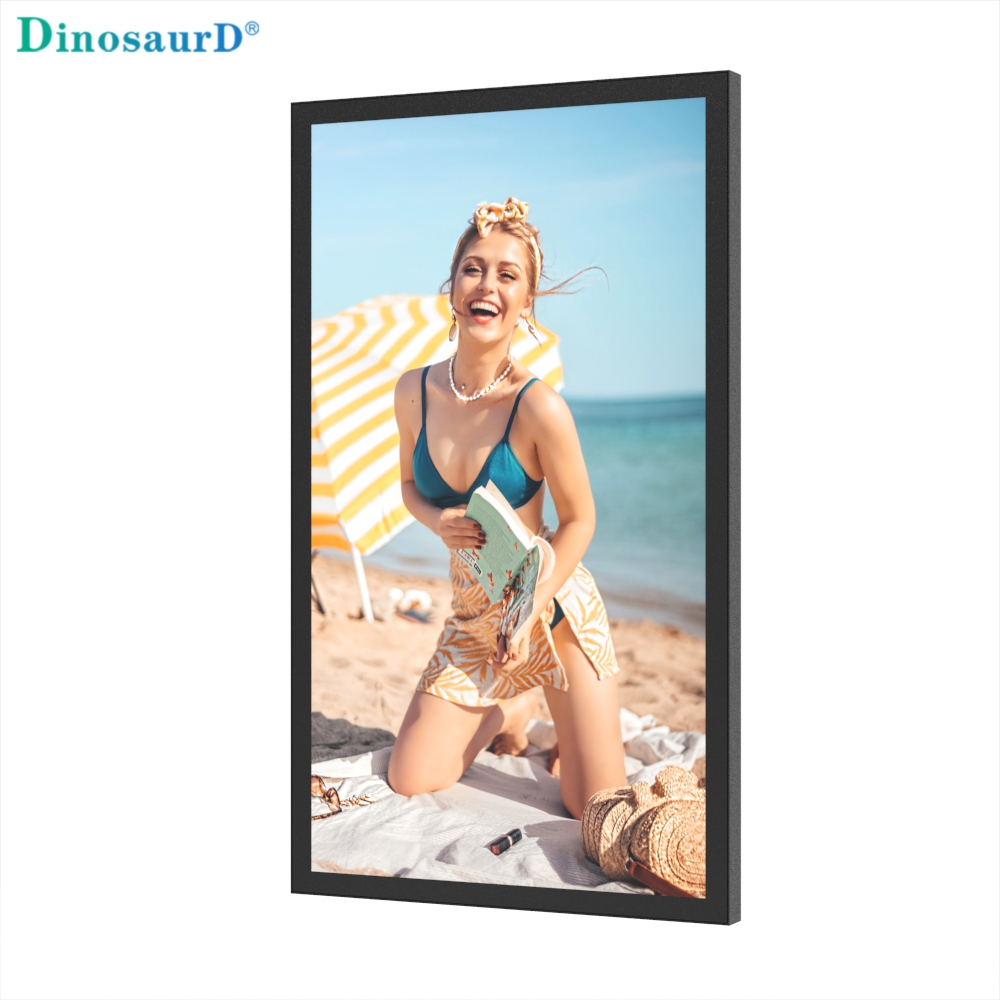

Designed for superior visual performance and uncompromising durability in outdoor environments, this Fully Laminated Wall-Mount Totem Display integrates advanced optical engineering and robust protective features. With its 2500-nit high-brightness screen, fully laminated dustproof design, IP66 waterproof rating, and integrated sunscreen protection, it delivers vivid, glare-free content visibility in direct sunlight while withstanding harsh weather and high-traffic public use. Ideal for outdoor advertising, wayfinding, and information display in demanding settings.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Innovations

1. Fully Laminated Optical Design

Seamless Bonding Technology: The LCD panel and protective glass are optically bonded into a single, dust-free layer, eliminating internal reflections and enhancing contrast, clarity, and touch responsiveness (if applicable).
Dust-Proof & Moisture-Resistant: The sealed lamination prevents dust, humidity, or condensation from entering the display layers, ensuring long-term image integrity.

2. High Brightness with Sunscreen Protection

2500 Nits High Brightness: Guarantees excellent visibility even under intense sunlight.
Integrated Sunscreen Layer: A specialized optical filter or coating significantly reduces glare and UV exposure, protecting the screen from sun damage while improving readability in bright outdoor conditions.

3. Totem-Style Wall-Mount Design

Space-Saving Vertical Totem: Compact and sleek, ideal for high-footfall areas such as transit stations, shopping malls, stadiums, and corporate campuses.
Robust Mounting System: Includes heavy-duty, vandal-resistant brackets for secure wall installation in public spaces.

4. All-Weather IP66 Protection

Waterproof & Dustproof Enclosure: The fully sealed IP66-rated housing protects internal electronics from rain, snow, dust, and humidity, supporting 24/7 outdoor operation.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What are the practical benefits of the "fully laminated design"?
The fully laminated design involves optically bonding the LCD panel directly to the protective cover glass. This eliminates any air gap between layers, which prevents internal dust accumulation, reduces glare and reflections, enhances image clarity and contrast, and provides superior durability against physical impacts and moisture ingress. It also improves touchscreen accuracy if applicable.

2. Is the 2500-nit brightness sufficient for outdoor use in direct sunlight?
Yes, 2500 nits is specifically engineered for excellent outdoor visibility. Combined with the anti-glare sunscreen layer and full lamination, it ensures content remains vivid, readable, and color-accurate even under bright, direct sunlight or high-ambient indoor lighting.

3. How does the sunscreen protection work, and is it optional?
The sunscreen protection refers to an integrated optical coating or filter applied during lamination. It actively reduces glare, minimizes UV exposure to the LCD panel, and enhances contrast without sacrificing brightness. This feature is standard in our outdoor totem models to ensure optimal performance and screen longevity.

4. Does "dustproof" refer only to the exterior, or is the display internally sealed?
"Dustproof" applies to both internal and external protection. The fully laminated panel eliminates internal dust entry, while the IP66-rated enclosure ensures the entire system—including ports, seams, and joints—is hermetically sealed against external dust and particulate matter.

5. Can this totem display be installed in coastal or high-humidity areas?
Absolutely. With its IP66 waterproof rating, corrosion-resistant materials (e.g., powder-coated aluminum, stainless steel fasteners), and fully laminated screen, it is designed to withstand salt spray, high humidity, rain, and temperature fluctuations common in coastal or tropical environments.

6. What is included in the "wall-mount totem" design?
The totem design features a slim vertical profile with an integrated or optional external media player compartment. It includes a heavy-duty, adjustable wall-mount bracket designed for secure installation on concrete, brick, or metal surfaces. Cable management channels and lockable access panels are also provided for safety and neatness.

7. Is a media player included, and is it also IP66-rated?
An optional integrated media player is available, which is housed within the same IP66-sealed enclosure. This ensures the entire system—display and player—is protected against water and dust. The player supports 4K content, remote management, scheduling, and real-time data integration.

8. How does the display perform in extreme temperatures?
The display operates reliably within -30°C to 60°C thanks to its wide-temperature LCD components, thermal management system (auto-regulated heating/cooling), and UV-resistant materials. The laminated design also helps prevent delamination or fogging under rapid temperature changes.

9. What maintenance is required for long-term outdoor use?
Maintenance is minimal. The smooth laminated surface can be cleaned with a soft cloth and standard glass cleaner. We recommend periodic checks of mounting hardware and seals. No internal cleaning is needed due to the dustproof and sealed construction.

10. Can the display be customized in size, resolution, or finish?
Yes. We offer customization in screen size (typically 32–85 inches), resolution (Full HD, 4K), sunscreen coating intensity, and exterior finish colors. Optional features include touchscreen capability, additional brightness (up to 5000 nits), and enhanced vandal resistance (IK10 rating).
