digital high brightness media player cms remote control waterproof 4K lcd stand touch screen display player outdoor advertising signage

bus station park signage rain-proof touch screen media waterproof 4K advertising digital player lcd outdoor ip65 totem

digital high brightness media player cms remote control waterproof 4K lcd stand touch screen display player outdoor advertising signage

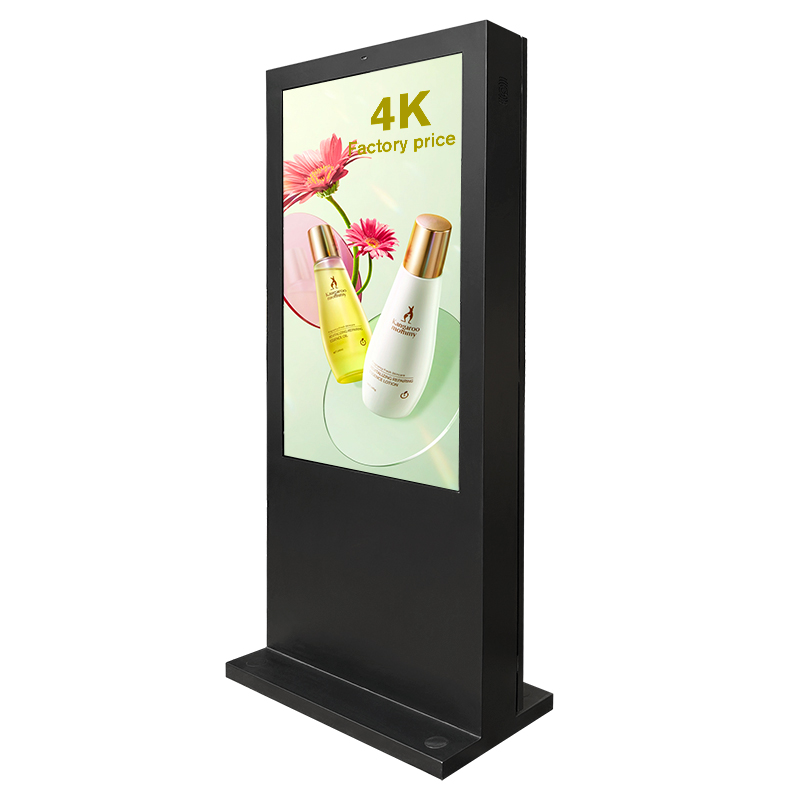

Introducing our premier all-in-one outdoor digital signage system, engineered to deliver stunning visuals and reliable performance in any environment. This high-brightness, 4K LCD display integrates a powerful media player, intuitive CMS software, and a responsive touch screen—all housed within a waterproof, stand-mounted enclosure for maximum impact and durability.

Brand:
Dinosaur D

size:	32 43 49 55 65 75 86 inch optional
tempered glass thickness:	6 mm tempered glass
resolution:	19201080 or 38402160
brightnees:	2500nit
protection level:	ip65
lifespan:	>50000 hours
Input voltage:	AC110-240V,50/60Hz
Availability:

Quantity:



Inquire Add to Basket

Core Features & Benefits:
Brilliant Outdoor Visibility: Features a high-brightness 4K LCD screen specifically designed for outdoor readability. Content remains vivid, crisp, and glare-resistant even under direct sunlight, ensuring your message is always seen.
All-Weather Durability: Built with a robust, waterproof enclosure (IP65 rated or higher), this unit is fully protected against rain, dust, and temperature extremes. It is engineered for reliable, 24/7 operation in harsh outdoor conditions.
Complete Integrated System: Combines a high-performance media player and a responsive touch screen display in one seamless unit. The integrated stand allows for flexible placement in high-traffic areas without the need for complex installation.
Smart Remote Management: Powered by advanced CMS (Content Management System) software, this solution enables full remote control from anywhere. Easily schedule content, upload 4K videos and images, monitor screen status, and deploy real-time updates via an internet connection.
Interactive Engagement (Optional Touch Feature): The available touch screen capability transforms passive viewing into an interactive experience—ideal for wayfinding, product catalogs, surveys, or immersive brand engagement

outdoor-digital-signage_01 outdoor-digital-signage_02 outdoor-digital-signage_03 outdoor-digital-signage_04 outdoor-digital-signage_05 outdoor-digital-signage_06 outdoor-digital-signage_07 outdoor-digital-signage_08 outdoor-digital-signage_09 outdoor-digital-signage_10

structure	product dimension	690mm(L)400mm(W)1800mm(H)
	product net weight	80KG
	protect level	outdoor IP65
	casing color	black
	shell material	Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder
	glass	6 mm tempered glass with light transmittance of more than 98%.
	Security	three-level door lock protection, hidden screw design, electronic magnetic lock
	dissipation system	The fan speed can be automatically adjusted according to the operating temperature, with heating function
	brightness control	Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm
	interface	USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder
	camera optional	500W pixels
	loudspeaker	8Ω10W * 2
protection	waterproof	three layers of composite sealing rubber strip
	anti-electric leakage	3C certified brand leakage protector
	anti-thunder	unique lightning protection device
	dust proof	internal high air volume filter device
	anti-explosion	6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97%
	Anti-glare glass optional	6mm AR anti-reflection glass. AR coating is adopted
	anti-rust	galvanized steel sheet and outdoor double-sided spraying outdoor powder
screen panel specification	screen size	43 inch LCD screen panel
	display area	530mm*942mm
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Contrast	3500:1
	Brightness	2500cd/㎡
	color	16.7 M
	Display Scale	16 : 9
	lifespan	>50000 hours
	refresh rate	60Hz
	respond time	6ms
parameter of touch	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -40 °C to 55°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP65 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet metal are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
Power	Input voltage	AC110-240V,50/60Hz
	power consumption	≤300w
working environment	temperature control	fan cooling (air cooling optional)
	operation temperature	-20°C to +50°C
	storage temperarure	-20°C to +60°C
	operation humidity	5% to 90%
quality standard	ISO9001
environmental protection standard	Meet international environmental standards
power management	Meets VESA DPMS standard

1. Q: What makes the "high brightness" display suitable for outdoor use?

A: Our display utilizes a specialized high-brightness panel designed to combat ambient light. It produces exceptional luminance to ensure that 4K content remains vivid, clear, and glare-free even under direct sunlight, guaranteeing your message is always visible and impactful.

2. Q: How is the unit protected against weather? What does "waterproof" entail?

A: The signage system is housed in a rugged enclosure with an IP65 rating or higher. This means it is completely dust-tight and protected against water jets from any direction, making it fully resistant to rain, snow, dust, and humidity for reliable year-round outdoor operation.

3. Q: How does the CMS and remote control system work?

A: The integrated Content Management System (CMS) is a cloud-based software platform. It allows you to remotely manage content from any web browser: upload 4K videos/images, design playlists, schedule campaigns, and monitor device health in real-time. All updates are deployed instantly over the internet (Wi-Fi/Ethernet/4G).

4. Q: Is this an all-in-one system, or do I need to buy components separately?

A: This is a complete, turnkey solution. The product integrates the high-brightness 4K LCD screen, the media player, the touch screen interface (if selected), the protective waterproof enclosure, and the mounting stand into a single, ready-to-deploy unit. No need to source or assemble separate parts.

5. Q: What are the main benefits of the optional touch screen feature?

A: The touch screen transforms passive advertising into interactive engagement. It enables applications like interactive wayfinding maps, product catalogs, quizzes, digital menus, and lead-generation forms, directly increasing user interaction and message retention.

6. Q: What type of content and video formats are supported by the media player?

A: The player supports a wide array of formats for dynamic advertising, including 4K UHD video (e.g., MP4, MOV), high-resolution images, PowerPoint presentations, PDFs, and HTML5 for interactive content and live data feeds (social media, news, weather).

7. Q: What are the installation requirements for the stand-mounted unit?

A: Installation requires a stable, level surface. For permanent outdoor placement, we recommend professional anchoring to concrete or a similar foundation for stability and safety. The unit needs access to a standard power source and an internet connection for full CMS functionality.

8. Q: Can the system operate in extreme temperature conditions?

A: Yes. It is engineered for outdoor climates and includes an advanced thermal management system with internal heating and cooling components. This ensures reliable performance across a wide operational temperature range, from freezing cold to intense summer heat.

9. Q: How is the system secured against unauthorized access or hacking?

A: Security is multi-layered, featuring password-protected device access, encrypted data transmission, secure boot protocols, and network security options like VPN. The physical enclosure is also lockable to prevent tampering with hardware.

10. Q: What kind of warranty and support is offered with the product?

A: We provide a comprehensive standard warranty covering parts and labor for the core system. Extended warranty and service plans are available. Our support includes remote diagnostics via the CMS, detailed documentation, and access to technical support specialists.
