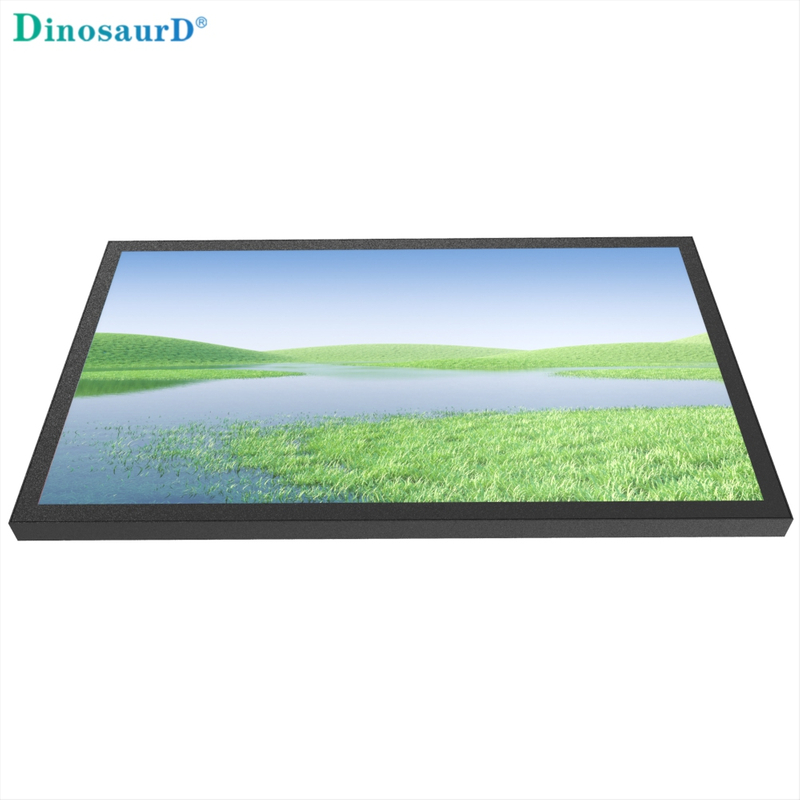

digital 2K 4K high low temperature inhibition high brightness advertising wall-mounted lcd player display screen outdoor ip66 signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

digital 2K 4K high low temperature inhibition high brightness advertising wall-mounted lcd player display screen outdoor ip66 signage

Engineered for unparalleled performance in extreme environments, this High-Low Temperature Resistant Advertising LCD Display is built to deliver crisp, vivid visuals in both scorching heat and freezing cold. Featuring 2K and 4K ultra-high-definition resolution, exceptional brightness, and a fully integrated media player within an IP66-rated enclosure, it is the ultimate solution for demanding outdoor and industrial digital signage applications where reliability cannot be compromised.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Innovations

1. Extreme Temperature Adaptation

Wide Operating Range: Specially designed to perform reliably in temperatures from -40°C to 70°C (-40°F to 158°F), ensuring stable operation in deserts, arctic regions, and sun-exposed locations.
Intelligent Thermal Management: Built-in advanced heating and cooling systems automatically regulate internal temperature, preventing condensation, screen freeze, or overheating.

2. Ultra-High Definition with High Brightness

Crystal-Clear Resolution: Available in stunning 2K (2560x1440) or 4K UHD (3840x2160) resolution for razor-sharp imagery and text.
High-Brightness Display (2500-5000 nits): Exceptionally bright backlight ensures perfect visibility under direct sunlight or bright indoor lighting.

3. All-in-One Integrated Design

Built-in Media Player: A fully integrated, high-performance media player is housed within the same IP66-sealed enclosure, eliminating external boxes and simplifying installation.
Smart Connectivity: Supports Wi-Fi, Ethernet, 4G/5G, and Bluetooth for seamless remote content management, real-time updates, and scheduled playback.

4. Robust Outdoor Durability

IP66 Water & Dust Proof: Fully sealed against heavy rain, dust storms, snow, and humidity.
Corrosion-Resistant Materials: Industrial-grade aluminum alloy and powder-coated steel ensure long-term durability in coastal or chemically aggressive environments.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What does "high-low temperature inhibition" mean in practical use?
This means the display is engineered with specialized components and an intelligent thermal management system to operate reliably in extreme temperatures from -40°C to 70°C (-40°F to 158°F). It prevents screen freezing in arctic conditions, overheating in desert climates, and condensation during rapid temperature shifts.

2. Is the media player integrated, and is it also temperature-resistant?
Yes. The display features a fully integrated media player housed within the same sealed IP66 enclosure. All internal electronics—including the player—are designed and tested to perform across the full -40°C to 70°C range, ensuring seamless operation without external black boxes.

3. How bright is "high brightness," and is it adjustable for day/night use?
Standard brightness ranges from 2500 to 5000 nits (customizable). The display includes an ambient light sensor for automatic brightness adjustment, optimizing visibility while reducing energy consumption. Manual scheduling is also available via the content management system.

4. Can this display truly withstand direct rain, snow, and dust with IP66?
Absolutely. The IP66 rating certifies complete protection against dust ingress and powerful water jets from any direction. The fully sealed gasket construction, corrosion-resistant ports, and toughened glass ensure long-term durability in heavy rain, snow, sandstorms, or high-humidity coastal areas.

5. What content management options are available for remote updates?
The built-in player supports cloud-based remote management via 4G, Wi-Fi, or Ethernet. Through a web dashboard or mobile app, you can upload content, schedule playlists, monitor screen health, push real-time alerts, and integrate data feeds (RSS, weather, API).

6. Does the display require special mounting or cooling in extreme heat?
We recommend professional installation with our heavy-duty wall-mount brackets (included). In sustained high-temperature environments (>50°C), we advise ensuring passive ventilation behind the display and avoiding direct enclosure contact with overheated surfaces. No external cooling is typically required.

7. What is the lifespan in continuous 24/7 outdoor operation?
The industrial-grade LED backlight is rated for ≥70,000 hours (approx. 8 years of 24/7 use). With its wide-temperature components and IP66 sealing, the system is designed for ≥5 years of maintenance-free operation in harsh conditions, backed by a 3-year standard warranty.

8. Can I switch between 2K and 4K resolution modes?
Resolution is hardware-dependent. You select either a 2K (2560x1440) or 4K UHD (3840x2160) model at purchase. Both support full HD content scaling, but 4K models deliver superior clarity for finer details and closer viewing distances.

9. What inputs and connectivity are included?
Standard I/O includes: HDMI, USB, Ethernet (PoE optional), Wi-Fi, RS232, and 3.5mm audio. Optional 4G/5G modules, NFC/RFID sensors, and GPIO for external triggers are available for interactive or IoT-enabled installations.

10. What support and warranty come with the display?
We provide a 3-year comprehensive warranty covering parts, labor, and thermal system components. Extended warranties up to 5 years are available. Our support includes installation guidance, remote troubleshooting, and access to an online monitoring portal for real-time diagnostics.
