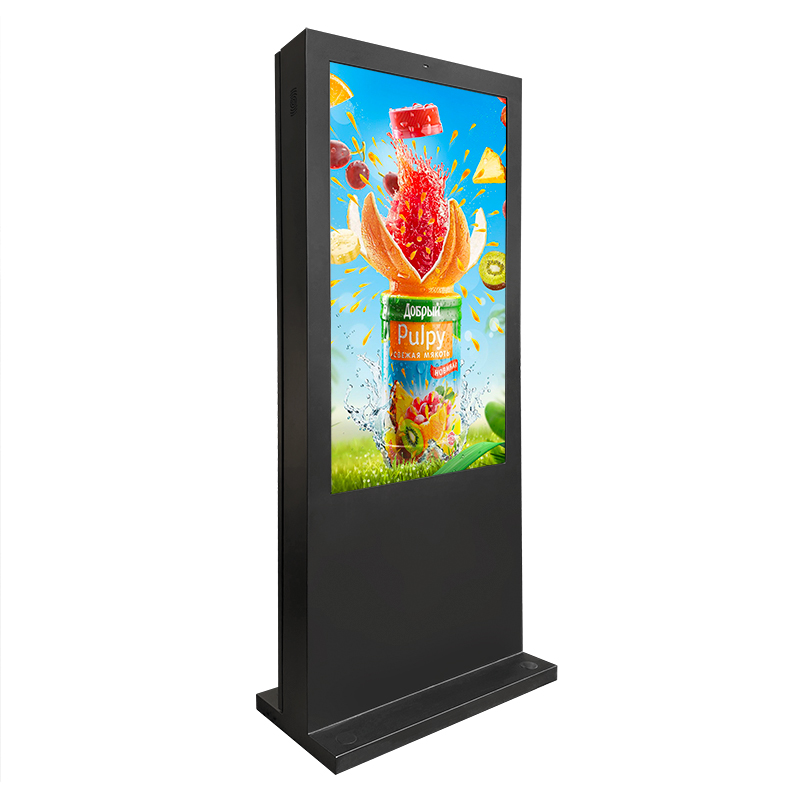

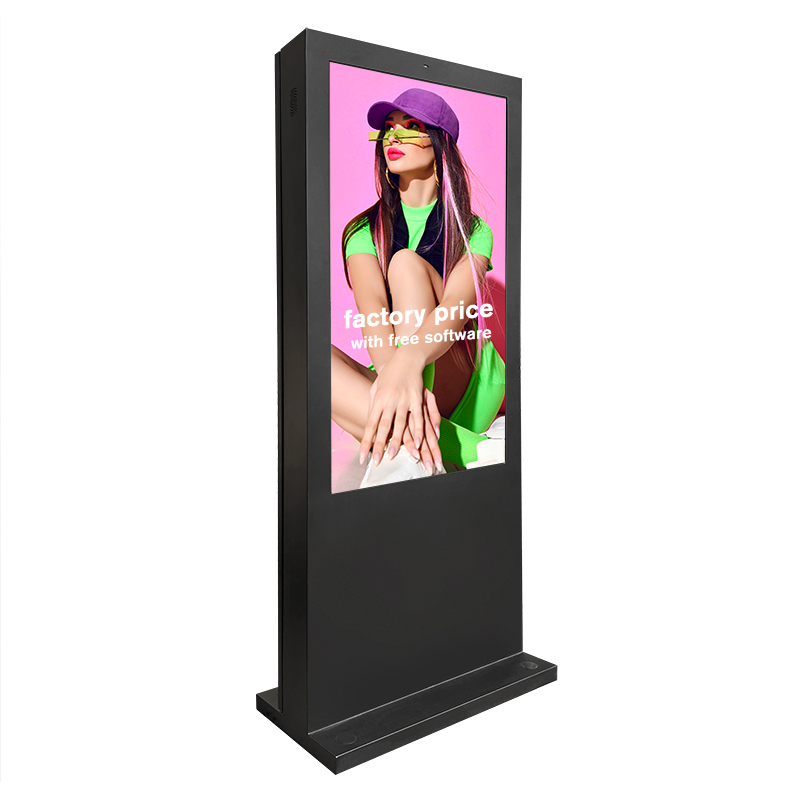

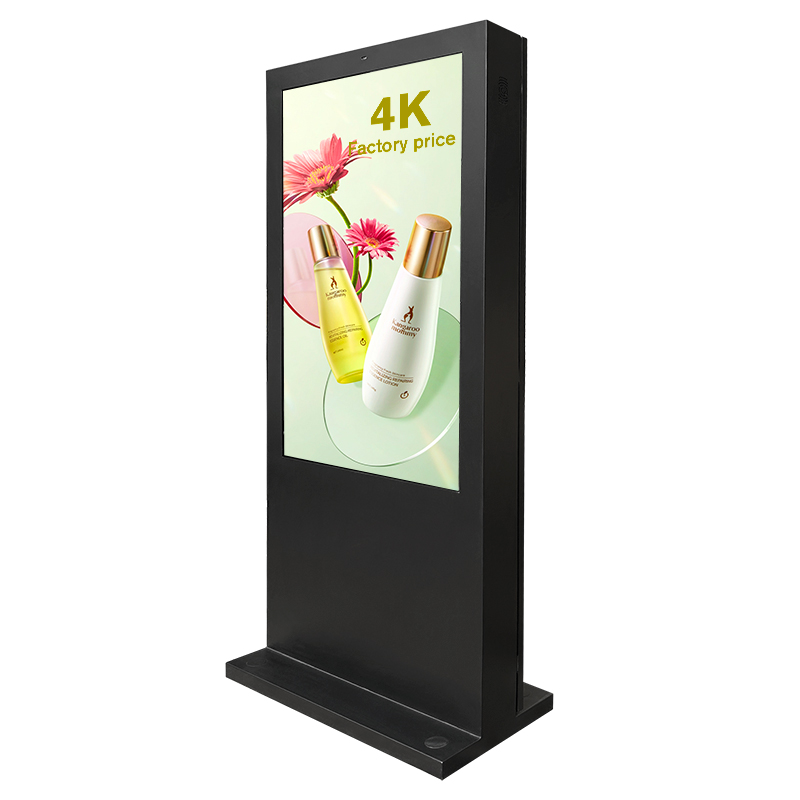

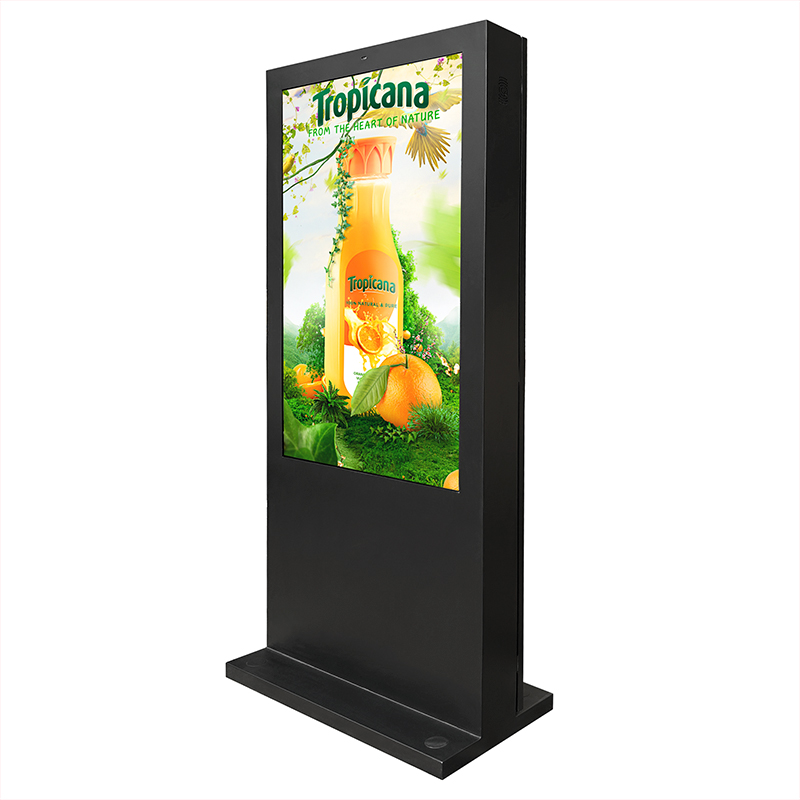

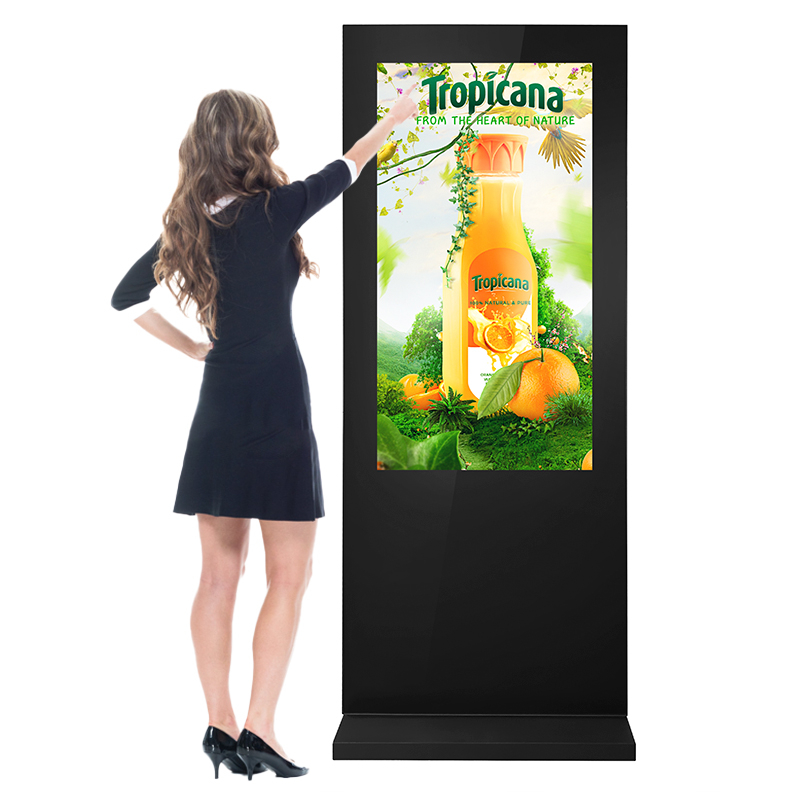

bus station park signage rain-proof touch screen media waterproof 4K advertising digital player lcd outdoor ip65 totem

bus station park signage rain-proof touch screen media waterproof 4K advertising digital player lcd outdoor ip65 totem

Meet our state-of-the-art Bus Station Park Signage solution: a fully integrated, rain-proof touch screen media player designed for robust outdoor performance. This digital totem combines high-impact advertising with exceptional durability.

Brand:
Dinosaur D

size:	32 43 49 55 65 75 86 inch optional
tempered glass thickness:	6 mm tempered glass
resolution:	19201080 or 38402160
brightnees:	2500nit
protection level:	ip65
lifespan:	>50000 hours
Input voltage:	AC110-240V,50/60Hz
Availability:

Quantity:



Inquire Add to Basket

Key Features:

4K Ultra HD Visuals: Showcase stunningly crisp and vibrant content with brilliant clarity, even in direct sunlight.
True Outdoor Resilience: Built to IP65 standards, this unit is completely dust-tight and protected against powerful water jets, ensuring reliable operation in all weather conditions.
Rain-Proof Touch Interface: Features a responsive, high-brightness touch screen that remains fully functional during rain or high humidity.
Ruggedized Totem Design: Engineered for permanent outdoor installation in high-traffic areas like bus stations and public parks. The robust enclosure protects against physical impacts and environmental extremes.
Advanced Digital Media Player: A dedicated, high-performance system supports seamless scheduling and playback of dynamic 4K video, images, and interactive content.

outdoor-digital-signage_01 outdoor-digital-signage_02 outdoor-digital-signage_03 outdoor-digital-signage_04 outdoor-digital-signage_05 outdoor-digital-signage_06 outdoor-digital-signage_07 outdoor-digital-signage_08 outdoor-digital-signage_09 outdoor-digital-signage_10

structure	product dimension	690mm(L)400mm(W)1800mm(H)
	product net weight	80KG
	protect level	outdoor IP65
	casing color	black
	shell material	Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder
	glass	6 mm tempered glass with light transmittance of more than 98%.
	Security	three-level door lock protection, hidden screw design, electronic magnetic lock
	dissipation system	The fan speed can be automatically adjusted according to the operating temperature, with heating function
	brightness control	Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm
	interface	USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder
	camera optional	500W pixels
	loudspeaker	8Ω10W * 2
protection	waterproof	three layers of composite sealing rubber strip
	anti-electric leakage	3C certified brand leakage protector
	anti-thunder	unique lightning protection device
	dust proof	internal high air volume filter device
	anti-explosion	6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97%
	Anti-glare glass optional	6mm AR anti-reflection glass. AR coating is adopted
	anti-rust	galvanized steel sheet and outdoor double-sided spraying outdoor powder
screen panel specification	screen size	43 inch LCD screen panel
	display area	530mm*942mm
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Contrast	3500:1
	Brightness	2500cd/㎡
	color	16.7 M
	Display Scale	16 : 9
	lifespan	>50000 hours
	refresh rate	60Hz
	respond time	6ms
parameter of touch	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -40 °C to 55°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP65 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet metal are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
Power	Input voltage	AC110-240V,50/60Hz
	power consumption	≤300w
working environment	temperature control	fan cooling (air cooling optional)
	operation temperature	-20°C to +50°C
	storage temperarure	-20°C to +60°C
	operation humidity	5% to 90%
quality standard	ISO9001
environmental protection standard	Meet international environmental standards
power management	Meets VESA DPMS standard

1. Q: What is the screen specification and visual quality of this digital totem?
A: It features a high-brightness 4K Ultra HD LCD screen, designed to deliver vibrant, crisp visuals even in direct sunlight. The display is optimized for outdoor viewing with excellent clarity and color performance.

2. Q: How waterproof and durable is this unit for outdoor use?
A: The totem is rated IP65, meaning it is completely dust-tight and protected against low-pressure water jets from any direction. Its rugged construction ensures reliable, all-weather operation in rain, wind, and varying temperatures.

3. Q: Can the touch screen function properly in rain or with wet surfaces?
A: Yes. The rain-proof touch screen technology is specifically designed to remain highly responsive and accurate even during rainfall or with moisture on the screen, providing uninterrupted interactivity.

4. Q: What type of content can be displayed, and how is it managed?
A: It supports dynamic 4K video, images, HTML5, and interactive applications. Content is managed remotely via a centralized Content Management System (CMS), allowing for easy scheduling, updates, and real-time control.

5. Q: Where is this digital signage totem most commonly installed?
A: It is ideal for high-traffic outdoor public spaces such as bus stations, train terminals, public parks, city squares, shopping districts, university campuses, and stadium entrances.

6. Q: What are the power requirements and energy consumption?
A: It operates on standard commercial AC power. The system is designed with energy-efficient components, including an ambient light sensor to adjust brightness automatically, helping to reduce overall power consumption.

7. Q: Is the system secure against unauthorized access or hacking?
A: Yes. It includes robust network security features, such as password protection, data encryption, secure boot, and the option for virtual private network (VPN) connectivity to safeguard your content and system.

8. Q: How is the totem installed, and does it require special mounting?
A: It is designed for permanent fixed installation. A robust foundation or mounting frame is recommended to ensure stability. We provide detailed installation guidelines, and professional installation services are available.

9. Q: What kind of maintenance does this outdoor digital player require?
A: The sealed IP65 enclosure minimizes internal maintenance. Routine cleaning of the screen and exterior with recommended materials is the primary task. The internal hardware and software are designed for long-term stability with remote monitoring support.

10. Q: What is the expected operational lifespan, and what warranty is provided?
A: The product is built for continuous 24/7 operation with an expected lifespan of over 50,000 hours. We offer a standard warranty covering parts and labor, with extended service plans available for ongoing support.
