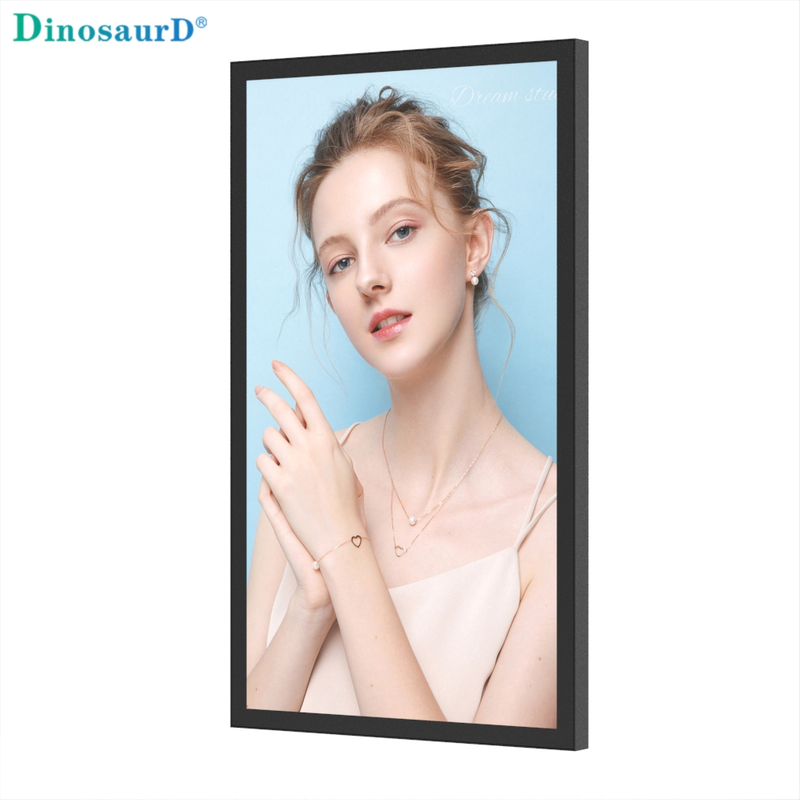

aviation-grade plug super thin all weather proof lcd advertising video display digital waterproof signage ip66 player lcd outdoor screen

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

aviation-grade plug super thin all weather proof lcd advertising video display digital waterproof signage ip66 player lcd outdoor screen

Engineered for mission-critical performance in the most demanding environments, our Aviation-Grade Ultra-Thin Waterproof Digital Signage Display sets a new industry standard for reliability, clarity, and durability. Combining aerospace-inspired construction with seamless integration of a high-brightness LCD screen and a built-in IP66-rated media player, this all-in-one solution is designed for flawless 24/7 operation in any outdoor or harsh-condition setting—from transportation hubs and smart cities to industrial complexes and premium retail façades.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Innovations

1. Aviation-Grade Plug & Connectivity

Military-Spec Connectors: Featuring ultra-reliable, sealed aviation-grade plugs (e.g., MIL-DTL-38999 series or equivalent) that ensure vibration-proof, corrosion-resistant, and fail-safe power/signal transmission in extreme conditions.
Quick-Disconnect & Waterproof: Designed for rapid deployment and maintenance without compromising IP66 integrity.

2. Ultra-Thin, All-Weather Design

Slim Profile: Industry-leading thin bezel and depth (as slim as XXmm) for a sleek, modern appearance without sacrificing robustness.
Unified IP66 Protection: The fully integrated system—screen, player, and connectors—is uniformly rated IP66, guaranteeing complete defense against dust, high-pressure water jets, humidity, and temperature extremes.

3. High-Performance Integrated Media Player

Built-In & Sealed Player: No external black boxes—the media player is seamlessly housed within the IP66 enclosure, supporting 4K video decoding, scheduled playback, remote management (via 4G/Wi-Fi/Ethernet), and sensor-driven content triggers.
Wide Format Compatibility: Plays videos, images, HTML5, and live streams effortlessly.

4. Super Bright, All-Environment Visuals

High-Brightness LCD (2500–5000 nits): Crystal-clear visibility under direct sunlight or full indoor lighting.
Wide-Temperature Operation: Stable performance from -30°C to 60°C with advanced thermal management (heating/cooling).
Anti-Glare & Optical Bonding: Fully laminated surface with AR/AG treatment reduces reflections and enhances contrast.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What exactly is meant by "aviation-grade plug," and why is it important?
Our displays use industrial-grade, military-specification connectors (similar to MIL-DTL-38999 series) that are vibration-proof, corrosion-resistant, and fully waterproof. These ensure fail-safe power and signal transmission in extreme conditions—ideal for high-traffic, high-vibration, or coastal environments where standard connectors would fail.

2. How thin is "ultra-thin," and does it affect durability?
The display features a streamlined profile with a depth as low as XXmm (varies by model) and minimal bezels. This is achieved through advanced thermal engineering and compact component integration, without compromising durability—the enclosure remains fully IP66-rated and structurally rigid for outdoor use.

3. Is the media player truly built into the IP66-sealed display?
Yes. Unlike traditional setups with an external player box, our system fully integrates a high-performance media player within the same IP66-sealed enclosure as the LCD panel. This eliminates external wiring vulnerabilities and ensures uniform protection against water, dust, and physical damage.

4. Can this display operate in both extreme cold and heat?
Absolutely. With an extended operating temperature range of -30°C to 60°C and an internal thermal management system (auto-regulated heating and cooling), it performs reliably in environments from arctic cold to desert heat or direct sunlight.

5. What content management options are available?
The built-in player supports remote cloud-based management via 4G, Wi-Fi, or Ethernet. You can schedule content, update playlists in real time, monitor screen status, and even trigger content changes based on external sensors (e.g., motion, temperature) through a user-friendly web dashboard or mobile app.

6. How is the display installed, given the aviation-grade connectors?
Installation is designed for efficiency. The aviation-grade plugs are quick-disconnect and pre-sealed, allowing for fast, tool-free cable connections while maintaining IP66 integrity. We provide detailed mounting templates and connector installation guides for certified installers.

7. What brightness levels are available, and can they adapt automatically?
Standard models offer 2500–5000 nits, with optional higher brightness. An integrated ambient light sensor enables automatic brightness adjustment throughout the day to optimize visibility and energy efficiency—critical for 24/7 outdoor operation.

8. Does the "all-in-one" design limit serviceability?
Not at all. While the unit is fully sealed for weatherproofing, it is designed with modular, field-serviceable components accessible by certified technicians. Key parts (e.g., power supply, player module) can be replaced on-site without returning the entire display.

9. What formats and resolutions does the built-in player support?
The player decodes 4K Ultra HD video, images, PDFs, HTML5, and live streams, with support for multi-zone layouts and real-time data feeds (RSS, weather, social media). It is compatible with most digital signage software platforms (e.g., BrightSign, ScreenCloud, NoviSign).

10. What warranty and support come with this product?
We offer a 3-year comprehensive warranty covering parts and labor. Extended warranty options are available. Our support includes pre-installation consultation, on-site technical guidance (if needed), and 24/7 remote monitoring tools to ensure uptime and performance.
