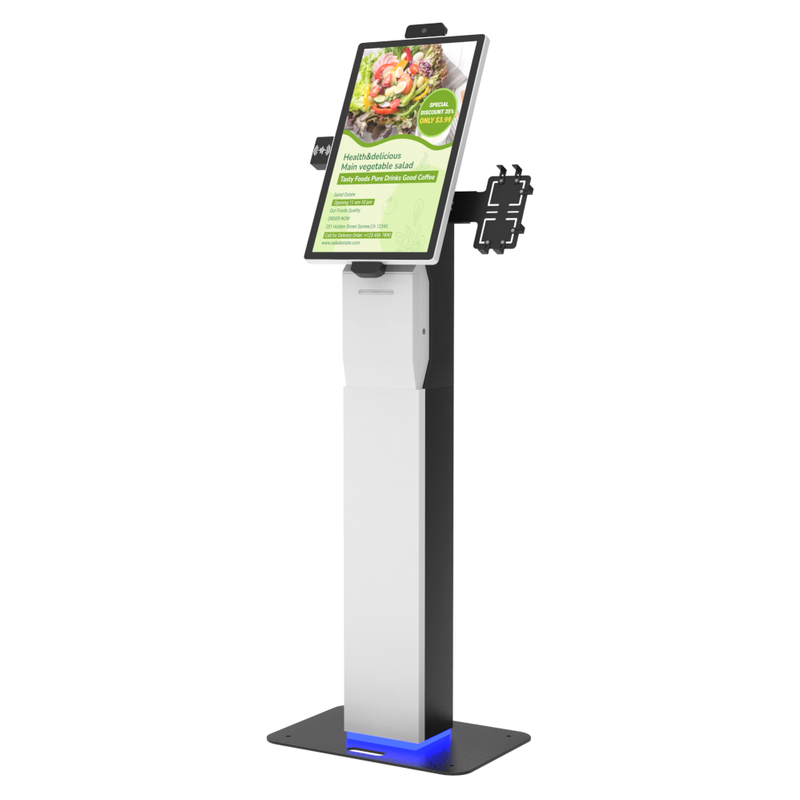

Smart Restaurant Self-Checkout Kiosk - Product Introduction
Our advanced self-service kiosk revolutionizes the dining experience by combining cutting-edge payment technologies with intelligent ordering capabilities in one compact unit. This all-in-one solution features:
Core Technologies:
Instant NFC payment processing supporting contactless cards and mobile wallets
Dual-camera system with facial recognition for secure login and age verification
High-speed thermal receipt printer (80mm/sec) with automatic paper detection
Built-in QR/barcode scanner for loyalty programs and coupon redemption
Vibrant 15.6" HD touchscreen with anti-glare coating (up to 32" available)
Key Features:✓ One-tap payment via NFC/contactless technology ✓ Facial recognition login for returning customers ✓ Instant order confirmation with printed receipts ✓ QR code scanning for special promotions ✓ Self-contained payment terminal (PCI PTS 6.0 certified)











Smart Restaurant Self-Checkout Kiosk - Product Introduction
Our advanced self-service kiosk revolutionizes the dining experience by combining cutting-edge payment technologies with intelligent ordering capabilities in one compact unit. This all-in-one solution features:
Core Technologies:
Instant NFC payment processing supporting contactless cards and mobile wallets
Dual-camera system with facial recognition for secure login and age verification
High-speed thermal receipt printer (80mm/sec) with automatic paper detection
Built-in QR/barcode scanner for loyalty programs and coupon redemption
Vibrant 15.6" HD touchscreen with anti-glare coating (up to 32" available)
Key Features:✓ One-tap payment via NFC/contactless technology ✓ Facial recognition login for returning customers ✓ Instant order confirmation with printed receipts ✓ QR code scanning for special promotions ✓ Self-contained payment terminal (PCI PTS 6.0 certified)











| printer | Printing method | thermal line dot printing | ||||
| Print speed | Max:180mm/s | |||||
| Resolution | 203dpi(8dots/mm) | |||||
| Print width | 72mm | |||||
| Cutter | both full cut and partial cut are supported | |||||
| Qr scanner | Image sensor | 640(H) X 480(V)CMOS | ||||
| Light source | white fill light / colored light indicator | |||||
| Readable Code System | QR Code: QR Code, PDF417, DataMatrix (ECC200) | |||||
| EAN13, EAN UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI, RSS-14, Limited RSS, Expanded RSS | ||||||
| Reading perspective | rotate 360°, tilt ±60°, deflect ±60° | |||||
| Understanding depth of field | EAN-132~11.0cm 13mil、Code-128 2.5 ~ 13.0cm (15mil ) | |||||
| Recognition accuracy | 1D barcode: ≥5 mil, 2D barcode: ≥10 mil | |||||
| NFC | External Interface | serial port (TTL level/RS232 level selectable) | ||||
| Support card | contactless Card: Mifare One S50/S70, Mifare UltraLight NTAG213/215/216 | |||||
| Sensing distance | type A Card: 0 ~ 5.0 cm Test Conditions: 1) Use a standard size card of 85.6mm × 54mm; 2) Use an integrated antenna. | |||||
| Camera | Optical dimensions | 1/2.7”inch COMS sensor | ||||
| Sensor resolution | 1920 (H) x 1080 (V) | |||||
| Maximum frame rate | 30fps@1080P | |||||
| screen panel specification | Screen size | 24 inch BOE or Star A new full lcd screen | ||||
| Resolution | 1920*1080(2k) | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 6ms | |||||
| Contrast | 2000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic etc. | |||||
| capacitive touch parameter | Touch technology | 10 point capacitive touch | ||||
| Sensing object | fingers, stylus | |||||
| Response time | 3ms | |||||
| Sensing accuracy | ±1.5mm | |||||
| Touch lifespan | over 60 million times, the touch cursor does not drift | |||||
| Touch resolution | 4096*4096 | |||||
| Power | Input Voltage | AC100-240v 50/60HZ | ||||
| Horn | 2×2W(8Ω) | |||||
| Standby power | ≤1W | |||||
| Power Consumption | ≤50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (10 -- 90% ) | |||||
| Appearance design | aluminum alloy frame, high-quality sheet metal | |||||
| Casing color | black | |||||
| printer | Printing method | thermal line dot printing | ||||
| Print speed | Max:180mm/s | |||||
| Resolution | 203dpi(8dots/mm) | |||||
| Print width | 72mm | |||||
| Cutter | both full cut and partial cut are supported | |||||
| Qr scanner | Image sensor | 640(H) X 480(V)CMOS | ||||
| Light source | white fill light / colored light indicator | |||||
| Readable Code System | QR Code: QR Code, PDF417, DataMatrix (ECC200) | |||||
| EAN13, EAN UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI, RSS-14, Limited RSS, Expanded RSS | ||||||
| Reading perspective | rotate 360°, tilt ±60°, deflect ±60° | |||||
| Understanding depth of field | EAN-132~11.0cm 13mil、Code-128 2.5 ~ 13.0cm (15mil ) | |||||
| Recognition accuracy | 1D barcode: ≥5 mil, 2D barcode: ≥10 mil | |||||
| NFC | External Interface | serial port (TTL level/RS232 level selectable) | ||||
| Support card | contactless Card: Mifare One S50/S70, Mifare UltraLight NTAG213/215/216 | |||||
| Sensing distance | type A Card: 0 ~ 5.0 cm Test Conditions: 1) Use a standard size card of 85.6mm × 54mm; 2) Use an integrated antenna. | |||||
| Camera | Optical dimensions | 1/2.7”inch COMS sensor | ||||
| Sensor resolution | 1920 (H) x 1080 (V) | |||||
| Maximum frame rate | 30fps@1080P | |||||
| screen panel specification | Screen size | 24 inch BOE or Star A new full lcd screen | ||||
| Resolution | 1920*1080(2k) | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 6ms | |||||
| Contrast | 2000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic etc. | |||||
| capacitive touch parameter | Touch technology | 10 point capacitive touch | ||||
| Sensing object | fingers, stylus | |||||
| Response time | 3ms | |||||
| Sensing accuracy | ±1.5mm | |||||
| Touch lifespan | over 60 million times, the touch cursor does not drift | |||||
| Touch resolution | 4096*4096 | |||||
| Power | Input Voltage | AC100-240v 50/60HZ | ||||
| Horn | 2×2W(8Ω) | |||||
| Standby power | ≤1W | |||||
| Power Consumption | ≤50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (10 -- 90% ) | |||||
| Appearance design | aluminum alloy frame, high-quality sheet metal | |||||
| Casing color | black | |||||
Quick-Service Restaurants (QSRs)
McDonald's-style self-ordering stations with instant payment processing
Starbucks-type mobile order pickup verification points
Chipotle-style customization kiosks with loyalty integration
Casual Dining Establishments
Tableside ordering/payment terminals reducing server workload
Bar area self-checkout for drink orders
Host stand check-in with facial recognition for reservations
Food Courts & Cafeterias
Central ordering stations for multiple vendors
Employee cafeteria cashless payment points
University dining hall meal plan verification
Specialized Food Service
Drive-thru automation with license plate camera integration
Stadium/concession stand self-service to reduce lines
Movie theater combo meal ordering stations
Hybrid Retail-Food
Convenience store hot food counters
Bakery/pastry shops with self-checkout
Grocery store prepared food sections
Emerging Applications
Ghost kitchen customer pickup verification
Food truck ordering/payment points
Pop-up restaurant temporary installations
Key operational benefits across all scenarios:
30-50% faster transaction times
25-40% labor cost reduction
15-20% increase in average order value
Improved order accuracy (99.8%)
Real-time inventory tracking
Quick-Service Restaurants (QSRs)
McDonald's-style self-ordering stations with instant payment processing
Starbucks-type mobile order pickup verification points
Chipotle-style customization kiosks with loyalty integration
Casual Dining Establishments
Tableside ordering/payment terminals reducing server workload
Bar area self-checkout for drink orders
Host stand check-in with facial recognition for reservations
Food Courts & Cafeterias
Central ordering stations for multiple vendors
Employee cafeteria cashless payment points
University dining hall meal plan verification
Specialized Food Service
Drive-thru automation with license plate camera integration
Stadium/concession stand self-service to reduce lines
Movie theater combo meal ordering stations
Hybrid Retail-Food
Convenience store hot food counters
Bakery/pastry shops with self-checkout
Grocery store prepared food sections
Emerging Applications
Ghost kitchen customer pickup verification
Food truck ordering/payment points
Pop-up restaurant temporary installations
Key operational benefits across all scenarios:
30-50% faster transaction times
25-40% labor cost reduction
15-20% increase in average order value
Improved order accuracy (99.8%)
Real-time inventory tracking
1. Q: What payment methods does the kiosk support?
A: Our kiosk supports a wide range of payment options. In addition to traditional card payments, it features an NFC reader for contactless tap-to-pay and can process transactions via QR code scanning, all integrated into one seamless automatic payment checkout system.
2. Q: Can the kiosk be used for identity verification?
A: Yes, when equipped with the optional camera and software, the kiosk can perform facial recognition for age verification, loyalty member identification, or secure access control.
3. Q: How does the QR code scanner enhance functionality?
A: The integrated QR code scanner allows customers to scan promotional coupons, access digital menus, join loyalty programs, or even make payments directly from their smartphone apps, greatly
enriching the self-service experience.
4. Q: Does the kiosk print a receipt for every transaction?
A: Yes, the kiosk comes with a high-speed integrated receipt printer that provides customers with a physical confirmation of their order and payment immediately upon completing a transaction.
5. Q: Is this system a fully self-service solution?
A: Absolutely. It is a complete restaurant self-order kiosk that allows customers to browse the menu, customize items, and complete their order and payment automatically without staff assistance, streamlining the checkout process.
6. Q: What is the primary advantage of integrating facial recognition?
A: The primary advantage is a personalized and secure experience. It can be used to instantly recall a user's favorite orders for quick re-ordering or to ensure secure verification for age-restricted purchases or membership benefits.
7. Q: Can the camera be used for purposes other than facial recognition?
A: Yes, the high-resolution camera module is versatile. It can be used for video customer support calls, scanning barcodes on physical loyalty cards, or capturing images for documentation purposes.
8. Q: How does this kiosk help a restaurant improve efficiency?
A: By handling the entire order and payment process automatically, it reduces queue times, minimizes order errors, and frees up staff to focus on food preparation and customer service, significantly boosting overall operational efficiency.
9. Q: Is the system an "all-in-one" terminal?
A: Yes, it is a comprehensive all-in-one solution. The large screen serves as the interactive interface, seamlessly integrating the NFC reader, camera, QR code scanner, and receipt printer into a single, sleek unit.
10. Q: How secure is the automatic payment and facial recognition data?
A: Security is a top priority. All payment data is processed using encrypted, secure protocols. For facial recognition, biometric data can be processed locally on the device (not stored on a central server) or handled in strict compliance with data privacy regulations, based on your software configuration.
1. Q: What payment methods does the kiosk support?
A: Our kiosk supports a wide range of payment options. In addition to traditional card payments, it features an NFC reader for contactless tap-to-pay and can process transactions via QR code scanning, all integrated into one seamless automatic payment checkout system.
2. Q: Can the kiosk be used for identity verification?
A: Yes, when equipped with the optional camera and software, the kiosk can perform facial recognition for age verification, loyalty member identification, or secure access control.
3. Q: How does the QR code scanner enhance functionality?
A: The integrated QR code scanner allows customers to scan promotional coupons, access digital menus, join loyalty programs, or even make payments directly from their smartphone apps, greatly
enriching the self-service experience.
4. Q: Does the kiosk print a receipt for every transaction?
A: Yes, the kiosk comes with a high-speed integrated receipt printer that provides customers with a physical confirmation of their order and payment immediately upon completing a transaction.
5. Q: Is this system a fully self-service solution?
A: Absolutely. It is a complete restaurant self-order kiosk that allows customers to browse the menu, customize items, and complete their order and payment automatically without staff assistance, streamlining the checkout process.
6. Q: What is the primary advantage of integrating facial recognition?
A: The primary advantage is a personalized and secure experience. It can be used to instantly recall a user's favorite orders for quick re-ordering or to ensure secure verification for age-restricted purchases or membership benefits.
7. Q: Can the camera be used for purposes other than facial recognition?
A: Yes, the high-resolution camera module is versatile. It can be used for video customer support calls, scanning barcodes on physical loyalty cards, or capturing images for documentation purposes.
8. Q: How does this kiosk help a restaurant improve efficiency?
A: By handling the entire order and payment process automatically, it reduces queue times, minimizes order errors, and frees up staff to focus on food preparation and customer service, significantly boosting overall operational efficiency.
9. Q: Is the system an "all-in-one" terminal?
A: Yes, it is a comprehensive all-in-one solution. The large screen serves as the interactive interface, seamlessly integrating the NFC reader, camera, QR code scanner, and receipt printer into a single, sleek unit.
10. Q: How secure is the automatic payment and facial recognition data?
A: Security is a top priority. All payment data is processed using encrypted, secure protocols. For facial recognition, biometric data can be processed locally on the device (not stored on a central server) or handled in strict compliance with data privacy regulations, based on your software configuration.
