KioskPro Interactive Display Series - Touchscreen Technology

KioskPro Interactive Display Series - Touchscreen Technology

Factory Direct Self-Service Kiosk – All-in-One Payment & Printing Solution

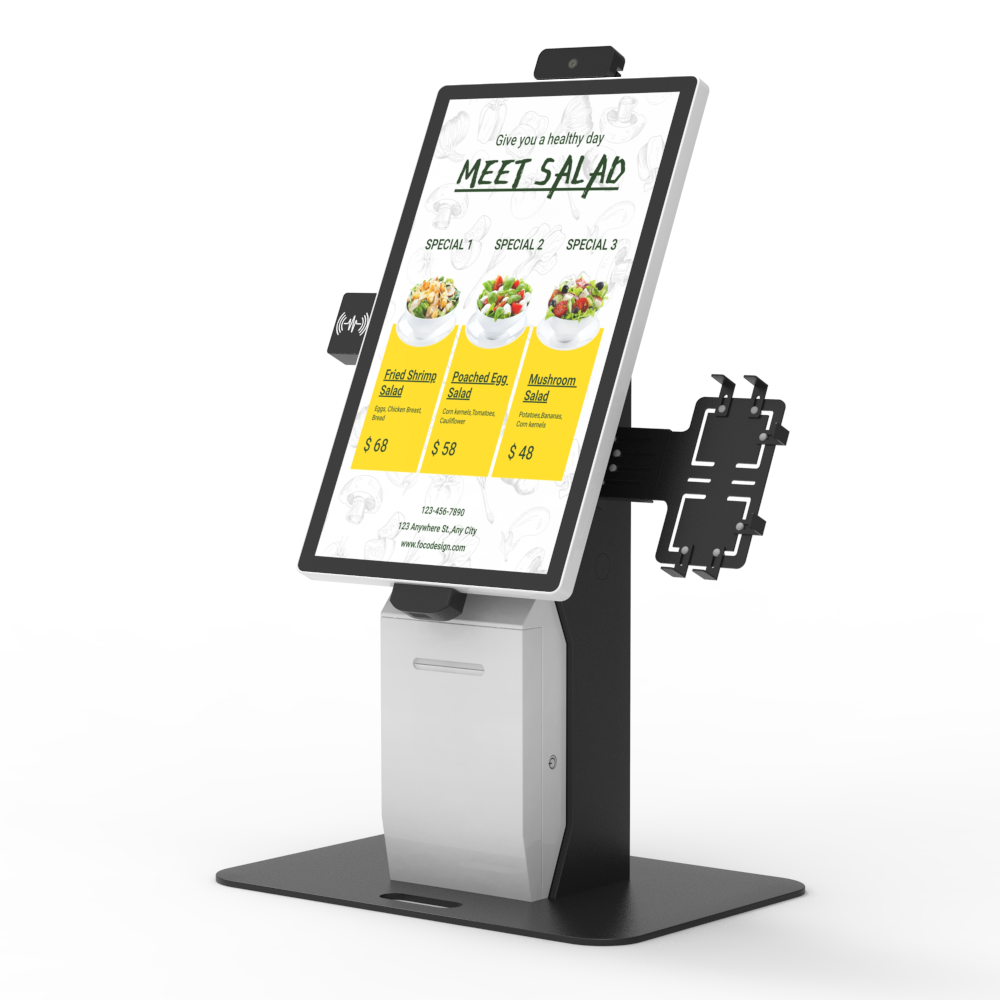

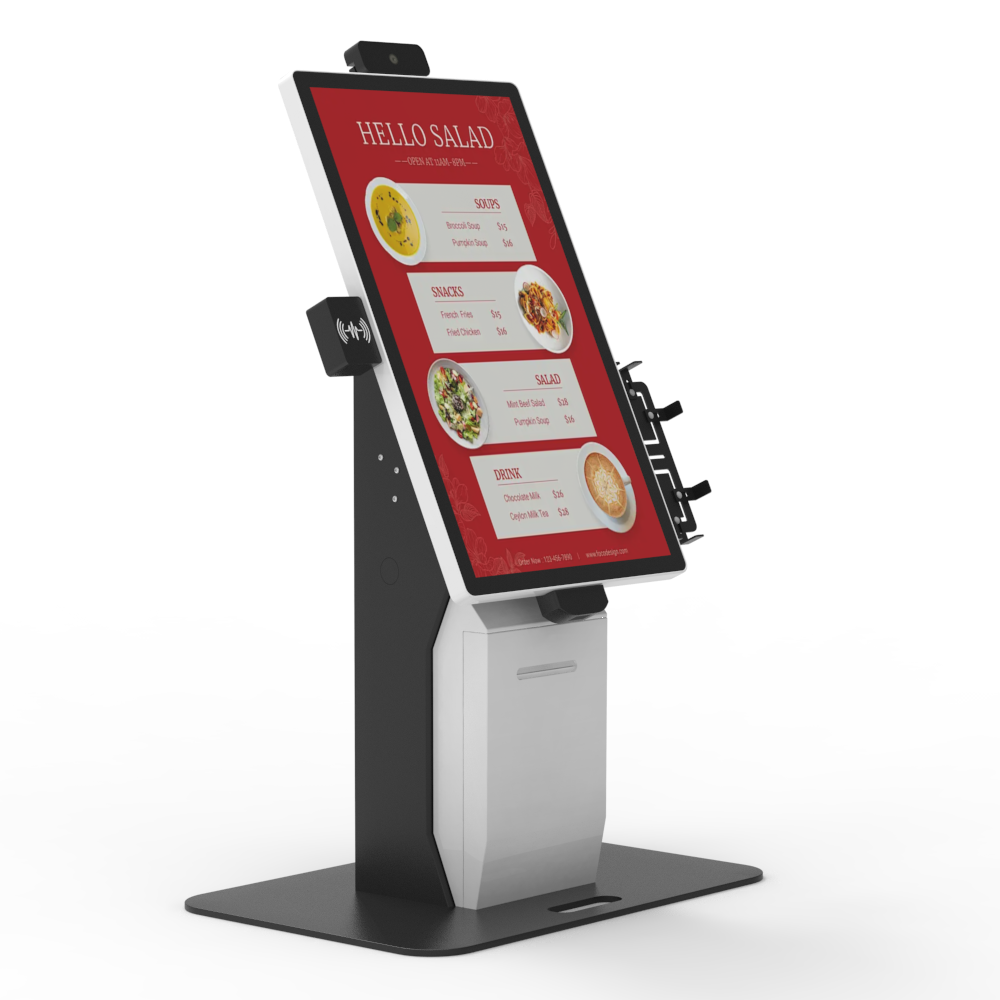

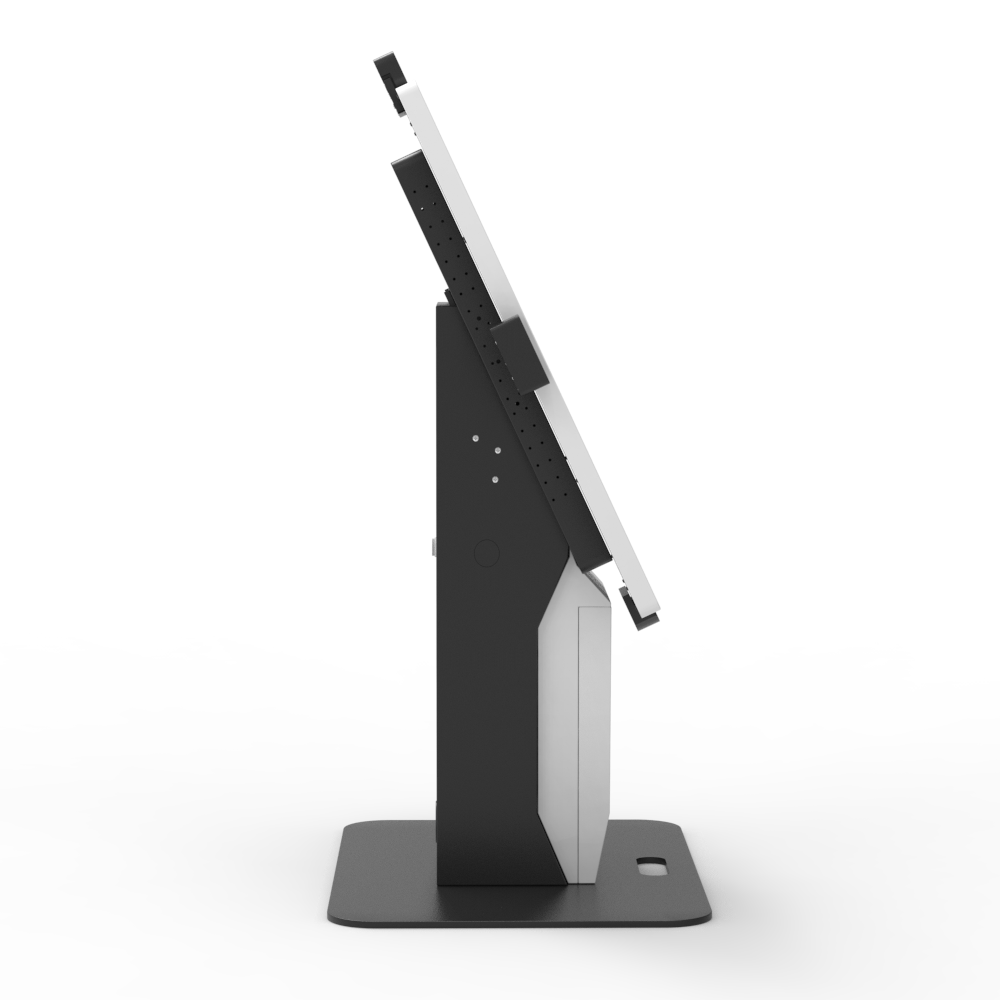

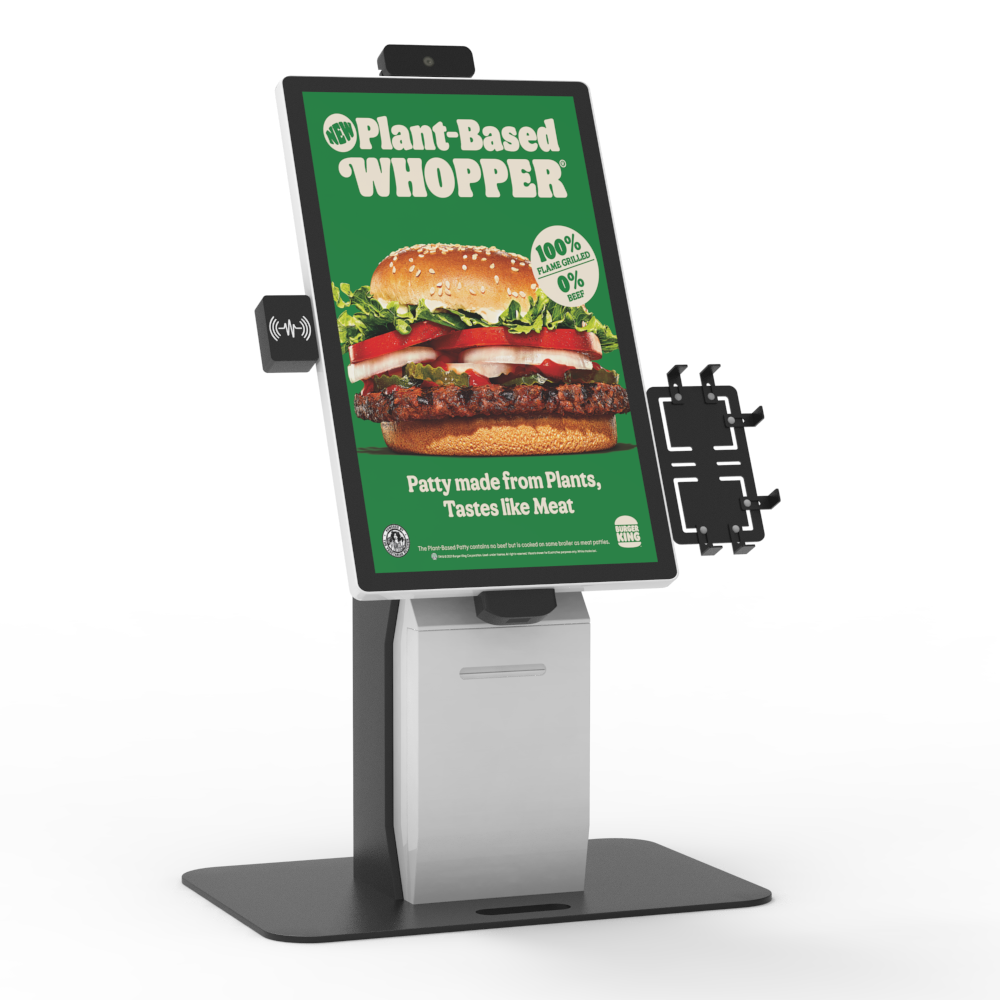

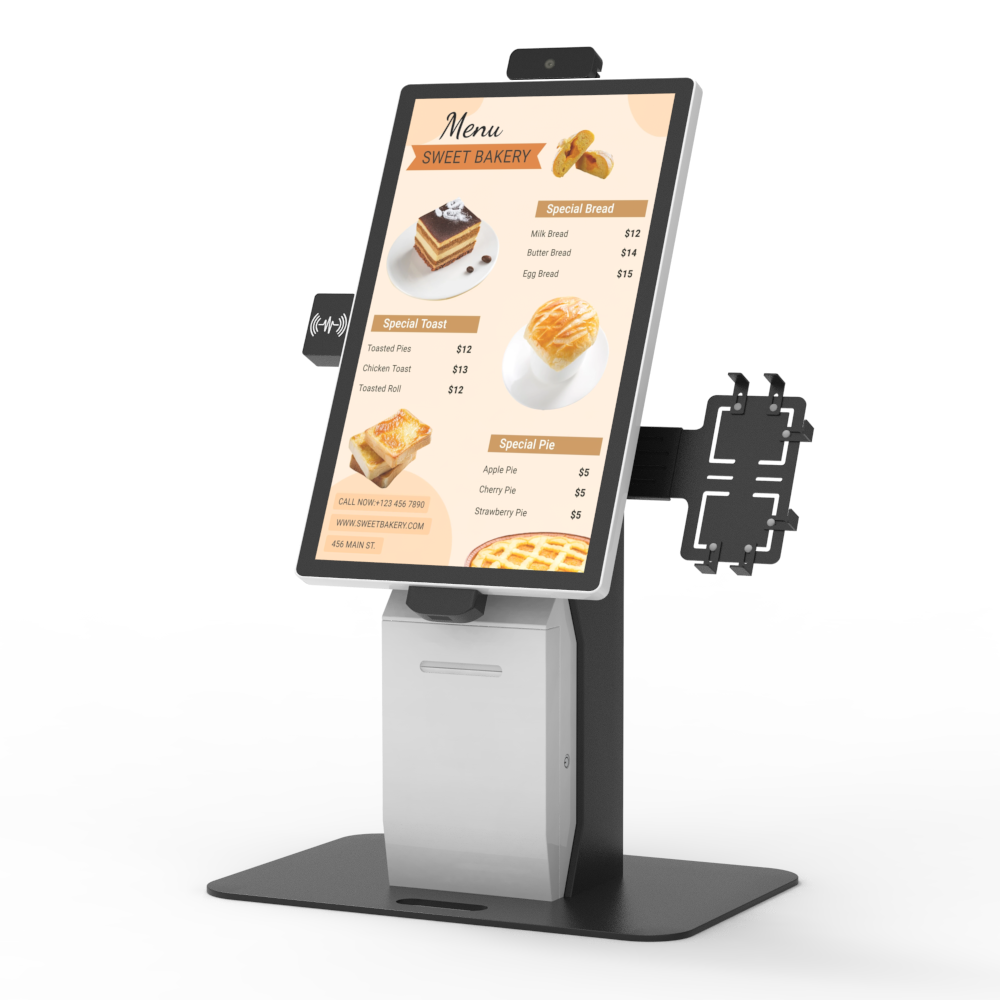

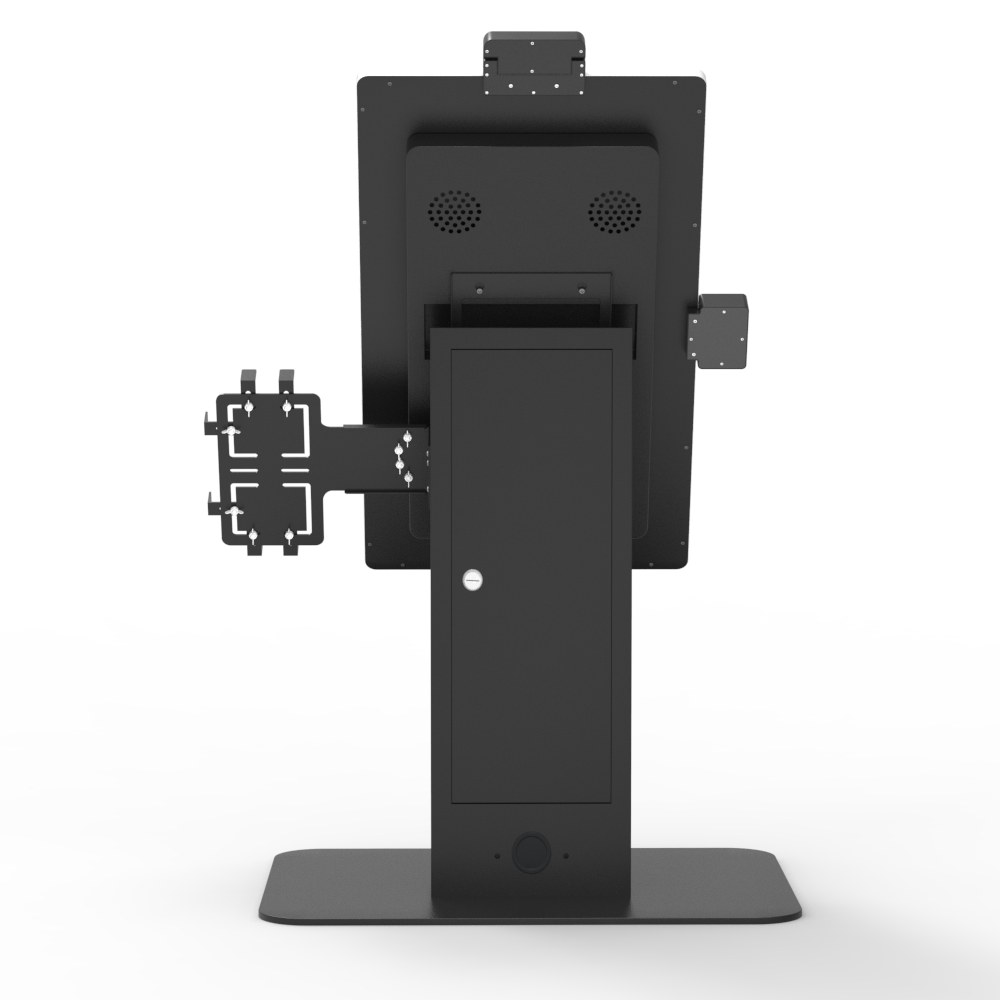

Introducing our high-performance indoor floor-standing kiosk, designed for supermarkets, banks, and retail environments. This versatile self-service terminal combines an 80mm high-speed thermal printer, responsive touch screen, and integrated NFC payment system in one robust unit.

Brand:
Dinosaur D

size:	21.5 24 32 inch options
installation method:	floor stand ,desktop,or wall-mount options
resolution:	2K
cusomization:	printer,QR scanner,NFC,pos holder,camera
viewing angle:	178°/178°(H/V)
lifespan:	more than 50000h
response time:	6ms
Availability:

Quantity:



Inquire Add to Basket

Key Features:
✓ Large 21.5-32” HD Touch Screen – Intuitive interface for seamless user interaction
✓ 80mm Thermal Receipt Printer – Fast, quiet printing with automatic paper detection
✓ Barcode/QR Code Scanner – Quick product scanning for checkout and inventory
✓ NFC & Contactless Payment – Supports credit cards, mobile wallets, and POS transactions
✓ Durable Steel Construction – Built for high-traffic commercial use

Technical Specifications:

OS: Android/window/Linux (customizable)
Connectivity: Wi-Fi, Ethernet, 4G (optional)
Power: 100-240V AC, low energy consumption
Security: PCI PTS 6.0 compliant, EMV-ready

Why Choose Our Kiosk?
✔ Factory-direct pricing – Lower cost, higher reliability
✔ Modular design – Easy upgrades and maintenance
✔ 24/7 durability – Built for continuous operation

order kiosk 1 order kiosk 2 order kiosk 3 order kiosk 4 order kiosk 5 order kiosk 6 order kiosk 7 order kiosk 8 order kiosk 9 order kiosk 10 order kiosk 11

printer	Printing method	thermal line dot printing
	Print speed	Max:180mm/s
	Resolution	203dpi(8dots/mm)
	Print width	72mm
	Cutter	both full cut and partial cut are supported
Qr scanner	Image sensor	640（H） X 480（V）CMOS
	Light source	white fill light / colored light indicator
	Readable Code System	QR Code: QR Code, PDF417, DataMatrix (ECC200)
		EAN13, EAN UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI, RSS-14, Limited RSS, Expanded RSS
	Reading perspective	rotate 360°, tilt ±60°, deflect ±60°
	Understanding depth of field	EAN-132~11.0cm 13mil、Code-128 2.5 ~ 13.0cm （15mil ）
	Recognition accuracy	1D barcode: ≥5 mil, 2D barcode: ≥10 mil
NFC	External Interface	serial port (TTL level/RS232 level selectable)
	Support card	contactless Card: Mifare One S50/S70, Mifare UltraLight NTAG213/215/216
	Sensing distance	type A Card: 0 ~ 5.0 cm Test Conditions: 1) Use a standard size card of 85.6mm × 54mm; 2) Use an integrated antenna.
Camera	Optical dimensions	1/2.7”inch COMS sensor
	Sensor resolution	1920 (H) x 1080 (V)
	Maximum frame rate	30fps@1080P
screen panel specification	Screen size	24 inch BOE or Star A new full lcd screen
	Resolution	1920*1080（2k）
	Brightness	350cd/m2
	Number of Color	16.7M
	Response time	6ms
	Contrast	2000：1
	View angle	178°/178°(H/V)
	Life Time	> 50000 (hours)
	OSD Language	English, Chinese, French, German, Italian, Spanish,Arabic etc.
capacitive touch parameter	Touch technology	10 point capacitive touch
	Sensing object	fingers, stylus
	Response time	3ms
	Sensing accuracy	±1.5mm
	Touch lifespan	over 60 million times, the touch cursor does not drift
	Touch resolution	4096*4096
Power	Input Voltage	AC100-240v 50/60HZ
	Horn	2×2W(8Ω)
	Standby power	≤1W
	Power Consumption	≤50W
	Storage temparature	(-20℃ -- 60 ℃)
	Operation temparature	(0℃-- 50 ℃)
	Operation humidity	(10 -- 90% )
Appearance design	aluminum alloy frame, high-quality sheet metal
Casing color	black

Q: Is this kiosk available for direct purchase from the factory?
A: Yes, we offer factory direct sales, ensuring competitive pricing and quality control directly from our manufacturing facility.
Q: What type of printer does the kiosk use, and what is the print width?
A: The kiosk is equipped with an 80mm thermal receipt printer, ideal for producing high-quality receipts and tickets quickly and reliably.
Q: Can this kiosk be used as a self-service solution in supermarkets?
A: Absolutely. This kiosk is designed for self-service applications in supermarkets, supporting functions like product scanning, barcode reading, and payment processing.
Q: What payment methods are supported by the kiosk?
A: The kiosk supports various payment methods, including NFC contactless payments, making it a versatile POS terminal for modern retail environments.
Q: Is the kiosk suitable for indoor use only?
A: Yes, this model is designed specifically for indoor environments, such as supermarkets, banks, and retail stores.
Q: Does the kiosk come with a built-in barcode scanner?
A: Yes, it includes an integrated barcode reader, enabling quick and accurate scanning of products for self-checkout or order processing.
Q: Can the kiosk be customized for specific use cases, such as bank or hot food ordering?
A: Yes, we offer customization options to adapt the kiosk for various applications, including banking services or hot food ordering in supermarkets.
Q: What sizes and mounting options are available for the kiosk?
A: The kiosk is designed as a floor-standing unit for indoor use, providing stability and accessibility in high-traffic areas.
Q: How user-friendly is the touch screen interface?
A: The kiosk features an intuitive touch screen interface, making it easy for customers to navigate self-service options like ordering, scanning, and payment.
Q: Is the kiosk compatible with existing POS systems?
A: Yes, the kiosk can be integrated with most standard POS systems, allowing seamless integration into your current retail or service environment.
