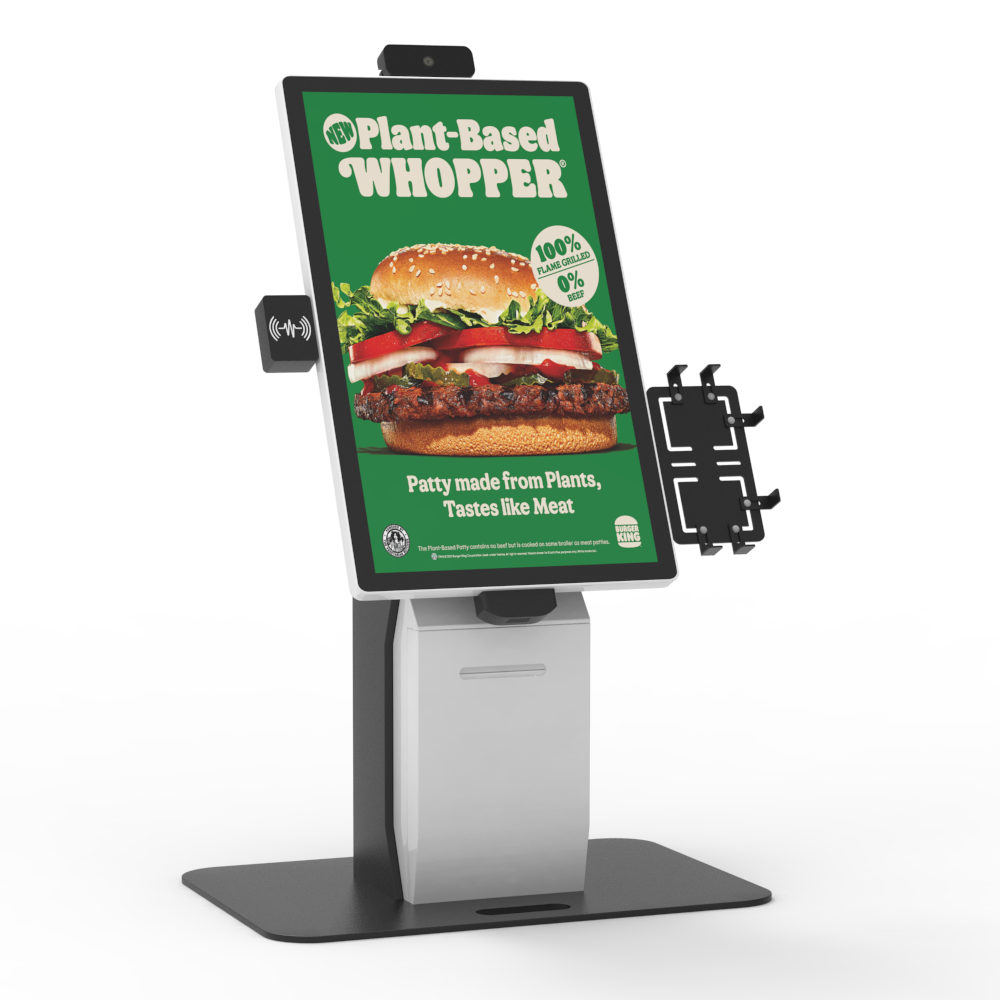

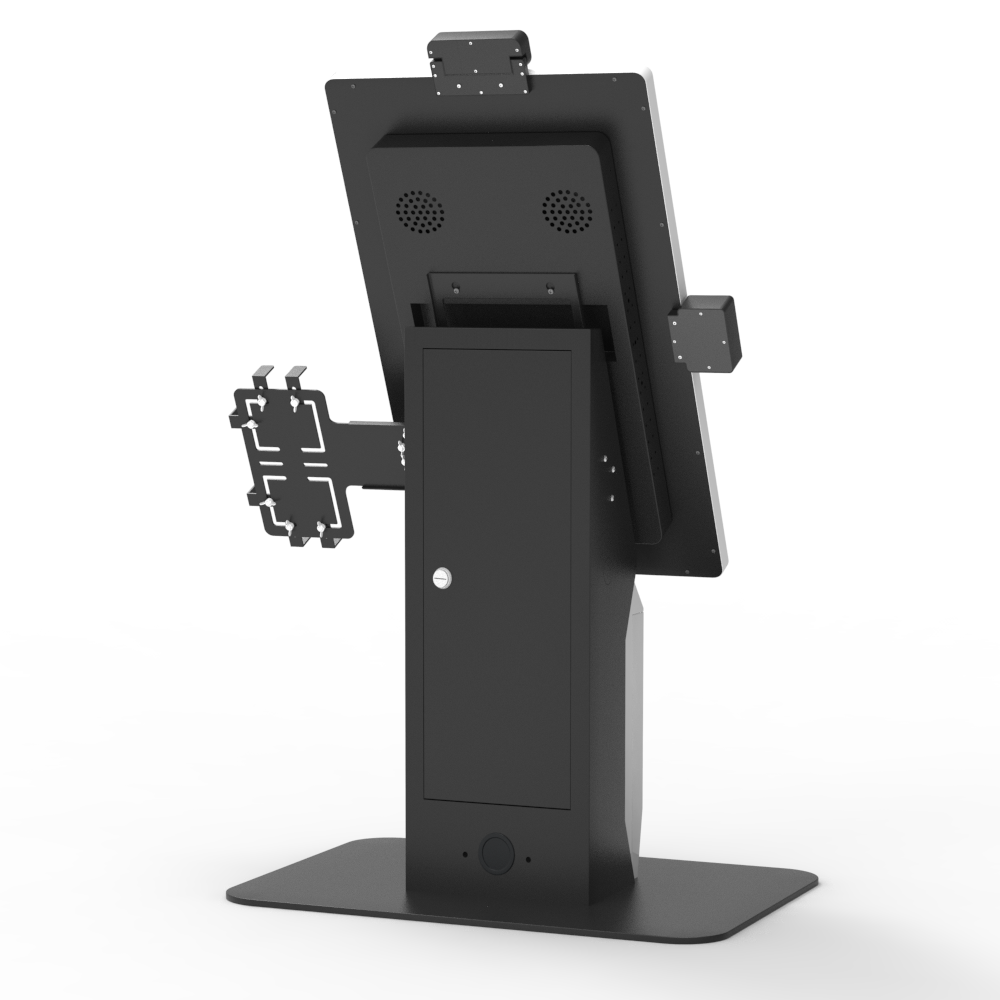

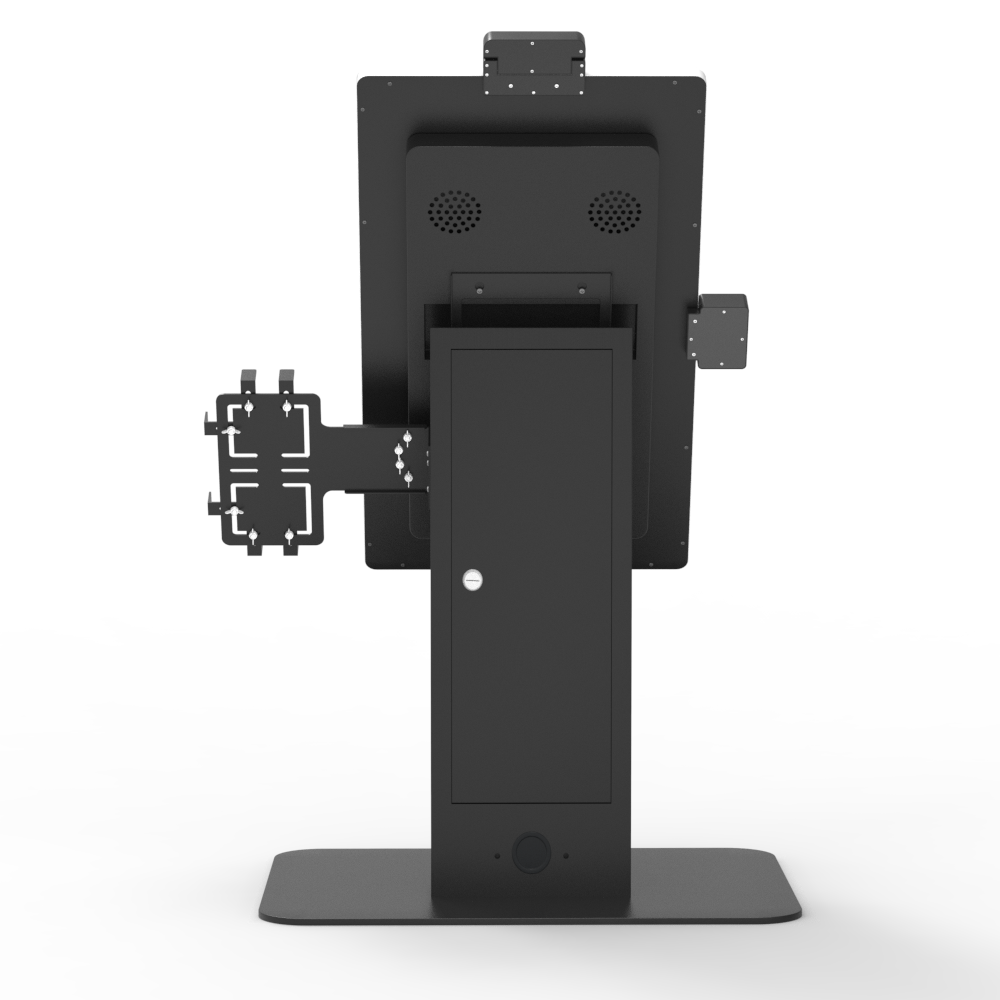

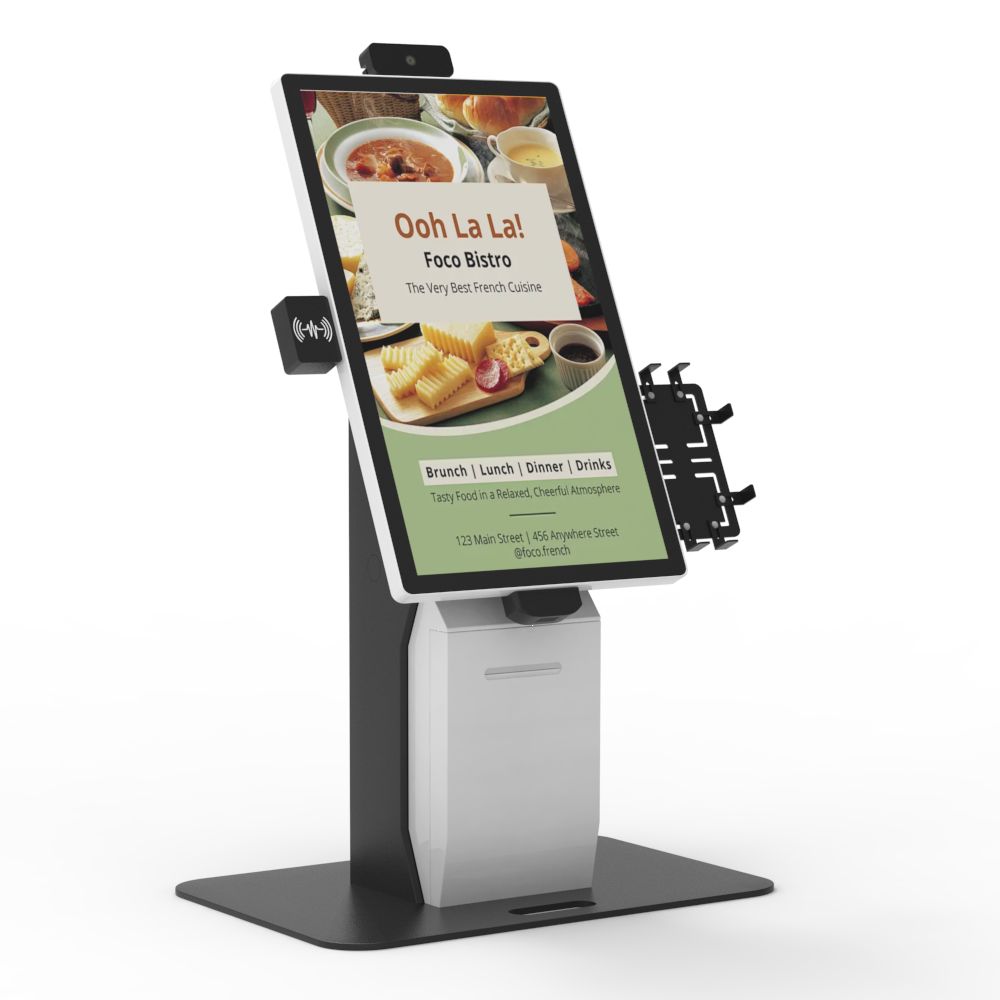

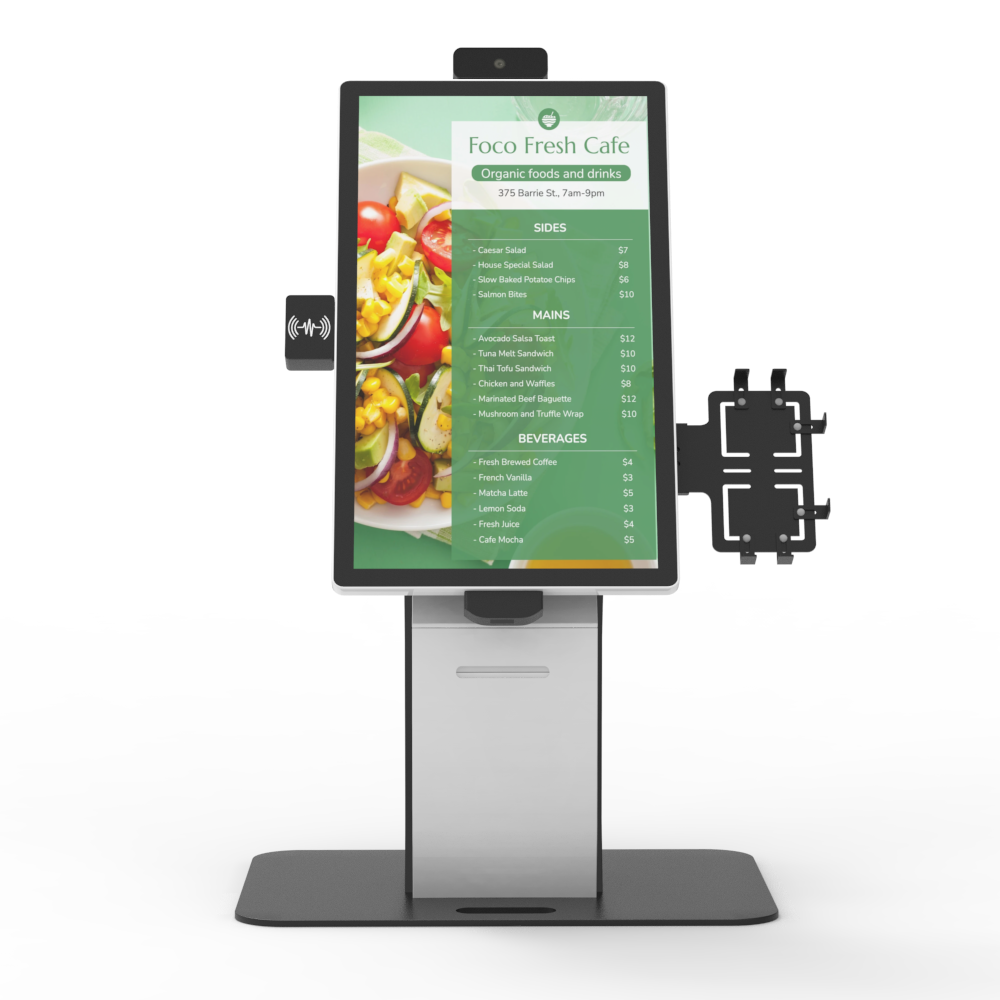

Kiosk Supplier 24 Inch Self-Service Kiosk for Quick-Service Restaurants

1. Streamlined Ordering for Burger & Pizza Chains
This self-service kiosk is specifically designed for high-speed environments like burger and pizza chains. Its intuitive interface guides customers to customize meals, add toppings, and place orders quickly, reducing wait times.
2. Fast & Flexible Payment
The kiosk streamlines the final step with integrated payment options. Customers can securely pay by scanning a QR code or using tap-and-go NFC/RFID card payments, ensuring a swift and contactless transaction.
3. Built for Durability and Efficiency
Constructed for high-traffic locations, this kiosk features a robust design with a vibrant touchscreen. An integrated receipt printer provides instant order confirmation for a complete self-service experience.
4. Seamless System Integration
Easily integrate with your existing kitchen and management software. The kiosk is compatible with major operating systems (Windows, Android, Linux), making it a perfect fit for any franchise network.
In summary, this kiosk empowers customers to order their way, increases order accuracy, and speeds up service—making it an ideal solution for growing burger and pizza chains.













Kiosk Supplier 24 Inch Self-Service Kiosk for Quick-Service Restaurants

1. Streamlined Ordering for Burger & Pizza Chains
This self-service kiosk is specifically designed for high-speed environments like burger and pizza chains. Its intuitive interface guides customers to customize meals, add toppings, and place orders quickly, reducing wait times.
2. Fast & Flexible Payment
The kiosk streamlines the final step with integrated payment options. Customers can securely pay by scanning a QR code or using tap-and-go NFC/RFID card payments, ensuring a swift and contactless transaction.
3. Built for Durability and Efficiency
Constructed for high-traffic locations, this kiosk features a robust design with a vibrant touchscreen. An integrated receipt printer provides instant order confirmation for a complete self-service experience.
4. Seamless System Integration
Easily integrate with your existing kitchen and management software. The kiosk is compatible with major operating systems (Windows, Android, Linux), making it a perfect fit for any franchise network.
In summary, this kiosk empowers customers to order their way, increases order accuracy, and speeds up service—making it an ideal solution for growing burger and pizza chains.













| Screen panel specification | Screen size | 15.6/21.5/23.8 inch | ||||
| Resolution | 1920*1080(2k) | |||||
| Touch Type | 10 points PCAP touch screen | |||||
| Brightness | 300cd/m2 (500 cd/m2 optional)(Typ.) (CR≥10) | |||||
| Number of Color | 16.7M,72%NTSC | |||||
| Response time | 8(ms) approximately | |||||
| Contrast | 4000:1 (Typ.) (transmission) | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Photo Formats | JPEG 、BMP 、GIF 、PNG | |||||
| Audio Formats | MP3、WAV、WMA | |||||
| Video Format | MP4、AVI、DIVX、XVID、VOB、DAT、MPG、MPEG、RM、RMVB、MKV、MOV、HDMOV、M4V | |||||
| Structure | Shell Material | Aluminum+Sheet Metal | ||||
| Product dimension | 340 mm*330mm*808.83mm | |||||
| Speaker | 2×2W(8Ω) | |||||
| Casing color | White and black | |||||
| Thermal printer | model: PT80KM-A | |||||
| paper width: 80mm (Max) | ||||||
| resolution: 203 dpi | ||||||
| QR code scanner/Barcode (optional) | model: NLS-N1 | |||||
| imaging sensor: 640*480 CMOS | ||||||
| reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI Plessey | ||||||
| communication interface: TTL-232,USB | ||||||
| dimension: 21.5(W)×9.0(D)×7.0(H) mm | ||||||
| NFC/card reader (optional) | model: DK25M-232-ANT | |||||
| frequency: 13.56MHz | ||||||
| communication interface: UART-TTL | ||||||
| dimension: 21.6x54 mm | ||||||
| Camera (optional) | optical dimension: 1/2.7 inch COMS sensor | |||||
| pixel: 200W | ||||||
| sensor resolution: 1920 (H) x 1080 (V) | ||||||
| maximum frame rate: 30fps@1080P | ||||||
| dimension: 60x 10 x 9.5 mm | ||||||
| Power | Input Voltage | AC 100V~240V,50/60HZ | ||||
| Power Consumption | 50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (20 -- 80% ) | |||||
| Accessory | Power Cable, Allen key, Warranty card, quality inspection card | |||||
