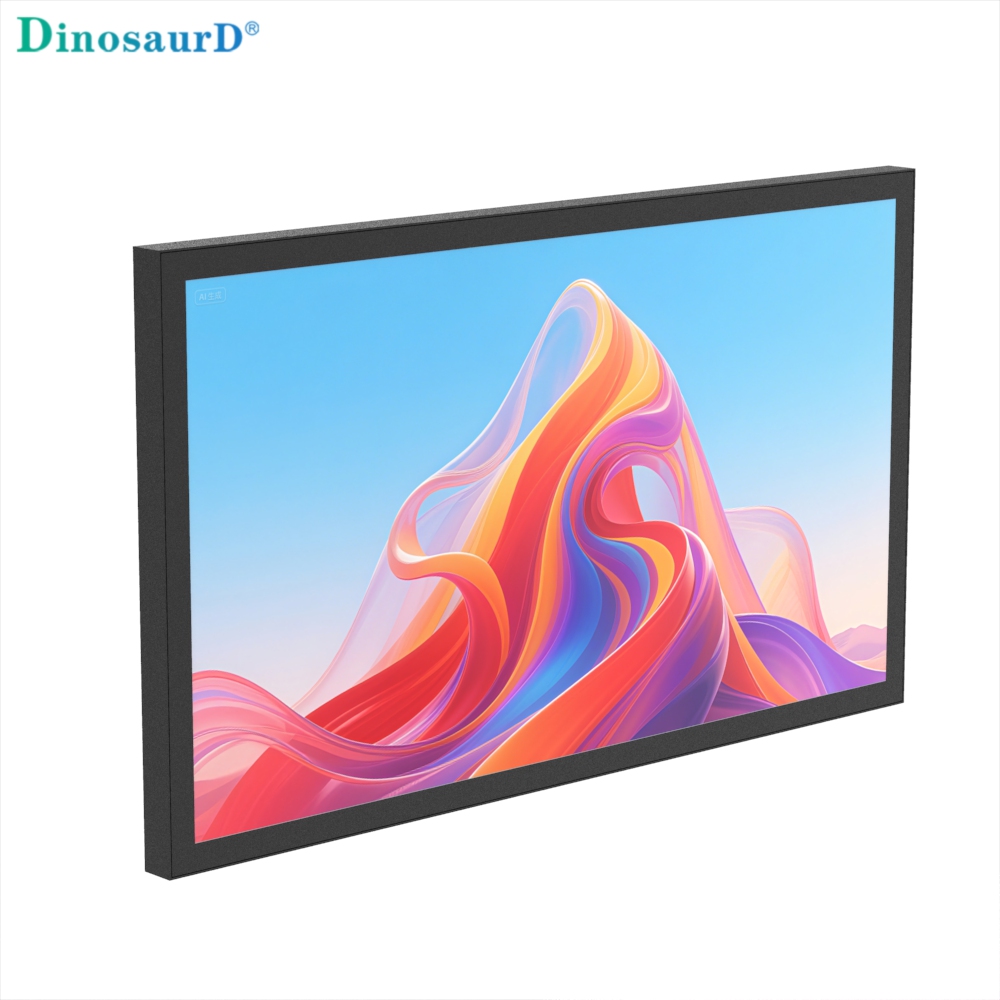

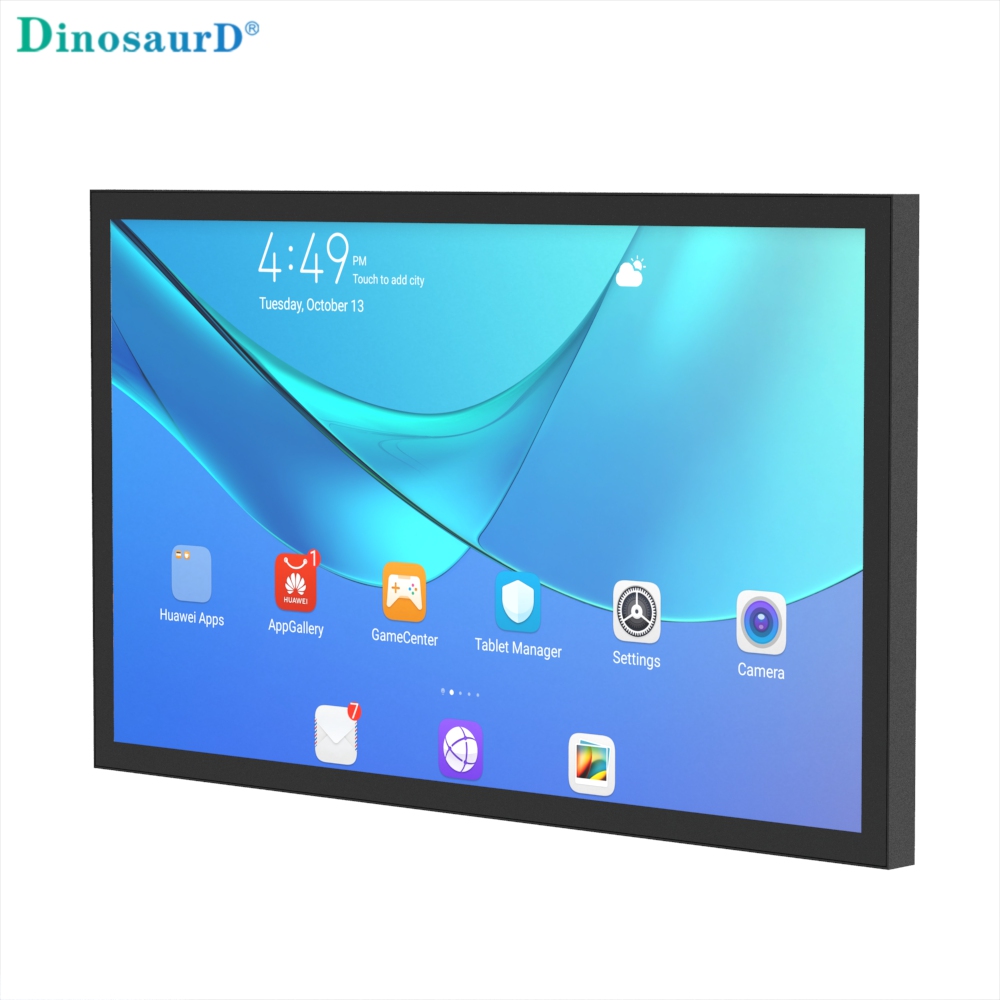

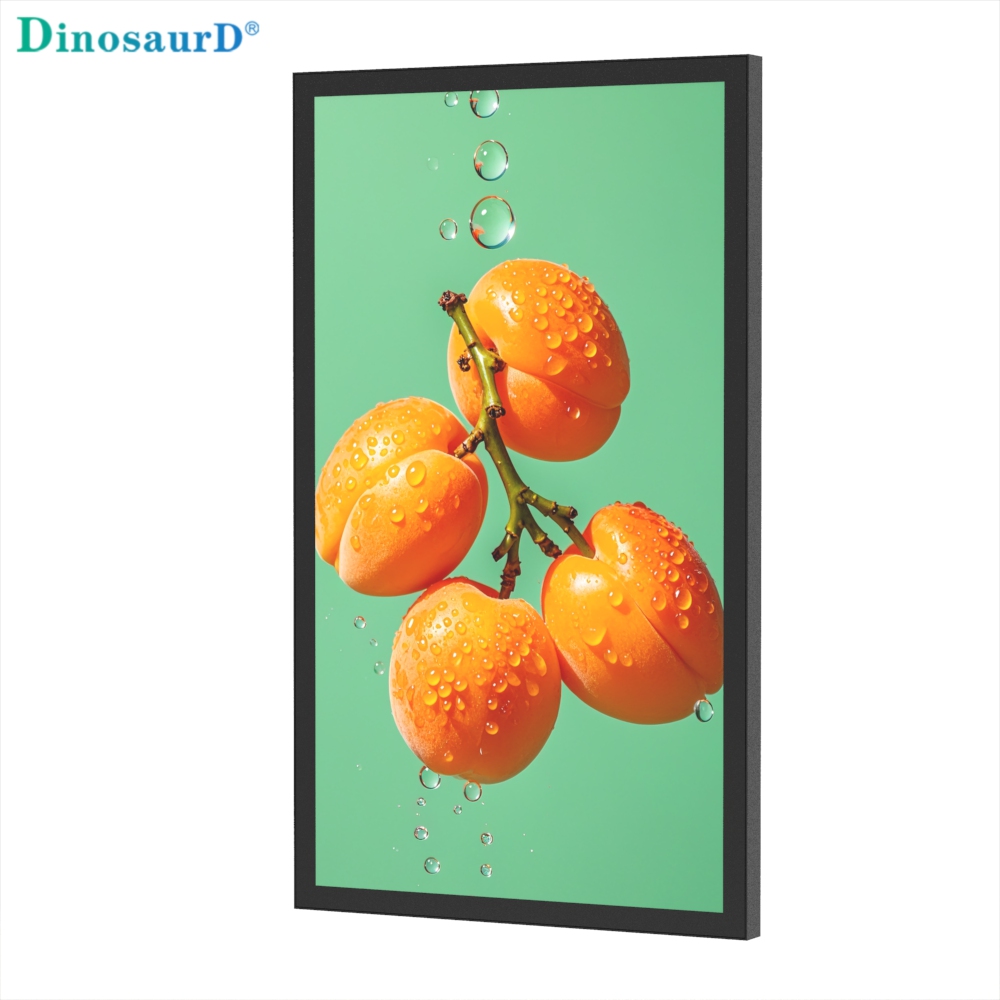

IK10 grade 5mm AG etched toughened glass outdoor wall mounted totem lcd advertising player screen 2500nits waterproof ip66 signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

IK10 grade 5mm AG etched toughened glass outdoor wall mounted totem lcd advertising player screen 2500nits waterproof ip66 signage

Engineered for high-impact public environments requiring maximum durability and superior visual performance, this Outdoor Wall-Mounted Totem LCD Advertising Screen combines military-grade physical protection with commercial-grade display technology. Encased in 5mm AG-etched toughened glass and built to withstand IK10 impact resistance and IP66 waterproofing, it is designed for 24/7 operation in high-traffic areas such as transportation hubs, shopping malls, stadiums, and smart city installations.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Features

1. Ultimate Physical Protection

IK10 Impact Resistance: The highest level of mechanical protection against vandalism and accidental impacts—withstands 20 joules of impact energy (equivalent to a 5kg mass dropped from 400mm).
5mm AG Etched Toughened Glass: Chemically strengthened, anti-glare etched surface reduces reflections, resists scratches, and provides an extra layer of defense against physical damage and graffiti.

2. All-Weather Ready

IP66 Waterproof & Dustproof: Fully sealed against heavy rain, dust, high humidity, and temperature fluctuations, ensuring reliable outdoor performance year-round.
Wide Temperature Range: Operates stably from -30°C to 60°C with integrated thermal management (heating & cooling).

3. High-Brightness Visual Clarity

2500 Nits High Brightness: Excellent sunlight readability for clear, vibrant content even under direct outdoor lighting.
Built-in Media Player: Integrated waterproof player supports 4K video decoding, remote content management, scheduling, and real-time updates via Wi-Fi/4G/Ethernet.

4. Sleek Totem Design

Vertical/Wall-Mount Ready: Space-saving totem form factor ideal for corridors, entrances, transit stations, and retail spaces.
Modern Aesthetic: Slim profile with reinforced aluminum frame and vandal-resistant glass enhances public space aesthetics.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

1. What does "IK10" impact resistance mean for this screen?
IK10 is the highest rating in the international standard (EN/IEC 62262) for mechanical impact protection. It certifies that the screen enclosure can withstand 20 joules of impact energy—equivalent to a 5kg weight dropped from 40cm—making it highly resistant to vandalism, accidental collisions, or harsh environmental stresses in public spaces.

2. Why is 5mm AG-etched toughened glass used?
The 5mm chemically toughened glass provides superior surface hardness and structural integrity. The anti-glare (AG) etching reduces reflections and glare under bright outdoor light, improves viewing angles, and offers additional resistance to scratches, graffiti, and cleaning chemicals.

3. Is 2500 nits sufficient for direct sunlight viewing?
Yes. At 2500 nits, the screen ensures excellent visibility even in bright outdoor environments. Combined with the AG-etched glass, it minimizes glare and maintains color vividness and contrast under direct sunlight or strong indoor lighting.

4. Does the built-in media player also meet IP66 waterproof standards?
Yes. The entire system—including the integrated media player, connectors, and internal components—is fully sealed within the same IP66-rated enclosure. This ensures complete protection against dust ingress and water jets from any direction.

5. Can this totem screen be installed both indoors and outdoors?
Absolutely. With its IK10 + IP66 protection and wide operating temperature range (-30°C to 60°C), it is built for harsh outdoor use. Its sleek design and durability also make it suitable for high-traffic indoor spaces like airports, malls, or lobbies where vandal resistance is needed.

6. How is content managed and updated on the built-in player?
The integrated media player supports remote content management via Wi-Fi, Ethernet, or optional 4G connectivity. Users can schedule playlists, push real-time updates, monitor screen status, and even trigger interactive content through a cloud-based CMS platform or mobile app.

7. What mounting options are available for the "totem" design?
The screen is designed for vertical wall mounting or can be paired with an optional freestanding totem base for floor placement. Both options include reinforced brackets and tamper-resistant fasteners to ensure secure installation in public areas.

8. What is the expected lifespan, and how is maintenance performed?
The display is designed for 24/7 continuous operation with an LED backlight lifespan of 70,000+ hours. Maintenance is minimal: the toughened glass surface can be cleaned with standard glass cleaners. No internal maintenance is required under normal use, thanks to the fully sealed design.

9. Can the screen operate in extreme cold or hot climates?
Yes. With its extended temperature range (-30°C to 60°C) and built-in thermal management system (auto-regulated heating and cooling), it performs reliably in environments ranging from freezing winters to hot desert climates.

10. Is customization available for size, brightness, or glass finish?
Yes. We offer customization options including screen size (typically 32–85 inches), higher brightness levels (up to 5000 nits), alternative glass finishes (e.g., privacy filters, mirror coatings), and tailored software integration to meet specific project requirements.
