Dinosaur D
| size: | |
|---|---|
| brightness: | |
| protect level: | |
| tempered glass: | |
| battery: | |
| operation temparature: | |
| lifespan: | |
| Availability: | |
| Quantity: | |

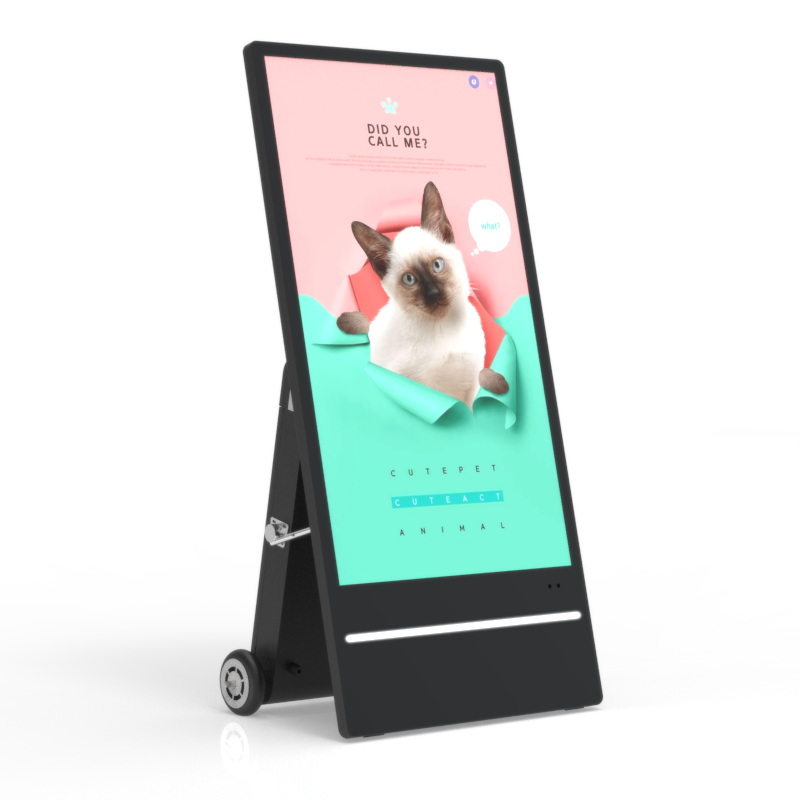

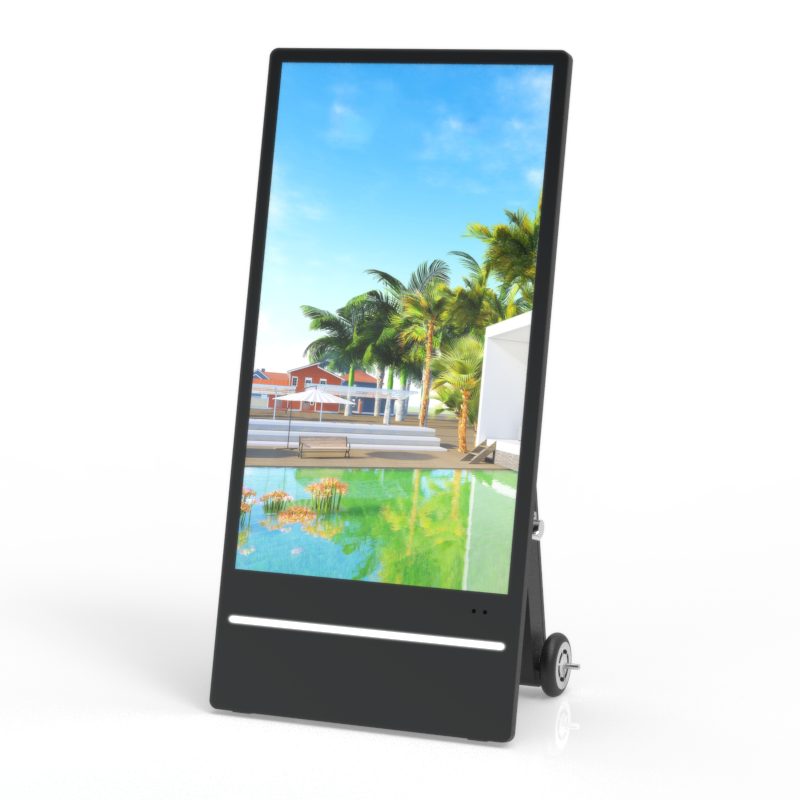

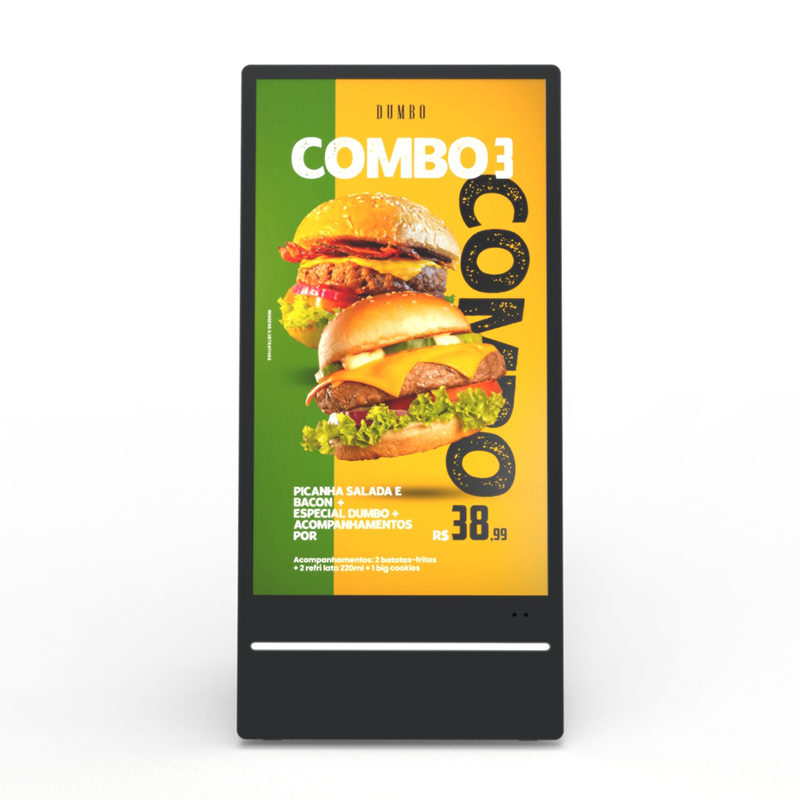

Space-Saving Design
Industry-first foldable LCD panel (32"/43"/55")
180° hinge system with military-grade seals
Collapses to 1/3 size for transport
Extended Operation
7-hour fast charging (0-100%)
10+ hour continuous runtime (eco mode)
Optional solar charging compatibility
☀ Unmatched Visibility
2500nit anti-glare display
Sunlight-readable even at 120°F
Automatic brightness optimization
Space-Saving Design
Industry-first foldable LCD panel (32"/43"/55")
180° hinge system with military-grade seals
Collapses to 1/3 size for transport
Extended Operation
7-hour fast charging (0-100%)
10+ hour continuous runtime (eco mode)
Optional solar charging compatibility
☀ Unmatched Visibility
2500nit anti-glare display
Sunlight-readable even at 120°F
Automatic brightness optimization
| screen panel specification | screen size | 43 inch screen panel | ||||
| display area | 940mm(H)x530mm(V) | |||||
| product dimension | 586mmx140mmx1233mm | |||||
| product net weight | 40Kg | |||||
| Backlight type | LED backlight modular components + constant current source driver components | |||||
| resolution | 1080*1920 | |||||
| display color | 16.7M | |||||
| brightness | 2500nits | |||||
| contrast | 3500:1 | |||||
| view angle | 178°(H) / 178°(V) | |||||
| response time | 5ms | |||||
| protect level full | outdoor IP65 | |||||
| lifespan | 60000 hours | |||||
| shell material | galvanized steel plate + outdoor special paint | |||||
| battery | battery technology | blade battery, long service life and stable performance | ||||
| charging time | 7 hours of charging | |||||
| working hours | working 10 hours | |||||
| battery capacity | 50000 mAh | |||||
| input voltage | 24V | |||||
| power | working temperature | -50℃～110℃ | ||||
| storage temperature | -45℃～80℃ | |||||
| working humidity | 10%～90% | |||||
| storage humidity | 10%～90% | |||||
| power input | AC100V～240V | |||||
| power consumption | ≤100W | |||||
| standby power consumption | ≤3W | |||||
| delivery term | delivery time | within 10 working day ( from the day calculating when the payment arrived in our bank account. | ||||
| warranty | 1 year | |||||
| screen panel specification | screen size | 43 inch screen panel | ||||
| display area | 940mm(H)x530mm(V) | |||||
| product dimension | 586mmx140mmx1233mm | |||||
| product net weight | 40Kg | |||||
| Backlight type | LED backlight modular components + constant current source driver components | |||||
| resolution | 1080*1920 | |||||
| display color | 16.7M | |||||
| brightness | 2500nits | |||||
| contrast | 3500:1 | |||||
| view angle | 178°(H) / 178°(V) | |||||
| response time | 5ms | |||||
| protect level full | outdoor IP65 | |||||
| lifespan | 60000 hours | |||||
| shell material | galvanized steel plate + outdoor special paint | |||||
| battery | battery technology | blade battery, long service life and stable performance | ||||
| charging time | 7 hours of charging | |||||
| working hours | working 10 hours | |||||
| battery capacity | 50000 mAh | |||||
| input voltage | 24V | |||||
| power | working temperature | -50℃～110℃ | ||||
| storage temperature | -45℃～80℃ | |||||
| working humidity | 10%～90% | |||||
| storage humidity | 10%～90% | |||||
| power input | AC100V～240V | |||||
| power consumption | ≤100W | |||||
| standby power consumption | ≤3W | |||||
| delivery term | delivery time | within 10 working day ( from the day calculating when the payment arrived in our bank account. | ||||
| warranty | 1 year | |||||
Job Site Communications
Portable safety briefing stations at oil rigs
Crane operation warning displays
Bridge construction detour maps
Road Work Solutions
Movable lane closure alerts
Dynamic toll rate change boards
Highway work zone speed displays
Disaster Response
Hurricane evacuation route signage
Wildfire containment updates
Flood level warning displays
Public Safety
Portable AMBER alert stations
Riot control information points
Earthquake aftershock warning systems
Pop-Up Marketing
Beachfront cocktail promotion boards
Farmers' market vendor maps
Outdoor mall flash sale announcements
Festival Management
Stage schedule displays at Coachella
Food truck queue wait times
Emergency exit guidance during concerts
Airport Operations
Temporary baggage claim redirects
Tarmac safety instruction displays
Customs form distribution points
Port Applications
Shipping container ID verification
Dock worker safety reminders
Tide schedule displays
Field Operations
Army base checkpoint instructions
Refugee camp information hubs
Border patrol alert systems
Municipal Uses
Park maintenance notices
Portable voting location guides
Community emergency meeting points
• Instant Deployment - Unfolds in <60 seconds
• Smart Charging - 7hr charge = 10hr runtime at 2500nit
• Extreme Weather Proof - Operates in sandstorms/blizzards
Specialized Use Cases:
✔ Formula 1: Pit lane timing displays
✔ Ski Resorts: Avalanche risk boards
✔ Amazon Warehouses: Portable safety alerts
Job Site Communications
Portable safety briefing stations at oil rigs
Crane operation warning displays
Bridge construction detour maps
Road Work Solutions
Movable lane closure alerts
Dynamic toll rate change boards
Highway work zone speed displays
Disaster Response
Hurricane evacuation route signage
Wildfire containment updates
Flood level warning displays
Public Safety
Portable AMBER alert stations
Riot control information points
Earthquake aftershock warning systems
Pop-Up Marketing
Beachfront cocktail promotion boards
Farmers' market vendor maps
Outdoor mall flash sale announcements
Festival Management
Stage schedule displays at Coachella
Food truck queue wait times
Emergency exit guidance during concerts
Airport Operations
Temporary baggage claim redirects
Tarmac safety instruction displays
Customs form distribution points
Port Applications
Shipping container ID verification
Dock worker safety reminders
Tide schedule displays
Field Operations
Army base checkpoint instructions
Refugee camp information hubs
Border patrol alert systems
Municipal Uses
Park maintenance notices
Portable voting location guides
Community emergency meeting points
• Instant Deployment - Unfolds in <60 seconds
• Smart Charging - 7hr charge = 10hr runtime at 2500nit
• Extreme Weather Proof - Operates in sandstorms/blizzards
Specialized Use Cases:
✔ Formula 1: Pit lane timing displays
✔ Ski Resorts: Avalanche risk boards
✔ Amazon Warehouses: Portable safety alerts
1. What does "Factory Direct" mean for me as a buyer?
"Factory Direct" means we design, manufacture, and sell this product directly to you, eliminating middlemen. This ensures you receive the highest quality at the most competitive price, along with direct technical support and clear communication.
2. How does the foldable design work, and what are the benefits?
The display unit and stand feature an integrated folding mechanism, allowing the entire unit to collapse into a more compact form. This makes it dramatically easier and safer to transport in a vehicle, store, and set up at different locations without requiring tools.
3. Is the 2500-nit brightness necessary, and can it be adjusted?
Yes, it is critical for outdoor use. 2500 nits ensures content is vibrant and legible even under direct sunlight. For indoor use or to conserve battery, the brightness can be easily adjusted remotely via the CMS or through the on-device menu.
4. What is the real-world battery performance? (Charging 7 hrs / Working 10 hrs)
These figures are based on standard conditions (medium brightness, mixed content). The integrated high-capacity battery typically achieves 10+ hours of operation on a full charge, which takes approximately 7 hours using the provided charger. Using maximum brightness will reduce runtime.
5. Can the device run while plugged in and charging?
Absolutely. For permanent or long-term installations, you can keep the device plugged into a power outlet. It will operate normally while simultaneously charging/maintaining the battery, ensuring 24/7 operation.
6. Is the free CMS powerful enough for professional use?
Yes. Our free, cloud-based CMS provides all core professional features: remote content upload & scheduling, multi-zone screen layout design, real-time device status monitoring, and playlist management. It is designed for ease of use without sacrificing capability.
7. How is "IP65 Waterproof" defined, and where can I safely use it?
IP65 certifies the unit is completely dust-tight (6) and protected against low-pressure water jets from any direction (5). It is perfectly safe for permanent outdoor use in rain, snow, or for cleaning. However, it is not designed for submersion or high-pressure washing.
8. What type of content can I display, and are there templates?
You can display images, videos, PDFs, PowerPoint files, and live web feeds. The free CMS includes a user-friendly editor with drag-and-drop functionality and pre-designed templates to help you create professional layouts quickly.
9. How many of these signs can I manage with one free CMS account?
The free CMS supports managing multiple devices from a single dashboard. You can organize them into groups (e.g., "Retail Promotions," "Event Series") to update many screens at once or control each one individually.
10. What is included in the package, and is assembly required?
The package includes the foldable LCD signage with integrated battery, a power adapter/charger, and any standard mounting hardware. The unit is designed for quick, tool-free setup—simply unfold it, secure the locking mechanisms, and power it on.
1. What does "Factory Direct" mean for me as a buyer?
"Factory Direct" means we design, manufacture, and sell this product directly to you, eliminating middlemen. This ensures you receive the highest quality at the most competitive price, along with direct technical support and clear communication.
2. How does the foldable design work, and what are the benefits?
The display unit and stand feature an integrated folding mechanism, allowing the entire unit to collapse into a more compact form. This makes it dramatically easier and safer to transport in a vehicle, store, and set up at different locations without requiring tools.
3. Is the 2500-nit brightness necessary, and can it be adjusted?
Yes, it is critical for outdoor use. 2500 nits ensures content is vibrant and legible even under direct sunlight. For indoor use or to conserve battery, the brightness can be easily adjusted remotely via the CMS or through the on-device menu.
4. What is the real-world battery performance? (Charging 7 hrs / Working 10 hrs)
These figures are based on standard conditions (medium brightness, mixed content). The integrated high-capacity battery typically achieves 10+ hours of operation on a full charge, which takes approximately 7 hours using the provided charger. Using maximum brightness will reduce runtime.
5. Can the device run while plugged in and charging?
Absolutely. For permanent or long-term installations, you can keep the device plugged into a power outlet. It will operate normally while simultaneously charging/maintaining the battery, ensuring 24/7 operation.
6. Is the free CMS powerful enough for professional use?
Yes. Our free, cloud-based CMS provides all core professional features: remote content upload & scheduling, multi-zone screen layout design, real-time device status monitoring, and playlist management. It is designed for ease of use without sacrificing capability.
7. How is "IP65 Waterproof" defined, and where can I safely use it?
IP65 certifies the unit is completely dust-tight (6) and protected against low-pressure water jets from any direction (5). It is perfectly safe for permanent outdoor use in rain, snow, or for cleaning. However, it is not designed for submersion or high-pressure washing.
8. What type of content can I display, and are there templates?
You can display images, videos, PDFs, PowerPoint files, and live web feeds. The free CMS includes a user-friendly editor with drag-and-drop functionality and pre-designed templates to help you create professional layouts quickly.
9. How many of these signs can I manage with one free CMS account?
The free CMS supports managing multiple devices from a single dashboard. You can organize them into groups (e.g., "Retail Promotions," "Event Series") to update many screens at once or control each one individually.
10. What is included in the package, and is assembly required?
The package includes the foldable LCD signage with integrated battery, a power adapter/charger, and any standard mounting hardware. The unit is designed for quick, tool-free setup—simply unfold it, secure the locking mechanisms, and power it on.
