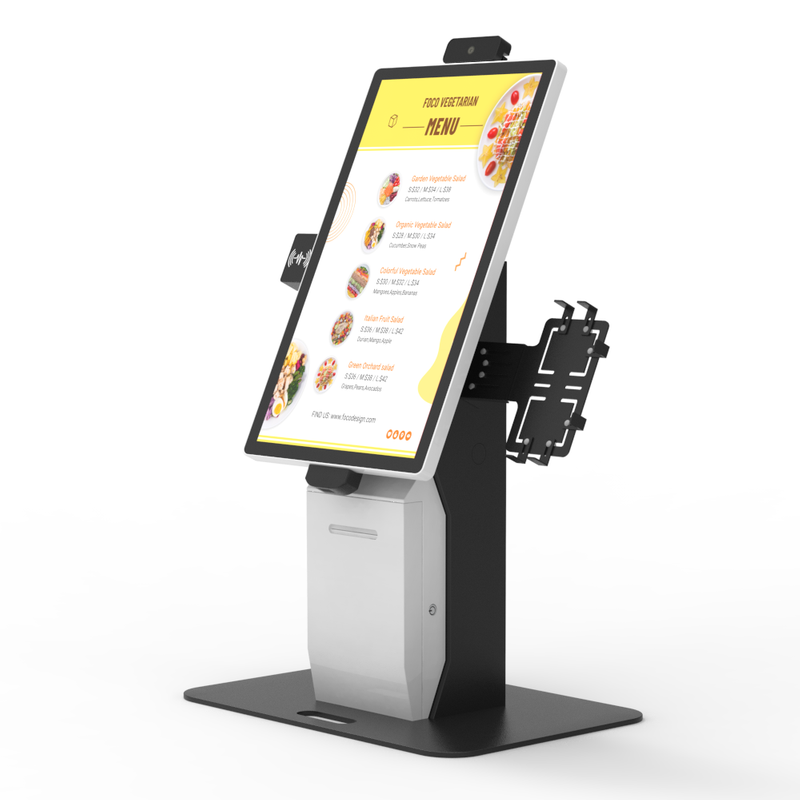

Desk Top All in One Self Service Ordering Payment Kiosk for Fast Food Order
1. Vibrant Touchscreen Interface
Feature a responsive 21.5 inch or 24 inch capacitive touchscreen. This high-resolution display ensures a smooth, intuitive, and engaging user experience for customers to browse menus and place orders effortlessly.
2. Comprehensive Payment & Checkout
We provide a complete payment solution. The kiosk integrates a built-in QR/barcode scanner, NFC/RFID for tap-and-go card payments, and a sturdy POS terminal holder. A high-definition camera supports additional verification and interactive tasks.
3. Essential Order Processing
Every transaction is finalized with a professional, on-the-spot printed receipt, thanks to the integrated thermal printer. This creates a seamless self-service cycle from ordering to payment confirmation.
4. Flexible Software & Hardware Compatibility
Our kiosks are designed for versatility. Choose from Windows, Android, or Linux operating systems to perfectly match your specific software application and backend management needs.
In summary, our self-ordering kiosk is a powerful, all-in-one terminal that enhances customer service, streamlines operations, and adapts to your unique business requirements.














Desk Top All in One Self Service Ordering Payment Kiosk for Fast Food Order
1. Vibrant Touchscreen Interface
Feature a responsive 21.5 inch or 24 inch capacitive touchscreen. This high-resolution display ensures a smooth, intuitive, and engaging user experience for customers to browse menus and place orders effortlessly.
2. Comprehensive Payment & Checkout
We provide a complete payment solution. The kiosk integrates a built-in QR/barcode scanner, NFC/RFID for tap-and-go card payments, and a sturdy POS terminal holder. A high-definition camera supports additional verification and interactive tasks.
3. Essential Order Processing
Every transaction is finalized with a professional, on-the-spot printed receipt, thanks to the integrated thermal printer. This creates a seamless self-service cycle from ordering to payment confirmation.
4. Flexible Software & Hardware Compatibility
Our kiosks are designed for versatility. Choose from Windows, Android, or Linux operating systems to perfectly match your specific software application and backend management needs.
In summary, our self-ordering kiosk is a powerful, all-in-one terminal that enhances customer service, streamlines operations, and adapts to your unique business requirements.














| Screen panel specification | Screen size | 15.6/21.5/23.8 inch | ||||
| Resolution | 1920*1080(2k) | |||||
| Touch Type | 10 points PCAP touch screen | |||||
| Brightness | 300cd/m2 (500 cd/m2 optional)(Typ.) (CR≥10) | |||||
| Number of Color | 16.7M,72%NTSC | |||||
| Response time | 8(ms) approximately | |||||
| Contrast | 4000:1 (Typ.) (transmission) | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Photo Formats | JPEG 、BMP 、GIF 、PNG | |||||
| Audio Formats | MP3、WAV、WMA | |||||
| Video Format | MP4、AVI、DIVX、XVID、VOB、DAT、MPG、MPEG、RM、RMVB、MKV、MOV、HDMOV、M4V | |||||
| Structure | Shell Material | Aluminum+Sheet Metal | ||||
| Product dimension | 340 mm*330mm*808.83mm | |||||
| Speaker | 2×2W(8Ω) | |||||
| Casing color | White and black | |||||
| Thermal printer | model: PT80KM-A | |||||
| paper width: 80mm (Max) | ||||||
| resolution: 203 dpi | ||||||
| QR code scanner/Barcode (optional) | model: NLS-N1 | |||||
| imaging sensor: 640*480 CMOS | ||||||
| reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI Plessey | ||||||
| communication interface: TTL-232,USB | ||||||
| dimension: 21.5(W)×9.0(D)×7.0(H) mm | ||||||
| NFC/card reader (optional) | model: DK25M-232-ANT | |||||
| frequency: 13.56MHz | ||||||
| communication interface: UART-TTL | ||||||
| dimension: 21.6x54 mm | ||||||
| Camera (optional) | optical dimension: 1/2.7 inch COMS sensor | |||||
| pixel: 200W | ||||||
| sensor resolution: 1920 (H) x 1080 (V) | ||||||
| maximum frame rate: 30fps@1080P | ||||||
| dimension: 60x 10 x 9.5 mm | ||||||
| Power | Input Voltage | AC 100V~240V,50/60HZ | ||||
| Power Consumption | 50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (20 -- 80% ) | |||||
| Accessory | Power Cable, Allen key, Warranty card, quality inspection card | |||||
| Screen panel specification | Screen size | 15.6/21.5/23.8 inch | ||||
| Resolution | 1920*1080(2k) | |||||
| Touch Type | 10 points PCAP touch screen | |||||
| Brightness | 300cd/m2 (500 cd/m2 optional)(Typ.) (CR≥10) | |||||
| Number of Color | 16.7M,72%NTSC | |||||
| Response time | 8(ms) approximately | |||||
| Contrast | 4000:1 (Typ.) (transmission) | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Photo Formats | JPEG 、BMP 、GIF 、PNG | |||||
| Audio Formats | MP3、WAV、WMA | |||||
| Video Format | MP4、AVI、DIVX、XVID、VOB、DAT、MPG、MPEG、RM、RMVB、MKV、MOV、HDMOV、M4V | |||||
| Structure | Shell Material | Aluminum+Sheet Metal | ||||
| Product dimension | 340 mm*330mm*808.83mm | |||||
| Speaker | 2×2W(8Ω) | |||||
| Casing color | White and black | |||||
| Thermal printer | model: PT80KM-A | |||||
| paper width: 80mm (Max) | ||||||
| resolution: 203 dpi | ||||||
| QR code scanner/Barcode (optional) | model: NLS-N1 | |||||
| imaging sensor: 640*480 CMOS | ||||||
| reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI Plessey | ||||||
| communication interface: TTL-232,USB | ||||||
| dimension: 21.5(W)×9.0(D)×7.0(H) mm | ||||||
| NFC/card reader (optional) | model: DK25M-232-ANT | |||||
| frequency: 13.56MHz | ||||||
| communication interface: UART-TTL | ||||||
| dimension: 21.6x54 mm | ||||||
| Camera (optional) | optical dimension: 1/2.7 inch COMS sensor | |||||
| pixel: 200W | ||||||
| sensor resolution: 1920 (H) x 1080 (V) | ||||||
| maximum frame rate: 30fps@1080P | ||||||
| dimension: 60x 10 x 9.5 mm | ||||||
| Power | Input Voltage | AC 100V~240V,50/60HZ | ||||
| Power Consumption | 50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (20 -- 80% ) | |||||
| Accessory | Power Cable, Allen key, Warranty card, quality inspection card | |||||
