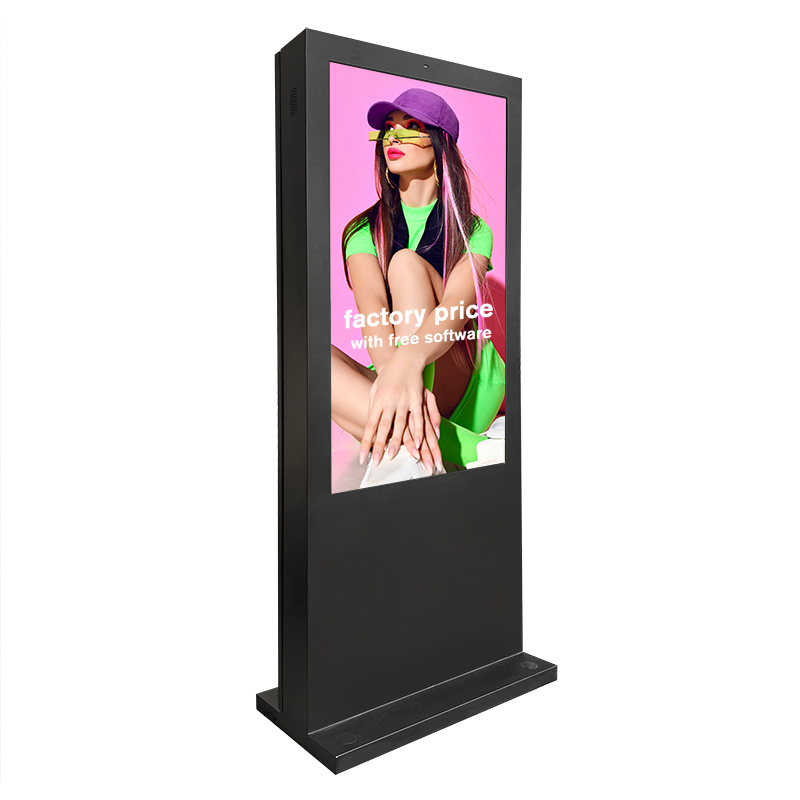

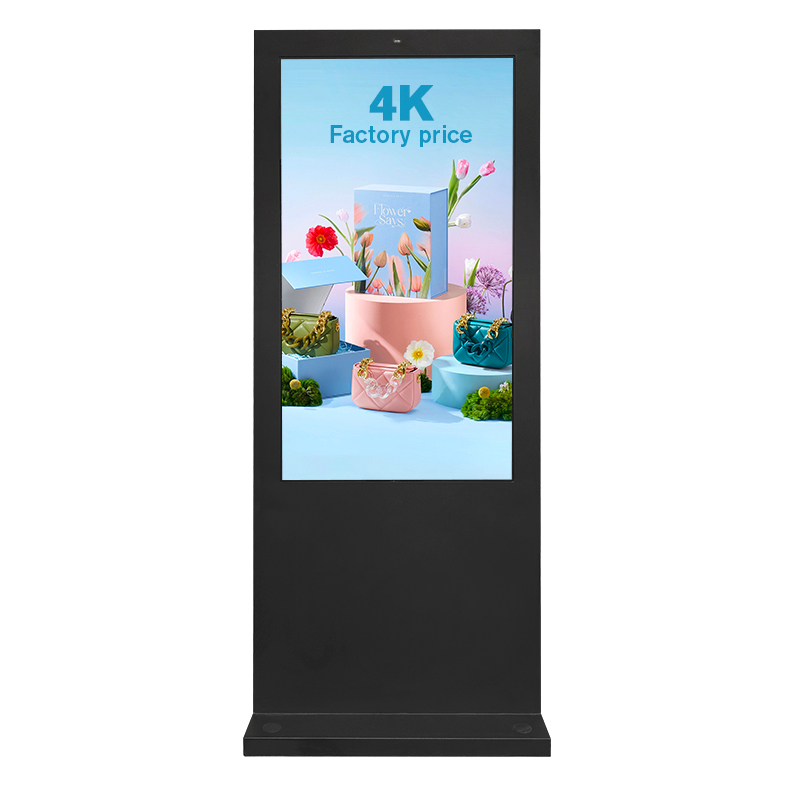

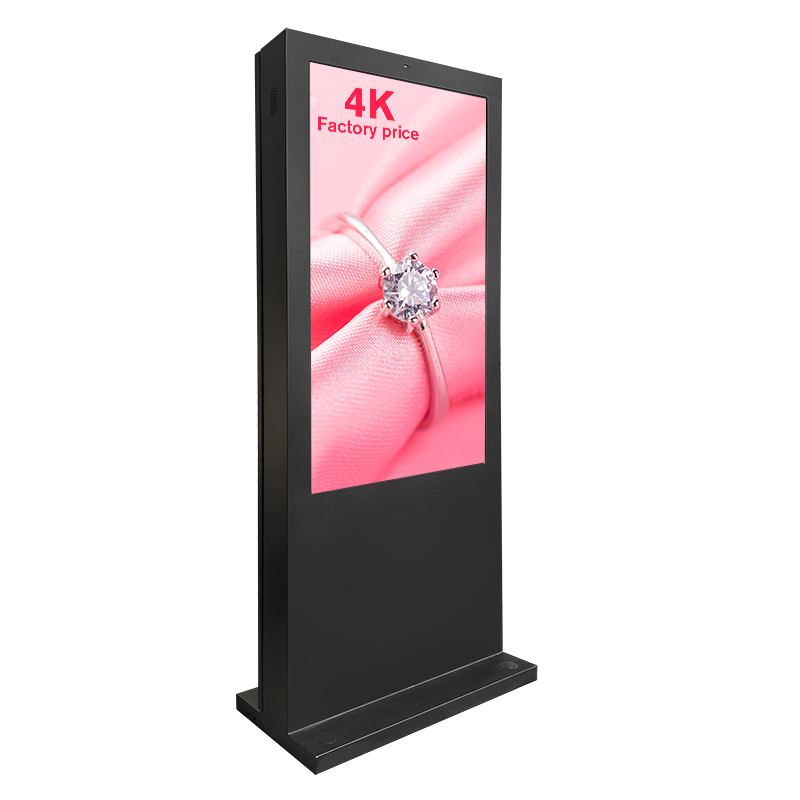

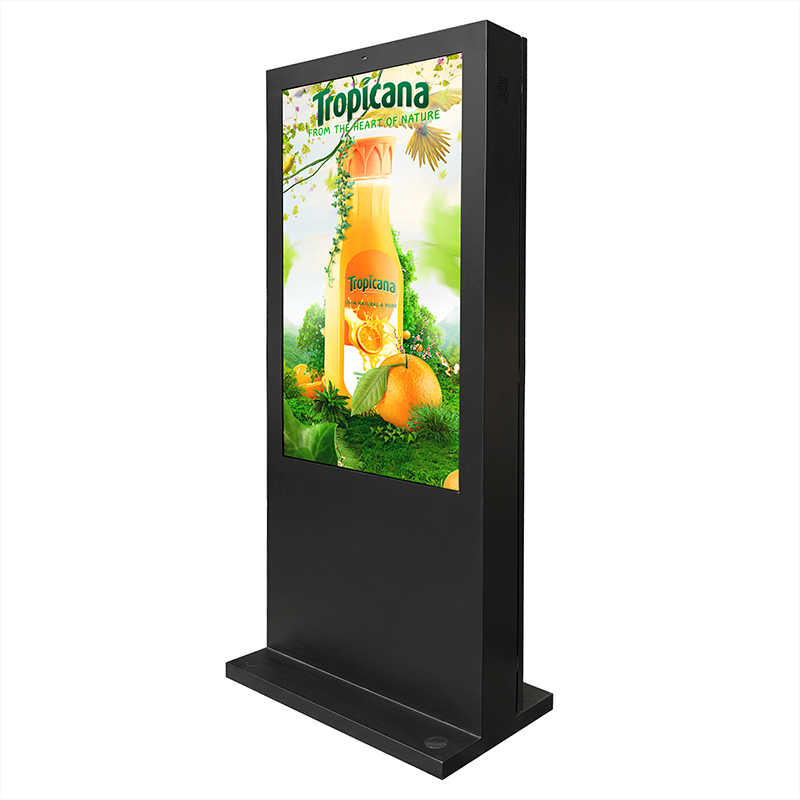

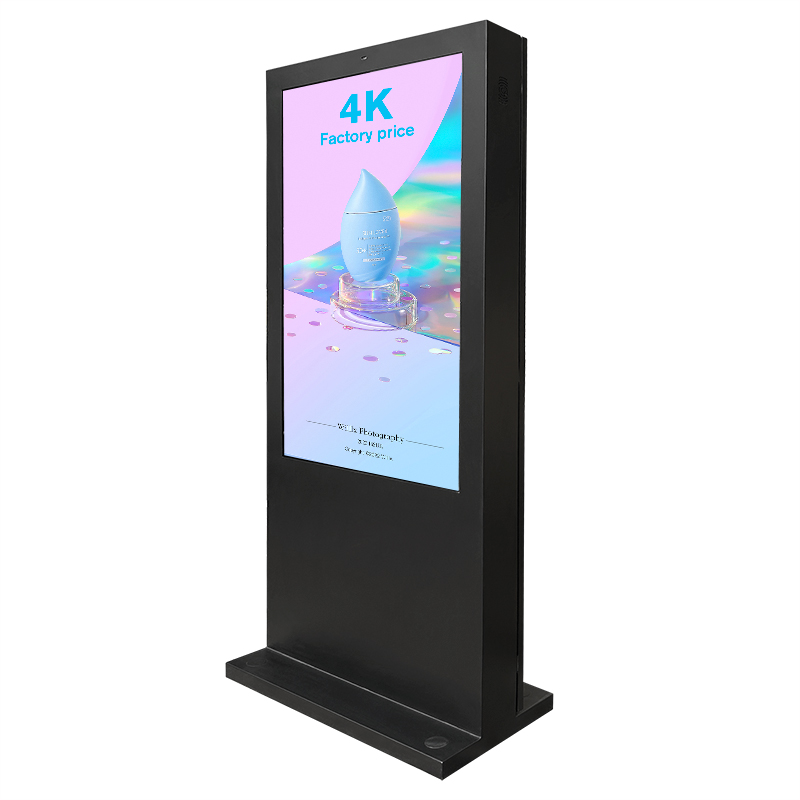

4k pcap display touch screen digital stand lcd digital lcd outdoor advertising ip65 waterproof vertical totem

waterproof digital screen android display vertical lcd advertising high brightness street outdoor stand totem

4k pcap display touch screen digital stand lcd digital lcd outdoor advertising ip65 waterproof vertical totem

Transform high-traffic public spaces with cutting-edge visual engagement. Our 4K PCAP Touchscreen Digital Totem is engineered for premium outdoor and semi-outdoor advertising, combining ultra-high-definition clarity, responsive interactive touch, and rugged all-weather durability in a sleek vertical design.

Brand:
Dinosaur D

size:	32 43 49 55 65 75 86 inch optional
tempered glass thickness:	6 mm tempered glass
resolution:	19201080 or 38402160
brightnees:	2500nit
protection level:	ip65
lifespan:	>50000 hours
Input voltage:	AC110-240V,50/60Hz
Availability:

Quantity:



Inquire Add to Basket

Key Features

1. Ultra-Crisp 4K Visuals
A stunning 4K LCD display delivers unmatched image clarity, vibrant color, and sharp detail, ensuring your content stands out with maximum impact even from a distance. Perfect for high-resolution video, dynamic ads, and interactive graphics.

2. Premium Projected Capacitive (PCAP) Touchscreen
Features a highly responsive, multi-touch PCAP touch layer that supports smooth, precise gestures—even in challenging outdoor lighting. Offers superior optical clarity and scratch resistance for a premium user experience in public environments.

3. True Outdoor Durability with IP65 Rating
Built to withstand the elements with a robust IP65 waterproof and dustproof enclosure. Fully protected against rain, dust, humidity, and temperature fluctuations, ensuring reliable 24/7 performance in outdoor locations.

4. High-Brightness & Anti-Glare Display
Equipped with an ultra-bright LCD panel (≥2000 nits) and anti-reflective coating. Guarantees excellent visibility and readability under direct sunlight or bright ambient light conditions.

5. All-in-One Vertical Totem Design
A sleek, freestanding vertical kiosk design optimized for space efficiency and high visibility. Includes an integrated media player, secure locking system, and a stable base engineered for public installation.

6. Versatile Connectivity & Remote Management
Supports Wi-Fi, Ethernet, and 4G/5G options. Compatible with leading digital signage CMS platforms for seamless remote content scheduling, real-time updates, and performance monitoring.

outdoor-digital-signage_01 outdoor-digital-signage_02 outdoor-digital-signage_03 outdoor-digital-signage_04 outdoor-digital-signage_05 outdoor-digital-signage_06 outdoor-digital-signage_07 outdoor-digital-signage_08 outdoor-digital-signage_09 outdoor-digital-signage_10

structure	product dimension	690mm(L)400mm(W)1800mm(H)
	product net weight	80KG
	protect level	outdoor IP65
	casing color	black
	shell material	Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder
	glass	6 mm tempered glass with light transmittance of more than 98%.
	Security	three-level door lock protection, hidden screw design, electronic magnetic lock
	dissipation system	The fan speed can be automatically adjusted according to the operating temperature, with heating function
	brightness control	Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm
	interface	USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder
	camera optional	500W pixels
	loudspeaker	8Ω10W * 2
protection	waterproof	three layers of composite sealing rubber strip
	anti-electric leakage	3C certified brand leakage protector
	anti-thunder	unique lightning protection device
	dust proof	internal high air volume filter device
	anti-explosion	6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97%
	Anti-glare glass optional	6mm AR anti-reflection glass. AR coating is adopted
	anti-rust	galvanized steel sheet and outdoor double-sided spraying outdoor powder
screen panel specification	screen size	43 inch LCD screen panel
	display area	530mm*942mm
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Contrast	3500:1
	Brightness	2500cd/㎡
	color	16.7 M
	Display Scale	16 : 9
	lifespan	>50000 hours
	refresh rate	60Hz
	respond time	6ms
parameter of touch	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -40 °C to 55°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP65 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet metal are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
Power	Input voltage	AC110-240V,50/60Hz
	power consumption	≤300w
working environment	temperature control	fan cooling (air cooling optional)
	operation temperature	-20°C to +50°C
	storage temperarure	-20°C to +60°C
	operation humidity	5% to 90%
quality standard	ISO9001
environmental protection standard	Meet international environmental standards
power management	Meets VESA DPMS standard

1. Q: What is the advantage of a PCAP touchscreen over other touch technologies for outdoor use?
A: PCAP (Projected Capacitive) touch offers superior clarity, scratch resistance, and excellent optical performance. It supports true multi-touch gestures (like pinch-to-zoom) and remains highly responsive even with screen protectors or in wet conditions (like light rain on the surface), making it ideal for demanding public and outdoor interactive applications.

2. Q: Is the 4K resolution necessary for an outdoor display? How does it help?
A: Absolutely. 4K UHD resolution provides four times the pixels of Full HD, resulting in incredibly sharp text, ultra-detailed images, and stunning video clarity. This is crucial for capturing attention from a distance, displaying complex information (like maps or product details), and ensuring your high-quality brand content looks its absolute best, even on a large screen.

3. Q: The product is rated IP65. What does this mean for outdoor installation?
A: An IP65 rating certifies that the unit is fully protected against dust ingress and can withstand low-pressure water jets from any direction. This means it is completely suitable for permanent outdoor installation, as it is resistant to rain, dust, humidity, and can be cleaned with water—providing peace of mind for 24/7 operation in all weather.

4. Q: How bright is the display, and will it be visible in direct sunlight?
A: This totem is equipped with a high-brightness LCD panel, typically 2000 nits or higher, combined with an anti-glare glass treatment. This combination ensures excellent visibility, vibrant colors, and high contrast even under direct sunlight, overcoming the primary challenge of outdoor digital signage.

5. Q: Is the media player integrated, and what system does it use?
A: Yes, it features a powerful, industrial-grade media player integrated into the totem enclosure. It typically runs a stable Android or Linux OS, providing an open platform for installing various digital signage CMS apps, interactive software, and supporting 4K video decoding seamlessly.

6. Q: Can the content be managed remotely for multiple units?
A: Yes. Once connected to the internet (via Ethernet, Wi-Fi, or cellular), you can use cloud-based digital signage software to remotely manage content, schedule playlists, update interactive apps, and monitor the status and health of an entire network of totems from a single dashboard.

7. Q: What is the installation process? Does it require special mounting or power?
A: The freestanding totem is designed for straightforward installation. It requires a stable, level surface (like concrete), access to a standard grounded power outlet (AC 100-240V), and an internet connection. The unit is typically delivered as an assembled or easily assembled kit with a secure base.

8. Q: How is the device cooled in hot outdoor temperatures?
A: The enclosure features an efficient, intelligent thermal management system. This includes waterproof fans, heat sinks, and internal ventilation designed to maintain optimal operating temperatures even in high ambient heat, ensuring long-term reliability and preventing overheating.

9. Q: What interactive software or content is compatible?
A: The open platform (like Android) supports a wide range of software. You can run interactive wayfinding, product catalogs, quizzes, video walls (with multiple units), QR code generators, and custom HTML5 applications. Most major digital signage CMS platforms (e.g., YoDeck, ScreenCloud, Signagelive) offer compatible players.

10. Q: What is the warranty, and are there service options for outdoor maintenance?
A: We provide a comprehensive commercial warranty, typically covering parts and labor for 1 to 3 years. Given the critical nature of outdoor installations, we strongly recommend an optional extended service plan. This can include proactive remote monitoring, priority support, and scheduled on-site maintenance checks to ensure maximum uptime.
