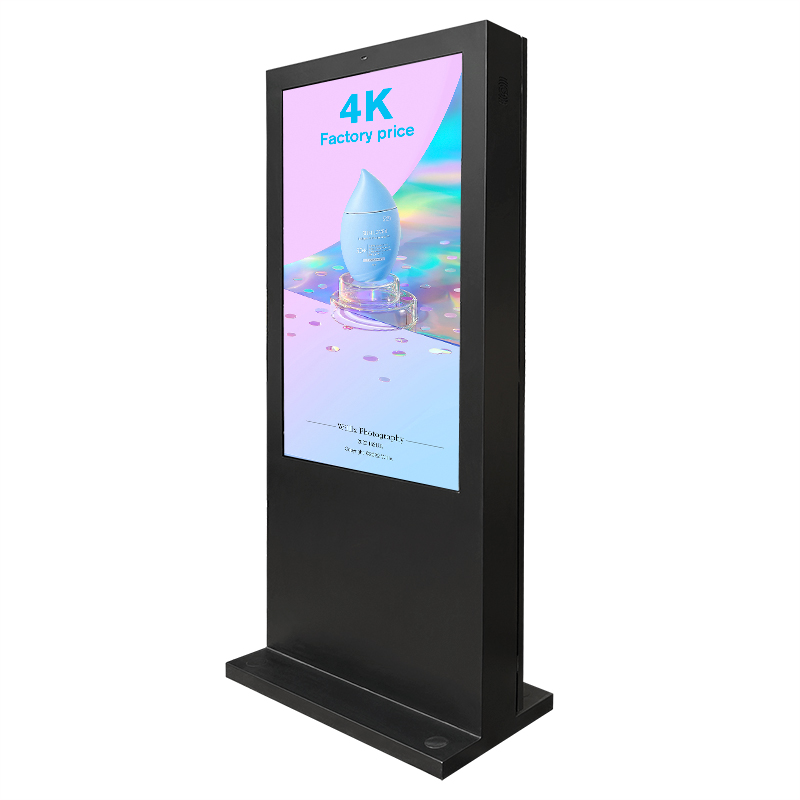

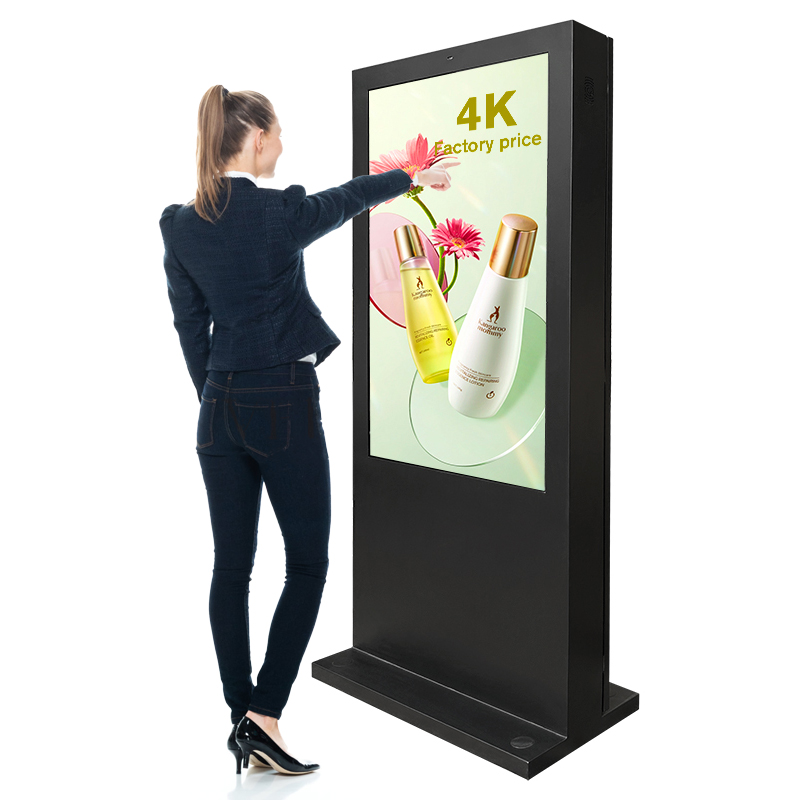

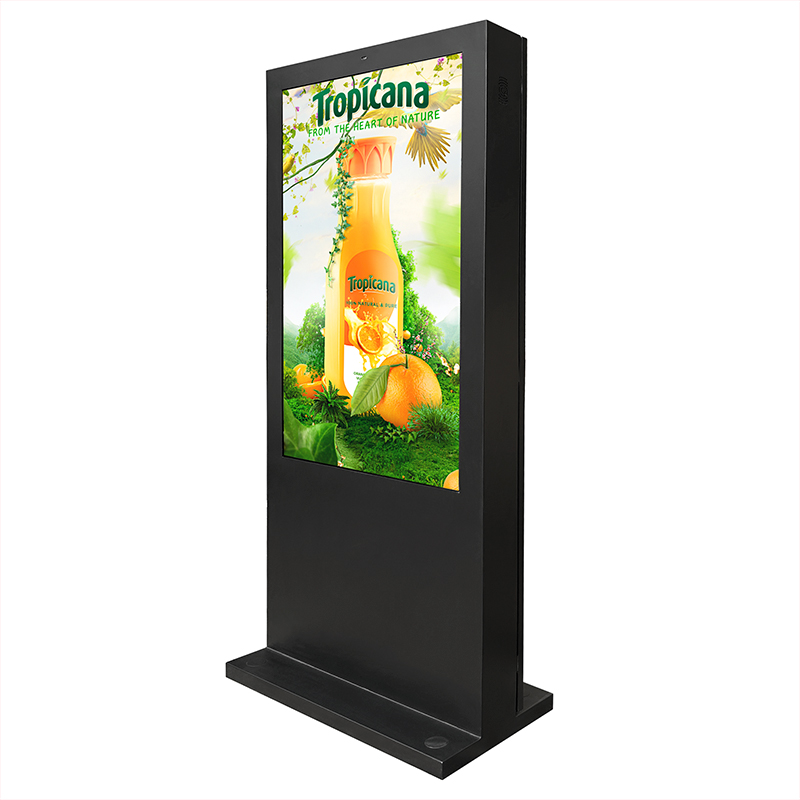

32 43 49 55 65 inch 2500nit outside display floor stand player waterproof lcd screen outdoor digital wifi totem

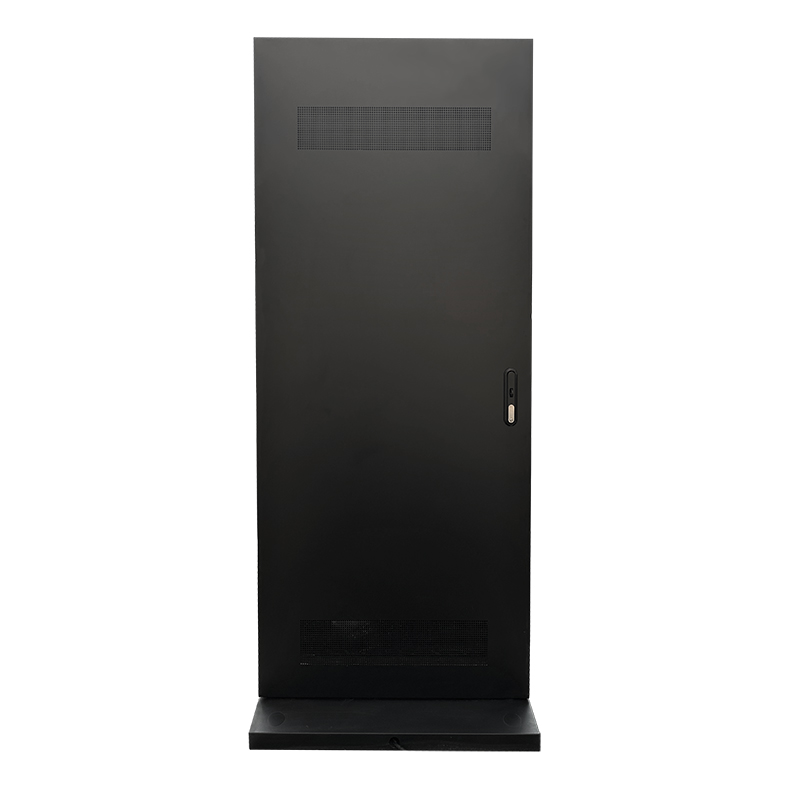

electronic lcd commercial ip65 free cms remote control stand touch screen advertising player 2500 nit display outdoor totem

49 55 65 75 86 inch Customizable Outdoor Digital Signage Solution with Size， Module & Appearance Options

Your vision, our engineering. We offer solutions, not just products. Whether it's a unique installation environment, a distinctive aesthetic design, or the need to integrate specific smart hardware, we collaborate with you to turn concepts into reliable, customized outdoor digital signage.

Brand:
Dinosaur D

size:	32 43 49 55 65 75 86 inch optional
tempered glass thickness:	6 mm tempered glass
resolution:	19201080 or 38402160
brightnees:	2500nit
protection level:	ip65
lifespan:	>50000 hours
Input voltage:	AC110-240V,50/60Hz
Availability:

Quantity:



Inquire Add to Basket

Your Dedicated Outdoor Digital Signage Partner
We specialize in providing deeply customized outdoor digital signage hardware solutions for system integrators, advertising operators, brand enterprises, and government projects. Understanding that standard products cannot meet all needs, we offer full-spectrum customization:

Flexible Core Specifications: Choose from standard sizes like 43”, 49”, 55”, and 65”, or request custom dimensions to fit specific installation spaces and visual requirements.
Comprehensive Appearance & Structure Customization:

Device Appearance: Customize enclosure color, surface finish (e.g., brushed, powder coating), and brand logo integration.
Structural Design: Modify internal support and external framing based on installation methods (wall mount, floor stand, embedded, hanging).
Installation Method: Provide dedicated bracket solutions for your custom structure.

On-Demand Functional Module Integration: Our device is a modular platform that can integrate various modules per your project needs:

Communication: 4G/5G, Wi-Fi, Bluetooth, Ethernet.
Sensing & Interaction: HD camera, microphone, ambient light sensor, NFC reader, RFID reader/writer, ID card reader, GPS.
Payment: Magstripe/IC card reader, QR code scanner.
Interface Expansion: Custom layout and number of USB, HDMI, serial ports, etc.

Hardware-Software Integration Support: While providing custom hardware, we can assist with basic device management software integration and ensure hardware compatibility with your chosen CMS or interactive applications.
Factory-Direct Quality & Pricing Advantage: As the manufacturer, we control the entire process from design to production, ensuring quality in custom products while eliminating middlemen to offer the most competitive factory price. Contact our sales department to discuss your customization needs in detail.

outdoor-digital-signage_01 outdoor-digital-signage_02 outdoor-digital-signage_03 outdoor-digital-signage_04 outdoor-digital-signage_05 outdoor-digital-signage_06 outdoor-digital-signage_07 outdoor-digital-signage_08 outdoor-digital-signage_09 outdoor-digital-signage_10

structure	product dimension	690mm(L)400mm(W)1800mm(H)
	product net weight	80KG
	protect level	outdoor IP65
	casing color	black
	shell material	Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder
	glass	6 mm tempered glass with light transmittance of more than 98%.
	Security	three-level door lock protection, hidden screw design, electronic magnetic lock
	dissipation system	The fan speed can be automatically adjusted according to the operating temperature, with heating function
	brightness control	Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm
	interface	USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder
	camera optional	500W pixels
	loudspeaker	8Ω10W * 2
protection	waterproof	three layers of composite sealing rubber strip
	anti-electric leakage	3C certified brand leakage protector
	anti-thunder	unique lightning protection device
	dust proof	internal high air volume filter device
	anti-explosion	6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97%
	Anti-glare glass optional	6mm AR anti-reflection glass. AR coating is adopted
	anti-rust	galvanized steel sheet and outdoor double-sided spraying outdoor powder
screen panel specification	screen size	43 inch LCD screen panel
	display area	530mm*942mm
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Contrast	3500:1
	Brightness	2500cd/㎡
	color	16.7 M
	Display Scale	16 : 9
	lifespan	>50000 hours
	refresh rate	60Hz
	respond time	6ms
parameter of touch	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -40 °C to 55°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP65 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet metal are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
Power	Input voltage	AC110-240V,50/60Hz
	power consumption	≤300w
working environment	temperature control	fan cooling (air cooling optional)
	operation temperature	-20°C to +50°C
	storage temperarure	-20°C to +60°C
	operation humidity	5% to 90%
quality standard	ISO9001
environmental protection standard	Meet international environmental standards
power management	Meets VESA DPMS standard

1. What is the difference between the available sizes (32”, 43”, 49”, 55”, 65”), and how do I choose?
The primary differences are screen real estate and viewing distance. Choose based on your location: use 32”-43” for close-up pedestrian traffic (e.g., queue lines, kiosks), 49”-55” for moderate-distance viewing (e.g., store entrances, lobbies), and 65” for maximum impact in large, open spaces (e.g., plaza centers, major transit halls). All sizes share the same 2500-nit brightness and core features.

2. How does the 2500-nit brightness perform on a 32-inch screen versus the 65-inch model?
The 2500-nit brightness rating is consistent across all sizes, ensuring excellent sunlight readability for each. The perceived intensity is similar; the larger screen offers a bigger, more impactful visual canvas, but the smaller screen will appear equally bright and clear at its appropriate viewing distance.

3. Is the floor stand included, and is it stable in windy outdoor conditions?
Yes, a sturdy, weighted floor stand is included as part of the all-in-one totem design. For standard use, its base provides ample stability. For permanent installations in consistently windy locations, we highly recommend using the provided anchor kit to bolt the stand securely to the ground for added safety.

4. What does "waterproof" mean for the screen and the internal player?
The unit has an IP65 rating, meaning the entire enclosure—including the screen, player compartment, and ports—is sealed against dust and low-pressure water jets from any direction. This protects it from rain, splashing, humidity, and dust, allowing for safe outdoor operation.

5. Can I connect to the player via Wi-Fi if the outdoor location has a weak signal?
Yes, the built-in player has dual-band Wi-Fi (2.4GHz and 5GHz). For locations with weak Wi-Fi, we recommend using the Ethernet port for a more reliable wired connection. An optional 4G/LTE module is also available for areas without any local network infrastructure.

6. How do I update the content, and what media formats are supported?
Content is managed remotely via a cloud-based CMS accessed through a web browser or app. Simply upload your files, schedule playlists, and publish. The player supports all standard formats: videos (MP4, AVI), images (JPEG, PNG), PowerPoint (PPTX), PDFs, and HTML5 for interactive content.

7. Does the display have automatic brightness adjustment, or is it always at 2500 nits?
The standard model maintains a consistent high brightness for guaranteed visibility. However, an optional ambient light sensor is available. If equipped, the sensor will automatically adjust the brightness (e.g., lowering it at night) to save energy and reduce light pollution while maintaining perfect readability.

8. What is the power requirement, and is the cable included?
The display operates on standard 100-240V AC power. A regional appropriate power cable is included in the box. For sites where AC power is difficult to access, please inquire about our optional Power-over-Ethernet (PoE++) solutions, which can deliver both power and data through a single cable.

9. Can the media player run third-party apps or a custom kiosk software?
Yes. The player typically runs on an Android or Linux-based system, allowing for the installation of third-party apps (e.g., social media feeds, data dashboards) or the setup of a single, dedicated kiosk-mode application. Advanced software integration support is available for enterprise clients.

10. Is professional installation required, and what is the warranty?
While designed for straightforward deployment, we recommend professional installation for permanent public installations to ensure safety, optimal placement, and proper network/power setup. The standard warranty is 3 years on the panel and 2 years on internal components, with extended service plans available.
