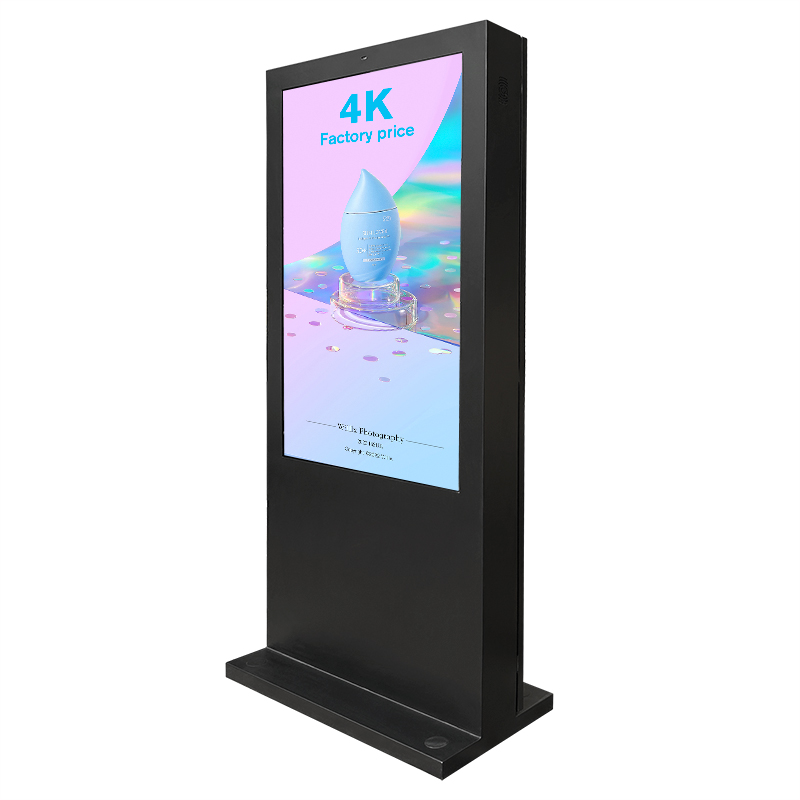

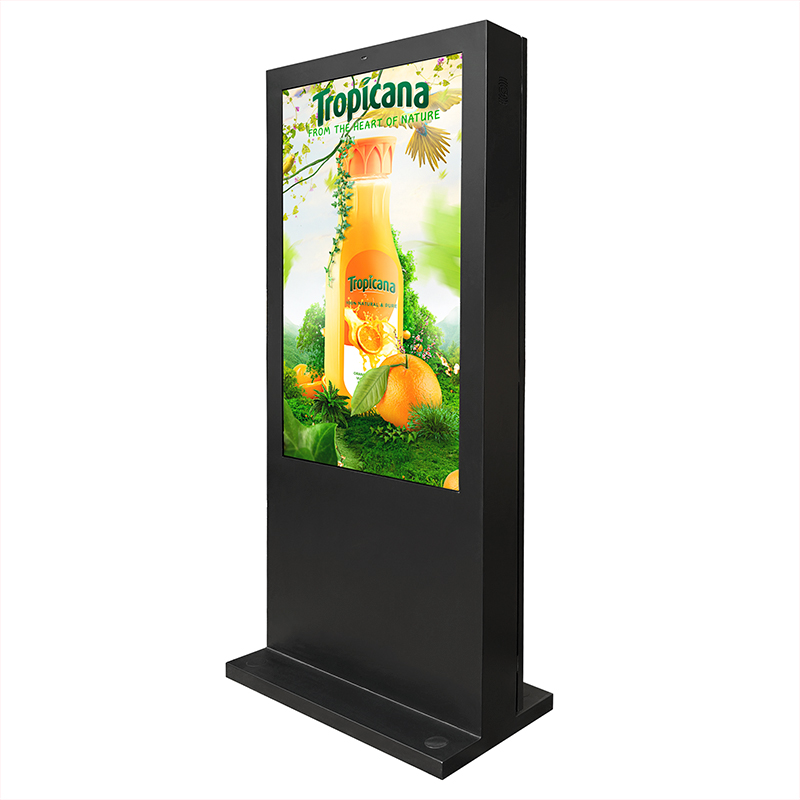

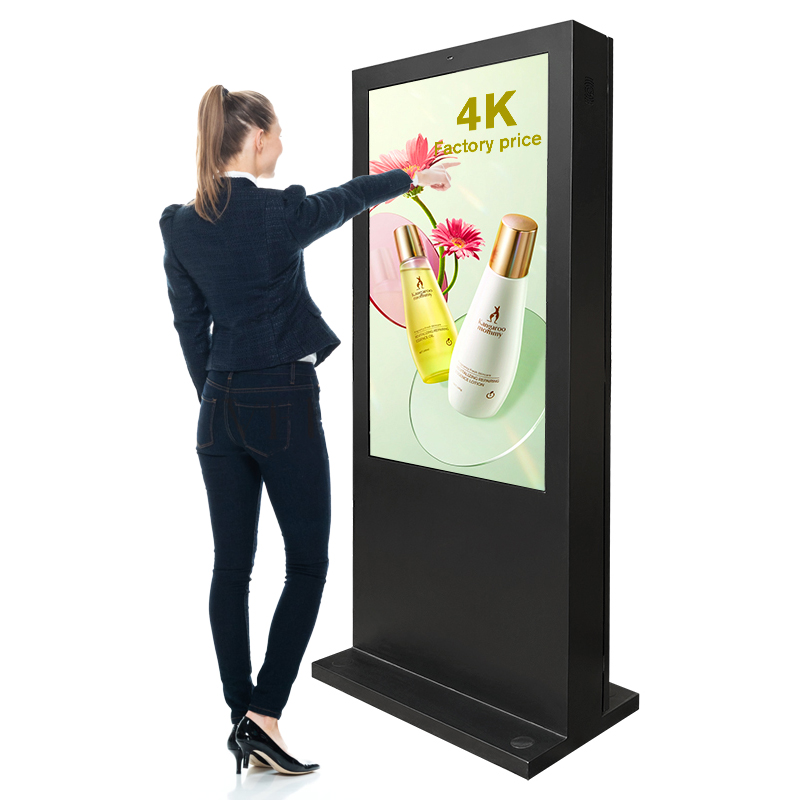

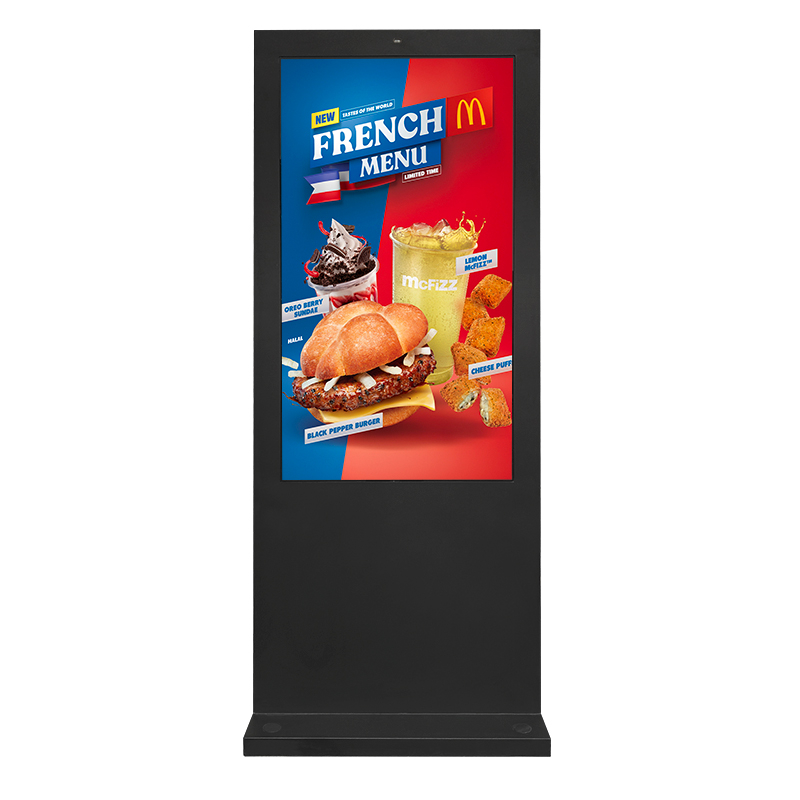

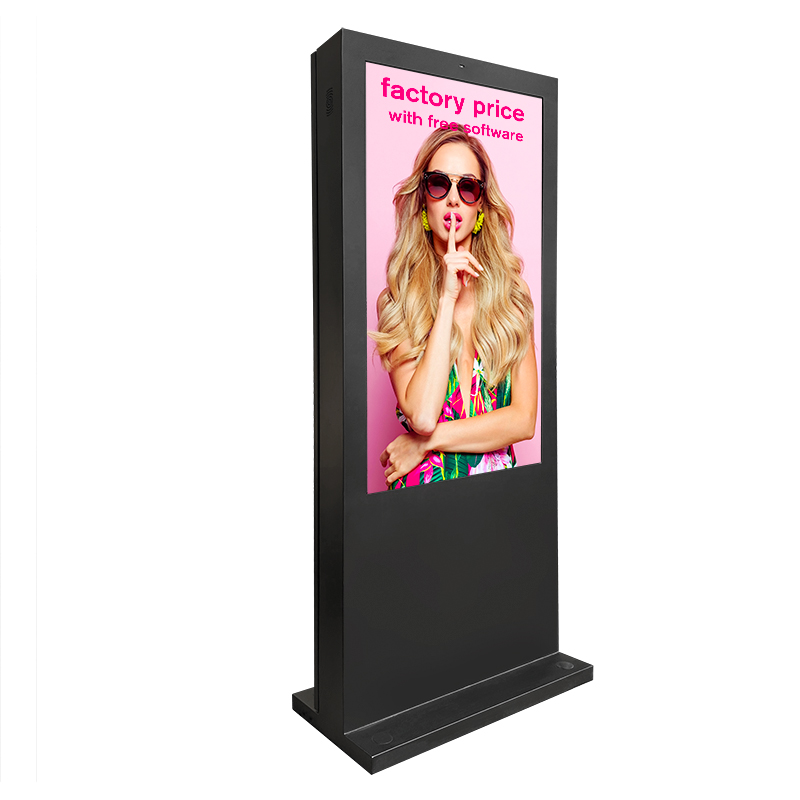

Dinosaur D
| size: | |
|---|---|
| tempered glass thickness: | |
| resolution: | |
| brightnees: | |
| protection level: | |
| lifespan: | |
| Input voltage: | |
| Availability: | |
| Quantity: | |
Key Features:
High Brightness & Sunlight Readability: Enhanced LCD technology ensures clear visibility in bright outdoor conditions.
IP65 Waterproof & Dustproof Rating: Fully protected against dust and water jets, suitable for all weather conditions.
Durable & Stable Stand Design: Sturdy totem-style stand provides reliable placement for both temporary and long-term outdoor use.
Customizable Advertising Display: Tailor content to your branding or promotional needs with dynamic digital visuals.
Versatile Application: Perfect for outdoor events, retail advertising, exhibitions, public information, and more.
Key Features:
High Brightness & Sunlight Readability: Enhanced LCD technology ensures clear visibility in bright outdoor conditions.
IP65 Waterproof & Dustproof Rating: Fully protected against dust and water jets, suitable for all weather conditions.
Durable & Stable Stand Design: Sturdy totem-style stand provides reliable placement for both temporary and long-term outdoor use.
Customizable Advertising Display: Tailor content to your branding or promotional needs with dynamic digital visuals.
Versatile Application: Perfect for outdoor events, retail advertising, exhibitions, public information, and more.
| structure | product dimension | 690mm(L)*400mm(W)*1800mm(H) | ||||
| product net weight | 80KG | |||||
| protect level | outdoor IP65 | |||||
| casing color | black | |||||
| shell material | Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder | |||||
| glass | 6 mm tempered glass with light transmittance of more than 98%. | |||||
| Security | three-level door lock protection, hidden screw design, electronic magnetic lock | |||||
| dissipation system | The fan speed can be automatically adjusted according to the operating temperature, with heating function | |||||
| brightness control | Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm | |||||
| interface | USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder | |||||
| camera optional | 500W pixels | |||||
| loudspeaker | 8Ω10W * 2 | |||||
| protection | waterproof | three layers of composite sealing rubber strip | ||||
| anti-electric leakage | 3C certified brand leakage protector | |||||
| anti-thunder | unique lightning protection device | |||||
| dust proof | internal high air volume filter device | |||||
| anti-explosion | 6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97% | |||||
| Anti-glare glass optional | 6mm AR anti-reflection glass. AR coating is adopted | |||||
| anti-rust | galvanized steel sheet and outdoor double-sided spraying outdoor powder | |||||
| screen panel specification | screen size | 43 inch LCD screen panel | ||||
| display area | 530mm*942mm | |||||
| resolution | 1920*1080 | |||||
| view angles | 178°（H）/178°（V） | |||||
| Contrast | 3500:1 | |||||
| Brightness | 2500cd/㎡ | |||||
| color | 16.7 M | |||||
| Display Scale | 16 : 9 | |||||
| lifespan | >50000 hours | |||||
| refresh rate | 60Hz | |||||
| respond time | 6ms | |||||
| parameter of touch | touch way | fingers | ||||
| effective touch recognition | ≥5mm | |||||
| touch accuracy | ±5mm | |||||
| touch point | 10 point | |||||
| first point response time | ≤10ms | |||||
| Fan cooling system | intelligent air cooling system for heat dissipation | |||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | ||||||
| The LCD screen does not blacken at -40 °C to 55°C | ||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | ||||||
| patented cooling system | ||||||
| Ensure that the LCD screen is not blackened in direct sunlight | ||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | ||||||
| intelligent control fan wind speed | ||||||
| product test | IP65 test | |||||
| high temperature aging | ||||||
| low temperature aging | ||||||
| simulated sunlight test | ||||||
| water proof test | ||||||
| surface treatment | wash | all parts of the sheet metal are cleaned in an acidic and alkaline manner | ||||
| anti-rust | Spray anti-rust paint | |||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | |||||
| Power | Input voltage | AC110-240V,50/60Hz | ||||
| power consumption | ≤300w | |||||
| working environment | temperature control | fan cooling (air cooling optional) | ||||
| operation temperature | -20°C to +50°C | |||||
| storage temperarure | -20°C to +60°C | |||||
| operation humidity | 5% to 90% | |||||
| quality standard | ISO9001 | |||||
| environmental protection standard | Meet international environmental standards | |||||
| power management | Meets VESA DPMS standard | |||||
| structure | product dimension | 690mm(L)*400mm(W)*1800mm(H) | ||||
| product net weight | 80KG | |||||
| protect level | outdoor IP65 | |||||
| casing color | black | |||||
| shell material | Hot-dip galvanized steel plate T=1.5 + outdoor double-sided spraying outdoor powder | |||||
| glass | 6 mm tempered glass with light transmittance of more than 98%. | |||||
| Security | three-level door lock protection, hidden screw design, electronic magnetic lock | |||||
| dissipation system | The fan speed can be automatically adjusted according to the operating temperature, with heating function | |||||
| brightness control | Automatic photosensitive probe - automatically recognizes the surrounding environment and automatically adjusts the brightness of the screenm | |||||
| interface | USB, VGA output, HDMI output, AV input, SD card slot( supports up to 32GB), microphone, Clock battery holder | |||||
| camera optional | 500W pixels | |||||
| loudspeaker | 8Ω10W * 2 | |||||
| protection | waterproof | three layers of composite sealing rubber strip | ||||
| anti-electric leakage | 3C certified brand leakage protector | |||||
| anti-thunder | unique lightning protection device | |||||
| dust proof | internal high air volume filter device | |||||
| anti-explosion | 6MM tempered glass, explosion-proof, UV proof, low reflection, transmittance of more than 97% | |||||
| Anti-glare glass optional | 6mm AR anti-reflection glass. AR coating is adopted | |||||
| anti-rust | galvanized steel sheet and outdoor double-sided spraying outdoor powder | |||||
| screen panel specification | screen size | 43 inch LCD screen panel | ||||
| display area | 530mm*942mm | |||||
| resolution | 1920*1080 | |||||
| view angles | 178°（H）/178°（V） | |||||
| Contrast | 3500:1 | |||||
| Brightness | 2500cd/㎡ | |||||
| color | 16.7 M | |||||
| Display Scale | 16 : 9 | |||||
| lifespan | >50000 hours | |||||
| refresh rate | 60Hz | |||||
| respond time | 6ms | |||||
| parameter of touch | touch way | fingers | ||||
| effective touch recognition | ≥5mm | |||||
| touch accuracy | ±5mm | |||||
| touch point | 10 point | |||||
| first point response time | ≤10ms | |||||
| Fan cooling system | intelligent air cooling system for heat dissipation | |||||
| The fan speed regulating board can intelligently control the wind speed and save energy and electricity | ||||||
| The LCD screen does not blacken at -40 °C to 55°C | ||||||
| Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C) | ||||||
| patented cooling system | ||||||
| Ensure that the LCD screen is not blackened in direct sunlight | ||||||
| Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk | ||||||
| intelligent control fan wind speed | ||||||
| product test | IP65 test | |||||
| high temperature aging | ||||||
| low temperature aging | ||||||
| simulated sunlight test | ||||||
| water proof test | ||||||
| surface treatment | wash | all parts of the sheet metal are cleaned in an acidic and alkaline manner | ||||
| anti-rust | Spray anti-rust paint | |||||
| spray | Spray outdoor powder (ensure 5-8 years do not drop paint, paint off) | |||||
| Power | Input voltage | AC110-240V,50/60Hz | ||||
| power consumption | ≤300w | |||||
| working environment | temperature control | fan cooling (air cooling optional) | ||||
| operation temperature | -20°C to +50°C | |||||
| storage temperarure | -20°C to +60°C | |||||
| operation humidity | 5% to 90% | |||||
| quality standard | ISO9001 | |||||
| environmental protection standard | Meet international environmental standards | |||||
| power management | Meets VESA DPMS standard | |||||
Retail & Shopping Malls
Outdoor promotional displays, entrance advertising, seasonal sales campaigns, and brand experience zones.
Corporate & Office Campuses
Wayfinding totems, company announcement boards, outdoor welcome signage, and visitor information points.
Public Venues & Events
Festivals, sports events, exhibitions, and concert venues for advertising, schedules, and live updates.
Hospitality & Tourism
Hotel/resort outdoor signage, poolside advertising, tourist information kiosks, and attraction promotions.
Transportation Hubs
Airport, train station, or bus terminal advertising stands, directional signage, and timetable displays.
Quick-Service Restaurants & Cafés
Outdoor menu boards, promotional offers, and drive-thru advertising.
Real Estate & Property Development
Construction site branding, project information boards, and outdoor property advertisements.
Automotive & Fuel Stations
Forecourt advertising, new vehicle promotions, and service information displays.
Education & Institutions
Campus event signage, outdoor announcement boards, and directional totems.
Municipal & Public Services
Public information screens, community notices, emergency alerts, and wayfinding in parks or civic areas.
Retail & Shopping Malls
Outdoor promotional displays, entrance advertising, seasonal sales campaigns, and brand experience zones.
Corporate & Office Campuses
Wayfinding totems, company announcement boards, outdoor welcome signage, and visitor information points.
Public Venues & Events
Festivals, sports events, exhibitions, and concert venues for advertising, schedules, and live updates.
Hospitality & Tourism
Hotel/resort outdoor signage, poolside advertising, tourist information kiosks, and attraction promotions.
Transportation Hubs
Airport, train station, or bus terminal advertising stands, directional signage, and timetable displays.
Quick-Service Restaurants & Cafés
Outdoor menu boards, promotional offers, and drive-thru advertising.
Real Estate & Property Development
Construction site branding, project information boards, and outdoor property advertisements.
Automotive & Fuel Stations
Forecourt advertising, new vehicle promotions, and service information displays.
Education & Institutions
Campus event signage, outdoor announcement boards, and directional totems.
Municipal & Public Services
Public information screens, community notices, emergency alerts, and wayfinding in parks or civic areas.
1. What sizes are available for this outdoor display?
We offer this model in six standard sizes: 32-inch, 43-inch, 49-inch, 55-inch, 65-inch, and 75-inch. Custom sizes are also available upon request from the factory.
2. Is the display really visible in direct sunlight?
Yes. The LCD screen is specially designed with high-brightness technology, making it fully sunlight-readable for clear visibility even in bright outdoor conditions.
3. What does the IP65 rating mean for this display?
IP65 means the display is completely dust-tight and protected against low-pressure water jets from any direction. It is built to withstand rain, dust, and humid outdoor environments.
4. Can the stand be adjusted or customized?
Yes. The stand is designed for stability and can be customized in height, tilt, and finish. Fixed or portable stand options are available to suit different installation needs.
5. What kind of content can be displayed?
The screen supports images, videos, live feeds, web pages, and interactive content via standard media inputs (HDMI, USB, etc.). It is compatible with most media players and content management systems.
6. Is installation complicated?
No. The stand-based design allows for quick setup without permanent mounting. Simply assemble the stand, place the display, connect power and signal cables, and it’s ready to use.
7. Can the display be used indoors as well?
Absolutely. While built for outdoor durability, its high brightness and sleek design make it suitable for bright indoor areas like airport terminals, shopping malls, or exhibition halls.
8. What is the operating temperature range?
This display is designed to operate reliably in a wide temperature range, typically from -20°C to 50°C (-4°F to 122°F), depending on the specific model and configuration.
9. How is the display powered?
It uses standard AC power (100-240V). For temporary or remote outdoor use, optional power solutions such as battery packs or solar power systems can be arranged.
10. Can I order custom branding or housing colors?
Yes. We offer factory-level customization, including branded logos, specific housing colors, and tailored housing designs to match your corporate identity or environmental theme.
1. What sizes are available for this outdoor display?
We offer this model in six standard sizes: 32-inch, 43-inch, 49-inch, 55-inch, 65-inch, and 75-inch. Custom sizes are also available upon request from the factory.
2. Is the display really visible in direct sunlight?
Yes. The LCD screen is specially designed with high-brightness technology, making it fully sunlight-readable for clear visibility even in bright outdoor conditions.
3. What does the IP65 rating mean for this display?
IP65 means the display is completely dust-tight and protected against low-pressure water jets from any direction. It is built to withstand rain, dust, and humid outdoor environments.
4. Can the stand be adjusted or customized?
Yes. The stand is designed for stability and can be customized in height, tilt, and finish. Fixed or portable stand options are available to suit different installation needs.
5. What kind of content can be displayed?
The screen supports images, videos, live feeds, web pages, and interactive content via standard media inputs (HDMI, USB, etc.). It is compatible with most media players and content management systems.
6. Is installation complicated?
No. The stand-based design allows for quick setup without permanent mounting. Simply assemble the stand, place the display, connect power and signal cables, and it’s ready to use.
7. Can the display be used indoors as well?
Absolutely. While built for outdoor durability, its high brightness and sleek design make it suitable for bright indoor areas like airport terminals, shopping malls, or exhibition halls.
8. What is the operating temperature range?
This display is designed to operate reliably in a wide temperature range, typically from -20°C to 50°C (-4°F to 122°F), depending on the specific model and configuration.
9. How is the display powered?
It uses standard AC power (100-240V). For temporary or remote outdoor use, optional power solutions such as battery packs or solar power systems can be arranged.
10. Can I order custom branding or housing colors?
Yes. We offer factory-level customization, including branded logos, specific housing colors, and tailored housing designs to match your corporate identity or environmental theme.
