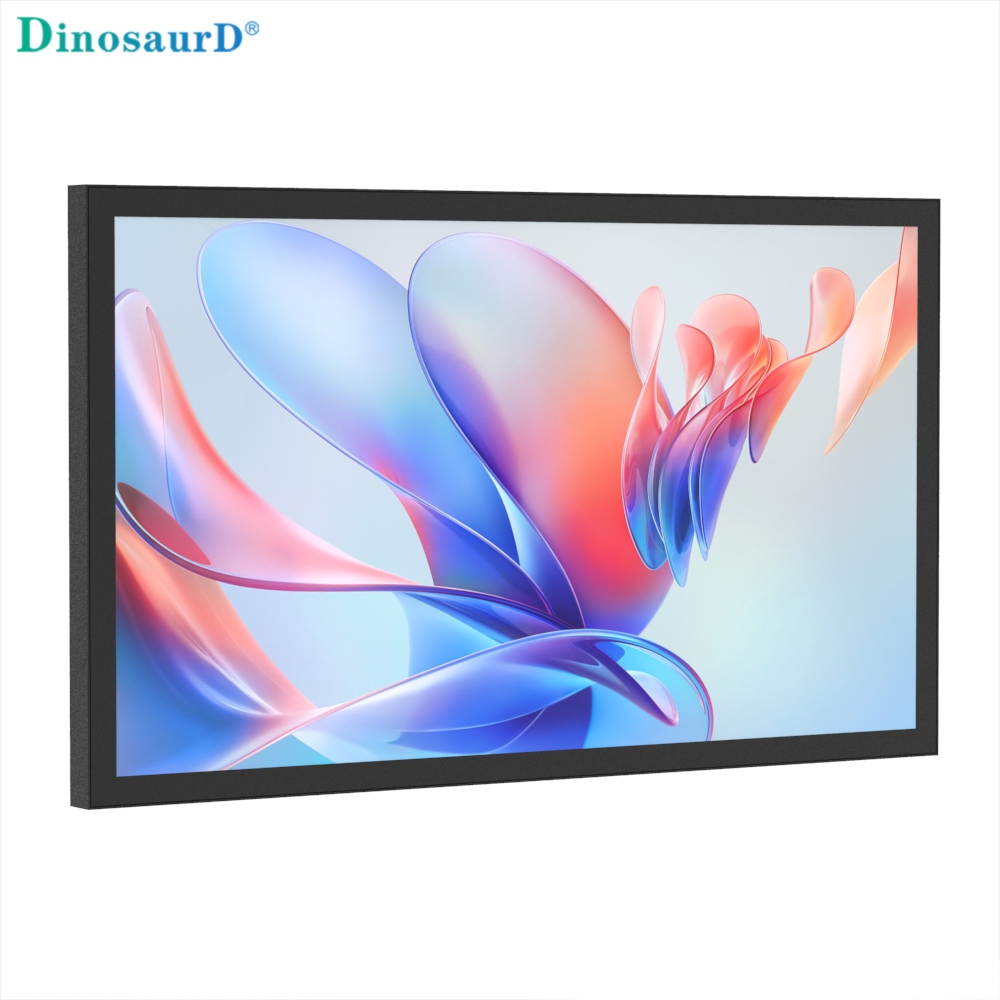

2500nit high brightness ultra thickness digital lcd waterproof outdoor weatherproof display ip66 advertising signage

subway public spaces waterproof high brightness digital advertising video player signage lcd display 4K outdoor ip66 tv

2500nit high brightness ultra thickness digital lcd waterproof outdoor weatherproof display ip66 advertising signage

Engineered for maximum impact in the most demanding outdoor environments, this digital LCD display sets a new standard for visibility and durability. Combining an ultra-high 2500-nit brightness rating with an ultra-thick, ruggedized construction and IP66-rated full protection, it is built to deliver vibrant, attention-grabbing content 24/7, regardless of weather conditions.

Brand:
Dinosaur D

size:	32 43 49 55 65inch optional
brightness:	2500nit
outdoor protect level:	outdoor IP66
protective glass:	IK10 grade 5mm AG etched toughened glass
brightness control:	automatic photosensitive technology
acoustic power:	8 ohm 2×5W
operation temparature:	-30°C to +80°C
Availability:

Quantity:



Inquire Add to Basket

Core Features & Benefits:

Unmatched Sunlight Visibility: With a peak brightness of 2500 nits, the display overcomes direct sunlight and ambient glare, ensuring content remains brilliantly clear, colorful, and readable even at midday.
Ultra-Rugged & Weatherproof Build: Featuring an ultra-thick, reinforced chassis and a true IP66 waterproof rating, it offers complete defense. It is fully dust-tight and protected against powerful water jets, built to withstand rain, snow, wind-blown debris, and extreme temperature fluctuations.
24/7 Outdoor Reliability: Designed for continuous operation, this signage provides dependable performance year-round in outdoor public spaces, transportation hubs, and commercial venues.
High-Impact Digital Advertising: The exceptional brightness and clarity make it a superior platform for dynamic advertisements, brand promotions, and promotional videos, capturing audience attention effectively.
Diverse Connectivity & Control: Supports standard digital interfaces and is compatible with various media players and content management systems (CMS) for seamless content scheduling and remote management.

Outdoor-Display-_01 Outdoor-Display-_02 Outdoor-Display-_03 Outdoor-Display-_04 Outdoor-Display-_05 Outdoor-Display-_06 Outdoor-Display-_07 Outdoor-Display-_08 Outdoor-Display-_09 Outdoor-Display-_10

screen panel specification	screen size	43 inch Industrial wide temperature OC panel
	display area	944.2mm*532.4mm
	product dimension	1007.6mm(L)88.9mm(W)595.8mm(H)
	protect level full	outdoor IP66
	resolution	1920*1080
	view angles	178°（H）/178°（V）
	Acoustic power	8 ohm 2×5W
	Contrast	1200：1
	Brightness	2500cd/㎡
	Protective glass	IK10 grade 5mm AG etched toughened glass
	Display Scale	16 : 9
	lifespan	50000h
	Casing color	black
	Brightness control	Automatic photosensitive technology
parameter of G+F touch screen	touch way	fingers
	effective touch recognition	≥5mm
	touch accuracy	±5mm
	touch point	10 point
	first point response time	≤10ms
interface
temperature control		Built-in temperature probe sensing equipment, effectively identify the temperature change in the machine. The temperature change can be displayed on the PCB LED. Intelligent control of the wind speed of the fan can be adjusted intelligently according to the temperature change. The temperature control display has a fan monitoring indicator, which can be monitored throughout the work.
brightness control		The built-in sensor can automatically adjust the brightness of the LCD display screen according to the the outdoor light. LED backlight control and sensing core technology can improve the light transmission, effectively identify, control, and adjust the brightness of LED backlight.
LED backlight		High brightness LCD screen, brightness reaches 3000 cd/m2. The LED backlight is used, with lifespan of over 50,000 hours, high environmental protection and energy saving dynamic contrast, and clear display picture. Combined with the heat dissipation scheme precise temperature control, the display 7*24 hours working brightness without attenuation.
protection	waterproof
	anti-electric leakage
	anti-thunder
	dust proof
	anti-explosion
	Anti-glare glass optional
	anti-rust
Fan cooling system	intelligent air cooling system for heat dissipation
	The fan speed regulating board can intelligently control the wind speed and save energy and electricity
	The LCD screen does not blacken at -30 °C to 80°C
	Self-dynamic temperature to ensure that the internal temperature of the machine is within the range of 5°C to 25°C (to ensure that the internal temperature of the machine is between -5°C and 55°C)
	patented cooling system
	Ensure that the LCD screen is not blackened in direct sunlight
	Built-in temperature probe sensing equipment, effectively identify the temperature change in the kiosk
	intelligent control fan wind speed
product test	IP66 test
	high temperature aging
	low temperature aging
	simulated sunlight test
	water proof test
surface treatment	wash	all parts of the sheet are cleaned in an acidic and alkaline manner
	anti-rust	Spray anti-rust paint
	spray	Spray outdoor powder (ensure 5-8 years do not drop paint, paint off)
shell	shell material	aluminum shell
Power	Input voltage	AC 100-305VAC
	power consumption	≤200W
	Operation temparature	-30°C to +80°C
	Operation humidity	5% to 90%

Q1: What does the 2500-nit brightness specification mean?
A: A 2500-nit rating refers to the screen's exceptionally high luminosity. This level of brightness ensures perfect visibility and color vividness even under direct, intense sunlight, making it ideal for outdoor advertising.

Q2: How does the "ultra thickness" design benefit the product?
A: The "ultra thickness" refers to the reinforced chassis and protective housing. This robust construction provides superior durability, enhanced heat dissipation for stable 24/7 operation, and greater protection against physical impacts and harsh weather elements.

Q3: What is the actual difference between "waterproof" and "weatherproof"?
A: In this context, "waterproof" (specifically IP66) certifies protection against powerful water jets and total dust ingress. "Weatherproof" is a broader term describing the product's overall ability to withstand various outdoor environmental conditions like rain, snow, wind, UV exposure, and temperature extremes.

Q4: Can this display truly operate in all weather conditions?
A: Yes. Built with an IP66-rated enclosure, specialized sealing, and components rated for wide temperature ranges, it is designed for reliable, continuous operation in rain, snow, heat, and cold. It is always recommended to check the specific operating temperature range in the manual.

Q5: Is the screen surface glare-resistant?
A: Yes. High-brightness displays like this one (2500 nits) typically incorporate an anti-glare or optical bonding treatment. This technology minimizes surface reflections from the sun and ambient light, further enhancing daytime readability.

Q6: What kind of content can I display, and how do I update it?
A: You can display high-resolution images, videos, and live data feeds. Content is managed via a connected media player (often optional) and updated remotely over a network using professional Content Management Software (CMS), allowing for easy scheduling and control.

Q7: What are the power requirements for this high-brightness display?
A: Due to its high brightness and robust construction, this display requires a standard commercial power connection (e.g., 100-240V AC). Specific power consumption details (watts) will be listed in the product specifications. We recommend consulting with an electrician for installation.

Q8: Does it require special maintenance for outdoor use?
A: Routine maintenance is minimal due to its sealed design. We recommend periodic visual inspections to clear any debris from vents or the outer casing and gently cleaning the screen with a soft, damp cloth using recommended cleaners to maintain optimal clarity.

Q9: What is the expected lifespan of this outdoor display?
A: When installed and operated within its specified parameters, the display is designed for a long operational lifespan, typically rated for tens of thousands of hours. The use of industrial-grade components and effective thermal management in the ultra-thick housing contributes to its longevity.

Q10: Is professional installation required?
A: Yes, professional installation is strongly recommended. This ensures the structural wall or mount can support the significant weight and size of the ultra-thick display, that all environmental seals are properly secured, and that electrical connections are safe and compliant with local codes.
