Reinvent the checkout experience and drive a revolution in retail efficiency
In the face of the persistent pressure on labor costs and the queue problems during peak hours, RetailPro Express offers a reliable solution. It is not merely a hardware device, but also a powerful automated platform, designed to enhance store throughput and customer satisfaction.

Key Features & Benefits:
1. Modular Flexibility:
Customize your kiosk with essential modules:
→ Integrated Camera (for promotions/security)
→ High-Speed QR Code Scanner
→ Instant Thermal Receipt Printer
→ Secure NFC Card/Contactless Payment Reader
Mix and match to perfectly suit your business needs.
2. Seamless Self-Ordering & Payment:
Customers enjoy effortless browsing, ordering, and secure payment (cashless & cash options) in one intuitive flow.
→ Dramatically Reduces Labor Costs
→ Minimizes Order Errors
→ Accelerates Transaction Speed

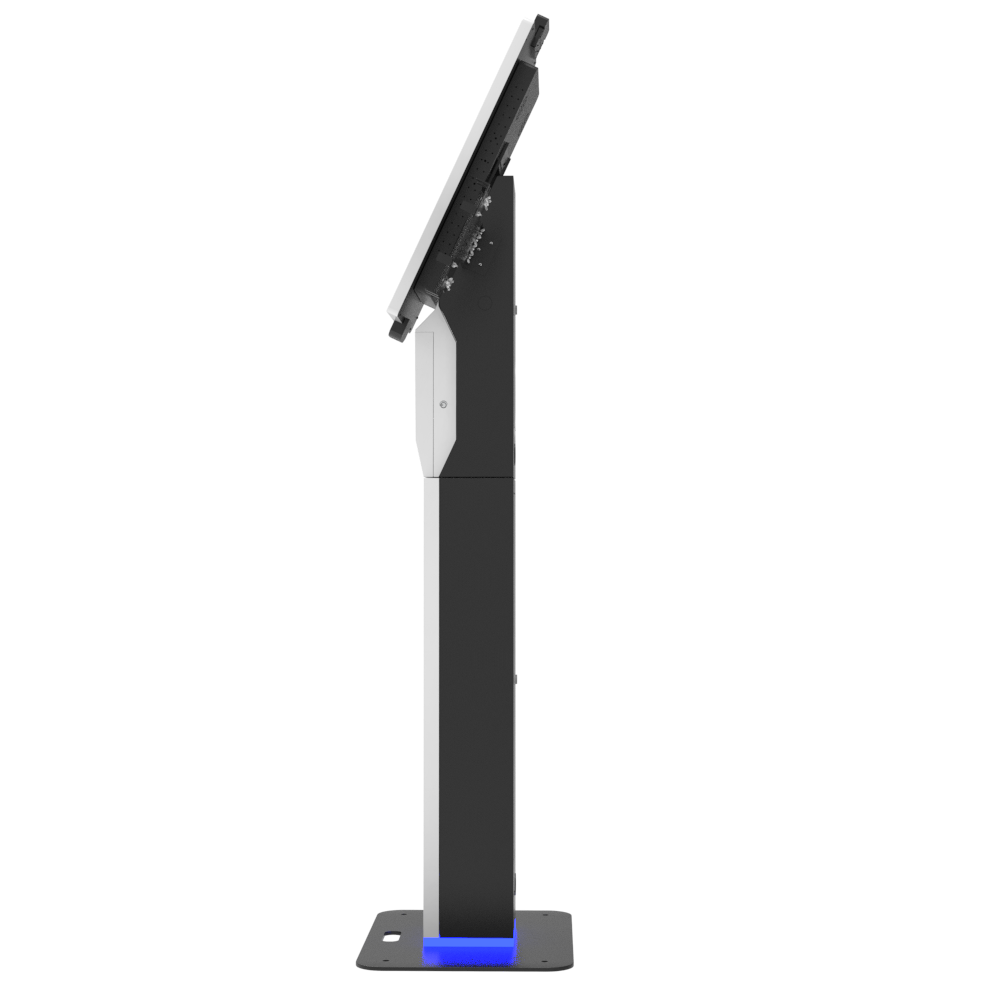

3. Optimized 70-Degree Viewing Angle:
Our ergonomically designed 70-degree tilted screen provides:
→ Perfect viewing comfort for all users
→ Reduced glare and reflections
→ Intuitive touch interaction





Why Choose Our Kiosk?
· Boost Efficiency: Free staff for high-value tasks while handling routine orders/payments.
· Enhance Customer Experience: Offer faster service, greater order accuracy, and modern convenience.
· Future-Proof Investment: Modular design allows for easy upgrades and feature additions.
· Space-Saving Design: Compact footprint integrates smoothly into any business environment.
· Ideal For: Restaurants (QSR, Casual Dining), Retail Stores, Cafes, Cinemas, Entertainment Venues, and more.
Transform your customer service and profitability. Experience the power of intelligent self-service.
Reinvent the checkout experience and drive a revolution in retail efficiency
In the face of the persistent pressure on labor costs and the queue problems during peak hours, RetailPro Express offers a reliable solution. It is not merely a hardware device, but also a powerful automated platform, designed to enhance store throughput and customer satisfaction.

Key Features & Benefits:
1. Modular Flexibility:
Customize your kiosk with essential modules:
→ Integrated Camera (for promotions/security)
→ High-Speed QR Code Scanner
→ Instant Thermal Receipt Printer
→ Secure NFC Card/Contactless Payment Reader
Mix and match to perfectly suit your business needs.
2. Seamless Self-Ordering & Payment:
Customers enjoy effortless browsing, ordering, and secure payment (cashless & cash options) in one intuitive flow.
→ Dramatically Reduces Labor Costs
→ Minimizes Order Errors
→ Accelerates Transaction Speed
3. Optimized 70-Degree Viewing Angle:
Our ergonomically designed 70-degree tilted screen provides:
→ Perfect viewing comfort for all users
→ Reduced glare and reflections
→ Intuitive touch interaction





Why Choose Our Kiosk?
· Boost Efficiency: Free staff for high-value tasks while handling routine orders/payments.
· Enhance Customer Experience: Offer faster service, greater order accuracy, and modern convenience.
· Future-Proof Investment: Modular design allows for easy upgrades and feature additions.
· Space-Saving Design: Compact footprint integrates smoothly into any business environment.
· Ideal For: Restaurants (QSR, Casual Dining), Retail Stores, Cafes, Cinemas, Entertainment Venues, and more.
Transform your customer service and profitability. Experience the power of intelligent self-service.
| Screen panel specification | Screen size | 15.6/21.5/23.8 inch | ||||
| Resolution | 1920*1080(2k) | |||||
| Touch Type | 10 points PCAP touch screen | |||||
| Brightness | 300cd/m2 (500 cd/m2 optional)(Typ.) (CR≥10) | |||||
| Number of Color | 16.7M,72%NTSC | |||||
| Response time | 8(ms) approximately | |||||
| Contrast | 4000:1 (Typ.) (transmission) | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Photo Formats | JPEG 、BMP 、GIF 、PNG | |||||
| Audio Formats | MP3、WAV、WMA | |||||
| Video Format | MP4、AVI、DIVX、XVID、VOB、DAT、MPG、MPEG、RM、RMVB、MKV、MOV、HDMOV、M4V | |||||
| Structure | Shell Material | Aluminum+Sheet Metal | ||||
| Product dimension | 540 mm*370mm*1627.05mm for 23.8 inch | |||||
| Speaker | 2×2W(8Ω) | |||||
| Casing color | White and black | |||||
| Thermal printer | model: PT80KM-A | |||||
| paper width: 80mm (Max) | ||||||
| resolution: 203 dpi | ||||||
| QR code scanner/Barcode (optional) | model: NLS-N1 | |||||
| imaging sensor: 640*480 CMOS | ||||||
| reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI Plessey | ||||||
| communication interface: TTL-232,USB | ||||||
| dimension: 21.5(W)×9.0(D)×7.0(H) mm | ||||||
| NFC/card reader (optional) | model: DK25M-232-ANT | |||||
| frequency: 13.56MHz | ||||||
| communication interface: UART-TTL | ||||||
| dimension: 21.6x54 mm | ||||||
| Camera (optional) | optical dimension: 1/2.7 inch COMS sensor | |||||
| pixel: 200W | ||||||
| sensor resolution: 1920 (H) x 1080 (V) | ||||||
| maximum frame rate: 30fps@1080P | ||||||
| dimension: 60x 10 x 9.5 mm | ||||||
| Power | Input Voltage | AC 100V~240V,50/60HZ | ||||
| Power Consumption | 50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (20 -- 80% ) | |||||
| Accessory | Power Cable, Allen key, Warranty card, quality inspection card | |||||
| Screen panel specification | Screen size | 15.6/21.5/23.8 inch | ||||
| Resolution | 1920*1080(2k) | |||||
| Touch Type | 10 points PCAP touch screen | |||||
| Brightness | 300cd/m2 (500 cd/m2 optional)(Typ.) (CR≥10) | |||||
| Number of Color | 16.7M,72%NTSC | |||||
| Response time | 8(ms) approximately | |||||
| Contrast | 4000:1 (Typ.) (transmission) | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Photo Formats | JPEG 、BMP 、GIF 、PNG | |||||
| Audio Formats | MP3、WAV、WMA | |||||
| Video Format | MP4、AVI、DIVX、XVID、VOB、DAT、MPG、MPEG、RM、RMVB、MKV、MOV、HDMOV、M4V | |||||
| Structure | Shell Material | Aluminum+Sheet Metal | ||||
| Product dimension | 540 mm*370mm*1627.05mm for 23.8 inch | |||||
| Speaker | 2×2W(8Ω) | |||||
| Casing color | White and black | |||||
| Thermal printer | model: PT80KM-A | |||||
| paper width: 80mm (Max) | ||||||
| resolution: 203 dpi | ||||||
| QR code scanner/Barcode (optional) | model: NLS-N1 | |||||
| imaging sensor: 640*480 CMOS | ||||||
| reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI Plessey | ||||||
| communication interface: TTL-232,USB | ||||||
| dimension: 21.5(W)×9.0(D)×7.0(H) mm | ||||||
| NFC/card reader (optional) | model: DK25M-232-ANT | |||||
| frequency: 13.56MHz | ||||||
| communication interface: UART-TTL | ||||||
| dimension: 21.6x54 mm | ||||||
| Camera (optional) | optical dimension: 1/2.7 inch COMS sensor | |||||
| pixel: 200W | ||||||
| sensor resolution: 1920 (H) x 1080 (V) | ||||||
| maximum frame rate: 30fps@1080P | ||||||
| dimension: 60x 10 x 9.5 mm | ||||||
| Power | Input Voltage | AC 100V~240V,50/60HZ | ||||
| Power Consumption | 50W | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (0℃-- 50 ℃) | |||||
| Operation humidity | (20 -- 80% ) | |||||
| Accessory | Power Cable, Allen key, Warranty card, quality inspection card | |||||
