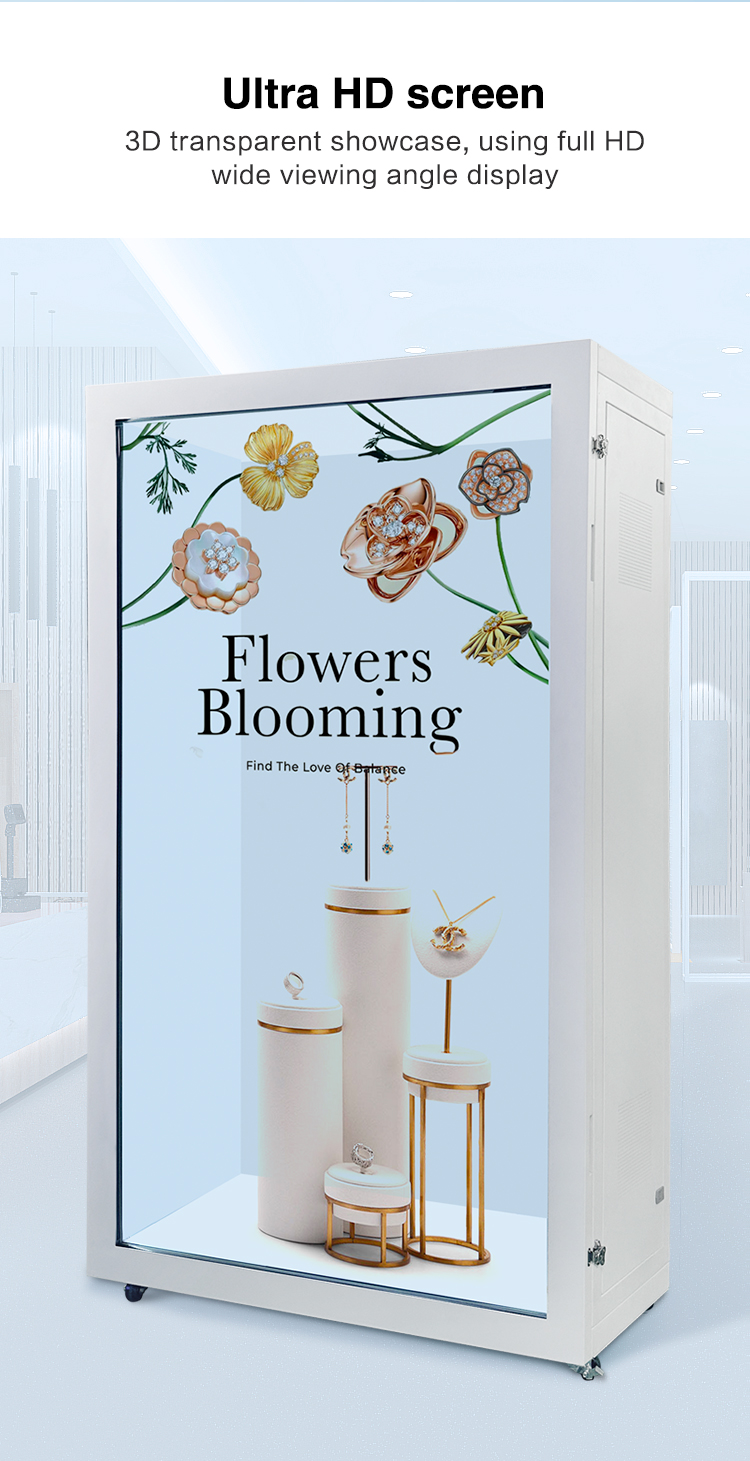

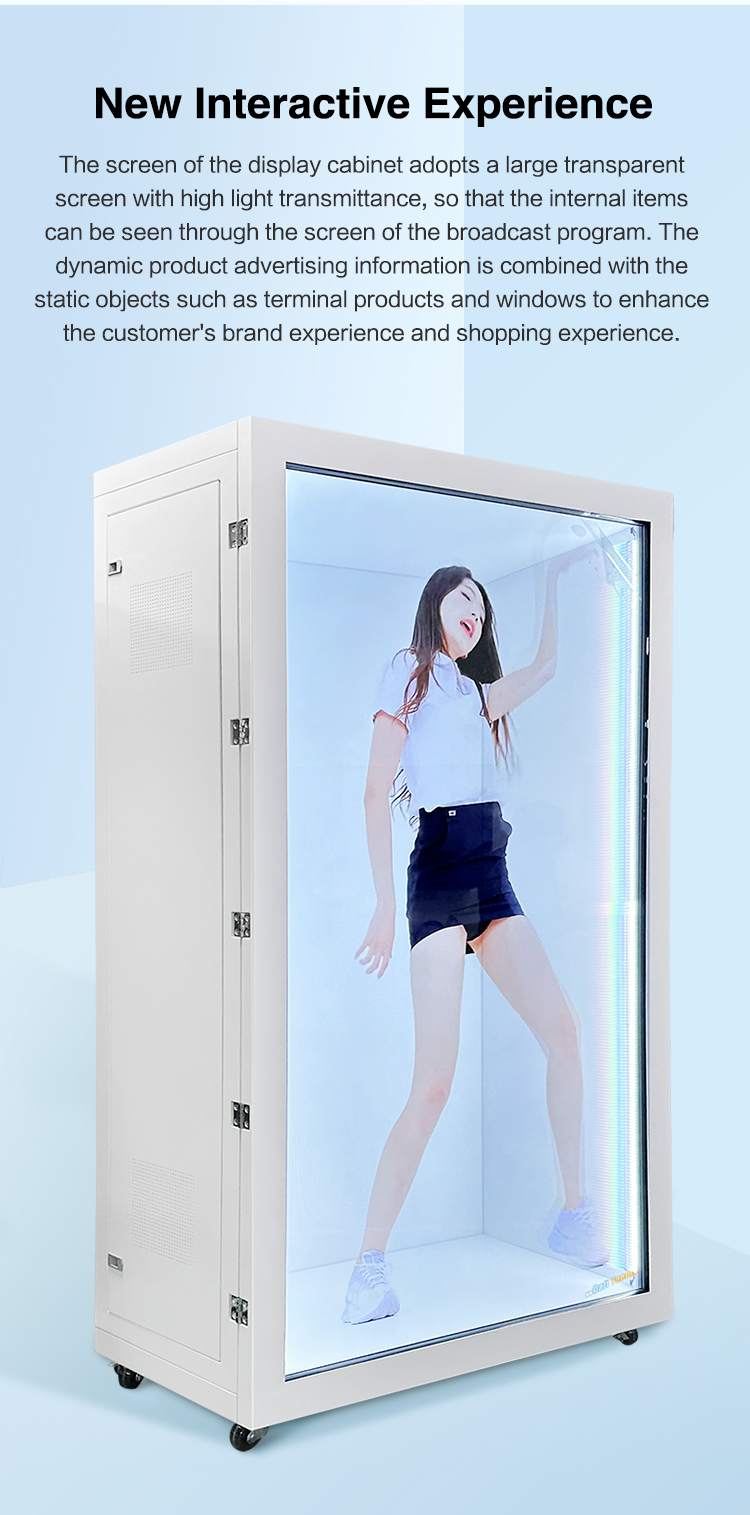

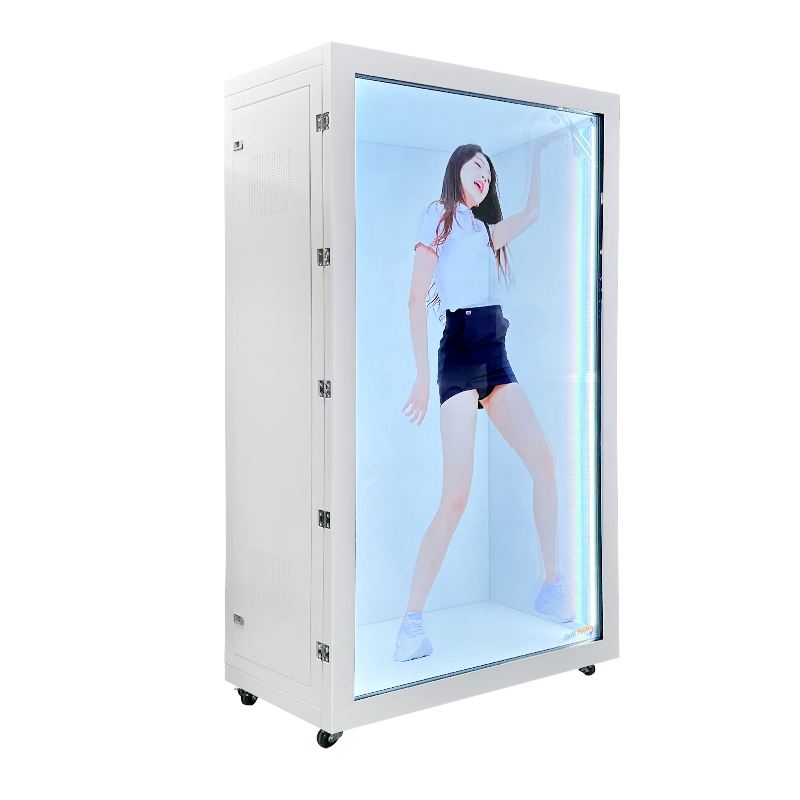

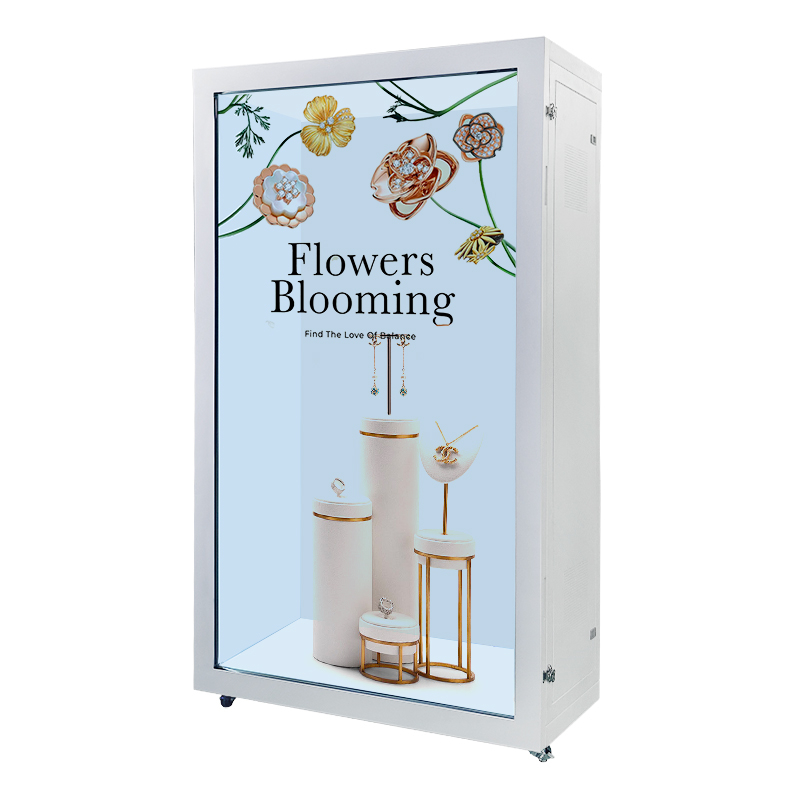

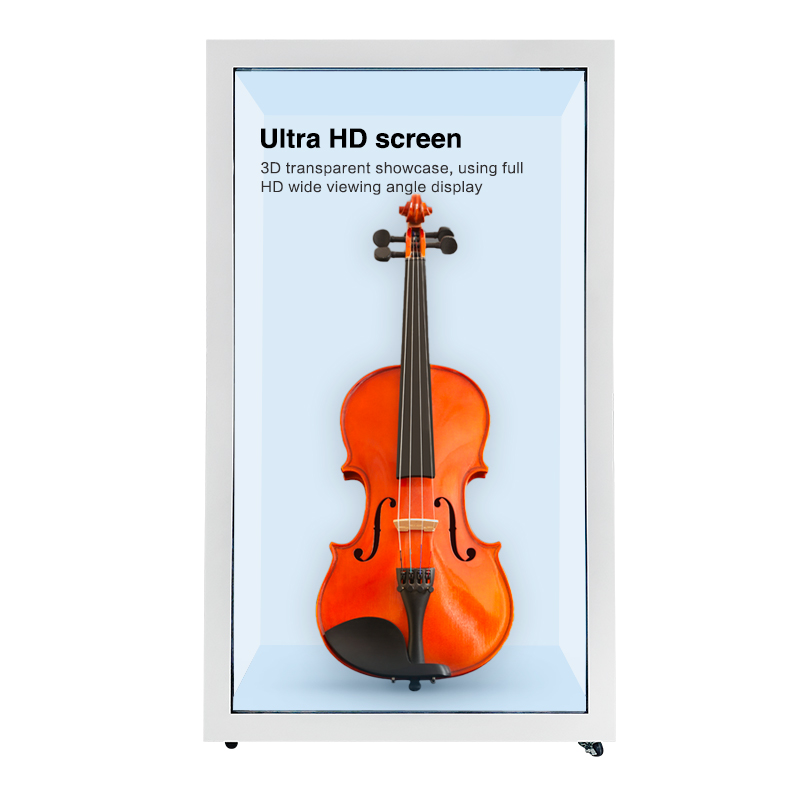

True-to-Life Holographic Projection
21.5" to 98" customizable display sizes (1:1 human-scale available)
4K UHD transparent LCD with 85% transparency ratio
Dual-mode operation: Transparent AR display & Full 3D holographic projection

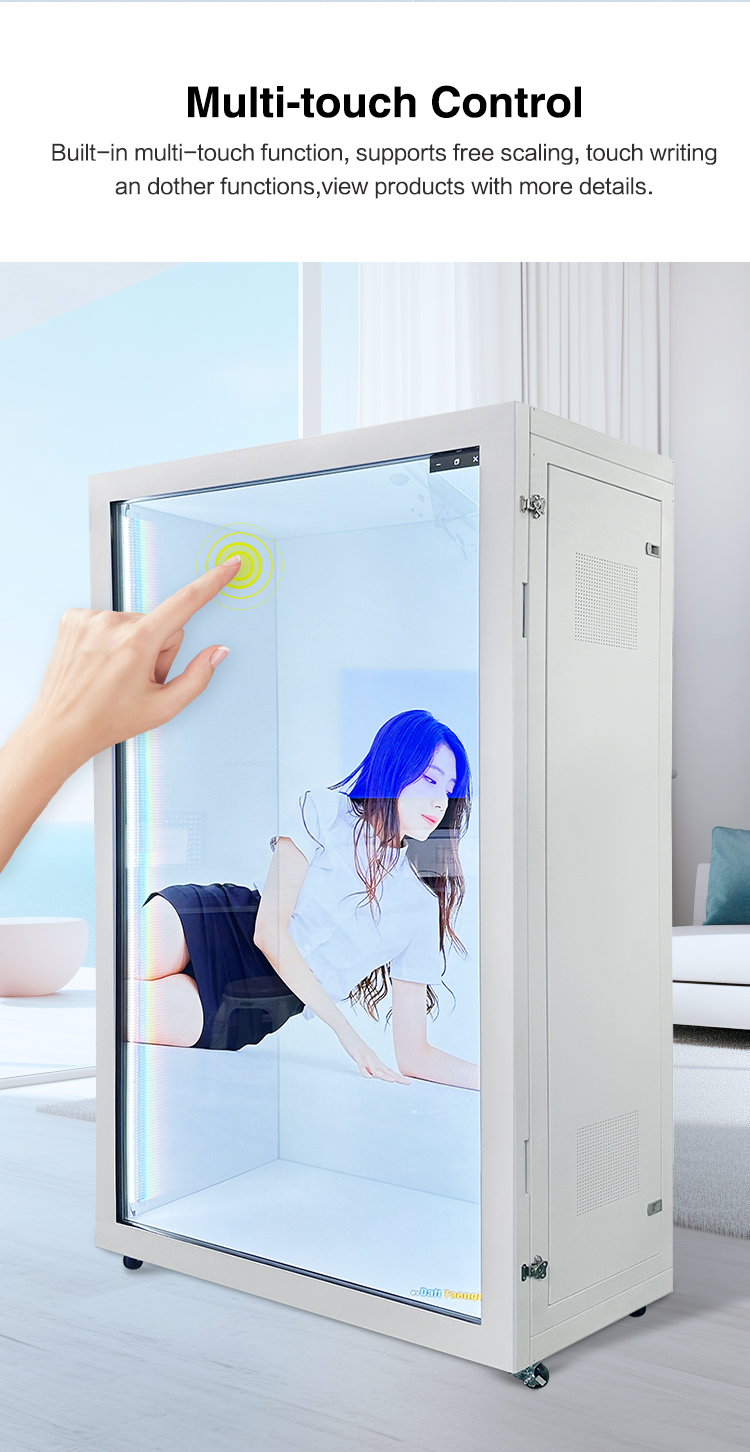

Advanced Interactive Features
Multi-touch infrared frame (up to 40-point simultaneous touch)
Integrated gesture recognition & voice control
AI-powered customer engagement tracking
Smart Connectivity
Built-in WiFi 6/5G for real-time content updates
Cloud-based CMS for remote management
IoT-ready for smart retail integration





True-to-Life Holographic Projection
21.5" to 98" customizable display sizes (1:1 human-scale available)
4K UHD transparent LCD with 85% transparency ratio
Dual-mode operation: Transparent AR display & Full 3D holographic projection
Advanced Interactive Features
Multi-touch infrared frame (up to 40-point simultaneous touch)
Integrated gesture recognition & voice control
AI-powered customer engagement tracking
Smart Connectivity
Built-in WiFi 6/5G for real-time content updates
Cloud-based CMS for remote management
IoT-ready for smart retail integration





| screen panel specification | screen size | 86 inch screen panel | ||||
| lcd brand | LG brand | |||||
| touch technology | 10 points infrared touch | |||||
| resolution | 2160*3840(UHD) | |||||
| Brightness | 450nits | |||||
| Contrast Ratio | 1200:1 | |||||
| Response Time | 8ms | |||||
| Internal Speaker | 18W * 2 | |||||
| Refreshing frequency | 60Hz | |||||
| view angles | 178° horizon, 178 °vertical | |||||
| View area | 1896mm*1067mm | |||||
| Display Colors | 10-bit | |||||
| camera | 4k camera | |||||
| microphone | 8 array microphone | |||||
| Power | Power requirements | 100Vac to 240Vac | ||||
| Power consumption | 480W | |||||
| Standby power | <0.5W | |||||
| Case color | white | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (-10℃ ~ 60℃) | |||||
| Storage Humidity | 0% ~ 95% | |||||
| Operation humidity | (20% ~ 80% ) | |||||
| Housing Material | Aluminum/Sheet-Metal | |||||

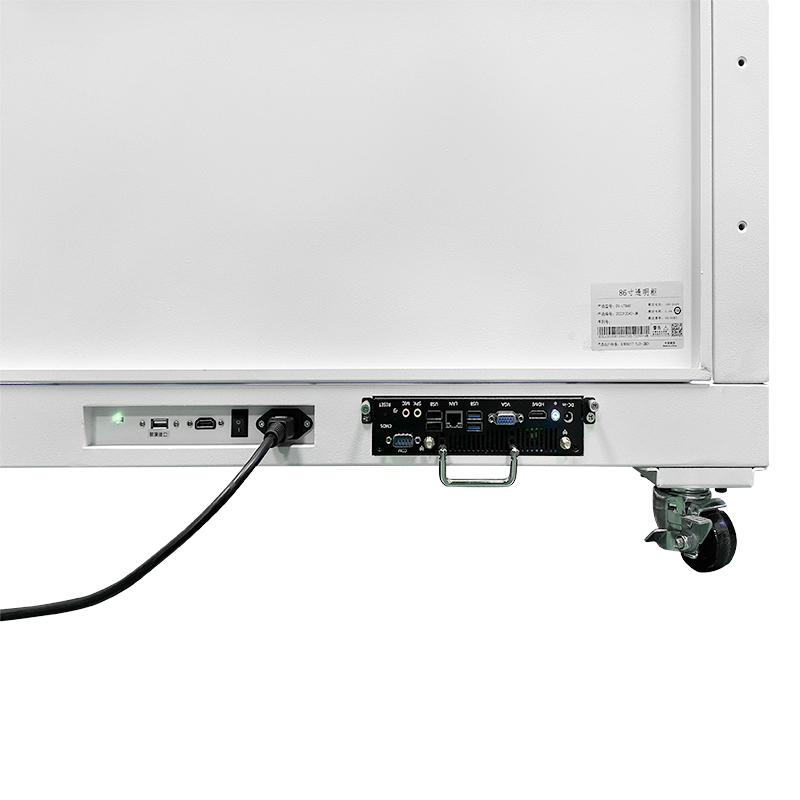

| interface | 1*Power Switch,1*HDMI OUT,1*VGA OUT,1*LAN,2*USB3.0 ,2*USB2.0,1*DC, 1*LINE-OUT,1*MIC-IN,1*RS232,1*RS-232 OUT,1*COM | |||||
| Accessories | Power Cord,Qualified certificate lable,instruction,Warranty card,Heavy Duty wheels*6 | |||||
| screen panel specification | screen size | 86 inch screen panel | ||||
| lcd brand | LG brand | |||||
| touch technology | 10 points infrared touch | |||||
| resolution | 2160*3840(UHD) | |||||
| Brightness | 450nits | |||||
| Contrast Ratio | 1200:1 | |||||
| Response Time | 8ms | |||||
| Internal Speaker | 18W * 2 | |||||
| Refreshing frequency | 60Hz | |||||
| view angles | 178° horizon, 178 °vertical | |||||
| View area | 1896mm*1067mm | |||||
| Display Colors | 10-bit | |||||
| camera | 4k camera | |||||
| microphone | 8 array microphone | |||||
| Power | Power requirements | 100Vac to 240Vac | ||||
| Power consumption | 480W | |||||
| Standby power | <0.5W | |||||
| Case color | white | |||||
| Storage temparature | (-20℃ -- 60 ℃) | |||||
| Operation temparature | (-10℃ ~ 60℃) | |||||
| Storage Humidity | 0% ~ 95% | |||||
| Operation humidity | (20% ~ 80% ) | |||||
| Housing Material | Aluminum/Sheet-Metal | |||||
| interface | 1*Power Switch,1*HDMI OUT,1*VGA OUT,1*LAN,2*USB3.0 ,2*USB2.0,1*DC, 1*LINE-OUT,1*MIC-IN,1*RS232,1*RS-232 OUT,1*COM | |||||
| Accessories | Power Cord,Qualified certificate lable,instruction,Warranty card,Heavy Duty wheels*6 | |||||

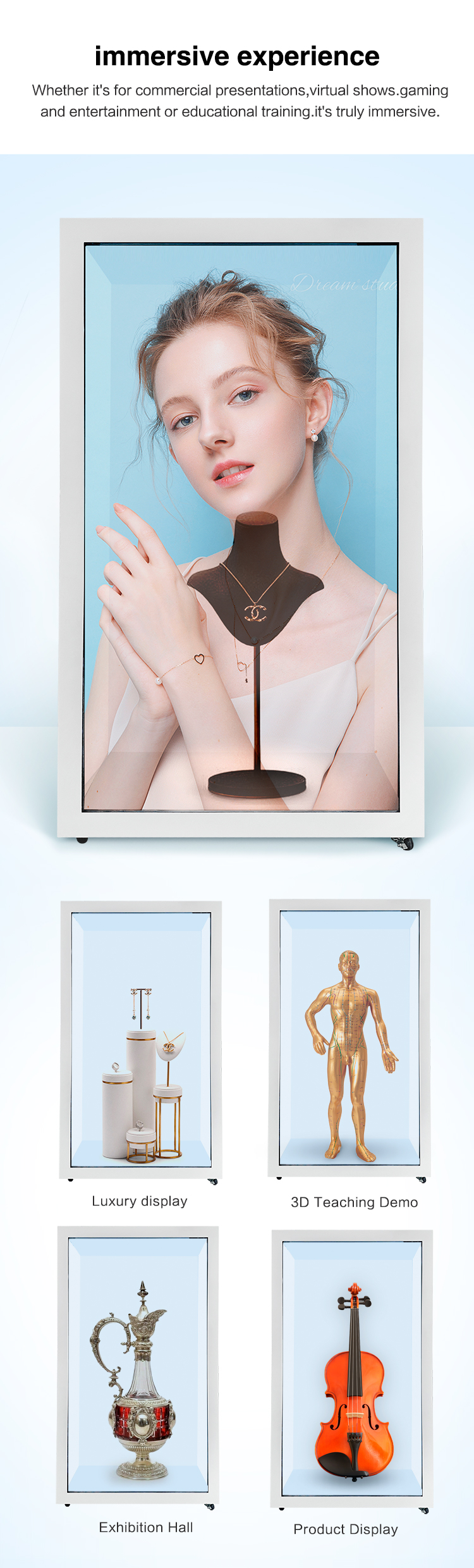

Virtual Try-On Stations: Allow customers to "try" watches/jewelry digitally via AR overlays
Interactive Product Showcases: 3D product rotations with touchscreen specifications
Window Displays: Eye-catching transparent ads visible from both sides of storefronts
Holographic Navigation: Floating 3D maps with touch-enabled directions
Digital Concierge: Life-size AI assistants providing facility information
Premium Ads: Glasses-free3D brand promotions in high-traffic areas
Artifact Resurrection: Transparent displays overlay historical context on real artifacts
Interactive Timelines: Swipe through eras with life-size historical figure projections
Gift Shop Displays: 3D merchandise previews that respond to hand gestures
Car Configurators: Walk around transparent 3D models to customize vehicles
Property Tours: See through "virtual walls" to explore room layouts at 1:1 scale- Showroom Windows: Display rotating products 24/7 with weather-resistant models
Holographic Receptionists: Multilingual check-in assistants at hotels
Wedding Projections: Floating 3D animations integrated with banquet decor
Convention Booths: Attention-grabbing transparent displays for product demos
Medical Training: Transparent 3D anatomy models with layer-by-layer exploration
Science Museums: Interactive physics/chemistry experiments visualized in mid-air
Pharmacy Displays: Show medicine mechanisms via3D animations### 7. Transportation Hubs
Smart Train Windows: Show travel info/ads while maintaining outside visibility
Airport Lounges: Flight status boards with floating 3D departure gates
Bus Stop Shelters: Interactive transparent timetables with local ads
Virtual Try-On Stations: Allow customers to "try" watches/jewelry digitally via AR overlays
Interactive Product Showcases: 3D product rotations with touchscreen specifications
Window Displays: Eye-catching transparent ads visible from both sides of storefronts
Holographic Navigation: Floating 3D maps with touch-enabled directions
Digital Concierge: Life-size AI assistants providing facility information
Premium Ads: Glasses-free3D brand promotions in high-traffic areas
Artifact Resurrection: Transparent displays overlay historical context on real artifacts
Interactive Timelines: Swipe through eras with life-size historical figure projections
Gift Shop Displays: 3D merchandise previews that respond to hand gestures
Car Configurators: Walk around transparent 3D models to customize vehicles
Property Tours: See through "virtual walls" to explore room layouts at 1:1 scale- Showroom Windows: Display rotating products 24/7 with weather-resistant models
Holographic Receptionists: Multilingual check-in assistants at hotels
Wedding Projections: Floating 3D animations integrated with banquet decor
Convention Booths: Attention-grabbing transparent displays for product demos
Medical Training: Transparent 3D anatomy models with layer-by-layer exploration
Science Museums: Interactive physics/chemistry experiments visualized in mid-air
Pharmacy Displays: Show medicine mechanisms via3D animations### 7. Transportation Hubs
Smart Train Windows: Show travel info/ads while maintaining outside visibility
Airport Lounges: Flight status boards with floating 3D departure gates
Bus Stop Shelters: Interactive transparent timetables with local ads
1. Q: What is the working principle of this transparent display?
A: Our display utilizes a high-brightness LCD panel combined with a special optical film and reflective principle. It projects vibrant images onto a transparent screen, creating the stunning effect of HD graphics and videos floating in mid-air while allowing you to see through the unit.
2. Q: What sizes are available for this display?
A: We offer a versatile range of sizes to suit different needs, from compact 21.5-inch models to large, immersive 98-inch human-scale displays. Please contact us for the full list of available sizes.
3. Q: Is this a true hologram?
A: This is a high-end transparent 3D effect display, often referred to as a "hologram-like" or "pepper's ghost" effect cabinet. It creates compelling 3D visuals that do not require special glasses, making it a highly effective and practical solution for captivating an audience.
4. Q: How do I update the content on the display?
A: Updating content is simple and flexible. Thanks to the built-in Wi-Fi, you can upload new images, videos, or interactive applications remotely via a network connection or use a local USB drive.
5. Q: What kind of content works best on this display?
A: High-resolution videos (MP4, AVI), dynamic images (JPEG, PNG), and specially designed interactive HTML5 applications yield the best results. Content with solid colors and clear contrasts appears particularly vivid on the transparent screen.
6. Q: Can users really touch and interact with the floating images?
A: Yes! The cabinet is equipped with a precise infrared touch frame. Users can directly touch the glass surface to interact with the content, such as browsing product information, playing videos, or navigating menus, making the experience fully interactive.
7. Q: Is this an all-in-one unit, or do I need to purchase additional components?
A: It is a complete, all-in-one cabinet solution. The system includes the display panel, optical glass, touch screen interface, media player, and built-in speakers. You simply need to plug it in and load your content.
8. Q: Where is this display typically used?
A: It is perfect for high-impact applications such as retail showcases, brand experience centers, museum and gallery exhibits, trade show booths, corporate lobbies, and innovative window displays.
9. Q: What are the operating system and software requirements?
A: The display typically runs on an embedded Android system or a dedicated media player, requiring no specific PC or software. You can manage content through a user-friendly web-based interface or compatible content management software.
10. Q: What are the power requirements?
A: The unit is designed for standard commercial and residential use. It typically operates on 100-240V AC, with power consumption varying depending on the screen size. Please check the product specifications for your chosen model.
1. Q: What is the working principle of this transparent display?
A: Our display utilizes a high-brightness LCD panel combined with a special optical film and reflective principle. It projects vibrant images onto a transparent screen, creating the stunning effect of HD graphics and videos floating in mid-air while allowing you to see through the unit.
2. Q: What sizes are available for this display?
A: We offer a versatile range of sizes to suit different needs, from compact 21.5-inch models to large, immersive 98-inch human-scale displays. Please contact us for the full list of available sizes.
3. Q: Is this a true hologram?
A: This is a high-end transparent 3D effect display, often referred to as a "hologram-like" or "pepper's ghost" effect cabinet. It creates compelling 3D visuals that do not require special glasses, making it a highly effective and practical solution for captivating an audience.
4. Q: How do I update the content on the display?
A: Updating content is simple and flexible. Thanks to the built-in Wi-Fi, you can upload new images, videos, or interactive applications remotely via a network connection or use a local USB drive.
5. Q: What kind of content works best on this display?
A: High-resolution videos (MP4, AVI), dynamic images (JPEG, PNG), and specially designed interactive HTML5 applications yield the best results. Content with solid colors and clear contrasts appears particularly vivid on the transparent screen.
6. Q: Can users really touch and interact with the floating images?
A: Yes! The cabinet is equipped with a precise infrared touch frame. Users can directly touch the glass surface to interact with the content, such as browsing product information, playing videos, or navigating menus, making the experience fully interactive.
7. Q: Is this an all-in-one unit, or do I need to purchase additional components?
A: It is a complete, all-in-one cabinet solution. The system includes the display panel, optical glass, touch screen interface, media player, and built-in speakers. You simply need to plug it in and load your content.
8. Q: Where is this display typically used?
A: It is perfect for high-impact applications such as retail showcases, brand experience centers, museum and gallery exhibits, trade show booths, corporate lobbies, and innovative window displays.
9. Q: What are the operating system and software requirements?
A: The display typically runs on an embedded Android system or a dedicated media player, requiring no specific PC or software. You can manage content through a user-friendly web-based interface or compatible content management software.
10. Q: What are the power requirements?
A: The unit is designed for standard commercial and residential use. It typically operates on 100-240V AC, with power consumption varying depending on the screen size. Please check the product specifications for your chosen model.
